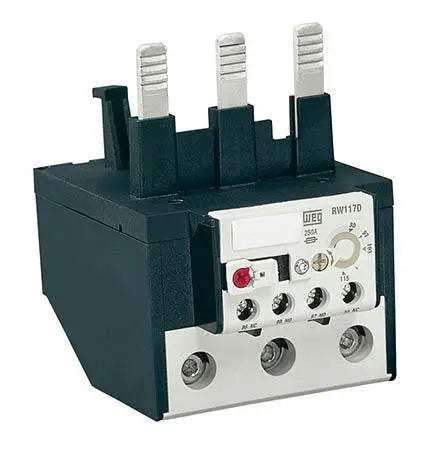

WEG RW117 3-Pole Thermal Overload Relay — Class 10, Adjustable, for CWM95–CWM105 Contactors
The WEG RW117-1D3 is a 3-pole, Class 10 bi-metallic thermal overload relay that protects three-phase motors against overload and phase-failure conditions. It direct-mounts onto WEG CWM95–CWM105 contactors (or onto a separate base) to build a compact, reliable motor starter. Each version offers an adjustable current setting range, so you can dial in protection to match your motor's full-load amps.
Key specifications
- Brand: WEG — RW117-1D3 series
- Type: Bi-metallic thermal overload relay
- Poles: 3-pole
- Trip class: Class 10
- Adjustable current ranges: 63–80 A, 75–97 A, or 90–112 A (select below)
- Auxiliary contacts: 1 N/O + 1 N/C (isolated)
- Phase-failure / phase-loss and unbalance sensitivity protection
- Selectable Manual / Auto reset with TEST function
- Ambient temperature compensation: -13°F to +140°F
- Standards: IEC 60947-1, IEC 60947-4-1, UL 508
- Mounting: direct-mount to WEG CWM95–CWM105 contactors, or separate base
Typical applications
Used in across-the-line (DOL) motor starters for air compressors, pumps, fans, blowers, conveyors, and other industrial three-phase motor loads where overload and phase-loss protection are required.
The WEG RW117 3-pole Class 10 thermal overload relay combines adjustable current settings, phase-loss protection, and integrated auxiliary contacts in a contactor-mounting package — a dependable choice for protecting motors paired with WEG CWM95–CWM105 contactors.
NOTE: Actual product may be different from pictured!
