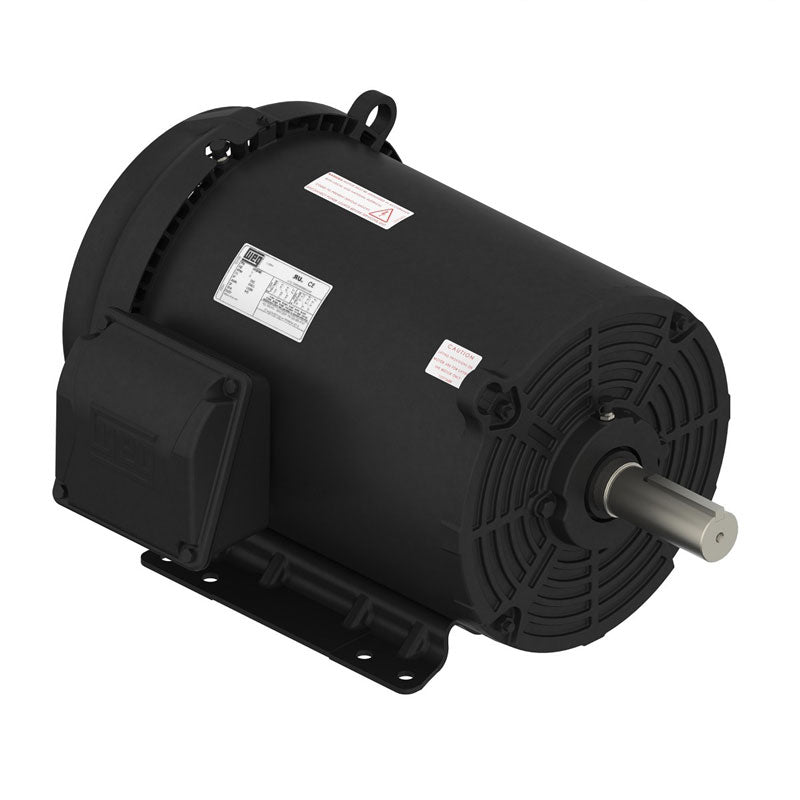

WEG Rolled Steel NEMA Premium Efficiency 20 HP Motor 4P 60 Hz IC411 - TEFC - Foot-Mounted
| Specifications (As Configured) | |
|---|---|
 Vendor |
WEG
|
 SKU |
02018ET3E256T-S
|
 Horsepower |
|
 Frame SizeThis is the Bolt Pattern for the Motor. Found on the Motor Data Plate.
|
256T
|
 Voltage |
|
 Phase |
|
 Amps |
|
| Dimensions | |
 Weight |
260.0 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
The WEG 20 HP is a NEMA Premium efficiency rolled-steel motor for heavy compressor and industrial duty. This 4-pole, 1765 RPM TEFC (IC411) foot-mounted motor is wired for 230/460V with a 256T frame and 1.15 service factor.
Key specifications
- Frame: 256T
- RPM: 1765
- Shaft diameter: 1-5/8 in
- Full load amps: 49.4/24.7
- Voltage: 230/460
- Service factor: 1.15
- Enclosure: TEFC (IC411), foot-mounted
Need help finding a replacement motor? Email or text us a photo of the data plate of the motor you are replacing. If the nameplate is not available, send us the HP, frame size, RPM, phase, voltage, enclosure type (ODP or TEFC), shaft diameter, and service factor so we can size it correctly. Always verify incoming voltage before ordering.
NOTE: Actual product may be different from pictured!
