Save 35%

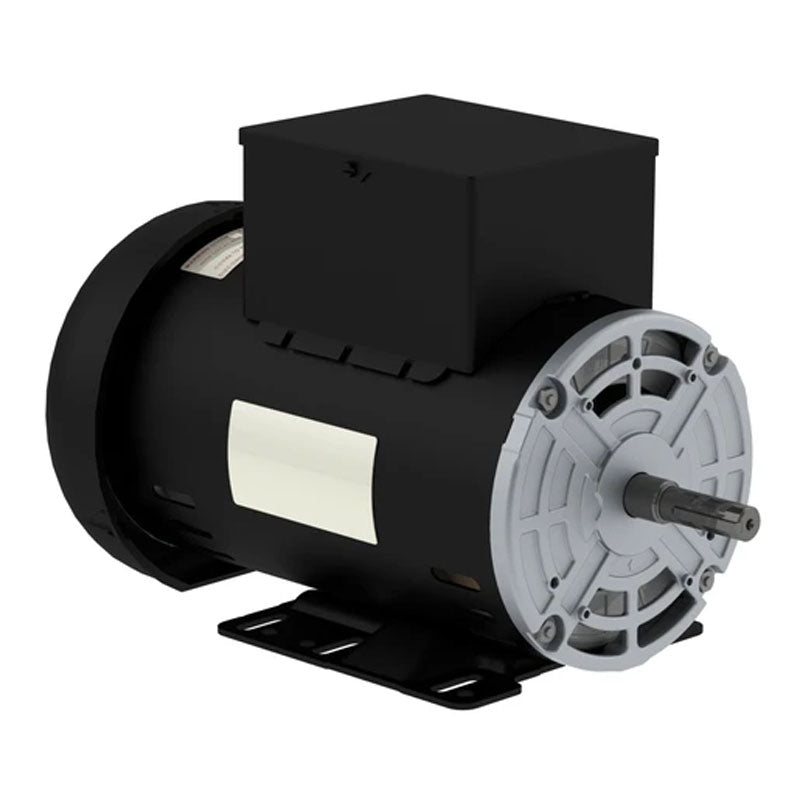

Weg Rolled Steel Compressor Duty Motor 5 HP 2P 56H 1Ph 230 V 60 Hz - Foot-mounted
Weg Rolled Steel Compressor Duty Motor 5 HP 2P 56H 1Ph 230 V 60 Hz - Foot-mounted
Regular price
$395.00
Sale price
$395.00
Regular price
$609.00
Shipping calculated at checkout.
| Specifications (As Configured) | |
|---|---|
 Vendor |
WEG
|
 SKU |
00536OS1DCD56H-S
|
 Horsepower |
|
 Frame SizeThis is the Bolt Pattern for the Motor. Found on the Motor Data Plate.
|
56H
|
 Voltage |
|
 Phase |
|
 Amps |
|
| Dimensions | |
 Weight |
55.0 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
Replaces the North American Motors D56H5S2C-MO
NEED HELP FINDING A REPLACEMENT MOTOR? EMAIL OR TEXT US A PICTURE OF THE DATA PLATE OF THE MOTOR YOU ARE REPLACING. IF THE NAMEPLATE IS NOT AVAILABLE, PLEASE LET US KNOW THE FOLLOWING CRITERIA SO WE CAN PROPERLY SIZE THE MOTOR YOU NEED.
- HP - FRAME SIZE - RPM - PHASE - VOLTAGE - ENCLOSURE TYPE(ODP OR TEFC) - SHAFT DIAMETER - SERVICE FACTOR
PLEASE NOTE: NEVER ASSUME THE INCOMING VOLTAGE. ALWAYS CHECK INCOMING VOLTAGE BEFORE ORDERING A REPLACEMENT MOTOR.
Frame: 56H
RPM: 3440
Shaft Diameter: 5/8
Full Load Amp: 20.3
Voltage: 230
Service Factor: 1.00
Engineers Note: WEG's old part number for this motor is 00536os1dcd56h-s. The ONLY difference is... the older version had undersized capacitors so motors were failing quite frequently. The new version has larger capacitors, hence the enormous box on top. It also has a newly designed centrifugal switch and rated 20.3 FLA instead of 19.0 FLA
NEED HELP FINDING A REPLACEMENT MOTOR? EMAIL OR TEXT US A PICTURE OF THE DATA PLATE OF THE MOTOR YOU ARE REPLACING. IF THE NAMEPLATE IS NOT AVAILABLE, PLEASE LET US KNOW THE FOLLOWING CRITERIA SO WE CAN PROPERLY SIZE THE MOTOR YOU NEED.
- HP - FRAME SIZE - RPM - PHASE - VOLTAGE - ENCLOSURE TYPE(ODP OR TEFC) - SHAFT DIAMETER - SERVICE FACTOR
PLEASE NOTE: NEVER ASSUME THE INCOMING VOLTAGE. ALWAYS CHECK INCOMING VOLTAGE BEFORE ORDERING A REPLACEMENT MOTOR.
Frame: 56H
RPM: 3440
Shaft Diameter: 5/8
Full Load Amp: 20.3
Voltage: 230
Service Factor: 1.00
Engineers Note: WEG's old part number for this motor is 00536os1dcd56h-s. The ONLY difference is... the older version had undersized capacitors so motors were failing quite frequently. The new version has larger capacitors, hence the enormous box on top. It also has a newly designed centrifugal switch and rated 20.3 FLA instead of 19.0 FLA
NOTE: Actual product may be different from pictured!
