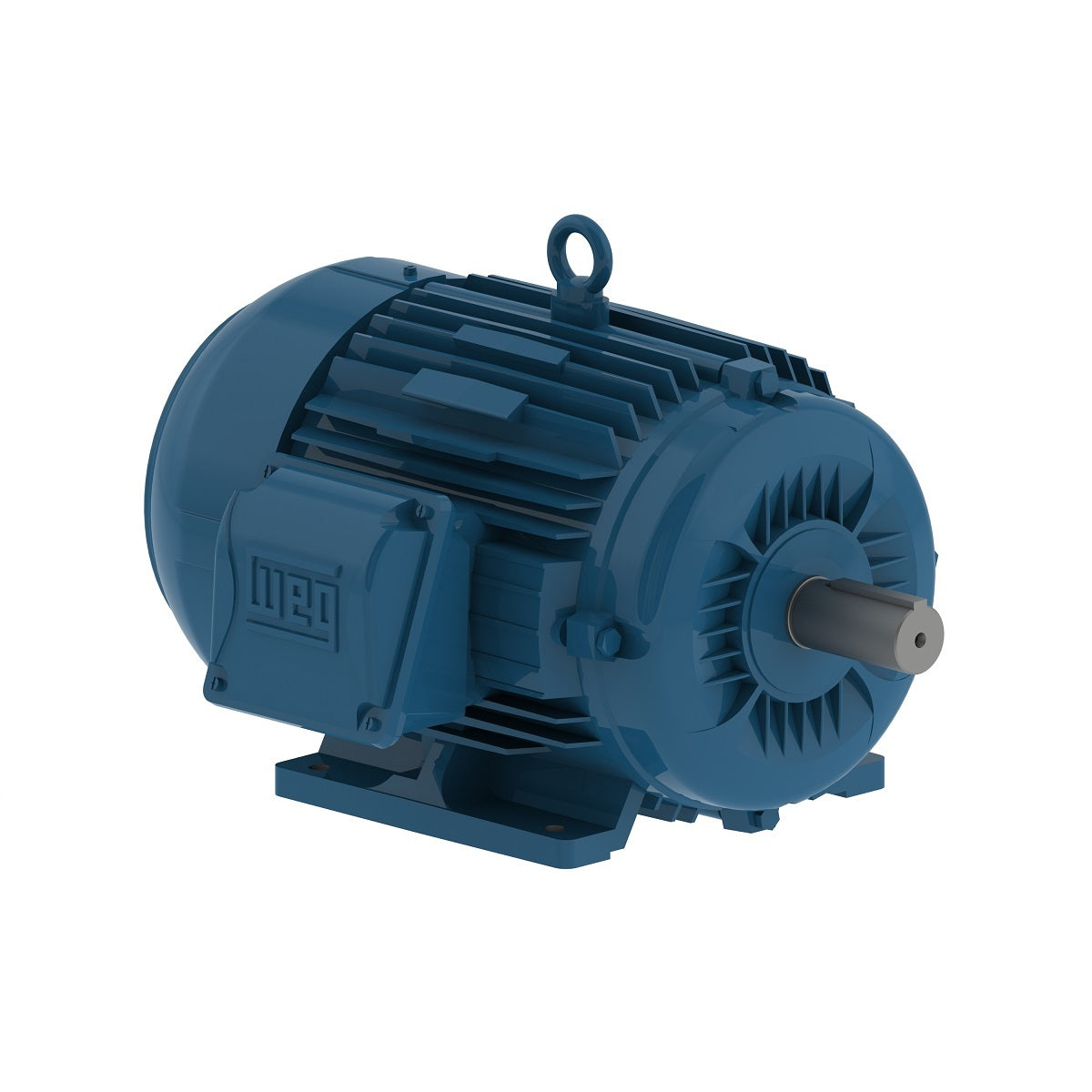

WEG 20 HP 3-Phase TEFC Motor — 256T Frame, 1770 RPM
The WEG W22 is a 20 HP, 4-pole three-phase TEFC motor built on a rugged FC-200 cast-iron 256T frame and rated for 1770 RPM. With NEMA Premium (IE3) efficiency, a true IP55 enclosure and Class F insulation, it's a dependable workhorse for continuous industrial duty. It is offered in both 230/460V and 200-208V so you can match it to your incoming power.
Key specifications
- Horsepower: 20 HP
- Speed: 1770 RPM (4-pole)
- Frame: 256T (NEMA T-frame, foot-mounted / rigid base)
- Enclosure: TEFC (IC411), IP55 rated
- Voltage: 230/460V and 200-208V, 3-Phase, 60 Hz
- Efficiency: NEMA Premium (IE3)
- Frame material: FC-200 cast iron with solid feet
- Insulation / Service factor: Class F, 1.15 service factor
- Standard: NEMA MG-1
Typical applications
Ideal for air compressors, pumps, fans and blowers, conveyors, machine tools and general industrial equipment where a robust, premium-efficiency three-phase motor is required.
Backed by the WEG W22 platform's cast-iron construction, low vibration and low noise, this 20 HP 256T 1770 RPM TEFC motor delivers reliable performance and long service life in demanding environments.
NOTE: Actual product may be different from pictured!
