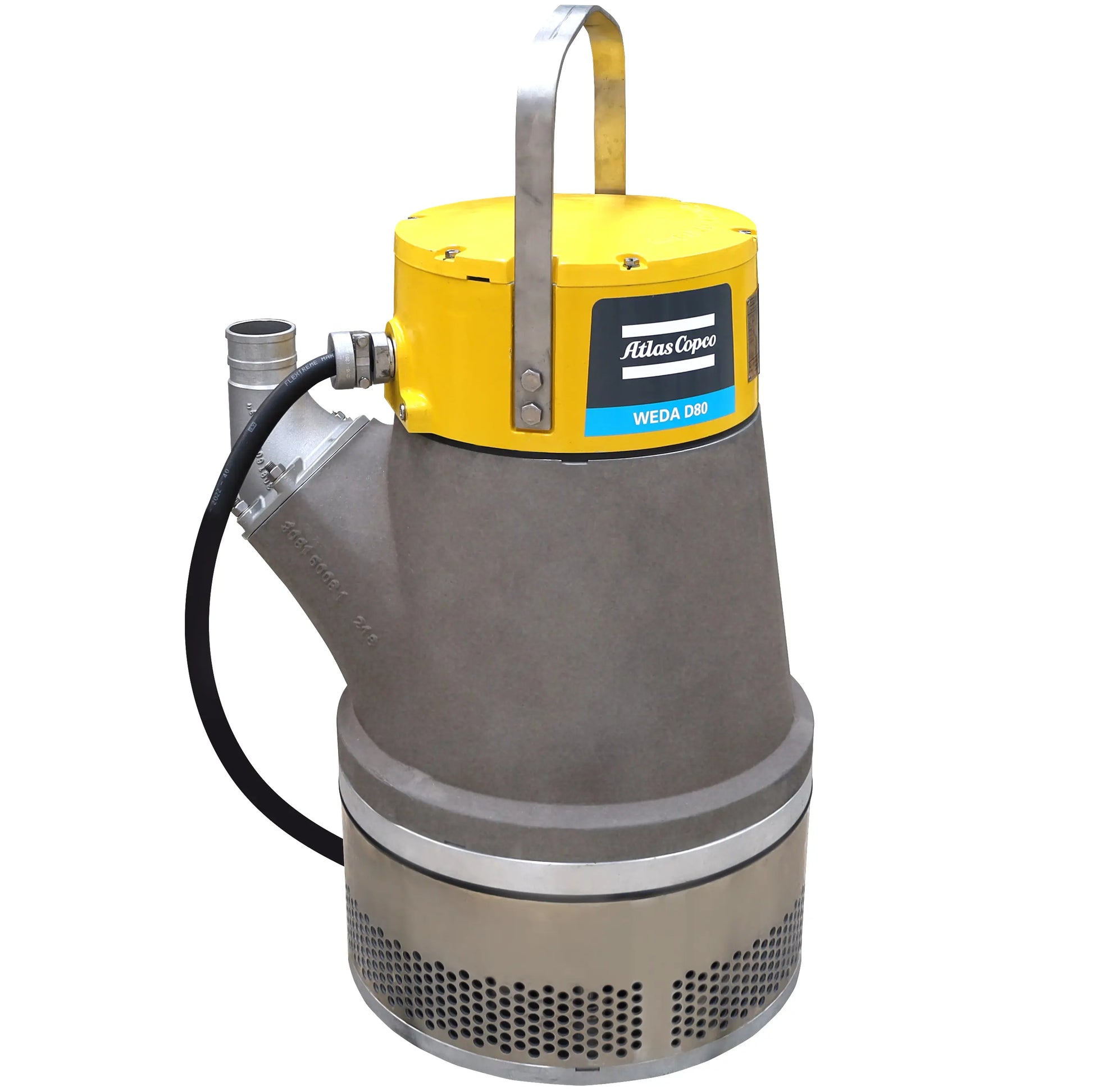

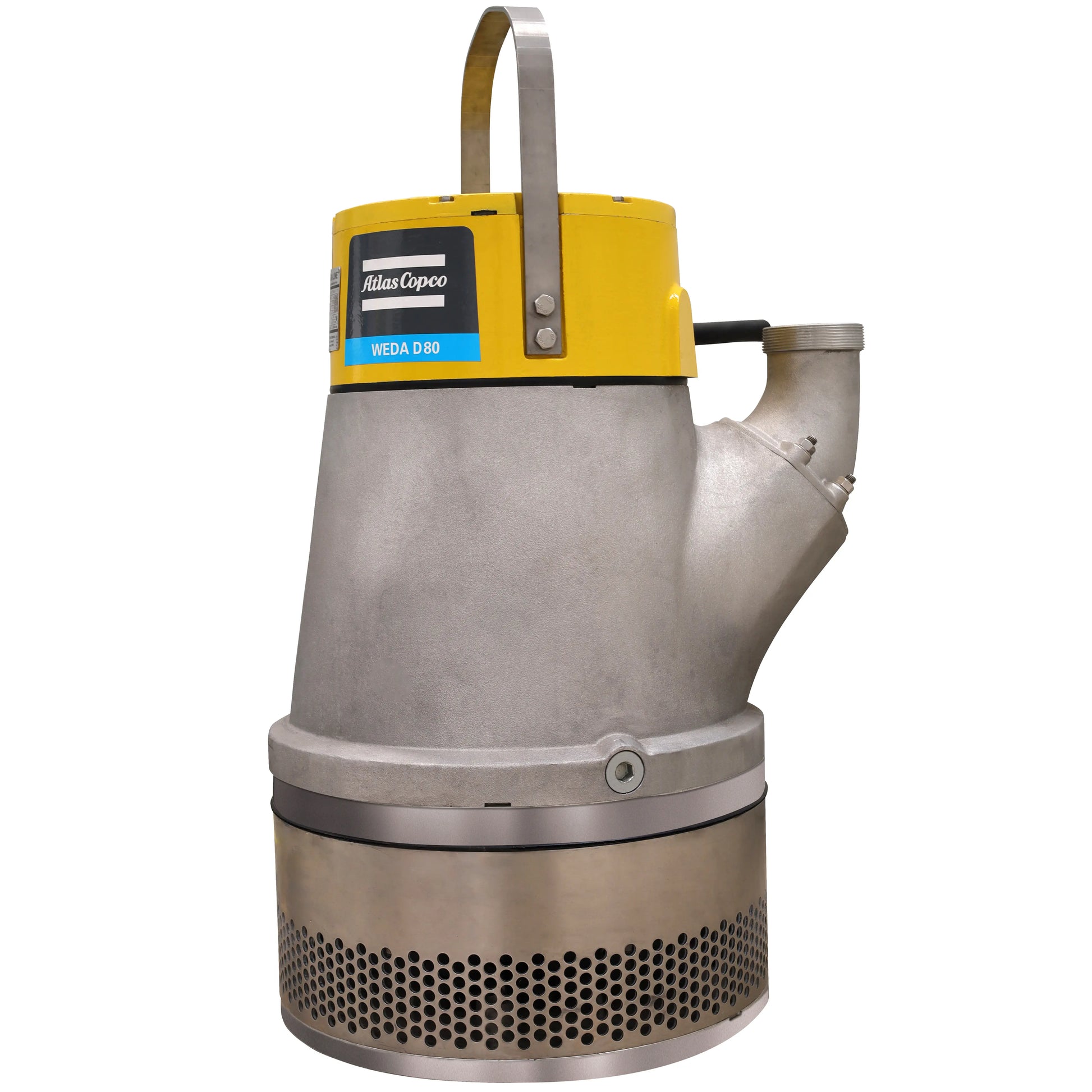

Atlas Copco WEDA D80N | Drainage Submersible Pump — Normal Head, 31 HP, 460V 3-Phase, 6" Discharge
| Specifications (As Configured) | |
|---|---|
 Vendor |
Atlas Copco
|
 SKU |
3081620366
|
 Horsepower |
|
| Dimensions | |
 Weight |
389.0 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
| Downloadable Files | |

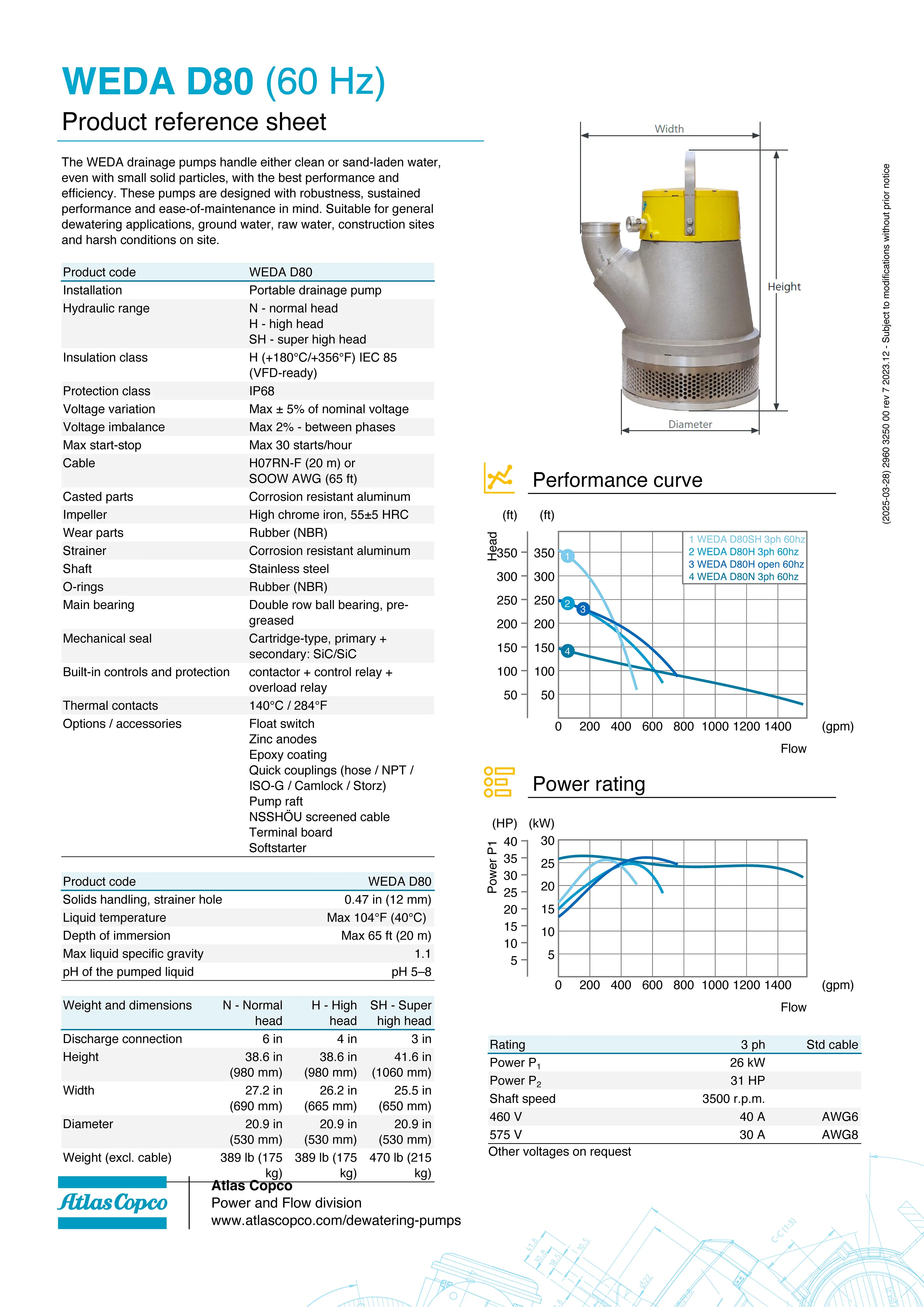

 Brochure PDF |
|

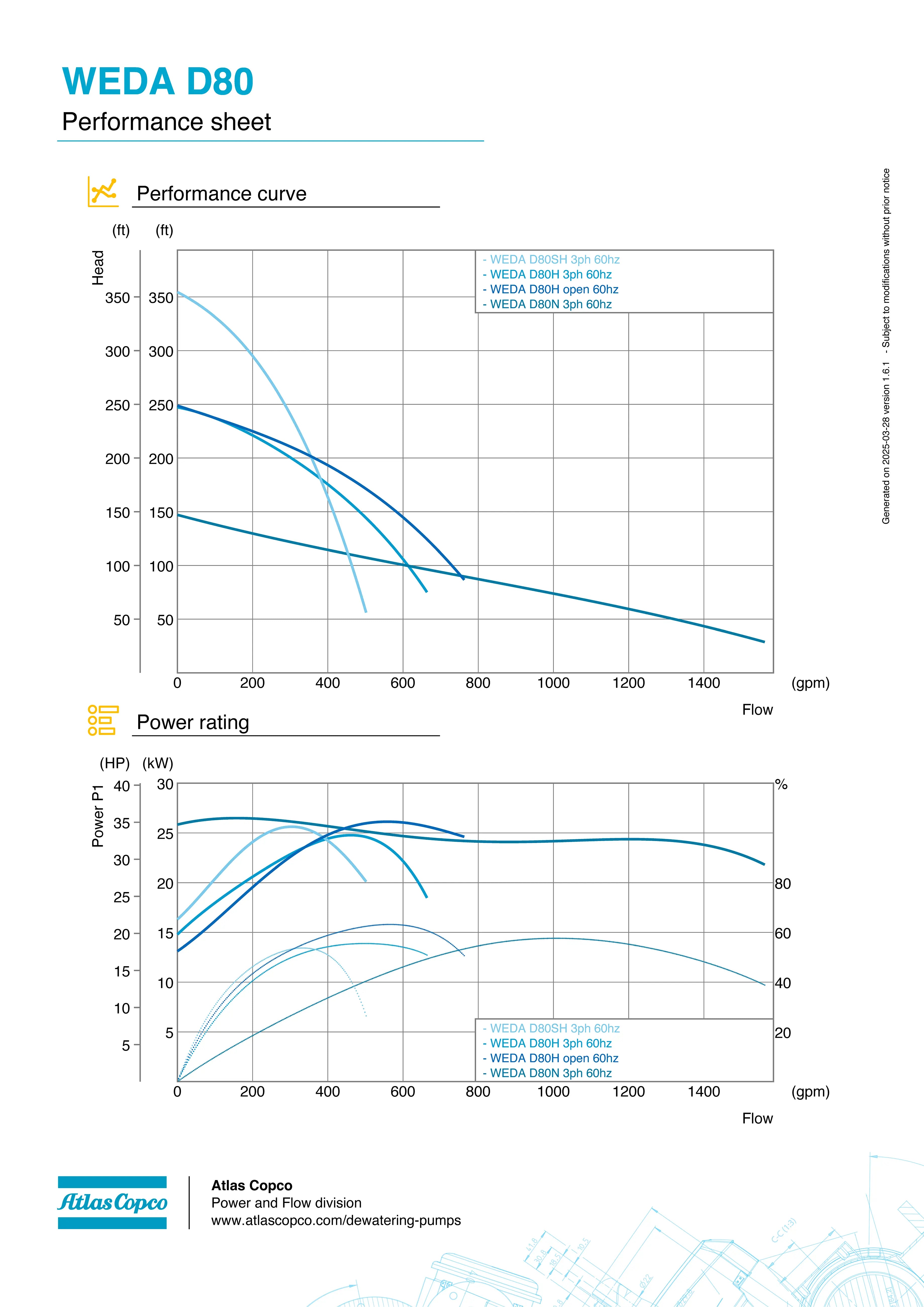

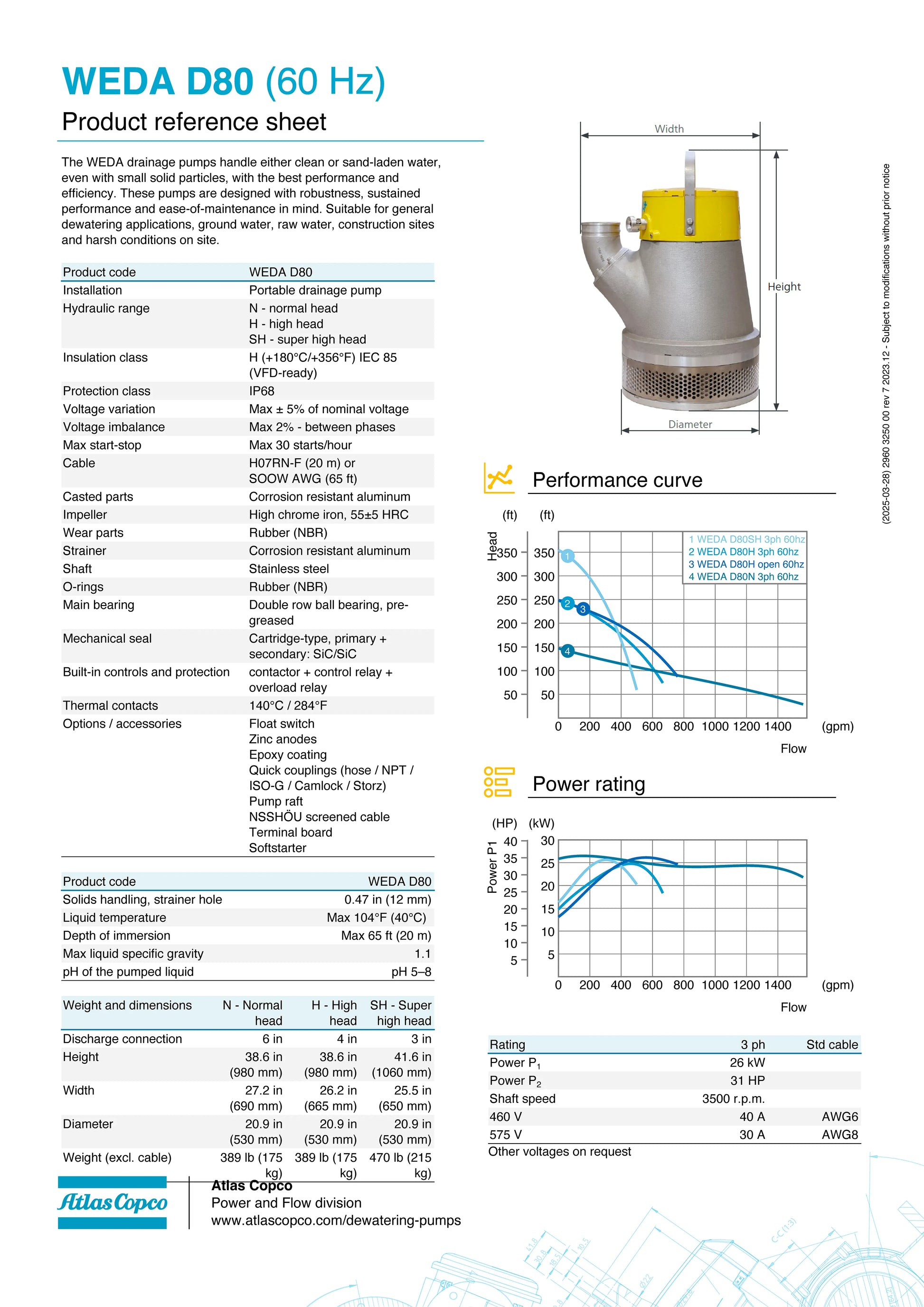

 Technical Data |
|

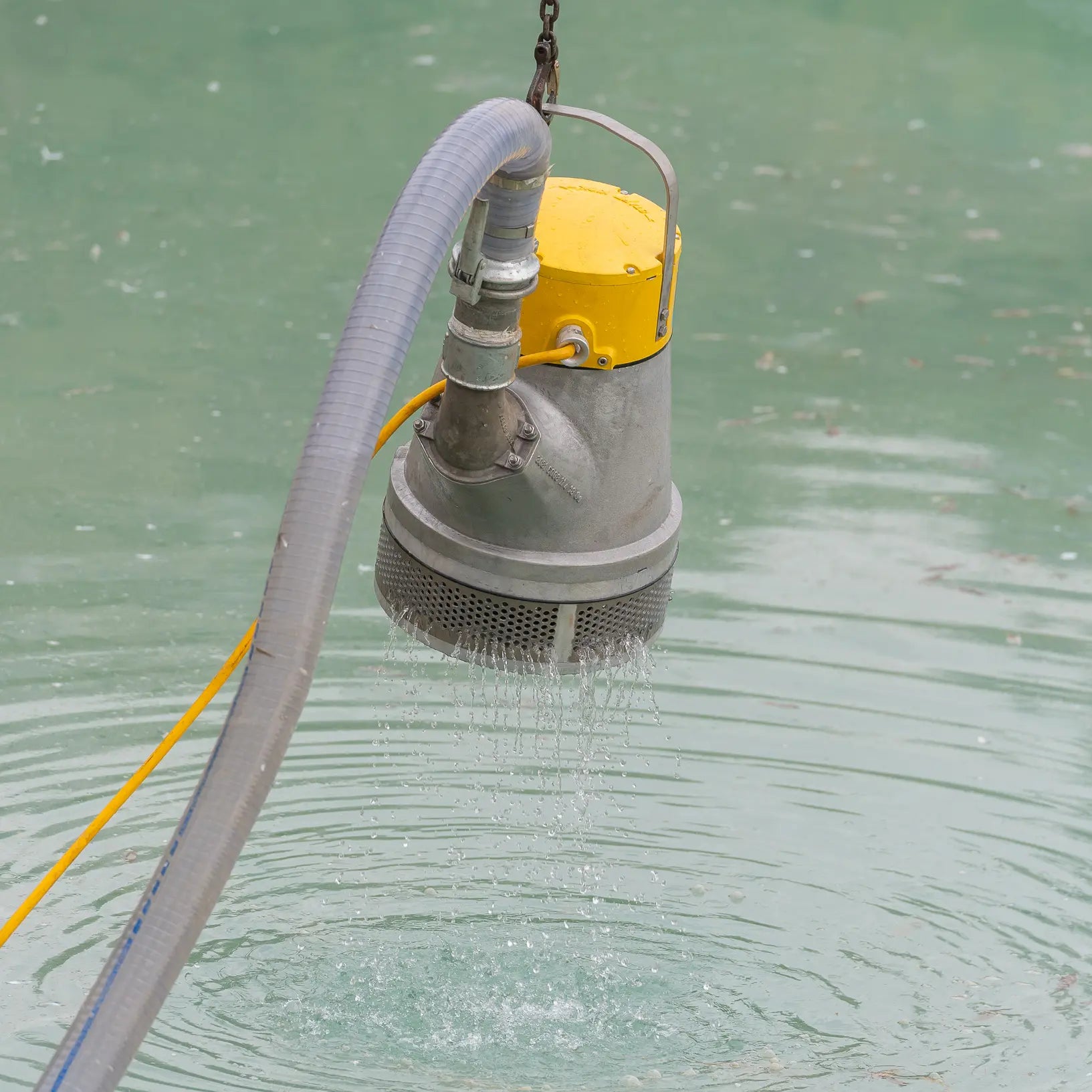

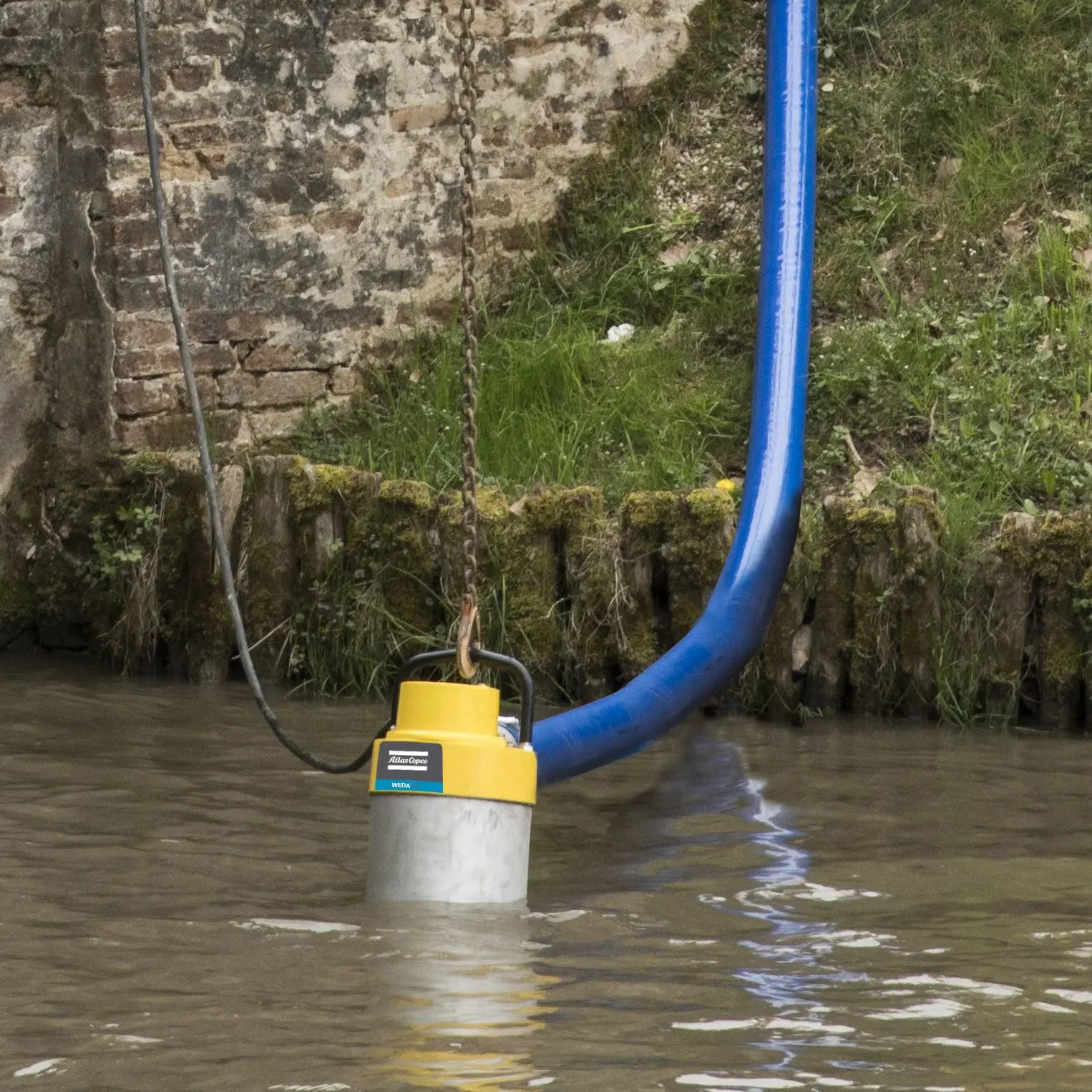

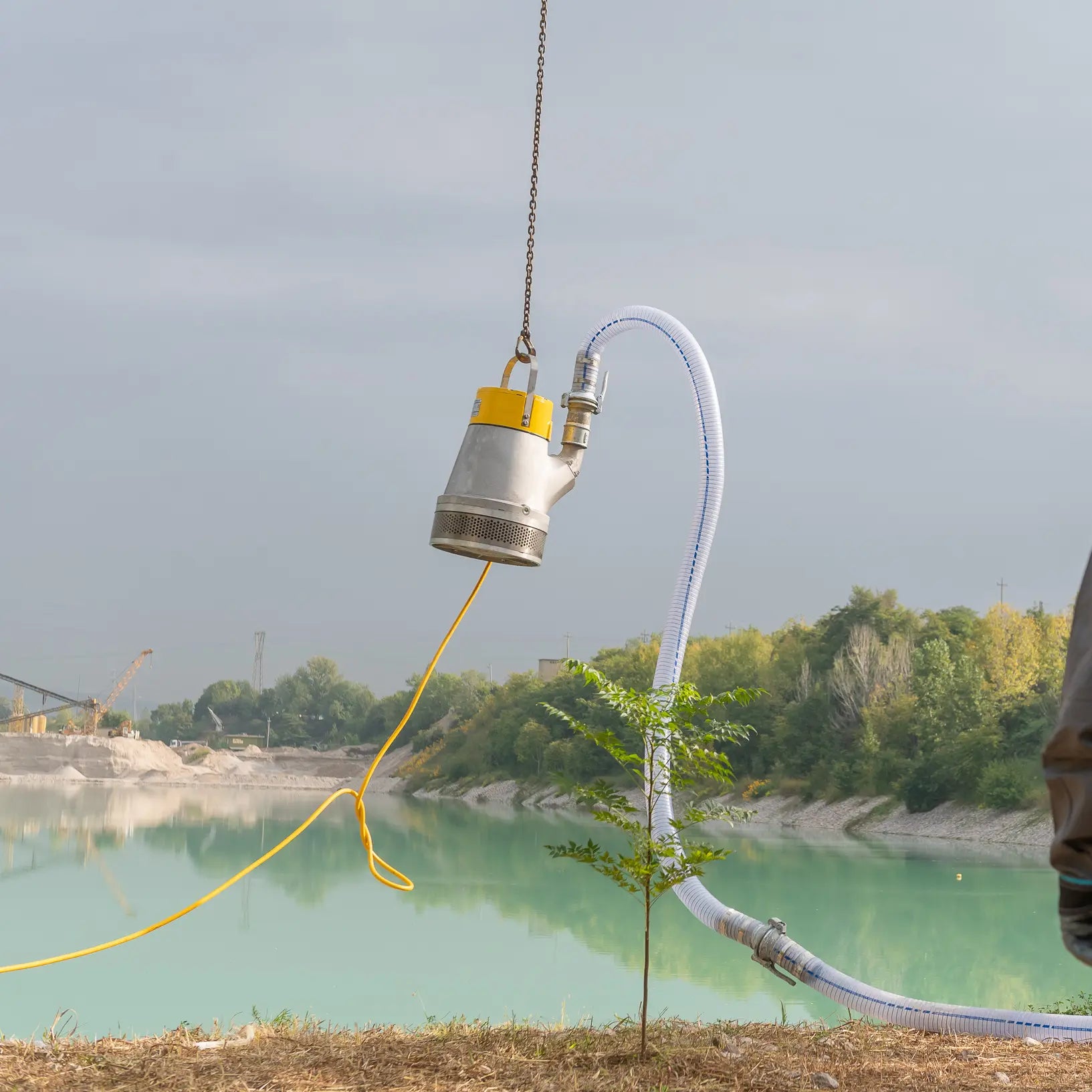

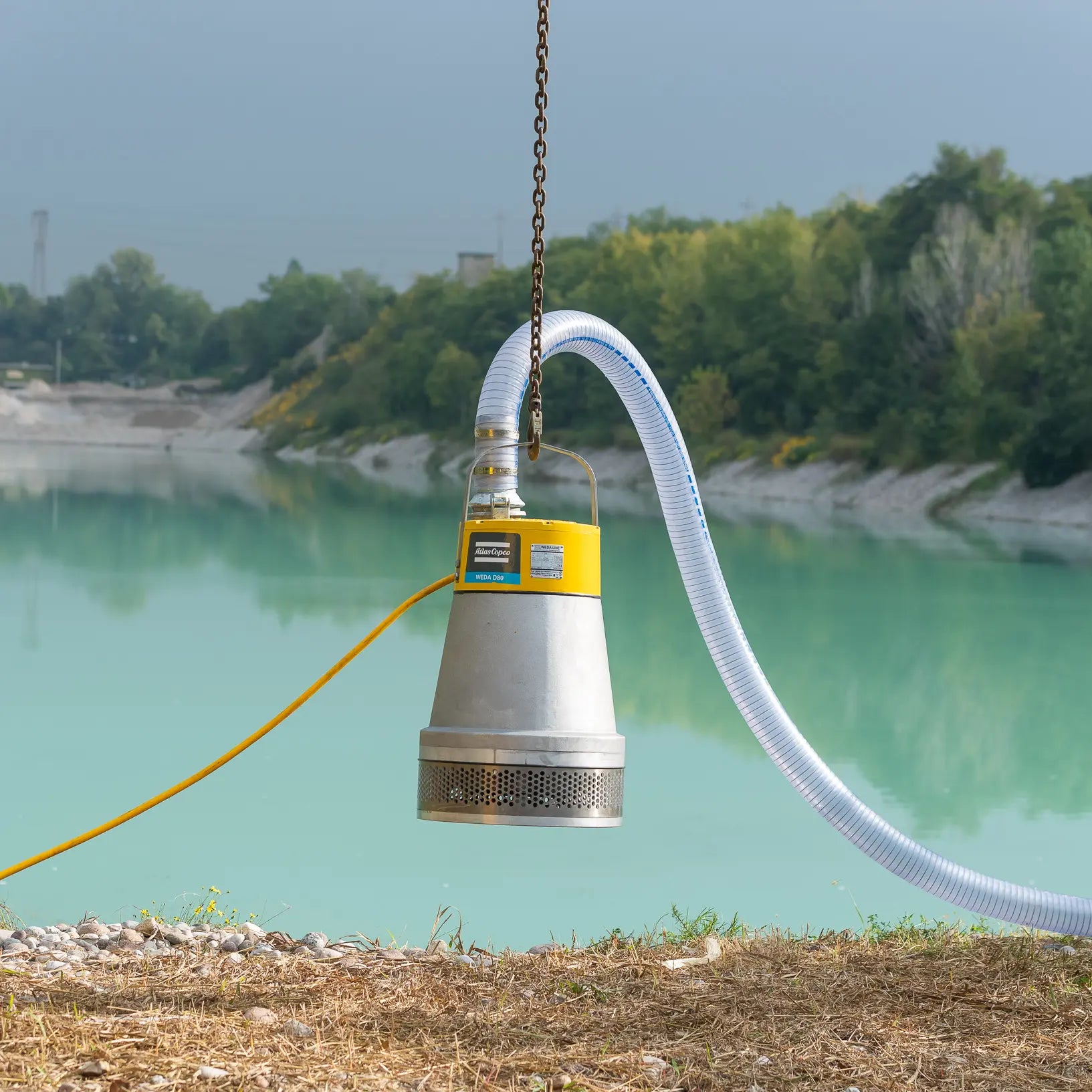

Trusted by dewatering professionals on construction sites, mines, and industrial facilities worldwide, the Atlas Copco WEDA D80N is a 31 HP (23 kW) drainage pump delivering up to 1,560 gpm at a maximum head of 147 ft. This Normal Head variant is the high-volume workhorse of the D80 series — the right choice for large-scale dewatering where both flow and lift capacity are needed.
Technical Specifications
| Model / Part Number | WEDA D80N |
|---|---|
| Part Number (SKU) | 3081620366 |
| Rated Output Power | 31 HP (23 kW) |
| Max. Power Input | 26 kW |
| Max. Head | 147 ft |
| Max. Flow | 1,560 gpm |
| Shaft Speed | 3,500 RPM |
| Discharge Connection | 6" NPT |
| Max. Solids Handling | 0.47" |
| Power Supply | 460V Three-Phase, 60 Hz |
| Certification | CSA |
| Weight | 389 lbs (176.4 kg) |
| Dimensions (H × W × D) | 38.6" × 27.2" × 20.9" |
| Warranty | 12 months from start-up or 18 months from receipt of equipment |
Key Features
- WEDA+ Protection System: Rotation control, phase-failure protection, and thermal switches in every winding — automatic protection without external panels
- Integrated Soft-Starter: Reduces in-rush current and mechanical stress at start-up
- Class F Motor Insulation: Independent thermal overtemperature protection per winding
- Corrosion-Resistant Aluminum Alloy Body: Optimal strength-to-weight ratio for demanding environments
- Adjustable Rubber Diffuser: Maintains peak hydraulic efficiency over the pump's service life
- CSA Certified: North American electrical safety listing
Part Number: WEDA D80N | SKU: 3081620366 | Power: 460V Three-Phase | Max Flow: 1,560 gpm | Max Head: 147 ft.
NOTE: Actual product may be different from pictured!
