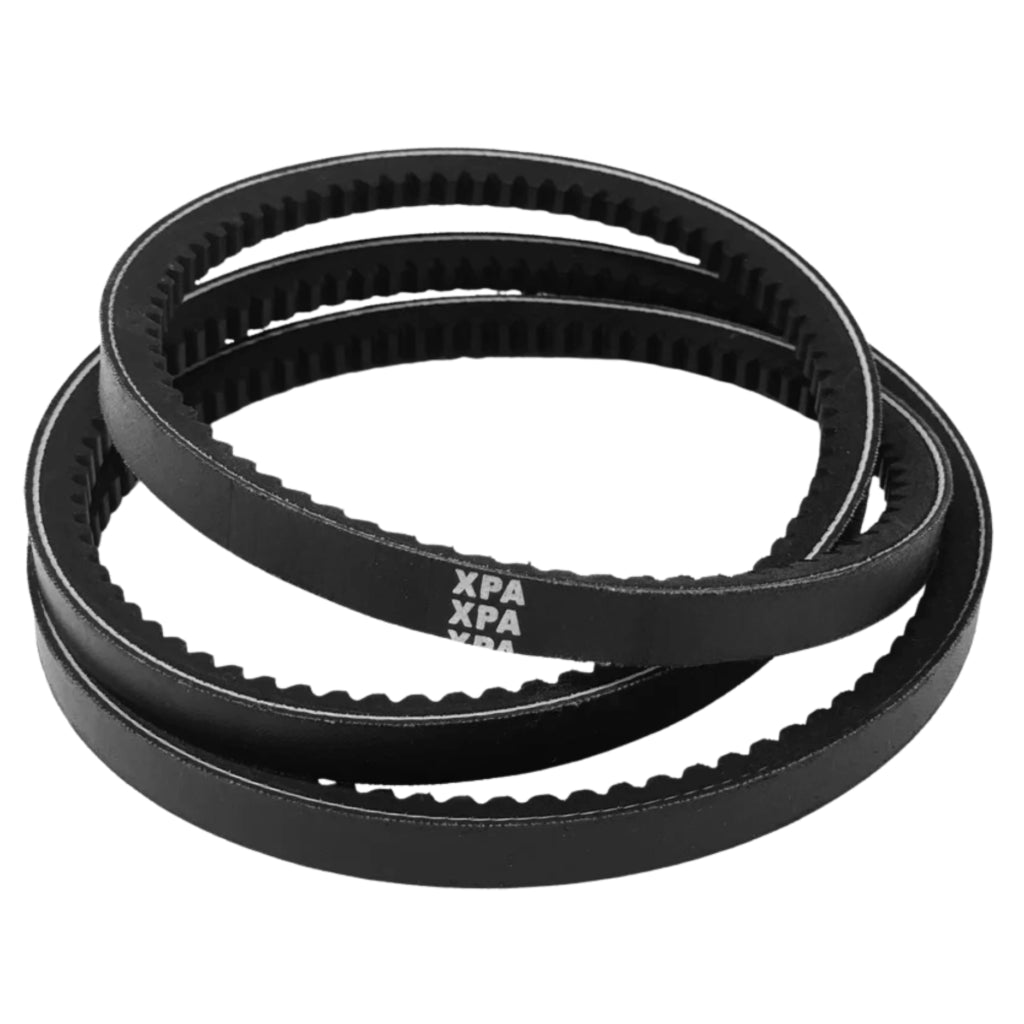

Warthog XPA Cogged Metric V-Belt (12.7 mm × 10 mm, DIN 7753)
The Warthog XPA cogged metric V-belt is a raw-edge, molded-notch wedge belt built to the DIN 7753 / ISO 4184 standard. The cogs on the underside let the belt flex around smaller sheaves and run cooler, making it a dependable drive belt for air compressors, pumps, fans, blowers, and general industrial power transmission. Select your required datum length below.
Key specifications
- Profile: XPA (metric wedge, cogged / raw-edge)
- Top width: 12.7 mm (0.50 in)
- Height: 10 mm
- Included angle: 40°
- Standard: DIN 7753 / ISO 4184
- Length designation: datum length (Ld) in millimeters — shown per variant
- Available datum lengths: 640 mm through 4500 mm
- Operating temperature range: -40°C to 100°C
- Maximum belt speed: 50 m/s
- Recommended minimum sheave diameter: 71 mm
Typical applications
Reciprocating and rotary-screw air compressors, industrial pumps, HVAC fans and blowers, machine-tool drives, agricultural equipment, and other belt-driven machinery where a compact, high-capacity wedge belt is required.
The cogged construction transmits more power in a narrower cross-section than a classical V-belt, resists cracking on small-diameter pulleys, and runs with less heat build-up for longer service life. Warthog XPA belts are a direct-fit replacement for standard 12.7 mm XPA / SPAX metric wedge belts across a wide range of equipment.
NOTE: Actual product may be different from pictured!
