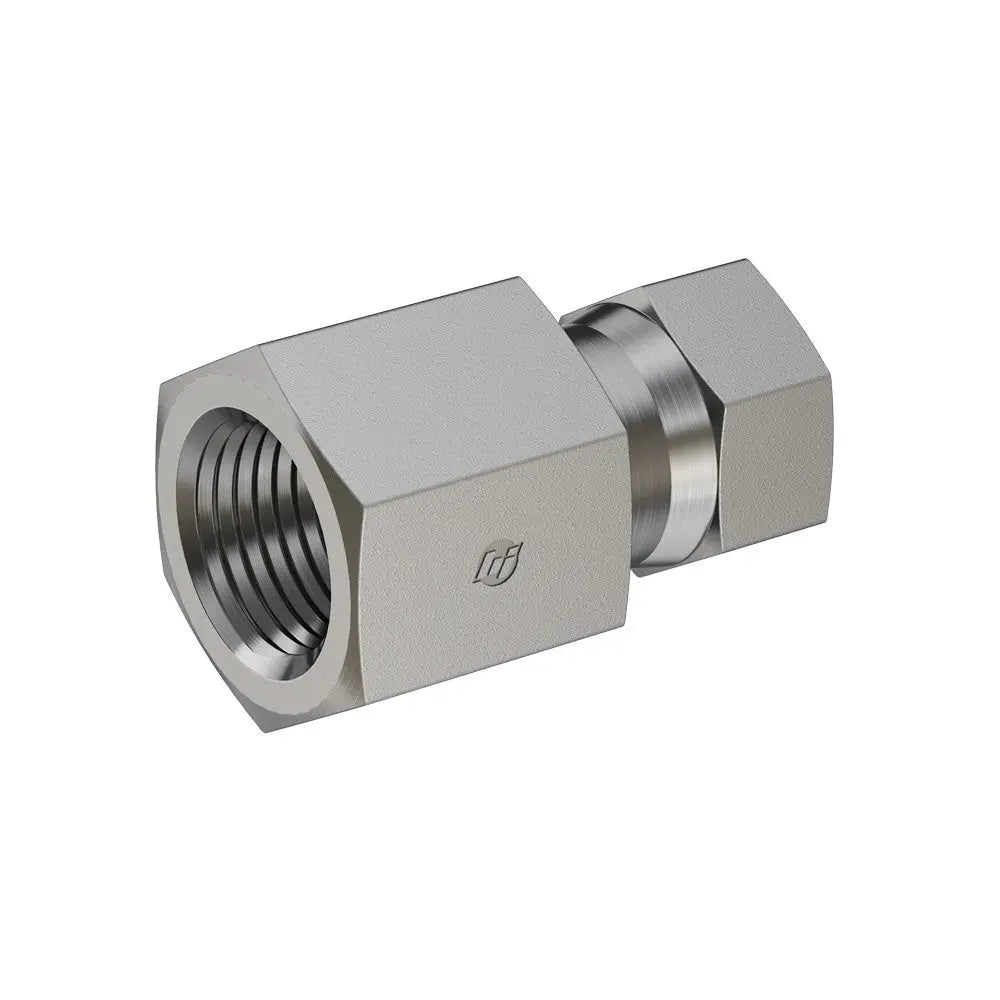

Warthog Steel JIC 37° Female to Female NPT Adapter
The Warthog Steel JIC 37° Female to Female NPT Adapter joins a 37° JIC (SAE J514) flare connection to a female NPT pipe port in one rugged carbon-steel body. The 37° cone seat makes a metal-to-metal seal with its mating JIC flare, so no thread tape or pipe dope is needed on the flare side, while the female NPT end threads onto standard tapered pipe.
Forged from carbon steel with a zinc-plated finish for corrosion resistance, these adapters are built for high-pressure hydraulic systems, air-compressor plumbing, and fluid-transfer lines. They are dimensionally interchangeable with JIC adapters from Parker, Eaton, Aeroquip, Weatherhead, and Gates.
Key specifications
- Configuration: 37° JIC female (rigid) × female NPT
- Material: Carbon steel, zinc-plated
- JIC seal: 37° flare, metal-to-metal (no sealant required)
- Standards: Conforms to SAE J514 performance requirements
- Sizes: 1/8" through 2" (JIC and NPT sizes matched per fitting)
Size & thread reference
| Size | JIC thread | NPT | Part # |
|---|---|---|---|
| 1/8" | 5/16-24 | 1/8" FNPT | JIC-001 |
| 1/4" | 7/16-20 | 1/4" FNPT | JIC-004 |
| 3/8" | 9/16-18 | 3/8" FNPT | JIC-008 |
| 1/2" | 3/4-16 | 1/2" FNPT | JIC-012 |
| 3/4" | 1-1/16-12 | 3/4" FNPT | JIC-017 |
| 1" | 1-5/16-12 | 1" FNPT | JIC-019 |
| 1-1/4" | 1-5/8-12 | 1-1/4" FNPT | JIC-021 |
| 1-1/2" | 1-7/8-12 | 1-1/2" FNPT | JIC-022 |
| 2" | 2-1/2-12 | 2" FNPT | JIC-023 |
Applications
Ideal for hydraulic power units, air-compressor manifolds, pumps, cylinders, and any line that transitions a JIC 37° flare to female pipe thread. Select your size from the dropdown above.
Shop Warthog steel JIC to female NPT adapters at the Air Compressor Store for a leak-tight 37° flare seal, durable zinc-plated carbon-steel construction, and sizes from 1/8" up to 2" — backed by SAE J514 performance standards.
NOTE: Actual product may be different from pictured!
