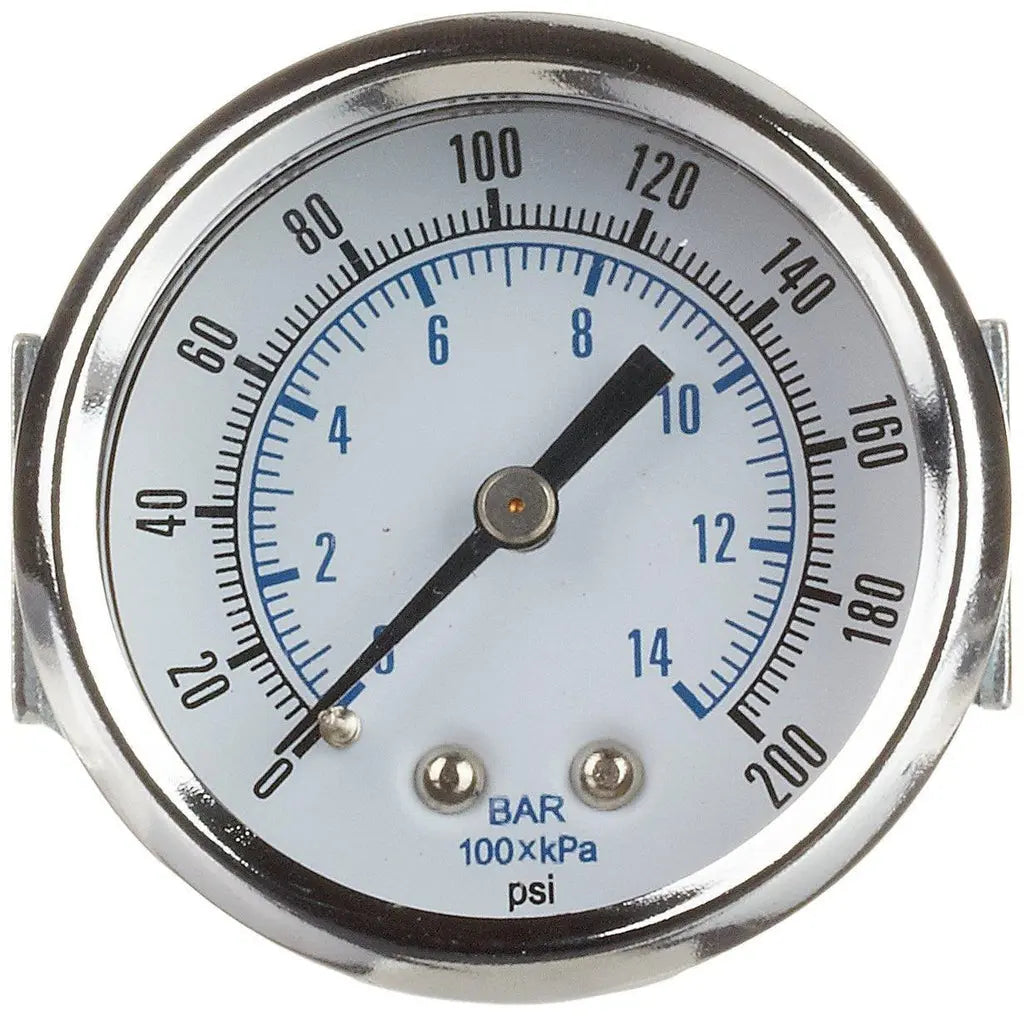

Warthog 2.5" Dry Pressure Gauge – U-Clamp Panel Back Mount, 1/4" NPT, Chrome Case
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog
|
 SKU |
103D-254B
|
A dependable 2.5" dry utility pressure gauge built for panel-mounted air, water, oil, and gas applications. The U-clamp center-back mount makes it a clean fit behind regulators, manifolds, and control panels, while the 1/4" male NPT connection drops straight into most standard ports.
Which range should you choose?
Pick the range type that matches what your system does:
- Pressure (e.g. 0–100 PSI): Positive pressure only — what almost every air-compressor and shop-air job needs.
- Compound (e.g. 30 inHg vacuum to 100 PSI): Reads both vacuum and positive pressure on one dial — for systems that pull suction and also build pressure.
- Vacuum only (0 to 30 inHg): Suction / negative pressure only.
What does "inHg" mean? It stands for inches of mercury — the standard unit gauges use to measure vacuum, meaning pressure below normal atmospheric pressure (in other words, suction). 0 inHg is ordinary atmospheric pressure, and about 30 inHg is a near-complete vacuum — roughly 14.7 PSI of suction. So a gauge marked "30 inHg" reads the entire vacuum range, from no suction down to full vacuum. (By comparison, PSI measures pressure above atmospheric.)
Key Specifications
- Dial size: 2.5" (2-1/2")
- Connection: 1/4" male NPT, center back mount
- Mounting: U-clamp panel (back) mount
- Case & bezel: Chrome-plated steel
- Internals: Copper alloy / brass
- Lens: Clear plastic
- Fill: Dry (non-fillable)
- Accuracy: ±3-2-3% of span (ASME B40.100 Grade B)
- Available ranges: Vacuum, compound, and 0-15 through 0-3,000 PSI
Applications
Suitable for air, water, oil, gas, and most media that are non-corrosive to brass — ideal for compressed-air systems, pneumatic equipment, regulators, and OEM panel builds.
This 2.5-inch chrome-cased dry gauge offers reliable, repeatable readings in a rugged, low-maintenance package. With U-clamp panel mounting and a 1/4" NPT back connection, it's an easy, economical upgrade or replacement for shop and industrial pressure-monitoring needs.
NOTE: Actual product may be different from pictured!
