Two-Band Banded V-Belt — B/5L Section, 5/8" Wide (2/B)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
2/B48
|

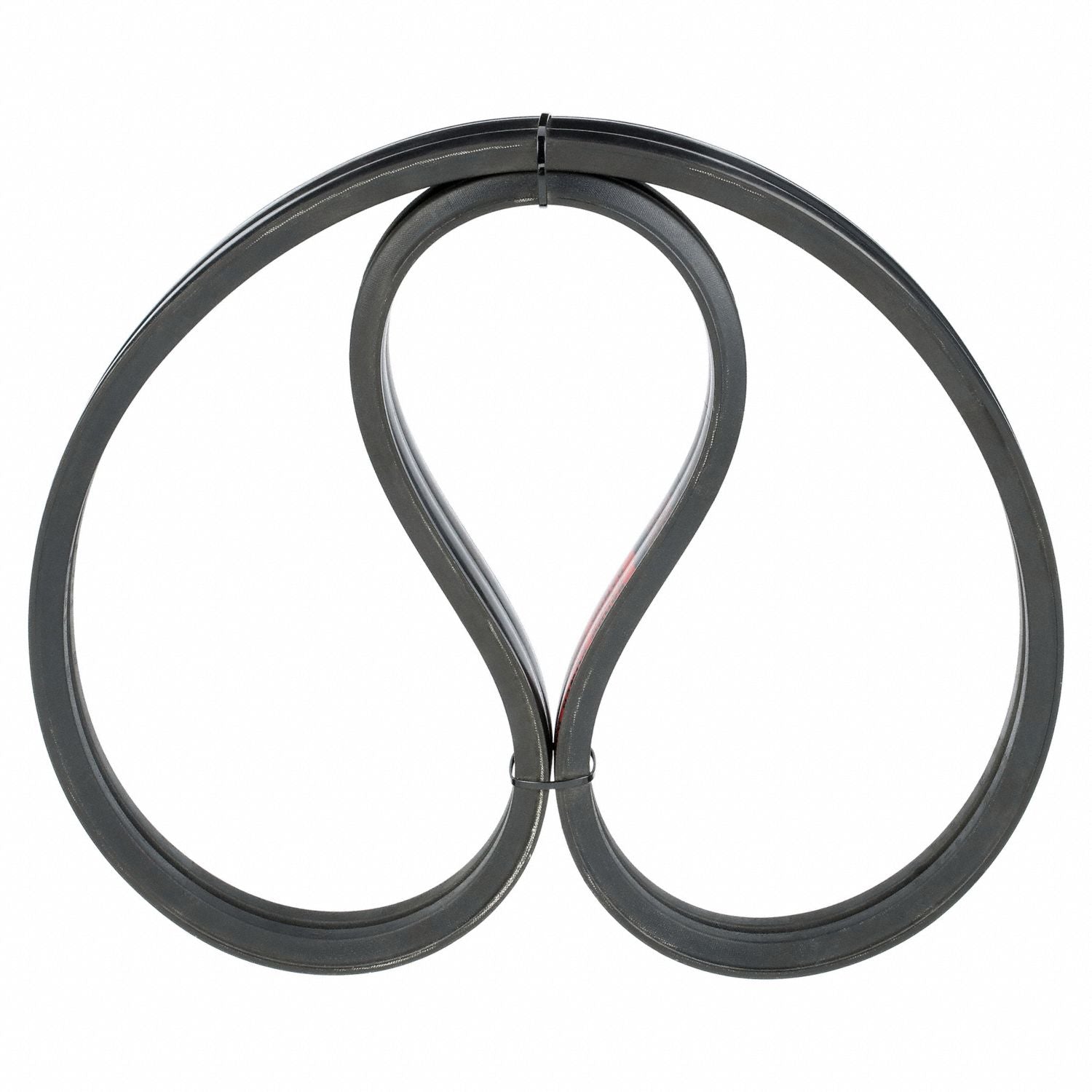

A two-band, B/5L-section banded V-belt built for higher-load, multi-belt drives where individual belts would whip, roll over, or jump the sheave under shock or pulsating loads. Two B-section belts are joined by a common tie band so they track as a single unit — sharing load evenly, staying seated in the grooves, and running quieter than loose matched belts.
Key specifications
- Cross section: B / 5L classical — 5/8" (16 mm) top width × 7/16" (11 mm) height
- Construction: two-band (2 ribs) joined by a common backing / tie band
- Wrapped fabric cover over a polyester tensile cord for strength and length stability
- Sizes: 2/B48 through 2/B120 — outside (O.C.) length runs 51" to 123"
- Operating range: approx. -35°C to +70°C; oil- and static-resistant
- Minimum recommended sheave diameter: ~2-3/4" (71 mm)
Typical applications
Belt-driven air compressors, industrial blowers and fans, pumps, HVAC air handlers, and agricultural and industrial machinery — anywhere a single belt needs the added stability of a matched, banded set.
Select your size by belt number: the number is the approximate inside length in inches, and the outside (O.C.) length of a B-section belt is that number plus 3" (shown on each size). This two-band B/5L banded V-belt is a direct replacement for standard 2/B multi-band belts and matched B-section belt sets, delivering smooth, stable power transmission on demanding drives.
NOTE: Actual product may be different from pictured!
