Two-Band Banded V-Belt — A/4L Section (2/A48–2/A150)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
2/A48
|

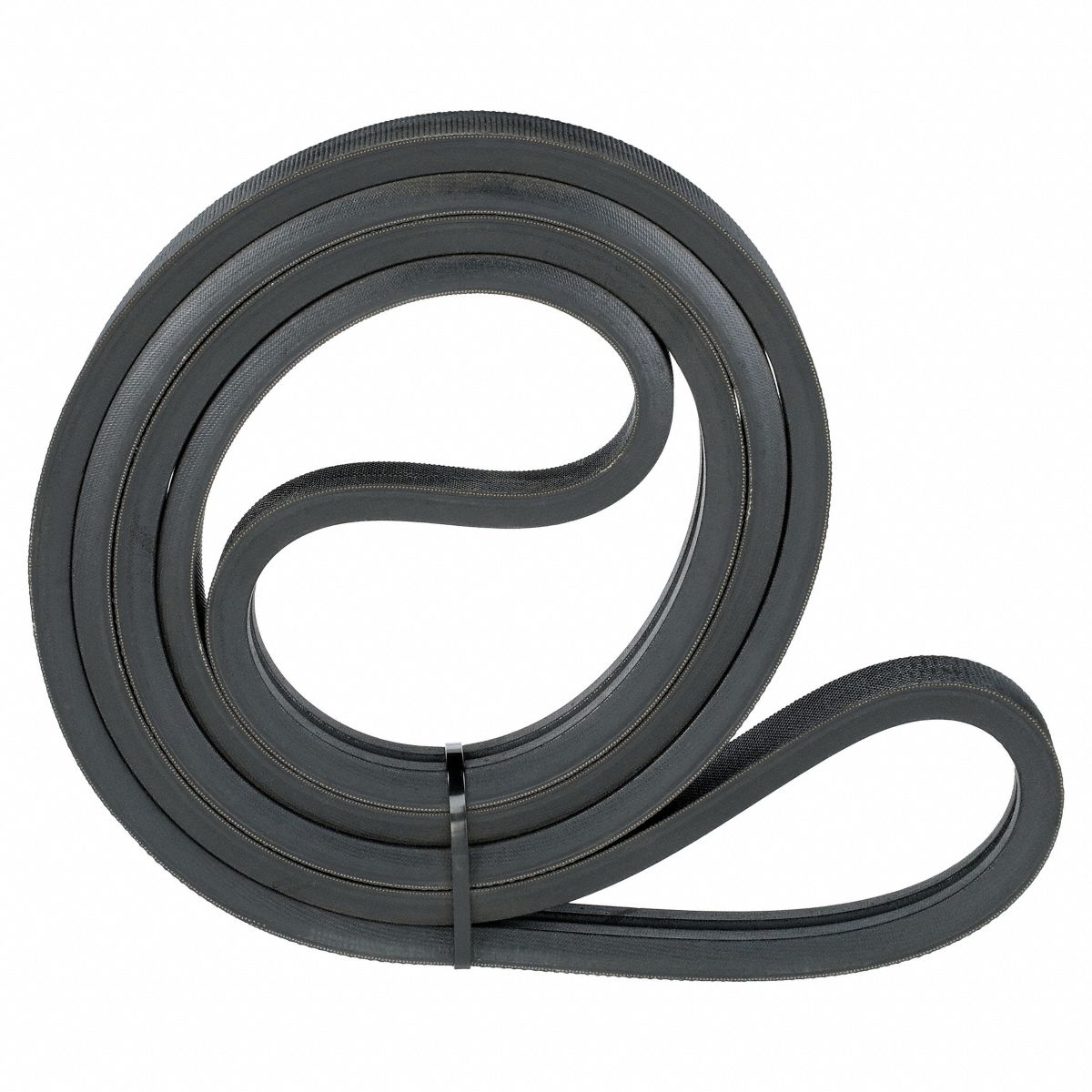

Two-band banded V-belt in the A / 4L cross-section, built for multi-groove drives that need extra stability and shock resistance. Two A-section strands are permanently joined by a high-strength tie band so the belts track as a single unit — eliminating the belt whip, turnover, and jump-off that can plague individual belts on pulsating loads like reciprocating air compressors, large fans, and blowers.
Key specifications
- Cross-section: A / 4L (per band) — 1/2" top width, approx. 5/16" (0.285") depth
- Construction: two A-section strands joined by a permanent tie band (2-band "2/A" banded belt)
- Wrapped fabric cover for abrasion, oil, and heat resistance
- Tensile cords vulcanized as one unit for high resistance to stretch, flex fatigue, and shock loads
- Available lengths: A48 through A150 (50"–152" outside length)
- Interchange designation: 2/A<length> (e.g. 2/A60); cross-references standard A-section and 4L banded belts
Typical applications
Reciprocating and rotary air compressors, industrial fans and blowers, HVAC air handlers, pumps, agricultural equipment, and other multi-groove power-transmission drives where even load sharing and drive stability matter.
This two-band A/4L banded V-belt is a direct matched-set replacement for worn A-section or 4L banded belts. Select your belt by its A-length designation (outside length shown for each size). For proper seating, use with sheaves rated for banded/multiple V-belts.
NOTE: Actual product may be different from pictured!
