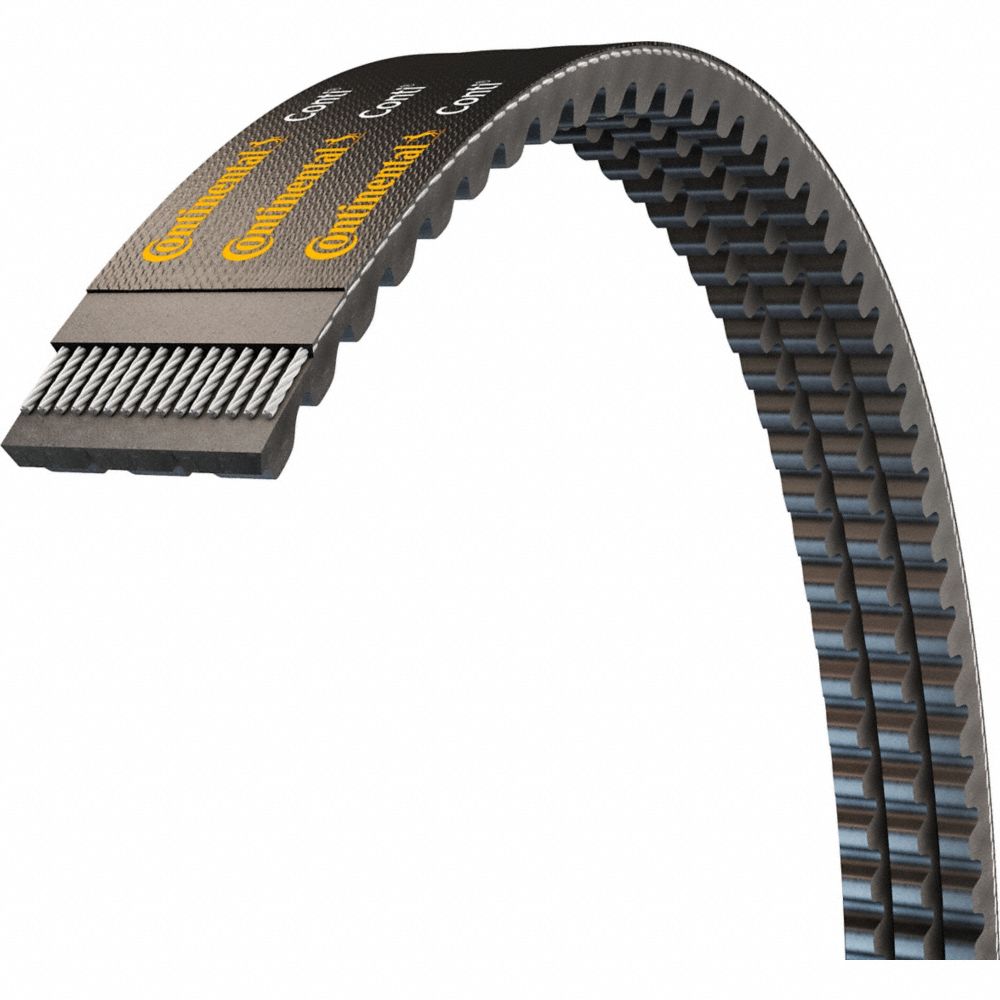

Two-Band Banded Cogged V-Belt — 5VX Section, 5/8" Wide (2/5VX)
A two-band, 5VX-section banded cogged V-belt built for higher-load, multi-groove drives where individual belts would whip, roll over, or jump the sheave under shock or pulsating loads. Two 5VX narrow-wedge cogged belts are joined by a common tie band so they track as a single unit — sharing load evenly, staying seated in the grooves, and running quieter and more stably than loose matched belts. The molded-notch (cogged) underside adds flexibility, runs cooler, and delivers higher efficiency on small-diameter sheaves.
Key specifications
- Cross section: 5VX narrow wedge (per band)
- Top width: 5/8" (16 mm) per band
- Nominal depth: ~17/32" (13.5 mm)
- Bands: two (2) 5VX ribs joined by a common backing / tie band
- Construction: molded-notch (cogged) rubber body with polyester tensile cords
- Available outside lengths: 45" to 200" (select your exact belt below)
- Belt numbered by outside length in tenths of an inch (e.g. 2/5VX450 = 45")
Typical applications
Belt-driven air compressors, industrial blowers and fans, pumps, HVAC air handlers, machine tools, and heavy industrial and agricultural machinery — anywhere a single belt needs the added stability of a matched, banded set.
Dimensionally interchangeable with standard 2/5VX banded cogged wedge belts and matched 5VX belt sets. Choose your exact belt by outside length and 2/5VX part number from the Length menu.
NOTE: Actual product may be different from pictured!
