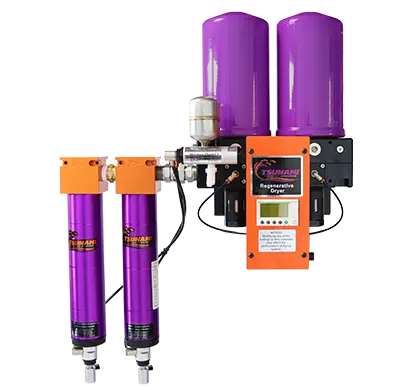

Tsunami Ultra Series Heatless Regenerative Desiccant Air Dryer — Wall Mounted, 1" NPT, –80°F Dew Point
| Specifications (As Configured) | |
|---|---|
 Vendor |
Tsunami
|
 SKU |
TS-ULTRA-0710
|
The Tsunami Ultra Series is a complete, wall-mounted heatless regenerative desiccant drying system that delivers ultra-dry compressed air with dew points down to –80°F and relative humidity as low as 0.01% RH. Each Ultra Series package ships ready to install with integrated two-stage Tsunami pre-filtration, a programmable logic controller, and automatic pneumatic Moisture Minder drains — everything needed to protect downstream equipment, tools, and processes from water, oil, and particulate.
Twin desiccant towers loaded with molecular-sieve desiccant alternate drying and regenerating roughly every two minutes, so one tower is always producing premium-quality air. Dual inlet/outlet ports allow the dryer to be bypassed for maintenance without shutting down production, and the system is factory expandable to grow with your facility's air demand.
Key Specifications
- Type: Heatless regenerative (twin-tower) desiccant dryer
- Dew Point: Down to –80°F; relative humidity to 0.01% RH
- Capacities: 40, 60, 80, and 120 CFM (sized for 10, 15, 20, and 30 HP compressors)
- Connections: 1" NPT inlet / outlet
- Pre-Filtration: 1st-stage water separator (10 micron) + 2nd-stage oil coalescing filter (0.01 micron)
- Control: Programmable Logic Controller (PLC) with digital display
- Drains: Automatic pneumatic Moisture Minder drains
- Operating Pressure: 80–175 PSI
- Max Inlet Air Temperature: 150°F
- Power Requirement: 120V
- Mounting: Wall brackets included
- Desiccant: Molecular sieve
- Warranty: 3-Year Standard
Features & Benefits
- Two-stage pre-filtration removes liquid water, bulk oils, aerosols, and particulate before air reaches the desiccant beds
- PLC-controlled cycling optimizes purge efficiency and keeps operating cost low — typically under $100/year in maintenance
- Purge exhaust mufflers for quieter operation
- Built-in bypass lets you service the dryer without stopping the line
- Factory expandable to add capacity as demand grows
- Optional C1D1 hazardous-location compatibility and cold-temperature heater pads available
Applications
Ideal for spray foam, automotive and industrial finishing, manufacturing and automation, food & beverage, oil & gas, and woodworking — any application that demands consistently clean, dry, oil-free compressed air. Select your required flow rate above to match the dryer to your compressor.
NOTE: Actual product may be different from pictured!
