Tsunami 3-Stage Membrane Air Dryer with Electronic Drain
| Specifications (As Configured) | |
|---|---|
 Vendor |
Tsunami
|
 SKU |
TS-MEMB-0957
|
The Tsunami 3-Stage Membrane Air Dryer delivers clean, dry, oil-free compressed air from a single compact, wall-mountable unit. Incoming air passes through three stages of pre-filtration — a water separator, an oil coalescing filter, and an activated carbon filter — before entering the membrane dryer core, where water vapor is stripped from the air stream. The result is consistently dry air with dew points down to −80°F and relative humidity as low as .01% RH, with no refrigerant and minimal maintenance.
Each unit ships with automatic electronic drains, wall-mounting brackets, and an outlet regulator. Built in the USA from durable machined aluminum, the membrane core runs on a 100% duty cycle and keeps average upkeep under $100 per year.
Key Specifications
- Three-stage pre-filtration: water separator (10 micron), oil coalescing filter (.01 micron, removes oils & aerosols), and activated carbon filter (oil vapor down to .003 ppm)
- Membrane dryer core: dew points down to −80°F, relative humidity down to .01% RH
- Drain: automatic electronic drain
- Max operating pressure: 175 PSI
- Max inlet temperature: 100°F
- Power requirement: 120V
- Includes: wall-mounting brackets and outlet regulator

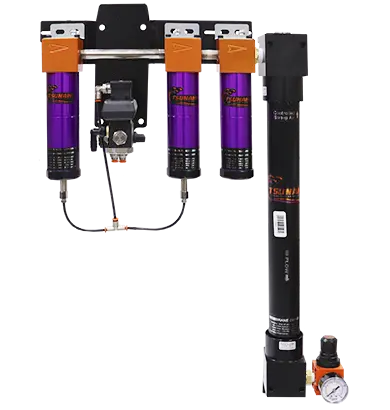

- 15 CFM model: 1/4" NPT, 12 lbs, 24½" x 18½" x 5½"

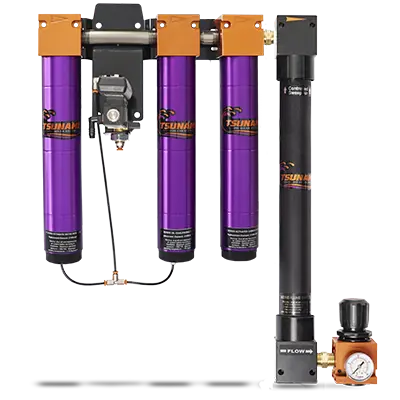

- 20 CFM model: 1/2" NPT, 22 lbs, 23" x 23½" x 5½"
- Made in the USA
Applications
Ideal for point-of-use compressed air in spray foam, automotive finishing, paint and coatings, manufacturing, automation, food & beverage, and woodworking — anywhere clean, dry, oil-free air is critical to product quality and equipment protection. Optional heater pads are available for cold-temperature applications and C1D1-compatible configurations for hazardous locations.
The Tsunami 3-Stage Membrane Air Dryer combines water separation, oil coalescing, activated carbon filtration, and membrane drying in one rugged point-of-use package, giving shops a reliable, low-maintenance source of ultra-dry compressed air without the cost or complexity of a refrigerated or desiccant dryer system.
NOTE: Actual product may be different from pictured!
