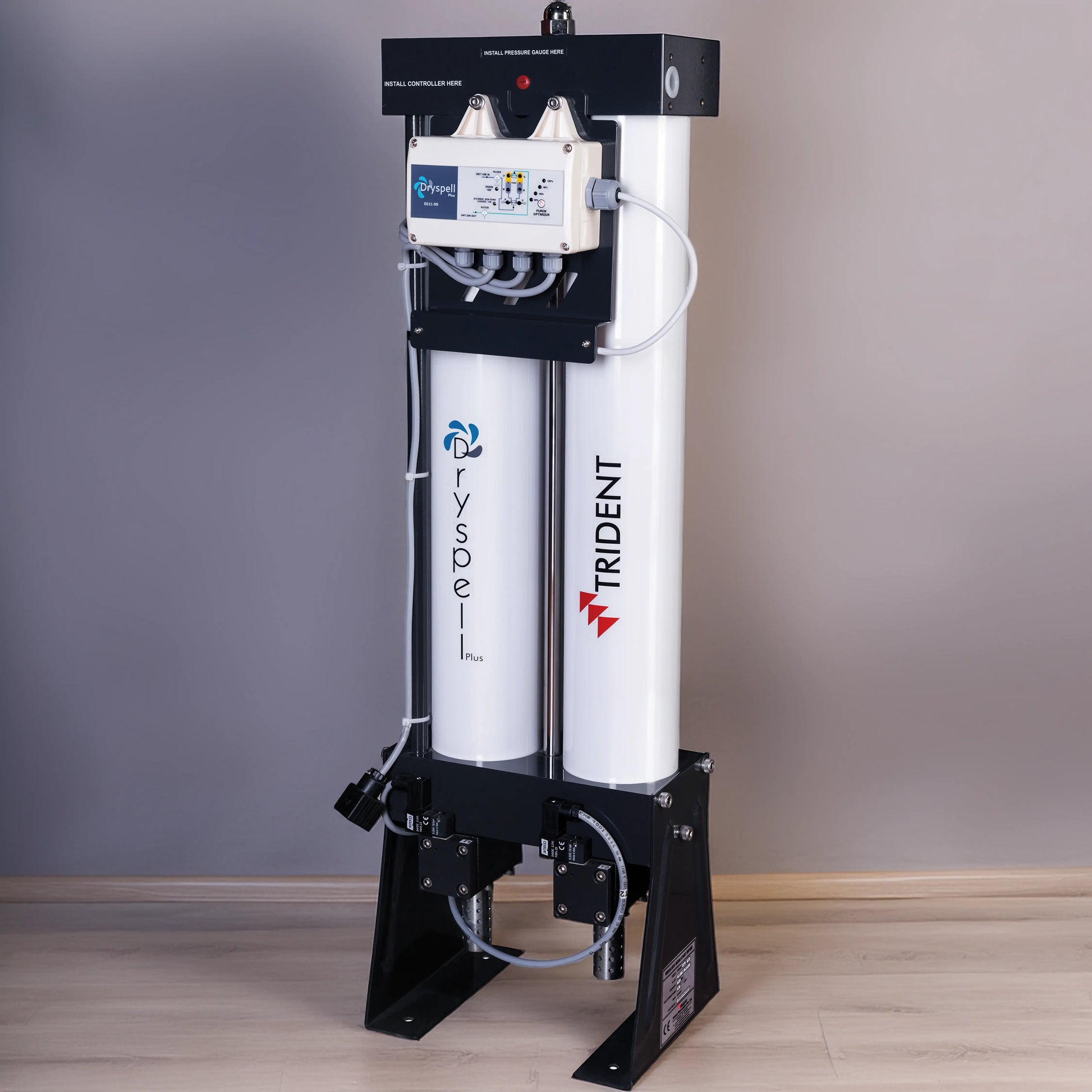

Trident Dryspell Modular Desiccant Air Dryer

Trident Dryspell Modular Desiccant Air Dryer (Dryspell Plus Series)

Keep moisture out of your compressed air system with the Trident Dryspell Modular Desiccant Air Dryer, a compact heatless desiccant dryer designed to deliver dependable, ultra-dry compressed air for demanding applications. In Trident’s North American materials, this product is commonly presented as the Dryspell Plus modular desiccant dryer line.

Built for clean, dry, reliable air delivery, the Trident Dryspell modular desiccant air dryer uses a heatless regenerative adsorption process to remove moisture and help protect downstream equipment from corrosion, freezing, contamination, and process interruptions. It is a strong solution for shops and facilities that need consistent low dew point performance in a compact footprint without the complexity of larger dryer systems.

Why Choose the Trident Dryspell Modular Desiccant Air Dryer?

Moisture is one of the most common causes of compressed air system problems. Wet air can damage pneumatic tools, foul valves, shorten equipment life, and create quality issues in sensitive processes. The Trident Dryspell modular desiccant air dryer is designed to address those problems by producing dry compressed air while maintaining a space-saving, service-friendly design.

This dryer is especially well-suited for point-of-use drying, small-to-mid-range systems, and applications where dependable dryness matters more than oversized equipment or a large installation footprint.

Key Features & Benefits

• Heatless regenerative desiccant drying for reliable moisture removal
• -40°F pressure dew point (PDP) under rated conditions for consistent dry air delivery
• Compact modular design for easier installation in tight mechanical spaces
• Manual Purge Economizer with selectable settings to optimize purge use
• Built-in particulate after-filter to help capture desiccant fines before downstream distribution
• Optional coalescing prefilter to remove bulk liquids and aerosols before air enters the dryer
• Low power consumption and broad voltage compatibility
• Corrosion- and scale-resistant aluminum construction for durability
• High-performance desiccant media designed for cycle stability and long service life

How the Dryspell Modular Desiccant Air Dryer Works

The Trident Dryspell modular desiccant air dryer uses a twin-tower heatless desiccant design. While one tower is actively drying compressed air, the other tower is being regenerated using a portion of the dried outlet air.

Drying Process Overview

1. Wet compressed air enters the system
   Air is typically routed through a recommended coalescing prefilter first, which helps remove liquid water, oil aerosols, and particulates before the air reaches the desiccant towers.
2. Moisture is adsorbed in the active desiccant tower
   The desiccant media captures water vapor from the compressed air stream, reducing moisture content and helping produce a low pressure dew point.
3. The offline tower regenerates
   A controlled portion of dry outlet air is used as purge air to regenerate the desiccant in the offline tower, preparing it for the next cycle.
4. Particulate after-filtration protects downstream equipment
   An integrated after-filter helps trap desiccant dust/fines so cleaner dry air exits to your air system.

This alternating process allows the dryer to provide a continuous supply of dry compressed air.

Performance Highlights (Series-Level)

The Trident Dryspell Plus modular desiccant dryer line is engineered for dependable drying performance and efficient operation. Common series-level specifications and performance points include:

• Pressure Dew Point: -40°F PDP at rated conditions
• Cycle Time: 4 minutes
• Purge Loss: Approximately 15%
• Power Supply: 100–240 VAC, 50/60 Hz, single phase
• Power Consumption: Low power draw (up to 12 watts max)
• Rated Operating Pressure: 100 psig
• Rated / Max Inlet Temperature: 100°F (series literature conditions)

These features make the Dryspell modular desiccant air dryer a practical choice for facilities that want serious moisture control without excessive power use or a complicated setup.

Modular Sizing for Flexible System Integration

One of the strengths of the Trident Dryspell modular desiccant air dryer line is its model range. The North American Dryspell Plus lineup covers a broad spectrum of compressed air demand, with models sized from 3 SCFM up to 375 SCFM.

That range makes it easier to match the dryer to the actual air demand of your application, whether you are drying air for a single workstation, a specialty process, or a larger branch line in a production environment.

Because the Dryspell platform is modular and compact, it can also be easier to fit into retrofit projects where available wall/floor space is limited.

Service-Friendly Design for Real-World Shops

Trident’s Dryspell modular desiccant air dryer is built with maintenance and usability in mind. The design supports straightforward service routines and includes practical features that help operators monitor system operation.

Common user-friendly features include:

• Tower status indication
• Purge optimizer control settings
• Drain indication on equipped/filter configurations
• Accessible service points for routine inspections

Routine maintenance procedures typically include checking filter elements, silencers, drains, and desiccant condition on scheduled intervals to support long-term reliability and drying performance.

Ideal Applications

The Trident Dryspell Modular Desiccant Air Dryer is a great fit for operations that need dependable dry air in a compact format, including:

• Automotive and body shops
• CNC and machine shops
• Packaging and assembly lines
• Instrument air applications
• Light manufacturing
• Point-of-use drying stations
• Paint, coating, and finishing support systems (where dry air quality matters)

Why It’s a Strong Shopify Product for Customers

Customers shopping for a desiccant dryer usually want three things: dry air performance, compact size, and dependable operation. The Trident Dryspell Modular Desiccant Air Dryer delivers on all three with a heatless twin-tower desiccant design, low dew point capability, and modular construction that fits real-world compressed air installations.

If your customers need a compact modular desiccant air dryer that helps protect equipment, improve air quality, and reduce moisture-related downtime, the Trident Dryspell (Dryspell Plus) Modular Desiccant Air Dryer is a smart, system-ready solution.

Note: Specs may vary slightly by model size and document revision, so final product listings should always be matched to the exact model number and datasheet/nameplate.
