Three-Band Banded Cogged V-Belt — 5VX Section, 1-7/8" Wide (3/5VX)
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
3/5VX450
|

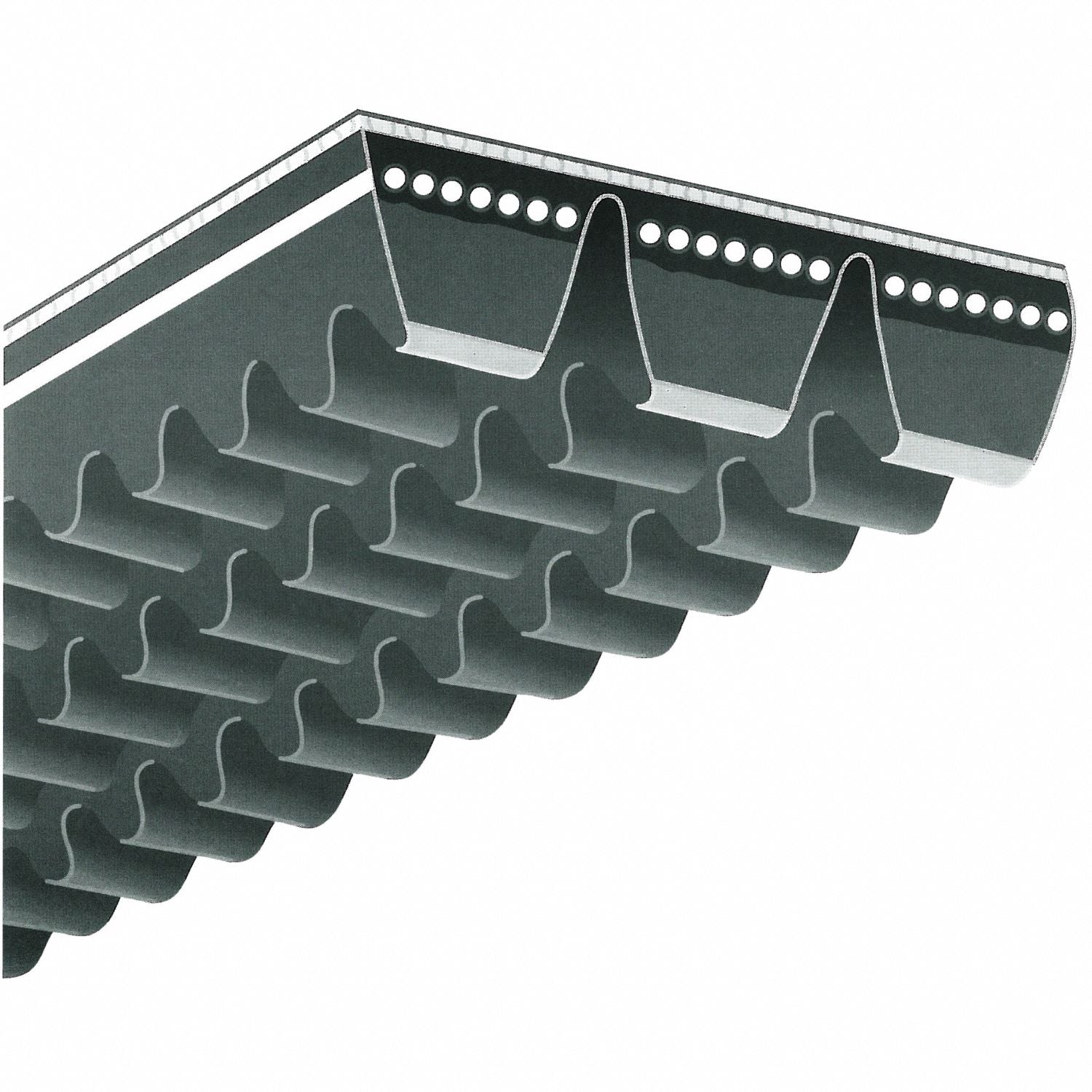

A three-band, 5VX raw-edge cogged wedge V-belt built for high-load, multi-belt drives where single belts would whip, roll over, or jump the sheave under shock or pulsating loads. Three narrow 5VX cogged belts are joined by a common tie band so they track as one unit — sharing load evenly, staying seated in the grooves, and running quieter and more stably than loose matched belts.
Key specifications
- Cross section: 5VX narrow "wedge" — 5/8" (16 mm) top width per band, about 17/32" (13.5 mm) tall; 40° sheave angle
- Construction: three-band (3 ribs) joined by a common backing / tie band; overall top width about 1-7/8"
- Raw-edge cogged (notched) underside flexes around smaller sheaves with less heat build-up and transmits more power than an equivalent wrapped belt
- High-strength tensile cord for length stability and long service life under fluctuating loads
- Sizes: 3/5VX450 through 3/5VX2000 — outside (effective) length 45" to 200"
Typical applications
Belt-driven air compressors, industrial blowers and fans, pumps, machine tools, and heavy industrial and agricultural equipment — anywhere a compact, high-capacity drive needs the added stability of a matched, banded set.
Select your size by belt number: for 5VX belts the number is the outside length in tenths of an inch, so 3/5VX450 is 45" and 3/5VX2000 is 200" (shown on each size). This three-band 5VX banded cogged V-belt is a direct replacement for standard 3/5VX multi-band belts and matched 5VX cogged belt sets, delivering smooth, high-efficiency power transmission on demanding drives.
NOTE: Actual product may be different from pictured!
