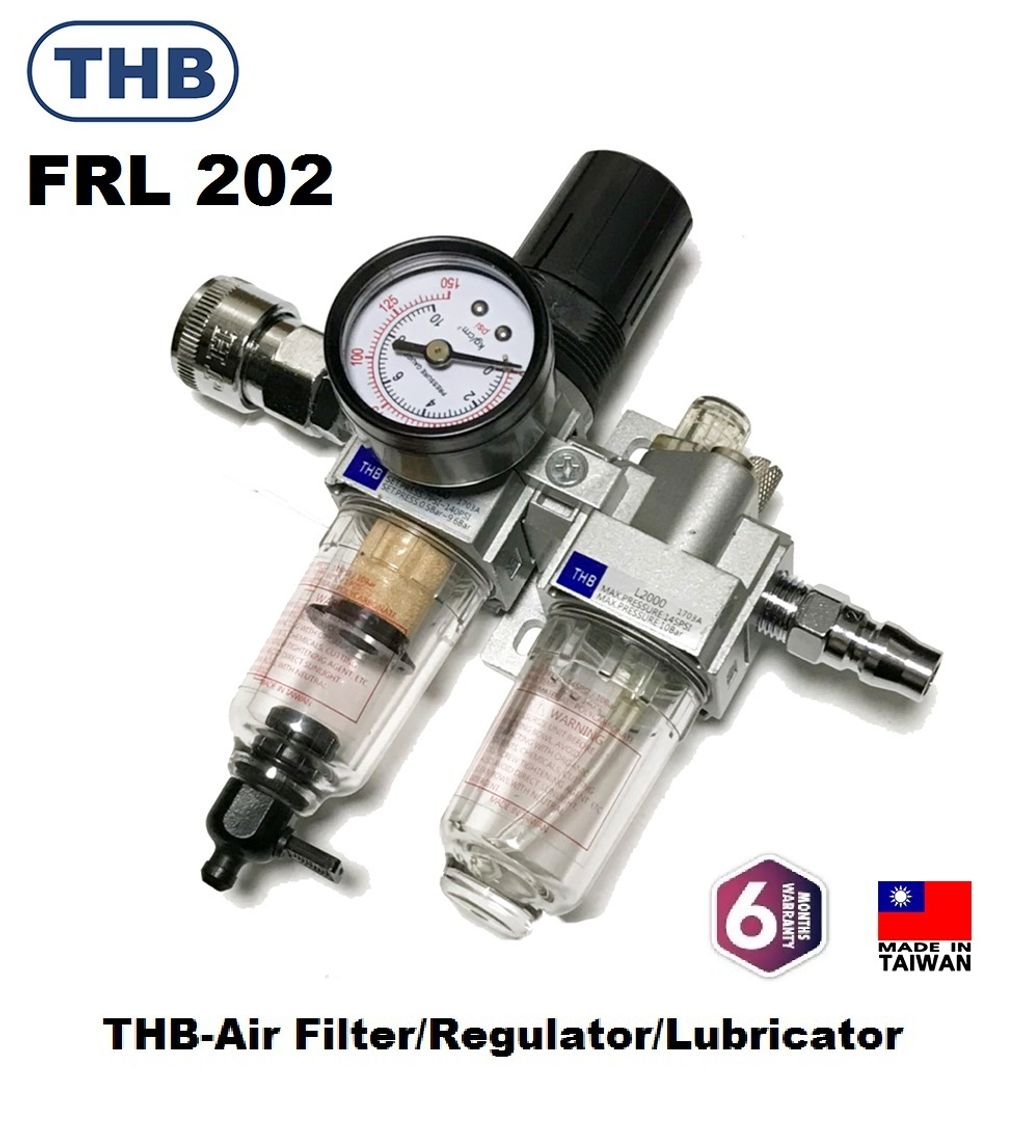

THB FRL202 Mini Filter/Regulator/Lubricator Combo — 1/4" NPT, 38 CFM
The THB FRL202 is a compact three-in-one air preparation unit that filters, regulates, and lubricates compressed air at the point of use. Part of THB's mini 20 (2000) series, it combines a 5-micron particulate filter, a precision pressure regulator with included gauge, and an oil-mist lubricator in a single space-saving body — ideal for protecting and powering air tools, valves, and instruments.
Key specifications
- Part number: FRL202
- Port size: 1/4" FNPT
- Flow capacity: 38 CFM (≈1,100 L/min)
- Filtration: 5 micron element
- Regulated pressure range: 7–140 PSI
- Max inlet pressure: 150 PSI · max outlet pressure: 140 PSI
- Bowls: 1 oz polycarbonate (filter and lubricator)
- Drain: semi-automatic
- Gauge: included (1/8" gauge port)
- Mounting: wall bracket included
- Series: THB Mini 20 / 2000 Series · Made in Taiwan
Typical applications
Point-of-use air preparation for pneumatic tools, spray equipment, automation and assembly lines, and general workshop air where clean, regulated, and lubricated air is required in a compact footprint.
The THB FRL202 mini filter/regulator/lubricator combo delivers clean, pressure-controlled, lubricated compressed air from a single 1/4" NPT unit — a cost-effective way to extend tool life and improve performance at any workstation.
NOTE: Actual product may be different from pictured!
