THB Composite Push-to-Connect Male NPT Adapter — Tube OD × MNPT Air Fitting
| Specifications (As Configured) | |
|---|---|
 Vendor |
THB
|
 SKU |
CPLV-050
|

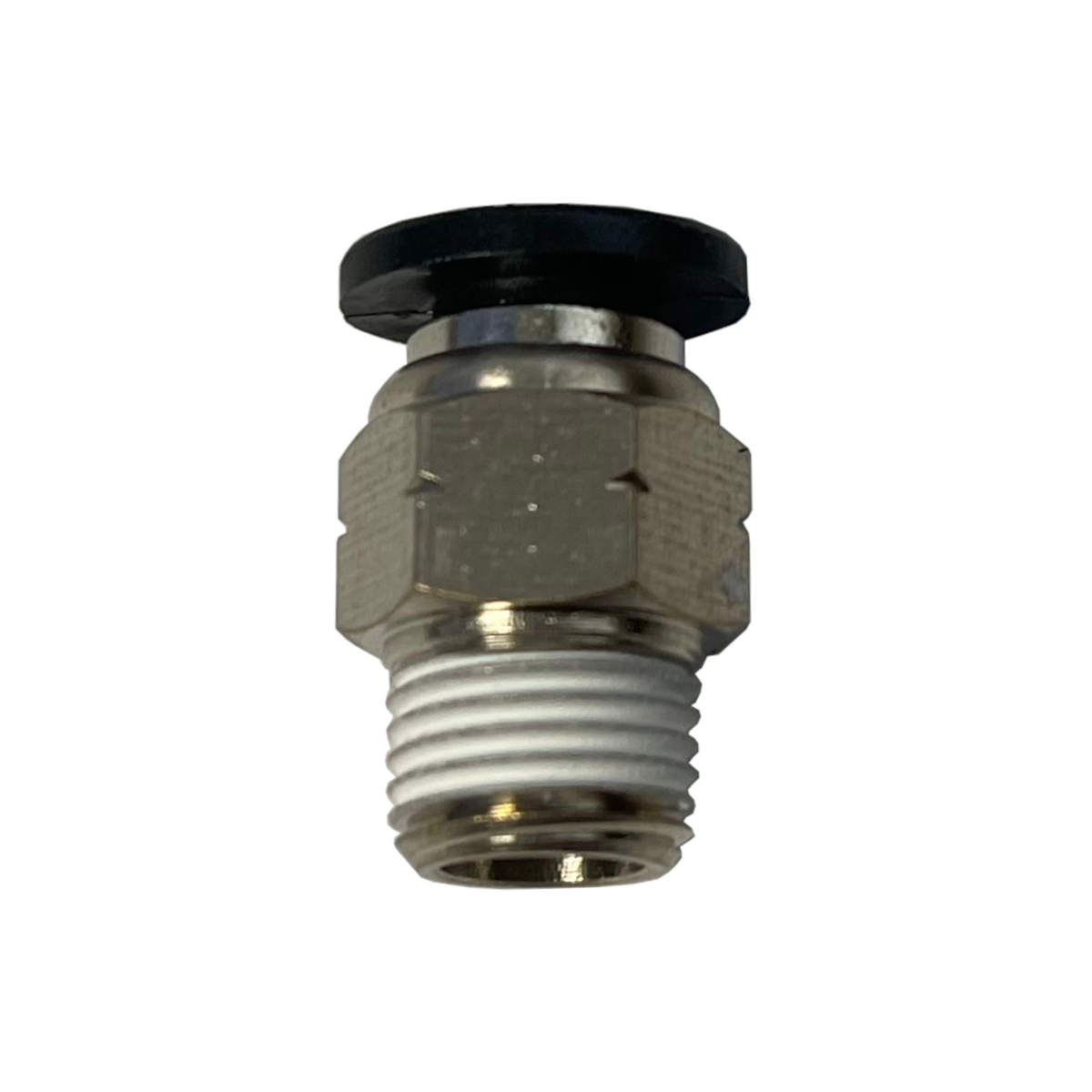

The THB Composite Push-to-Connect Male NPT Adapter joins push-in tubing to a male NPT port for fast, tool-free compressed-air and pneumatic connections. Its lightweight glass-reinforced PBT composite body cuts weight and cost versus all-brass fittings, while the nickel-plated brass thread and stainless-steel gripping collet deliver a secure, leak-resistant hold. Push the tube in to seat it, and press the release collar to disconnect — no wrenches or sleeves required.
Key specifications
- Type: push-to-connect (one-touch) male straight adapter
- Connection: tube OD × male NPT (MNPT)
- Body: PBT composite; thread: nickel-plated brass; stainless-steel gripping collet
- Seal: NBR O-ring; release collar for tool-free disconnect
- Media: air / water (not for drinking water)
- Working pressure: 28" Hg vacuum to 145 PSI
- Operating temperature: 23–140°F (air); 32–104°F (water)
- Compatible tubing: nylon, soft nylon, polyurethane, FEP, PFA
- Available sizes: 5/32", 1/4", 5/16", 3/8", and 1/2" tube OD with 10-32, 1/8", 1/4", 3/8", and 1/2" male NPT
Typical applications
Ideal for shop air lines, pneumatic tools and automation, instrumentation, and general low-pressure air plumbing where quick, repeatable connections to a male-threaded port are needed. Works with standard nylon, polyurethane, and polyethylene tubing.
The THB composite push-to-connect male NPT adapter is an economical, corrosion-resistant way to tie push-in tubing into male-threaded manifolds, valves, and equipment across compressed-air and pneumatic systems.
NOTE: Actual product may be different from pictured!
