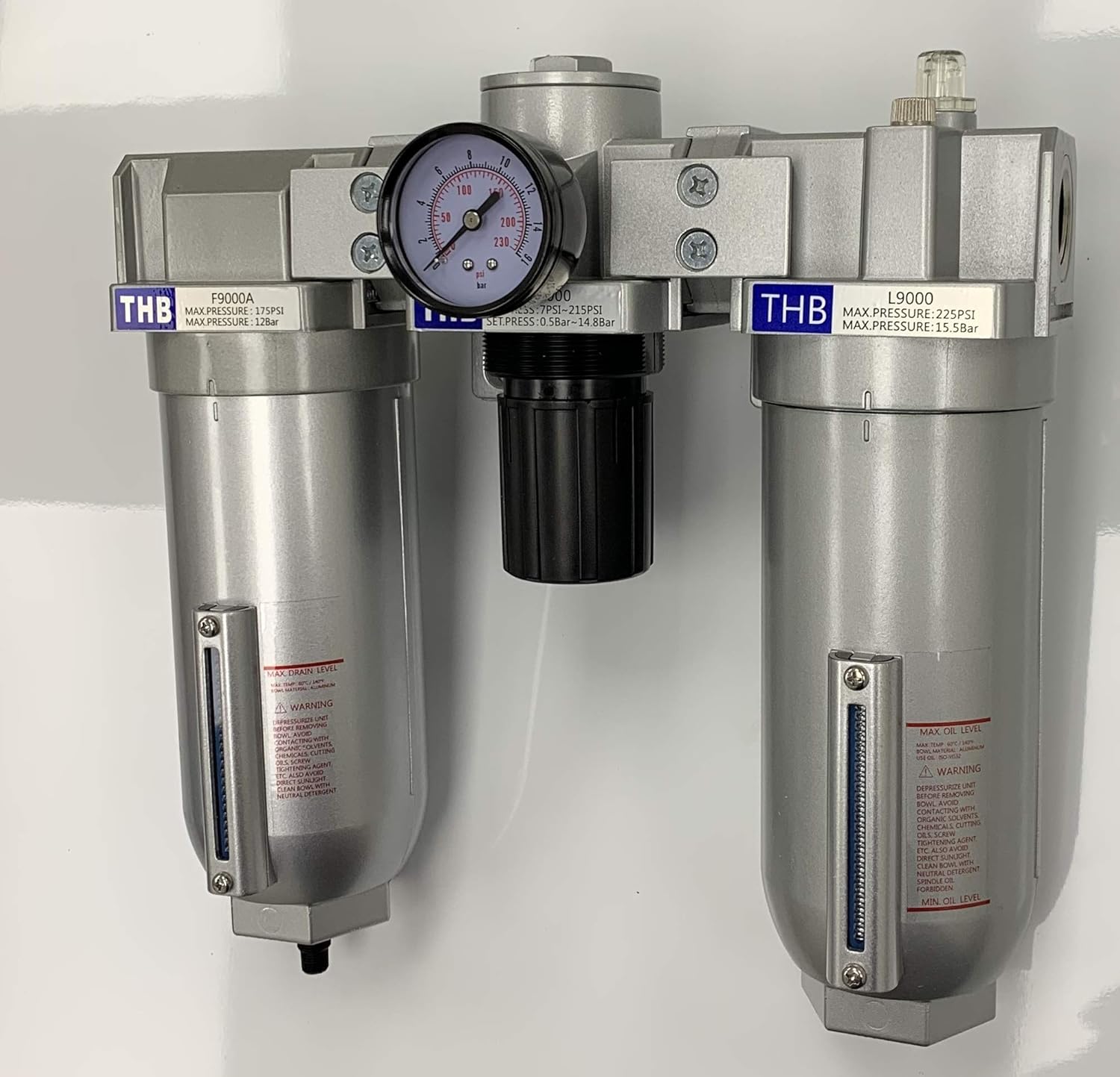

THB 9000 Series Industrial Mid-Flow 3-Stage Filter/Regulator/Lubricator (FRL) Combo — Automatic Drain, 5 Micron, 11 oz Metal Bowls with Sight Glass
The THB 9000 Series industrial mid-flow 3-stage FRL (filter / regulator / lubricator) combo delivers complete compressed-air preparation in a single piggyback assembly — removing water, dirt, and pipe scale, regulating pressure, and metering oil mist to protect and lubricate downstream air tools and pneumatic equipment. This automatic-drain version expels accumulated condensate on its own via a float drain, so the filter bowl stays clear without manual attention. Heavy-duty 11 oz metal bowls with sight glasses let you monitor condensate and oil level at a glance, and every unit ships with a pressure gauge and mounting bracket.
Key specifications
- Brand: THB — 9000 Series industrial mid-flow 3-stage FRL combo (filter + regulator + lubricator)
- Filtration: 5 micron, water-removing particulate element (replacement element: F9607)
- Bowls: 11 oz metal bowls with sight glass
- Regulated pressure range: 7–175 PSI
- Drain: automatic float drain (rated to 175 PSI)
- Port sizes available: 1/2", 3/4", and 1" NPT
- High-flow industrial design — up to ~175 CFM (1" port)
- Includes pressure gauge, 1/4" gauge port, and mounting bracket
- Relieving regulator with adjustable, lockable pressure setting
Typical applications
Ideal for compressed-air mains and drops feeding air tools, spray and blow-off stations, pneumatic machinery, and assembly lines that need clean, dry, lubricated air at a stable, adjustable pressure with hands-off condensate removal — installed as the air-prep stage at the point of use.
Choose your port size below. The THB 9000 Series 3-stage FRL combo pairs rugged 11 oz metal bowls and sight glasses with a 5-micron element, an included gauge, and an automatic float drain for dependable, low-maintenance moisture removal, pressure control, and tool lubrication in demanding compressed-air systems.
NOTE: Actual product may be different from pictured!
