THB 9000 Series 3-Stage Compressed Air Filtration System — Particulate / Coalescing / Desiccant Dryer, Automatic Drain
The THB 9000 Series 3-stage compressed air filtration system delivers clean, dry, oil-free air from a single compact, wall-mountable assembly. Compressed air passes through three progressive stages — particulate filtration, oil-removing coalescing filtration, and desiccant drying — making it ideal for paint spraying, plasma cutting, blast cabinets, and other applications that demand high-quality air. This configuration features automatic float drains for hands-free condensate removal.
Three-stage filtration
- Stage 1 — Particulate filter: 5 micron element (replacement element F9607), 11 oz metal bowl with sight glass.

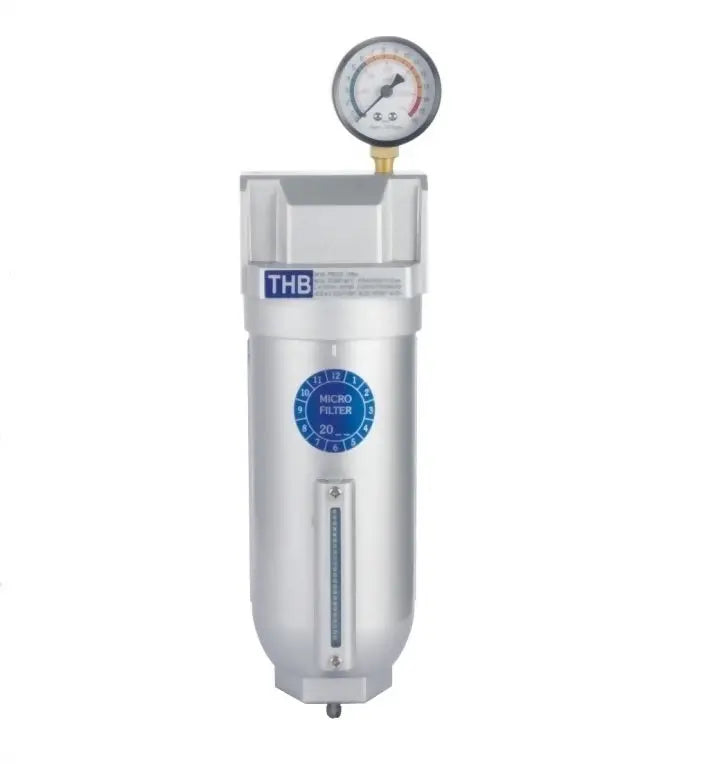

- Stage 2 — Coalescing filter: 0.01 micron oil-removing element (replacement element FM9607), 11 oz metal bowl with sight glass.
- Stage 3 — Desiccant dryer: 11 oz metal bowl with sight glass, includes 4 bags of desiccant.
Key specifications
- Brand: THB — 9000 Series industrial mid-flow
- Stages: 3 (particulate + coalescing + desiccant dryer)
- Bowls: heavy-duty 11 oz metal bowls with sight glass
- Drain type: automatic float drain (replacement drain D51)
- Maximum inlet pressure: 175 PSI
- Port sizes available: 1/2", 3/4", and 1" NPT
- Flow: mid-flow industrial design — approx. 140 CFM at 3/4" and 175 CFM at 1"
- Replacement elements: F9607 (5 micron particulate), FM9607 (0.01 micron coalescing)
Typical applications
Paint spraying, powder coating, plasma cutting, sandblasting, and any point-of-use application where clean, dry, oil-free compressed air is critical. Also well suited as a final air-prep stage ahead of pneumatic tools, instruments, and automated equipment.
The THB 9000 Series 3-stage filtration system combines 5-micron particulate filtration, 0.01-micron coalescing oil removal, and desiccant drying with rugged 11 oz metal bowls and hands-free automatic drains for dependable compressed air quality in demanding industrial environments. Choose your port size below.
NOTE: Actual product may be different from pictured!
