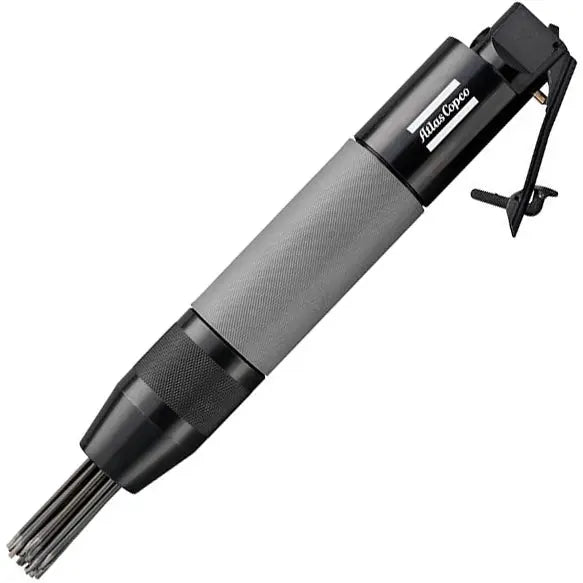

TEX 01N - Needle Scaler - 40 Hz – ½” Stroke by Atlas Copco

Atlas Copco TEX 01N Needle Scaler – 40 Hz Stroke

The Atlas Copco TEX 01N Needle Scaler is a compact pneumatic surface preparation tool built for cleaning, roughening, and finishing concrete surfaces with controlled, repeatable needle action. Designed for use with compressed air, this needle scaler gives crews a lightweight and easy-handling tool for removing loose surface material, preparing construction joints, and working in areas where larger surface preparation equipment is too bulky.

At only 5.2 lb with a 15 in overall length, the TEX 01N is built for mobility, accuracy, and operator control. Its 40 Hz blow frequency delivers fast needle action for productive surface cleaning, while the ½ in stroke design gives the tool the reach needed for scaling, roughening, and cleaning uneven concrete surfaces. With a low 4 CFM air requirement, this tool is also easy to support with many compressed air setups, making it a practical addition for repair crews, concrete contractors, maintenance teams, rental fleets, and industrial service work.

Built for Concrete Surface Preparation

The TEX 01N is made for surface work where accuracy and access matter. Needle scalers are especially useful when a flat chisel, grinder, or larger surface preparation tool cannot follow the shape of the surface. The multiple needles help break loose material, clean rough patches, and reach into small surface irregularities.

Common applications include:

• Cleaning concrete before repair or rework
• Roughening concrete for improved bonding
• Keying the surface of construction joints
• Removing scale, residue, and loose surface material
• Producing ornamental or contrasting concrete finishes
• Working around edges, corners, and uneven surfaces
• General pneumatic surface preparation in industrial environments

For concrete repair work, surface condition matters. A clean, properly roughened surface gives repair material a better foundation and helps reduce the risk of bonding issues. The TEX 01N gives operators a simple pneumatic tool for that prep work without dragging out heavier equipment.

Key Features and Benefits

• 40 Hz needle action for fast surface cleaning and roughening
• ½ in stroke design for effective scaling contact
• Lightweight 5.2 lb body for easier handling
• Compact 15 in length for tight access and controlled movement
• 4 CFM air consumption for efficient compressor demand
• Atlas Copco construction-grade build quality
• Excellent choice for concrete cleaning before rework
• Useful for construction joints, ornamental finishes, and repair prep
• Simple pneumatic operation with no electric motor to maintain
• Compact enough for jobsite service trucks and maintenance kits

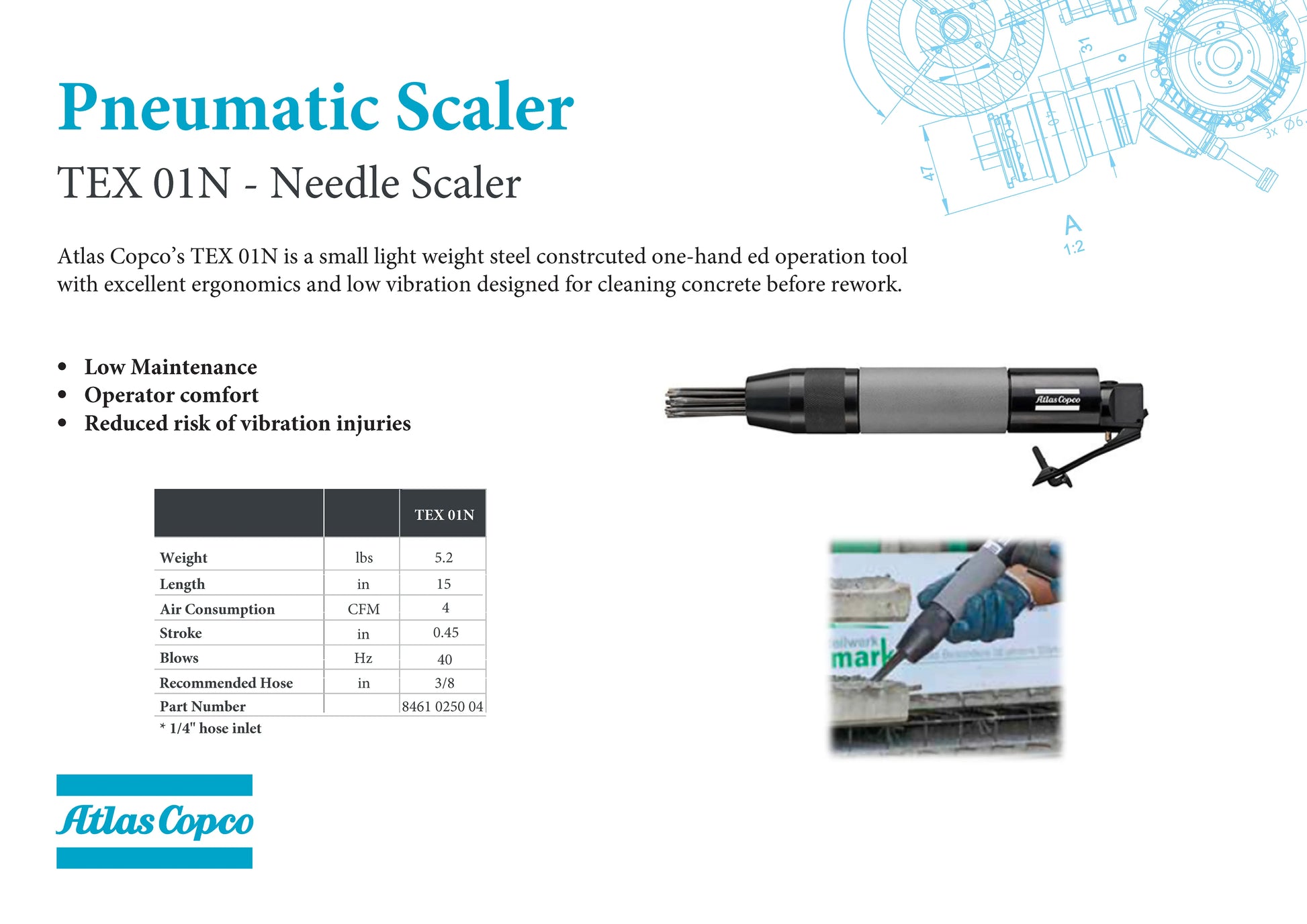

Technical Specifications

• Product Type: Pneumatic Needle Scaler
• Brand: Atlas Copco
• Model: TEX 01N
• SKU: 8461025004
• Atlas Copco Part Number: 8461 0250 04
• Blow Frequency: 40 Hz
• Stroke: 11 mm / ½ in
• Length: 15 in / 370 mm
• Weight: 5.2 lb / 2.35 kg
• Air Consumption: 4 CFM / 2 l/s
• Recommended Hose Size: 10 mm
• Air Inlet Thread: 1/4 in BSP

Why Choose the Atlas Copco TEX 01N?

The TEX 01N is a strong fit when you need a compact pneumatic tool that can clean and texture concrete without the size, cost, or setup of larger surface preparation machines. It is light enough for detail work, but rugged enough for daily construction and maintenance environments. The low 4 CFM air consumption also makes it easier to integrate into existing compressed air systems without requiring a large dedicated compressor for one small tool.

This needle scaler is also useful for work where control is more important than brute force. The operator can guide the tool along edges, corners, patches, and surface transitions while the needles conform to uneven surfaces. That makes it especially valuable for concrete repair prep, joint preparation, small surface correction, and detail cleaning.

Best Uses

1. Concrete Repair Preparation
   Use the TEX 01N to remove loose material and roughen the surface before patching, resurfacing, or reworking concrete.
2. Construction Joint Keying
   The tool’s compact needle action helps create a textured profile along construction joints where bonding performance matters.
3. Decorative and Finish Work
   For ornamental or contrasting concrete finishes, the TEX 01N provides controlled surface impact without requiring a larger machine.
4. Maintenance and Cleanup
   Use it for general surface cleaning where debris, residue, or irregular material needs to be broken loose with a compact pneumatic tool.

Compact, Efficient, and Ready for Real Work

The Atlas Copco TEX 01N Needle Scaler is a straightforward, dependable air tool for concrete surface preparation. It combines a 40 Hz impact rate, ½ in stroke, 4 CFM air demand, and lightweight 5.2 lb design into one compact package.

For crews that need an efficient pneumatic needle scaler for concrete cleaning, roughening, joint preparation, and detail work, the TEX 01N is a strong choice backed by Atlas Copco’s long-standing reputation in construction and industrial air tools.
