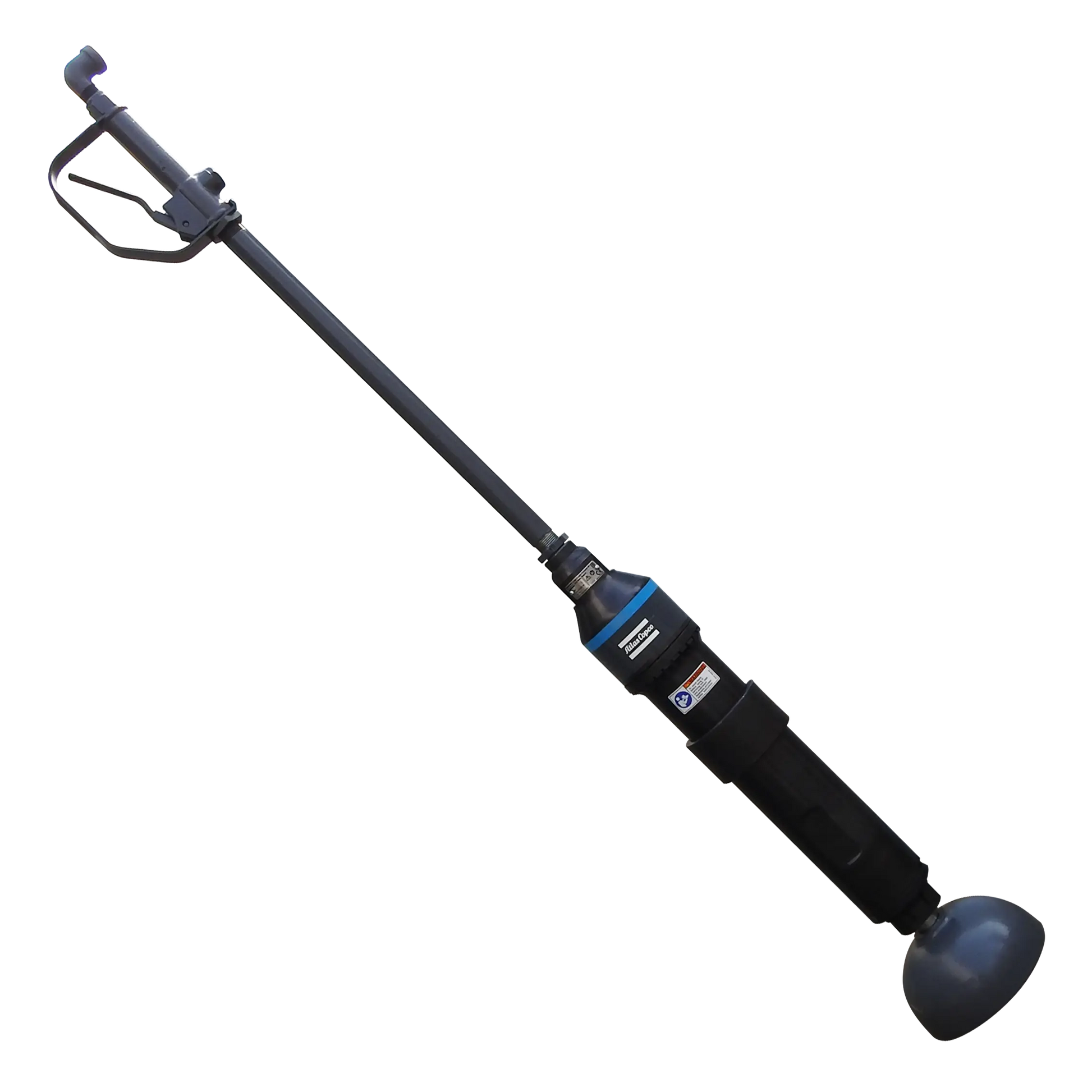

TAM 14 - 40 lb Class Backfill Tamper by Atlas Copco

TAM 14 - 40 lb Class Backfill Tamper by Atlas Copco

The Atlas Copco TAM 14 is a pneumatic backfill tamper built for compacting soil, clay, and trench backfill in tight jobsite spaces where controlled vertical impact matters. Designed for single-person operation, the TAM 14 gives crews a compact, reliable way to finish backfill compaction around foundations, utility trenches, structures, posts, and confined excavation areas without bringing in a larger compaction machine. Atlas Copco identifies its pneumatic tampers as tools for compacting soil around foundations and compacting backfill in trenches, with the TAM 14 positioned as the lighter, more maneuverable unit in the series.

This model is especially useful where access is limited and consistent down-force is needed in a narrow footprint. With an 800 BPM impact frequency, 18 CFM air consumption, 5 inch aluminum butt, and 30 lb listed weight, the TAM 14 delivers practical pneumatic compaction power without excessive size. The Warthog listing identifies this unit as SKU 8461025014, with the configured specs showing 18 CFM, 800 BPM, and a 5 inch aluminum butt.

Built for Backfill, Clay, and Confined Soil Compaction

The TAM 14 is made for the kind of work that larger plate compactors and rammers cannot always reach. Its tall inline body and round tamping butt allow the operator to work down into trenches, around foundation edges, near utility lines, and against structures where a wider machine may not fit cleanly.

Common applications include:

• Compacting backfill in trenches
• Compacting soil around foundations
• Packing soil around structural edges and confined work areas
• Utility, plumbing, electrical, and drainage trench restoration
• Light to medium soil compaction where a hand-operated pneumatic tamper is preferred

Atlas Copco’s safety and operating literature describes the TAM 14 and TAM 19 as pneumatic tampers designed to compact soil around foundations and other structures and to compact backfill in trenches. The same manual notes that the TAM 14 is designed for light to medium applications.

Key Features

• 800 BPM impact frequency for steady, controlled tamping force
• 18 CFM air consumption for use with appropriately sized compressed air supply
• 5 inch aluminum butt for focused soil contact and reliable compaction
• 30 lb listed tool weight for manageable handling during single-person operation
• Heat-treated cylinder and chrome-plated piston for longer service life
• Exhaust deflector that directs air, moisture, and oil away from the operator
• Integral oiler for continuous lubrication during operation
• Aluminum butt held with a clamp screw for fast replacement

Atlas Copco’s handheld tools literature highlights the TAM tamper design with slow, powerful blows for compacting backfill, including clay and finely crushed or powdered material. The same source lists the heat-treated cylinder, chrome-plated piston, replaceable aluminum butt, exhaust deflector, and integral oiler as core features of the tool.

Technical Specifications

Product: Atlas Copco TAM 14 Backfill Tamper
SKU: 8461025014
Tool Type: Pneumatic backfill tamper
Impact Frequency: 800 BPM
Air Consumption: 18 CFM
Butt Size: 5 inch aluminum butt
Weight: 30 lb
Length: 52 in.
Body Diameter: 2.81 in.
Hose Connection: 0.5 in.
Sound Pressure Level: 95 dB(A)
Vibration Level, 3 Axes: 32.3 m/s²

Atlas Copco’s published tamper specifications list the TAM 14 at 13.6 kg, 1320 mm length, 127 mm butt size, 8.4 l/s air consumption, 800 bpm impact frequency, 95 dB(A) sound pressure level, and 12.7 mm hose connection. Converted to imperial, that corresponds closely to 30 lb, 52 in. length, 5 in. butt size, 17.7 to 18 CFM air consumption, and 0.5 in. hose connection.

Why the TAM 14 Works Well on Real Jobsites

1. Compact vertical design
   The TAM 14’s narrow body and inline tamping action make it well suited for trench and foundation work where wider machines are awkward or unusable.
2. Strong soil contact
   The 5 inch aluminum butt concentrates force into a practical compaction area, helping pack soil in lifts, corners, and confined zones.
3. Built-in lubrication support
   The integral oiler helps maintain lubrication during operation, supporting tool life and consistent performance when used with proper air preparation.
4. Operator-focused exhaust control
   The exhaust deflector is designed to direct discharge air, moisture, and oil away from the operator, making the tool cleaner and more manageable during extended use.
5. Serviceable wear design
   The clamp-secured aluminum butt allows quicker replacement when the tamping face becomes worn, helping reduce downtime on the job.

Durable Atlas Copco Pneumatic Tool Construction

The TAM 14 is built around proven pneumatic impact tool construction. Atlas Copco’s product literature points to a heat-treated cylinder and chrome-plated piston as durability features intended to extend tool life under demanding use. That matters on jobs where the tool is repeatedly driven into backfill, clay, and mixed soil conditions throughout the day.

For contractors, utility crews, municipal work, site prep, and industrial maintenance teams, the Atlas Copco TAM 14 offers a clean balance of size, impact rate, air demand, and jobsite usability. It is small enough for tight-access work, strong enough for light to medium backfill compaction, and backed by Atlas Copco’s long-standing reputation in pneumatic construction tools.

The Atlas Copco TAM 14 is the right fit when you need a compact pneumatic backfill tamper for trench work, foundation compaction, clay soil, and confined-space soil packing without moving up to a larger compaction machine.
