Super-Dry TD Series Automatic Timer Condensate Drain, 1/4" and 1/2" NPT, 12V DC to 240V AC

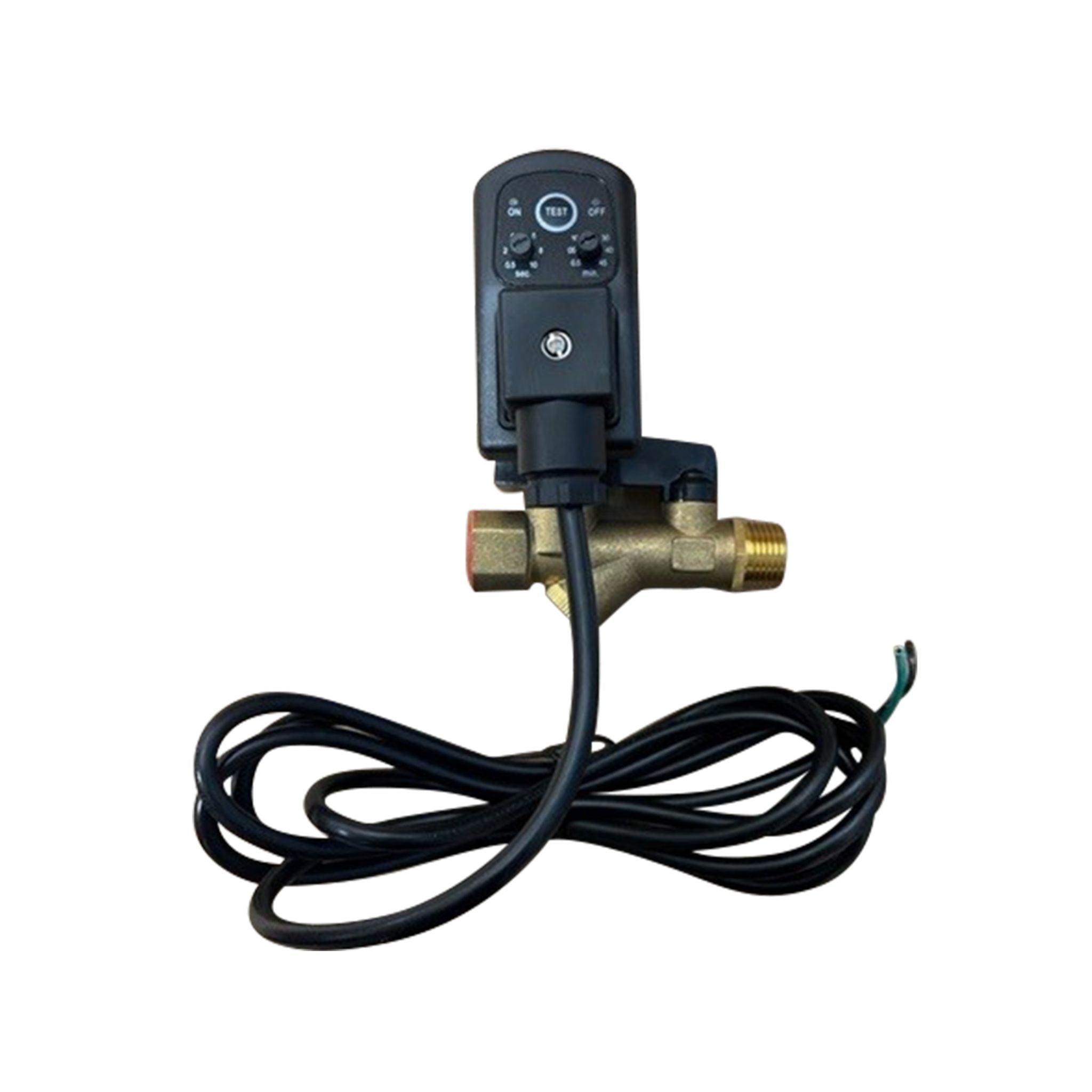

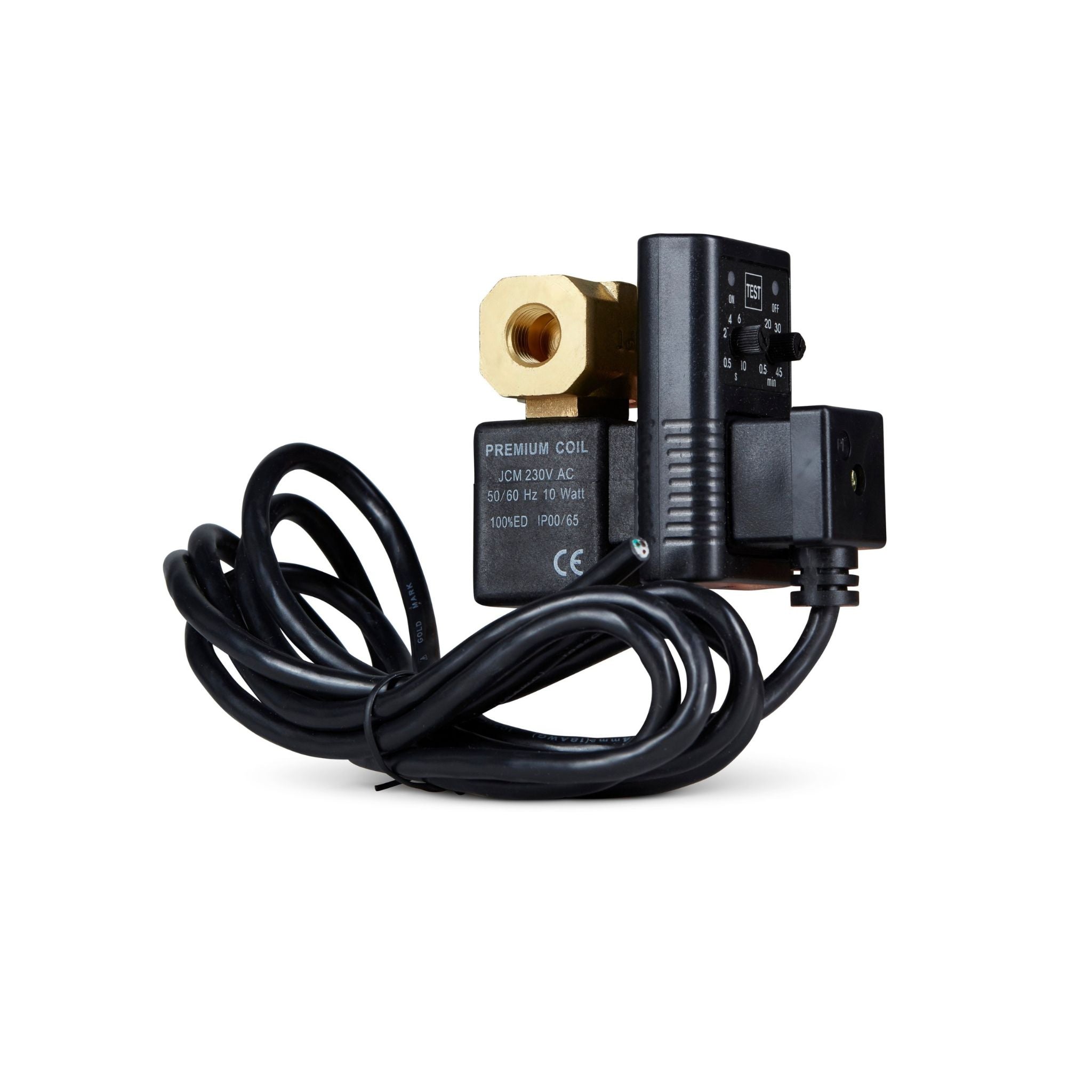

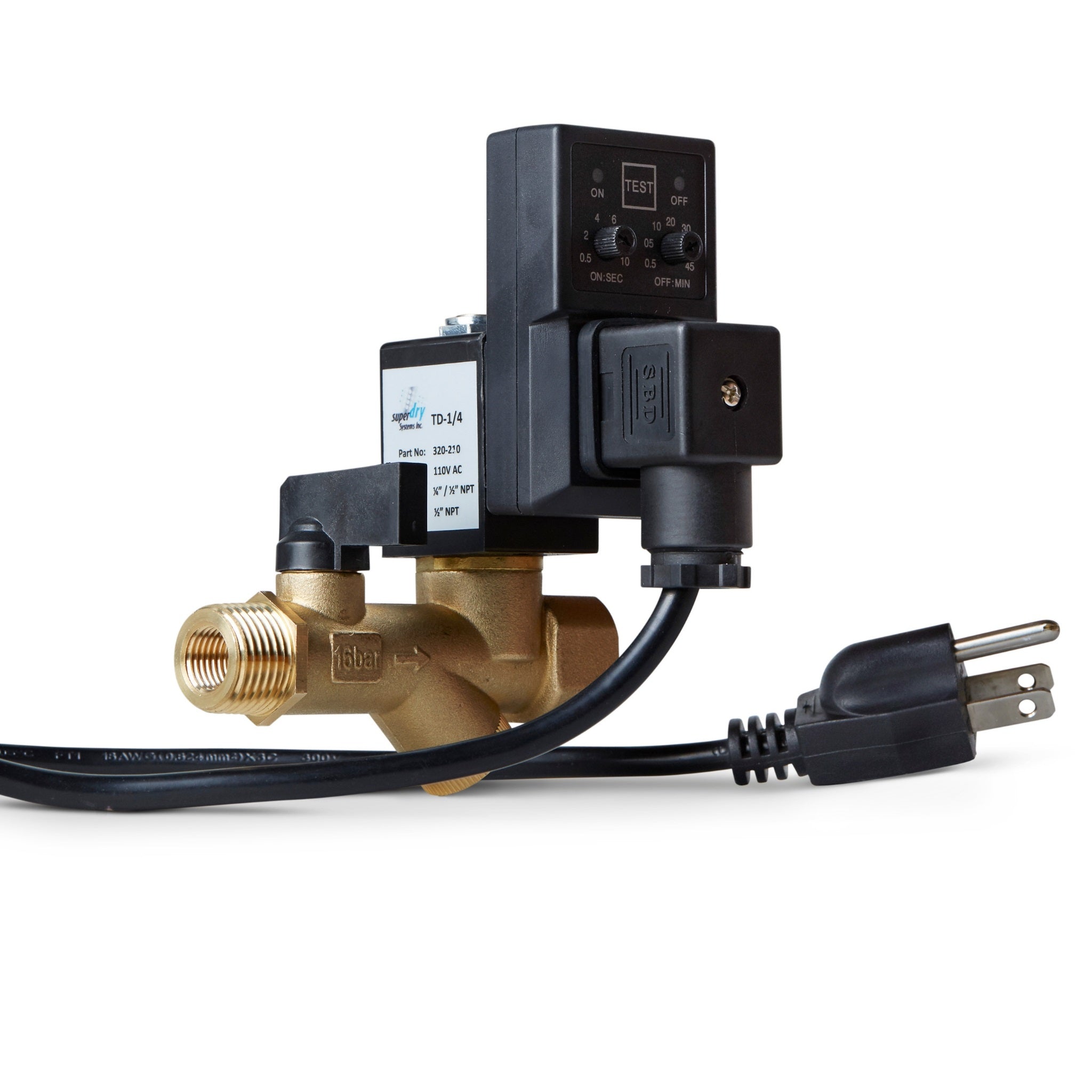

The Super-Dry TD Series is an automatic condensate drain that combines a solenoid valve, a brass ball valve strainer and an electronic timer in one assembly. It removes collected condensate from air compressors, compressed air dryers, receiver tanks, filters and separators so nobody has to crack a manual valve on a schedule. Pick the version that matches the power available at the drain point: 12V DC, 110 to 120V AC, 220V AC or 240V AC. The 110 to 120V AC and 240V AC units are dual port, with 1/4" to 1/2" NPT inlet and outlet connections. The 220V AC and 12V DC units are 1/4" only and use a different valve body: a brass 2/2 way direct acting design. That different valve assembly is why the 220V AC and 12V DC versions cost significantly more, they are not the same drain with a different power cord.

How it works

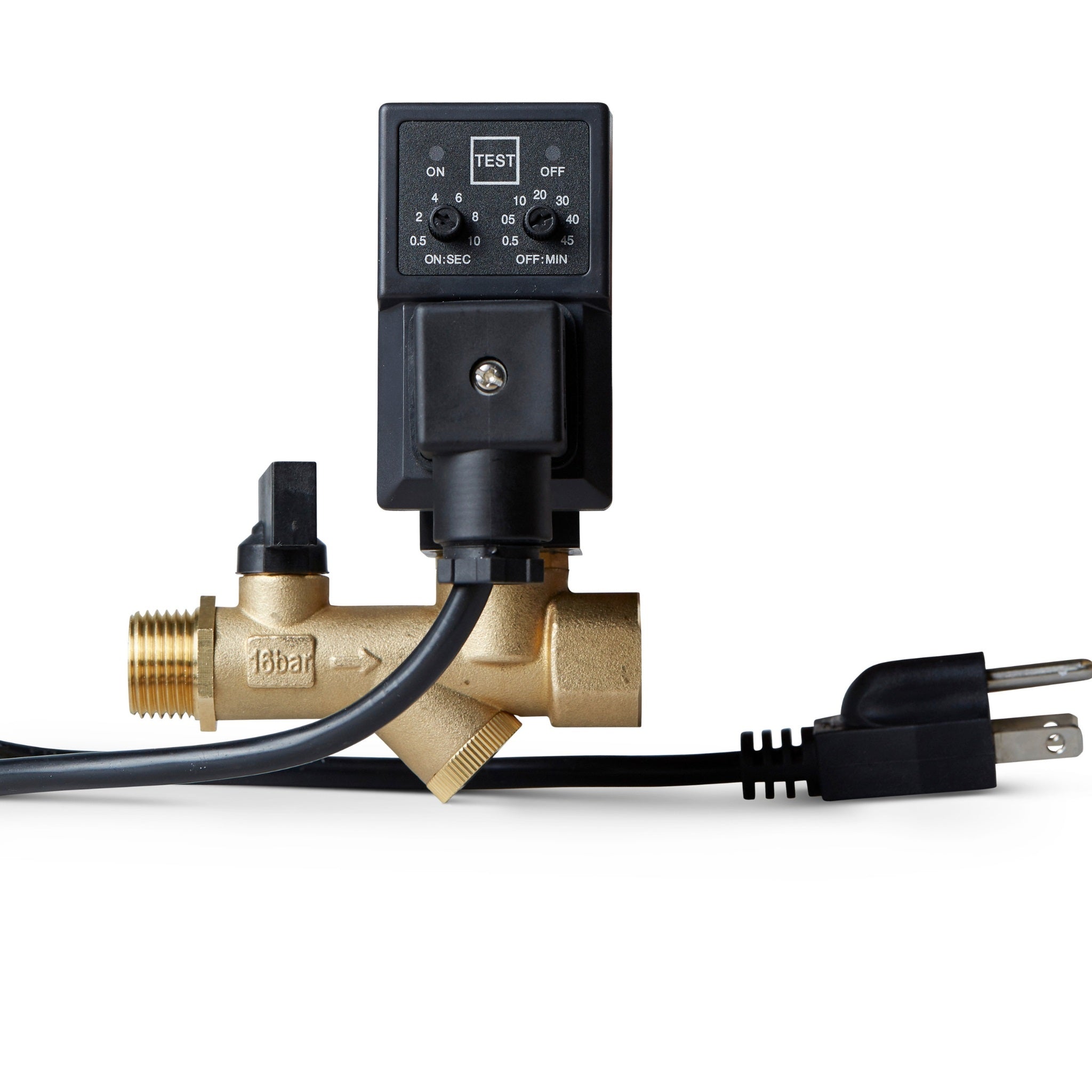

• The interval setting controls how often the valve opens and is adjustable from 0.5 to 45 minutes.
• The discharge setting controls how long the valve stays open and is adjustable from 0.5 to 10 seconds.
• At each interval the solenoid valve opens and discharges condensate automatically through the strainer.
• A test button on the timer actuates the valve on demand, which confirms that power is reaching the unit.
• Install the drain at a low point where condensate collects, and keep the strainer and discharge line clear.

Key specifications

Typical applications

• Draining reciprocating and rotary screw air compressors
• Draining compressed air receiver tanks at the low point

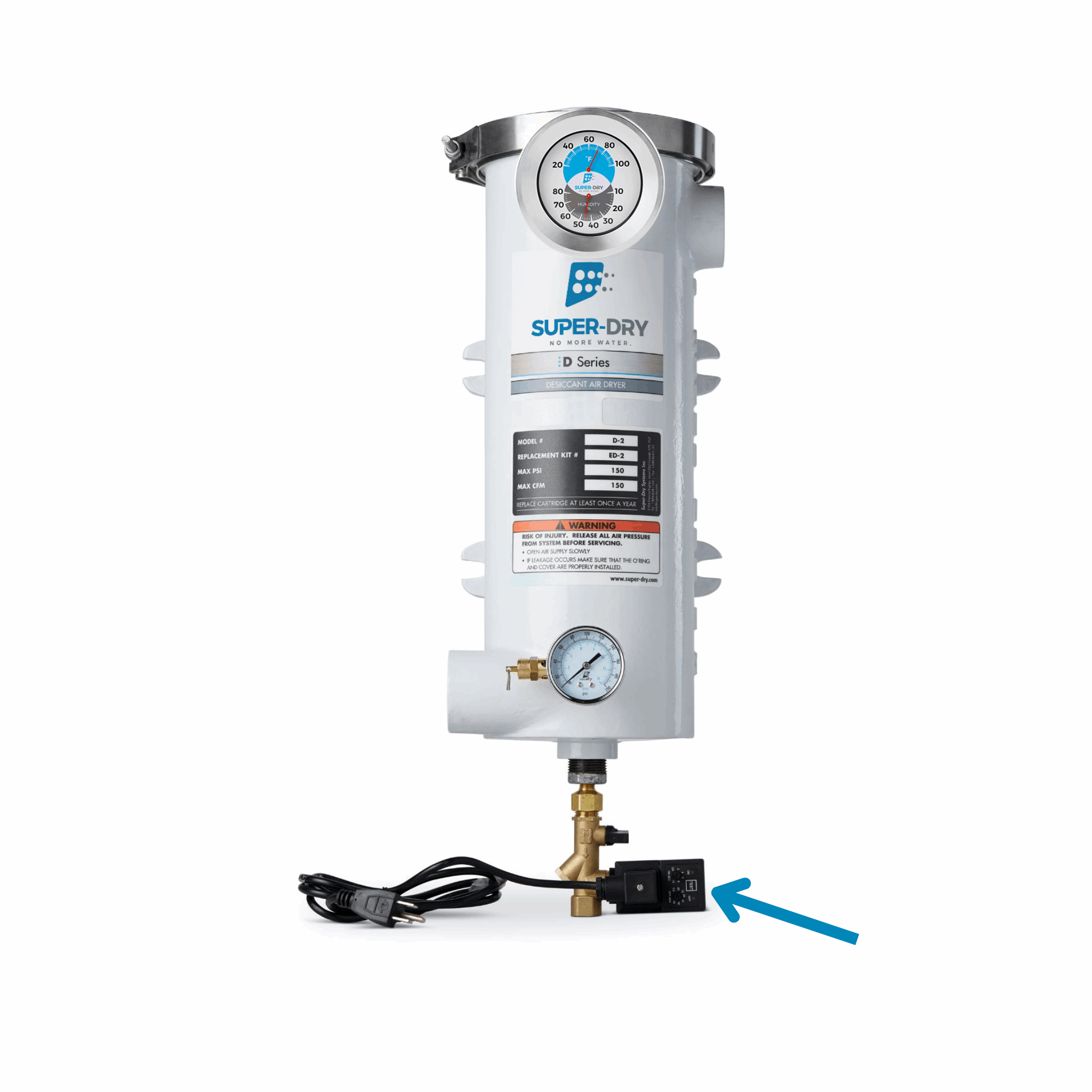

• Automatic condensate removal on compressed air dryers
• Filter and water separator drain points
• Paint booth and finishing air lines where carryover ruins the job
• Mobile and 12V DC service equipment that has no AC power at the drain

What's included

• Electronic timer with adjustable interval and discharge settings
• Timed solenoid valve
• Brass ball valve and strainer, with the 1/4" to 1/2" dual inlet on the 110 to 120V AC and 240V AC units and a 1/4" connection on the 220V AC and 12V DC units

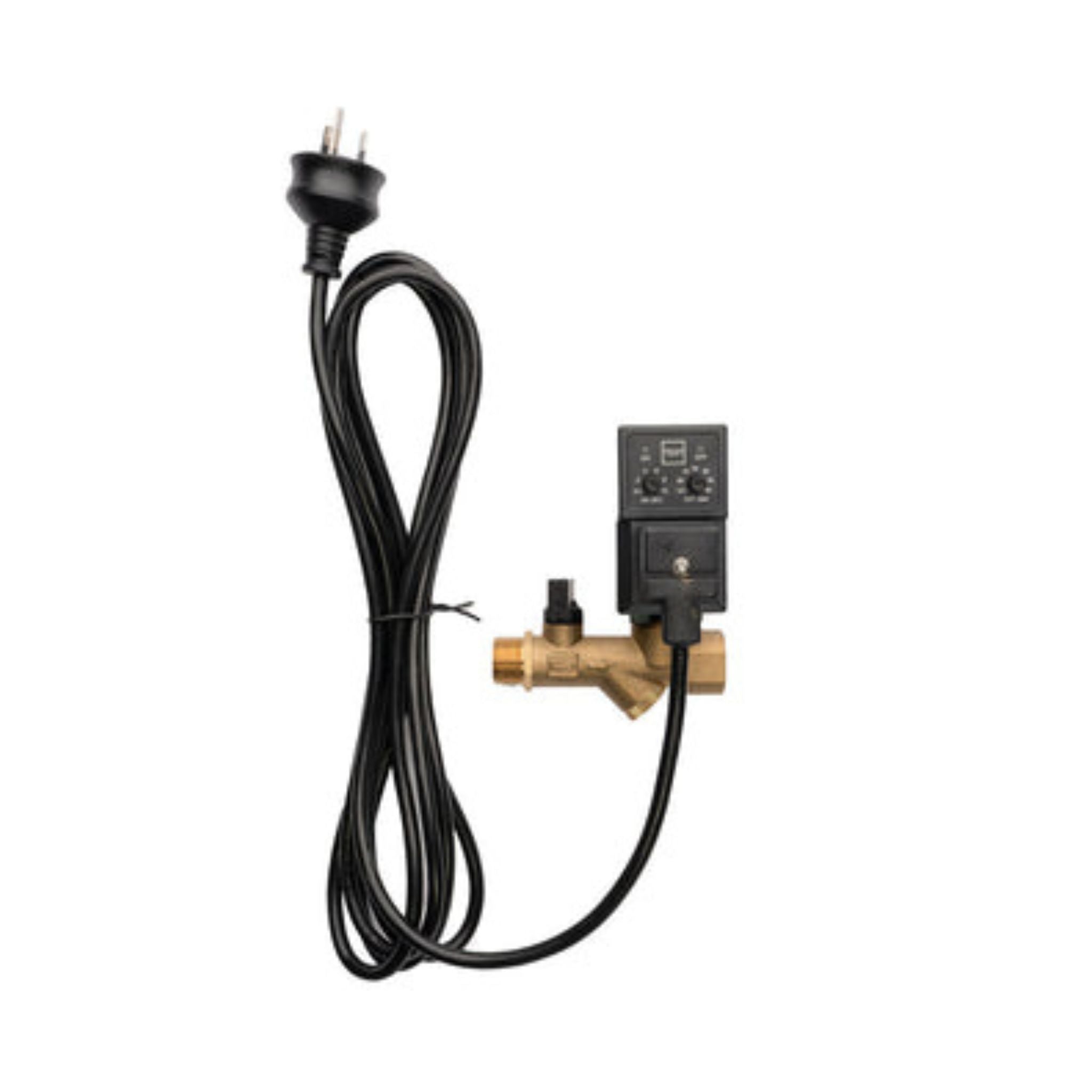

• Power cord matched to the voltage ordered (the 240V model ships with a 3 meter cable and plug)

The TD Series gives compressed air systems a dependable, repeatable way to purge condensate before it reaches tools, dryers or finished work. Warthog Air Compressor Store is an authorized US source for Super-Dry Systems Inc. We can help you match voltage and port size to your compressor, dryer or receiver tank. Order the voltage you need above and set the interval and discharge times to suit your duty cycle.
