Super-Dry SAF Series Compressed Air Filter Housing, 45 to 515 SCFM, 1/2" to 2" NPT
| Specifications (As Configured) | |
|---|---|
 Vendor |
Super-Dry
|
 SKU |
340-100
|
| Dimensions | |
 Weight |
3.0 lb
|
The Super-Dry SAF Series is a compressed air filter housing that cuts contamination out of your air stream before it reaches the process or the equipment you care about. Five sizes cover 45 to 515 SCFM at 100 PSIG with 1/2" to 2" NPT inlet and outlet ports. Clean air keeps air tools in service longer, lets pneumatic machinery and controls run at their rated performance, and keeps pipe and valves free of contaminants.
How it works

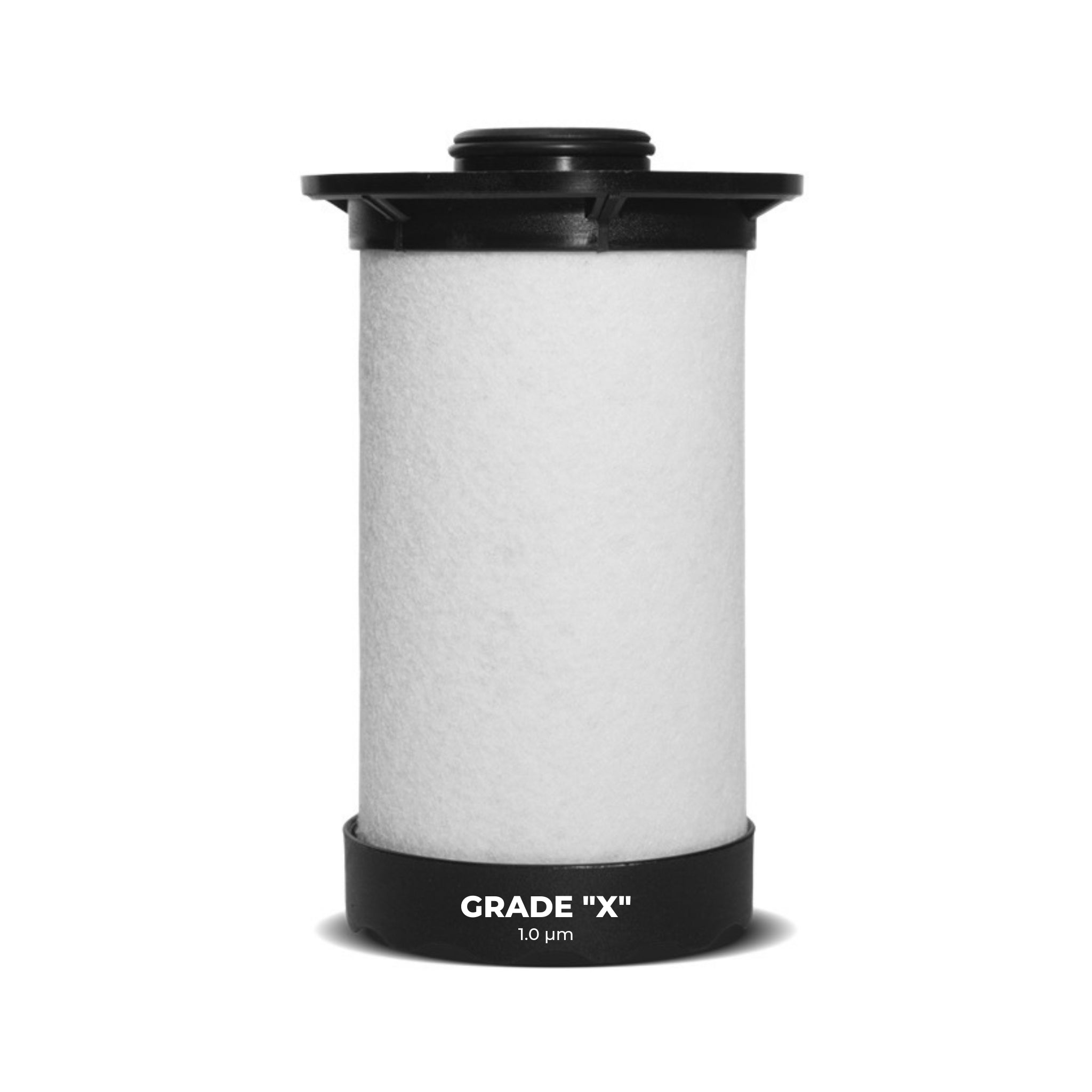

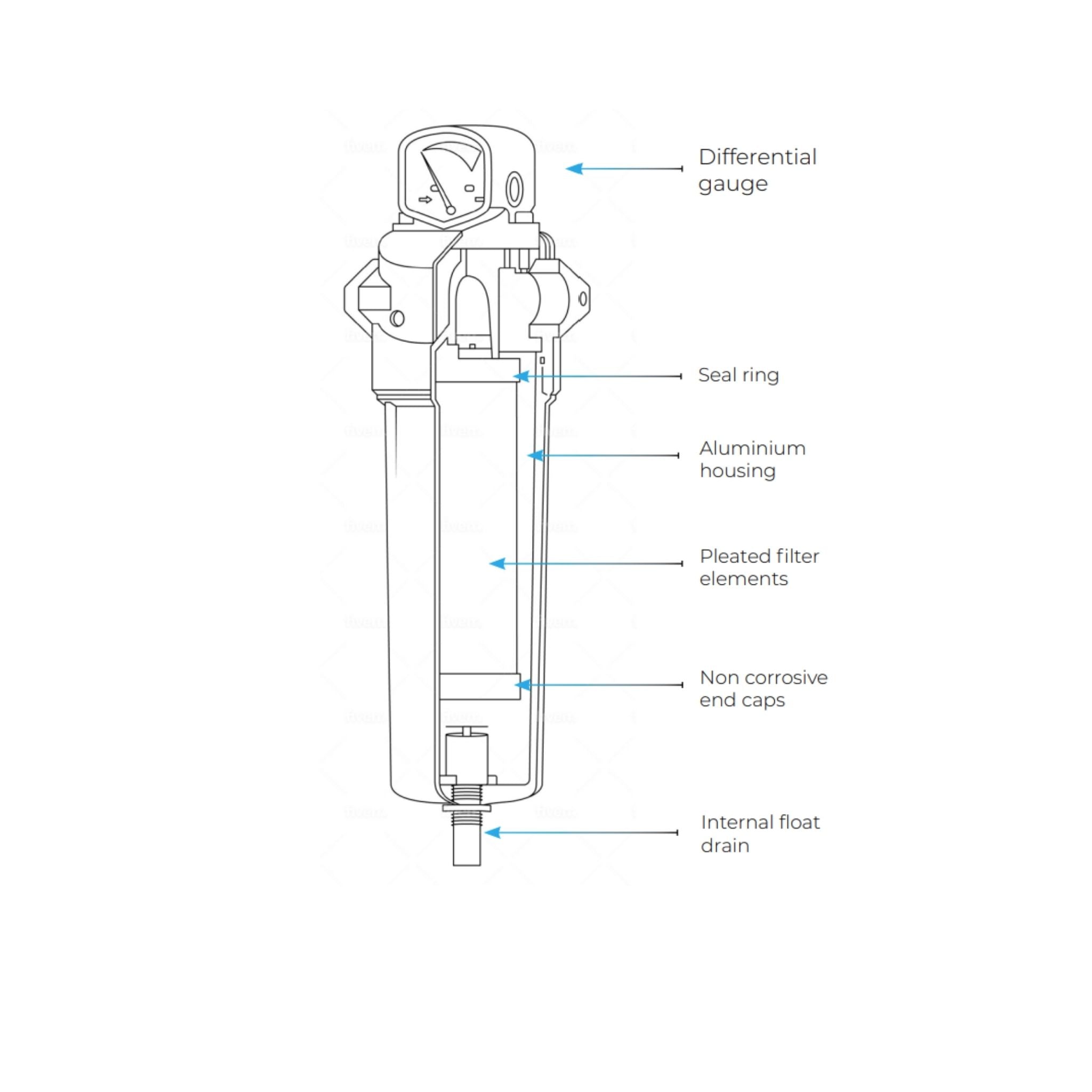

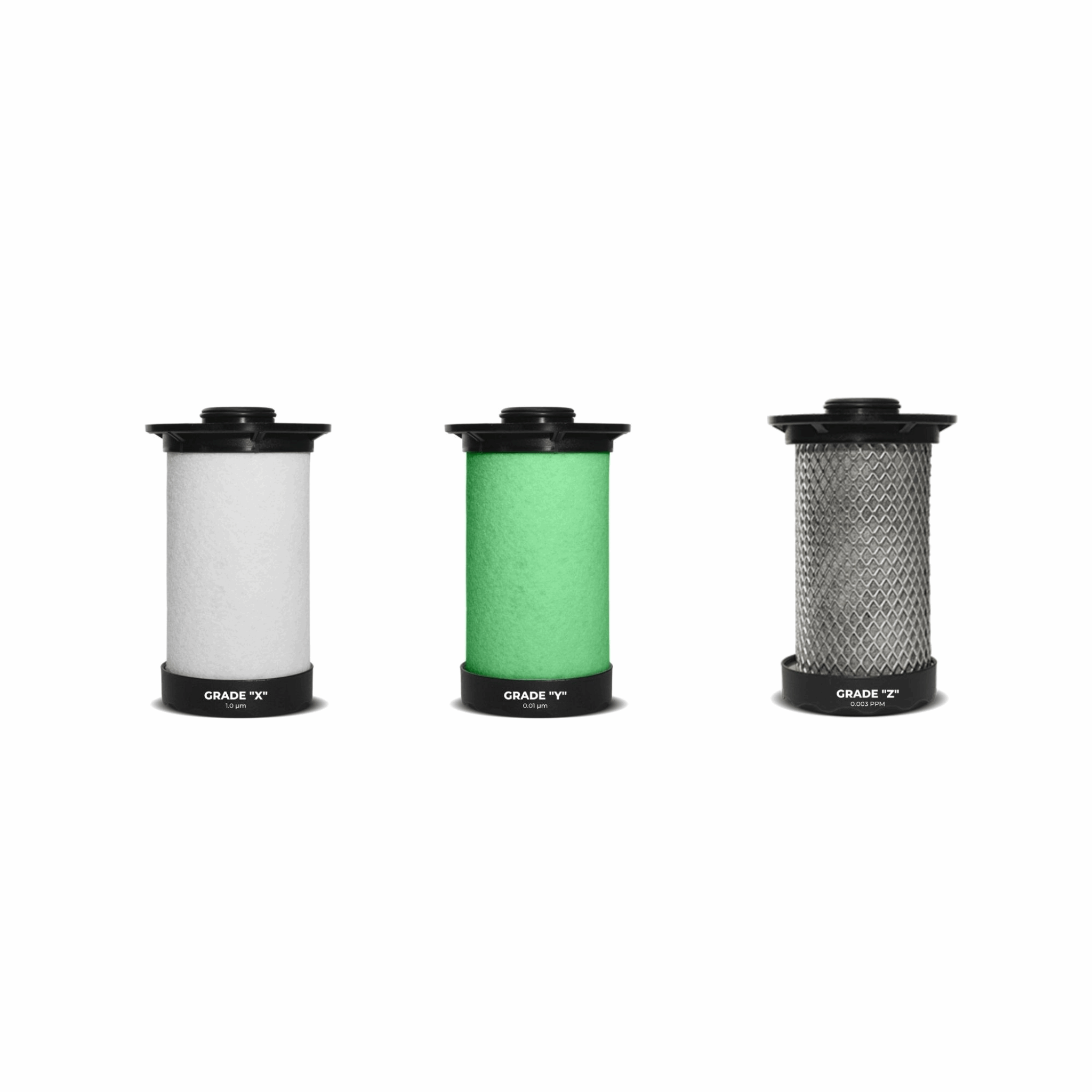

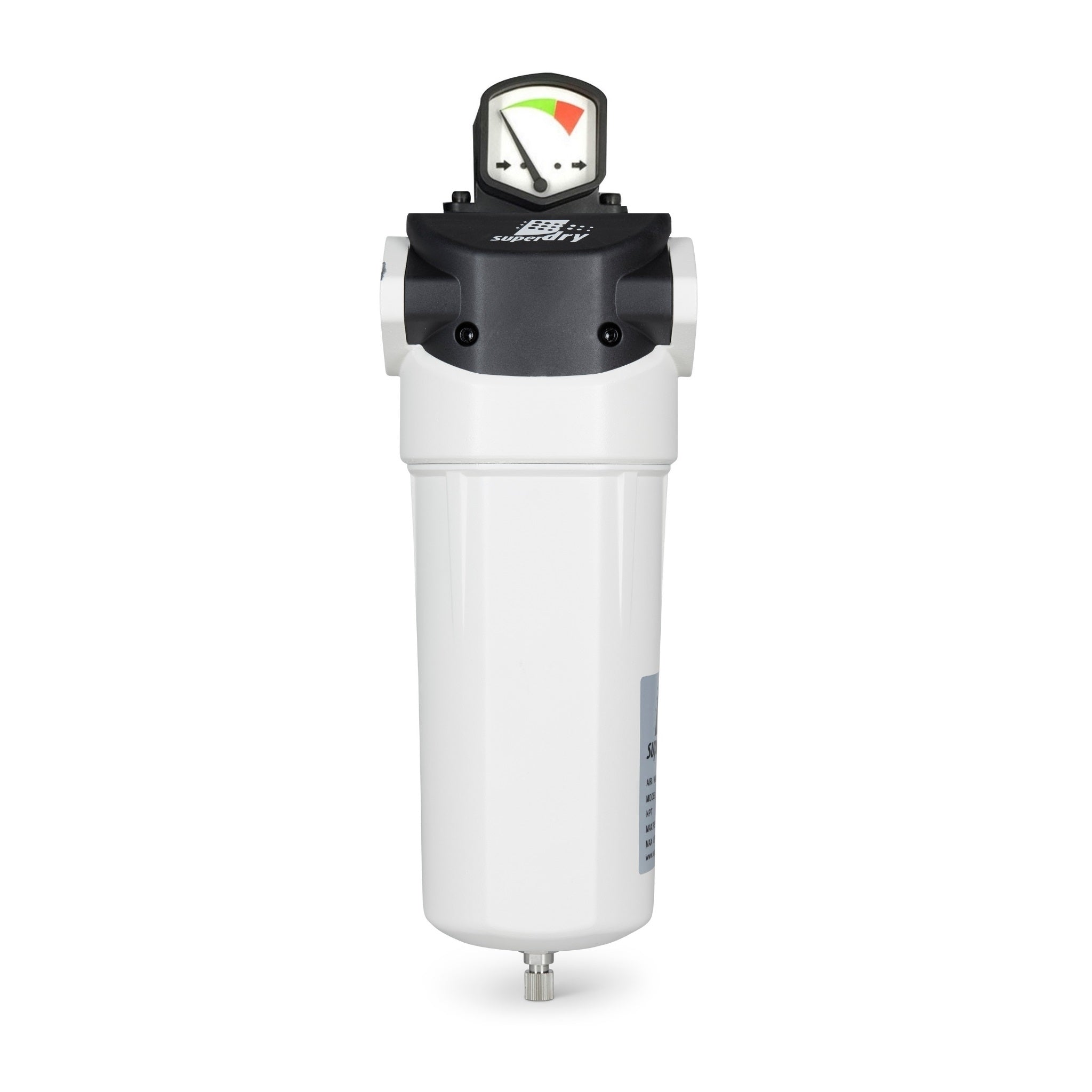

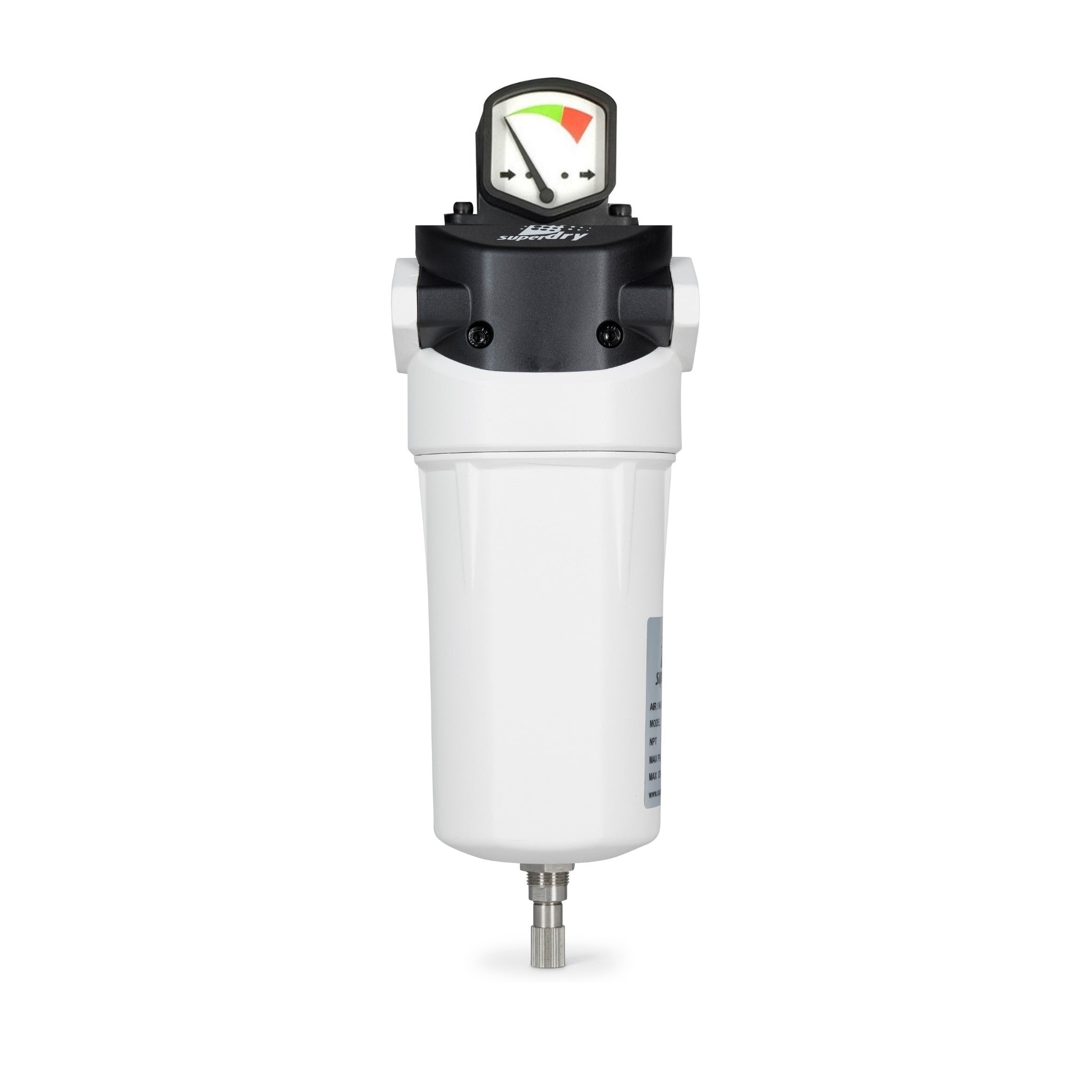

Air passes through a replaceable filtration element held in the housing, and the contaminants it captures are separated from the air stream. Every housing comes with an internal float drain that discharges collected liquid automatically, plus a differential pressure indicator so you can see when the element has loaded up and needs changing. Elements are offered in three grades: general purpose (Grade X), high efficiency (Grade Y) and activated carbon (Grade Z), so one housing size can be set up for particulate, fine coalescing or vapor and odor duty.
Key specifications
| SKU | Model | Airflow at 100 PSIG | Inlet / Outlet Ports |
|---|---|---|---|
| 340-100 | SAF-45 | 45 SCFM | 1/2" NPT |

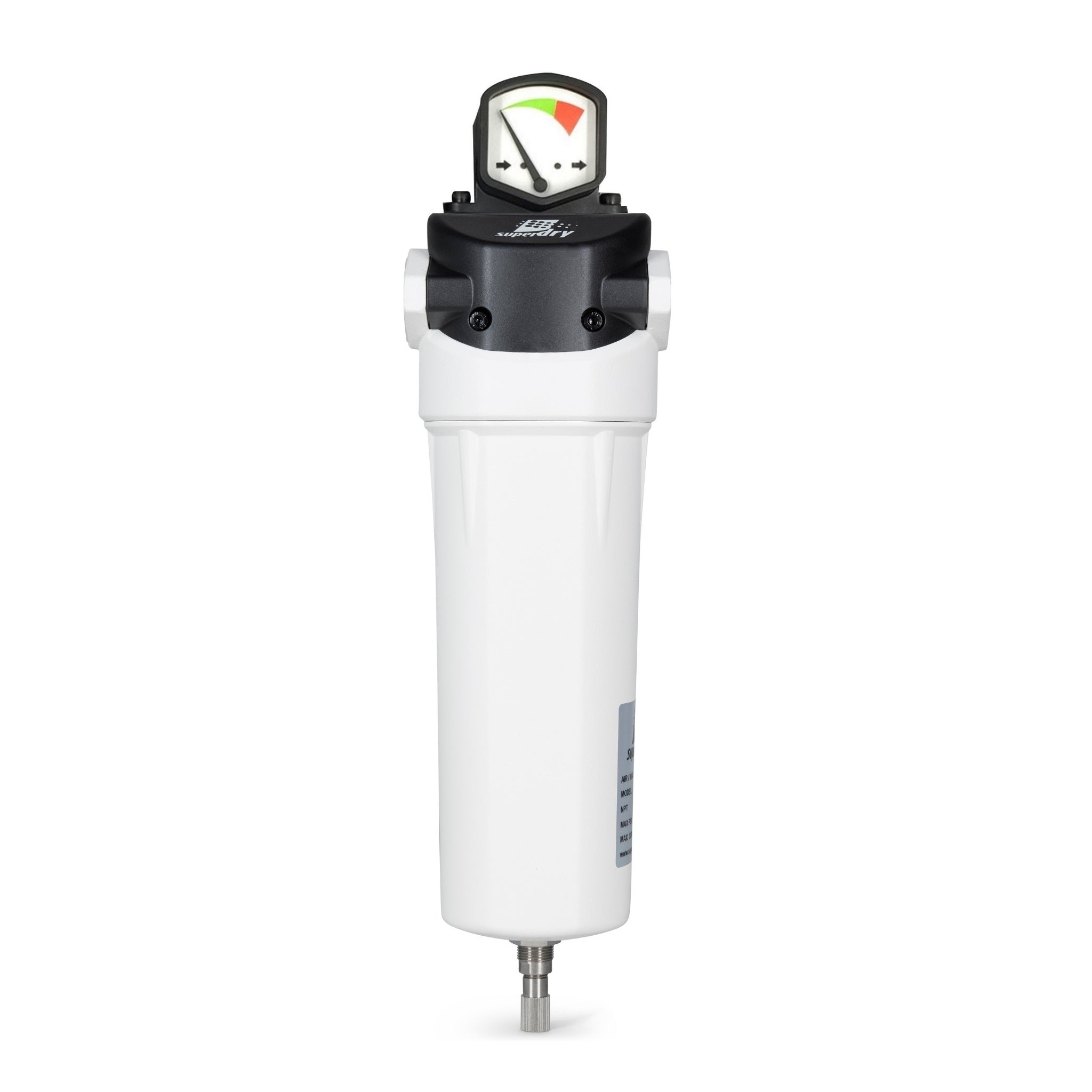

| 340-110 | SAF-85 | 85 SCFM | 3/4" NPT |
| 340-120 | SAF-185 | 185 SCFM | 1" NPT |

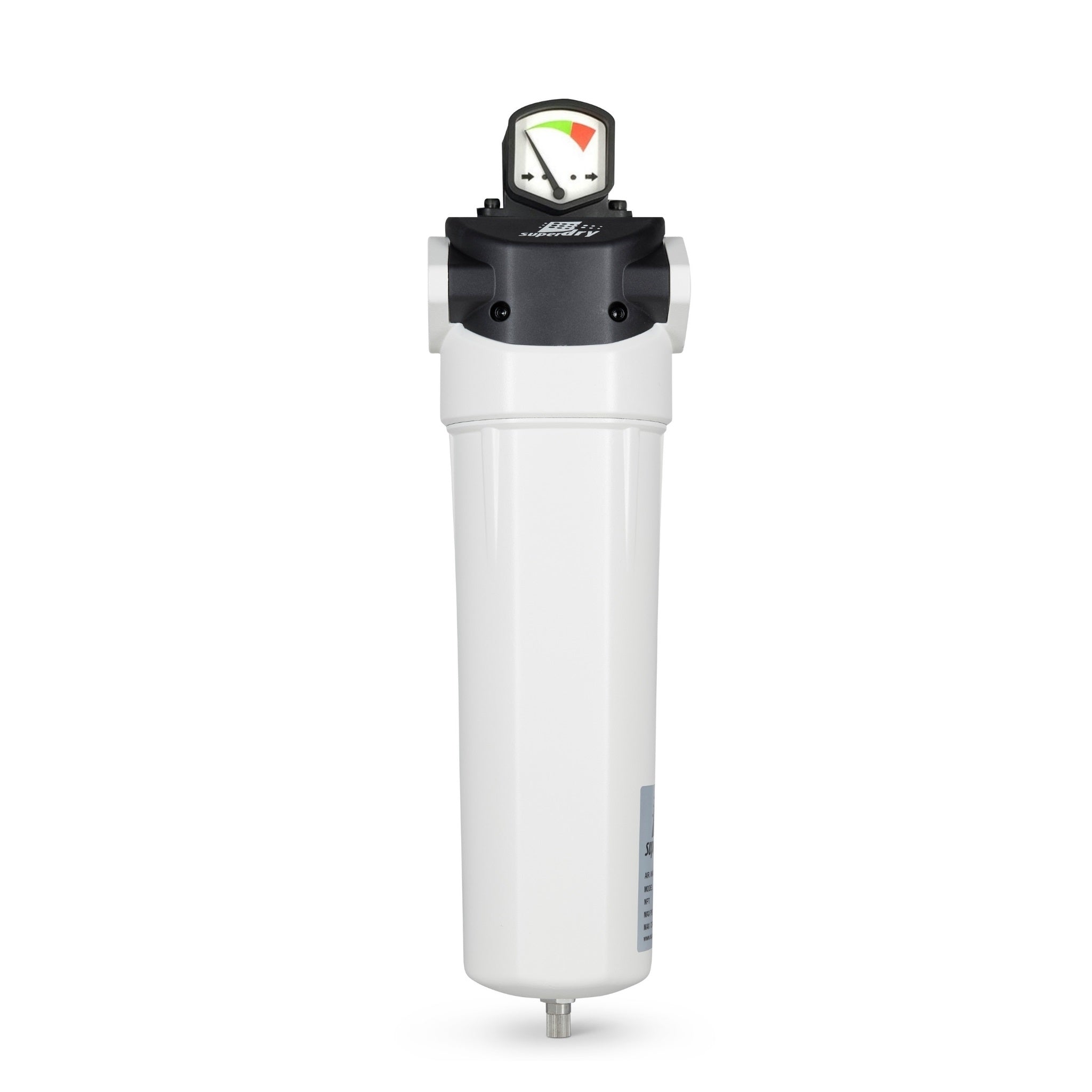

| 340-130 | SAF-375 | 375 SCFM | 1-1/2" NPT |

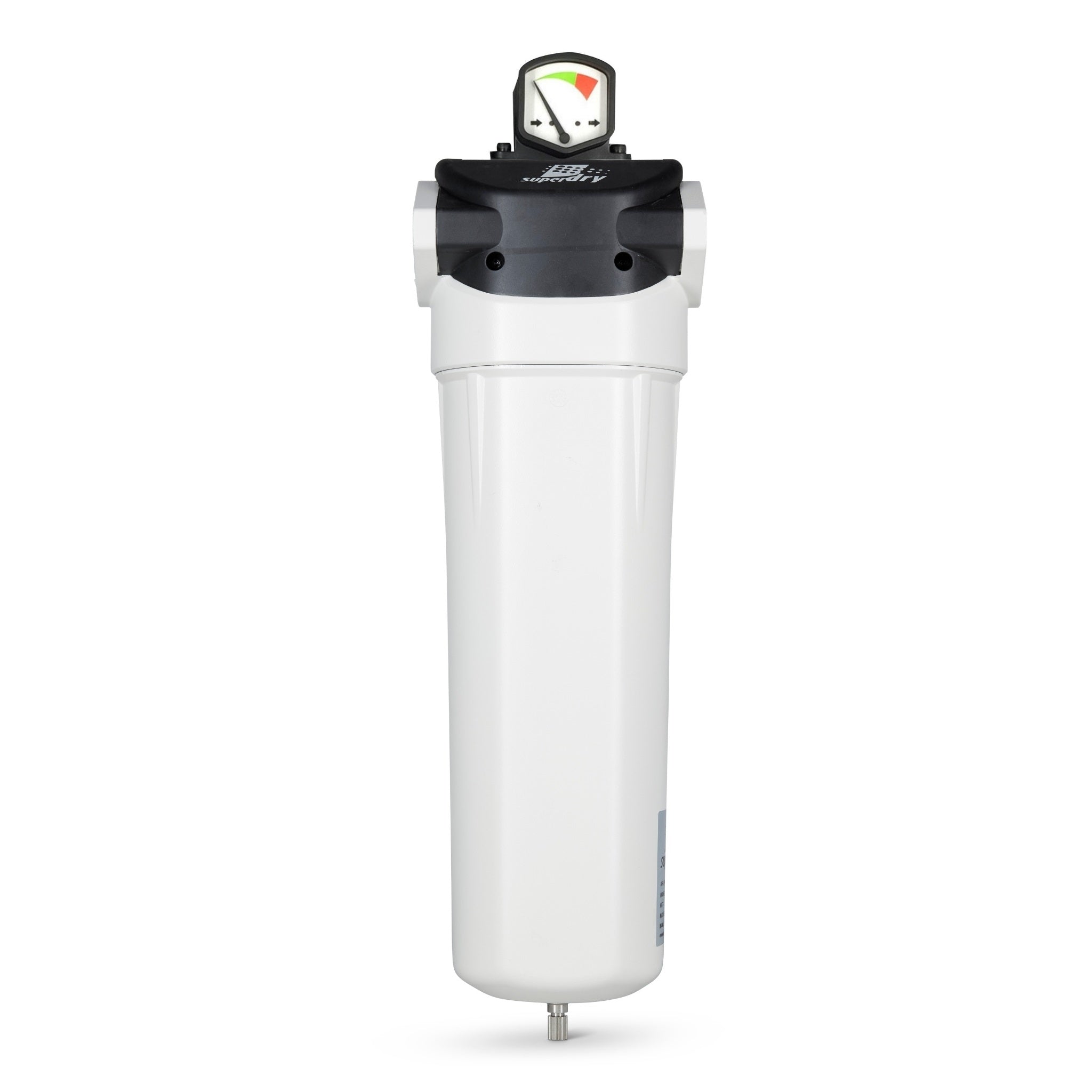

| 340-140 | SAF-515 | 515 SCFM | 2" NPT |
The published limits shown here apply to the SAF-45 only: a maximum inlet pressure of 232 PSIG and a maximum inlet temperature of 176°F (80°C). Super-Dry does not publish separate pressure or temperature limits for the four larger housings.
Typical applications
- Protecting air tools, air motors and rotary equipment from particulate and oil carryover
- Paint booths and spray finishing where a clean air stream decides the finish
- Sandblasting and abrasive blasting supply lines
- Pneumatic control systems, valves and instrument air

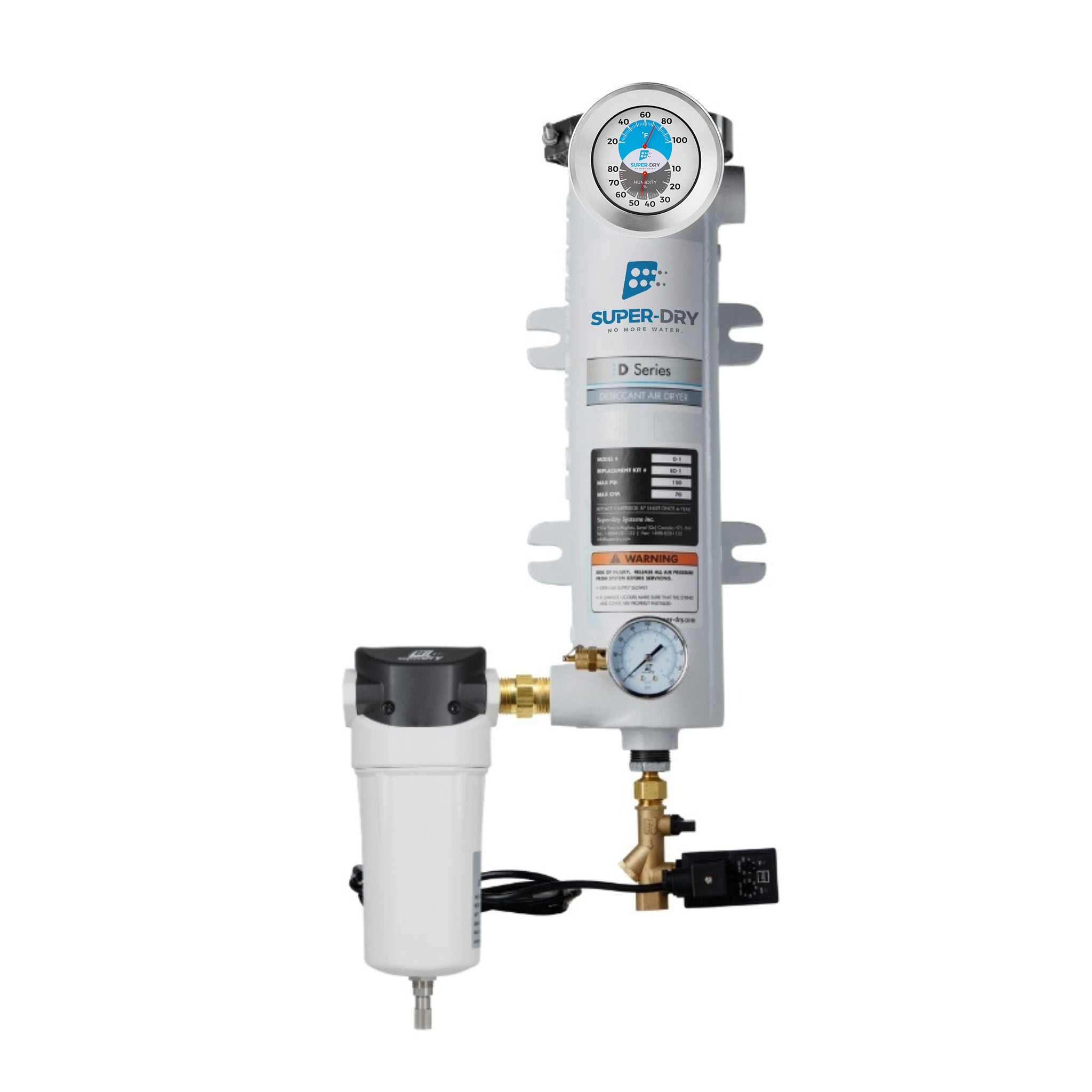

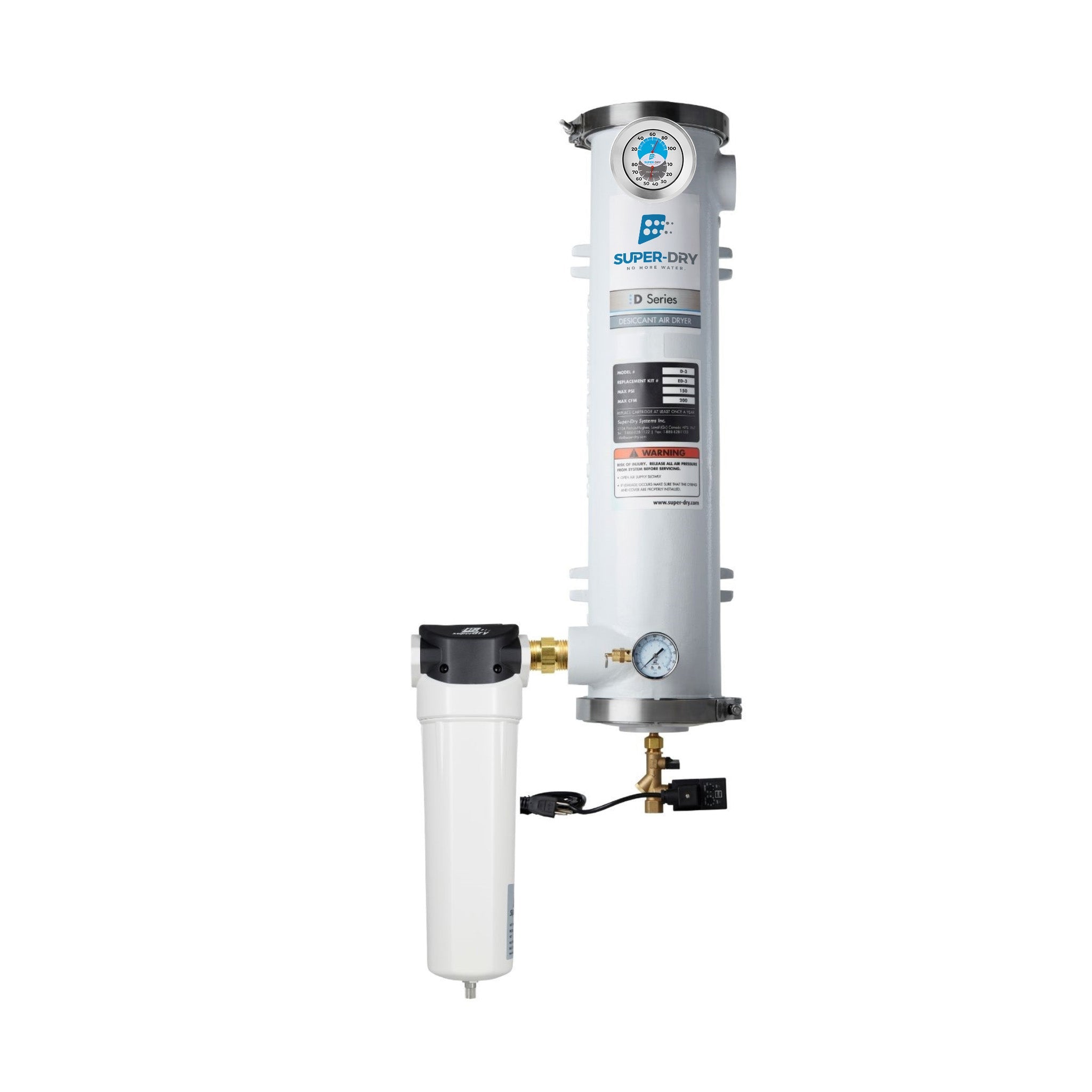

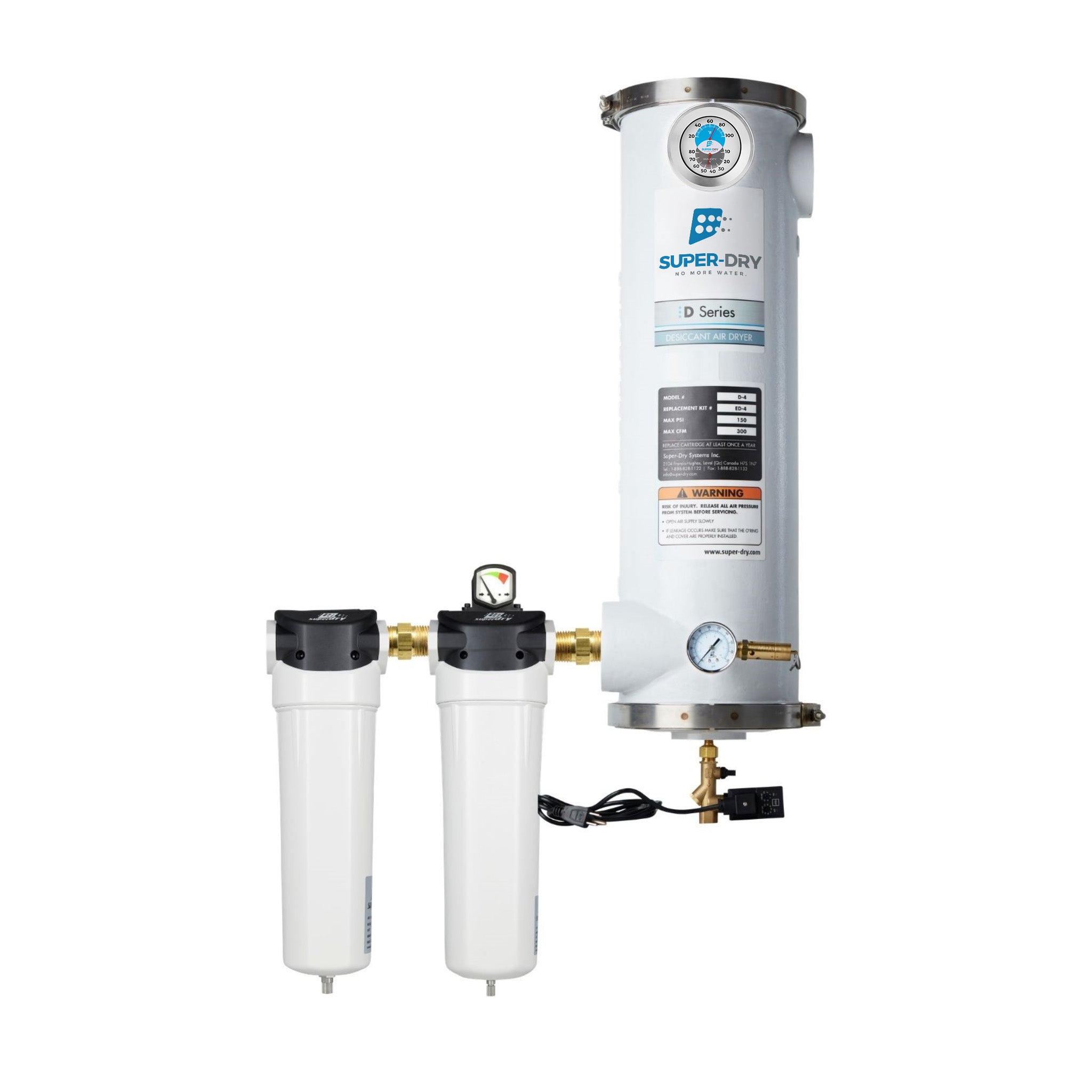

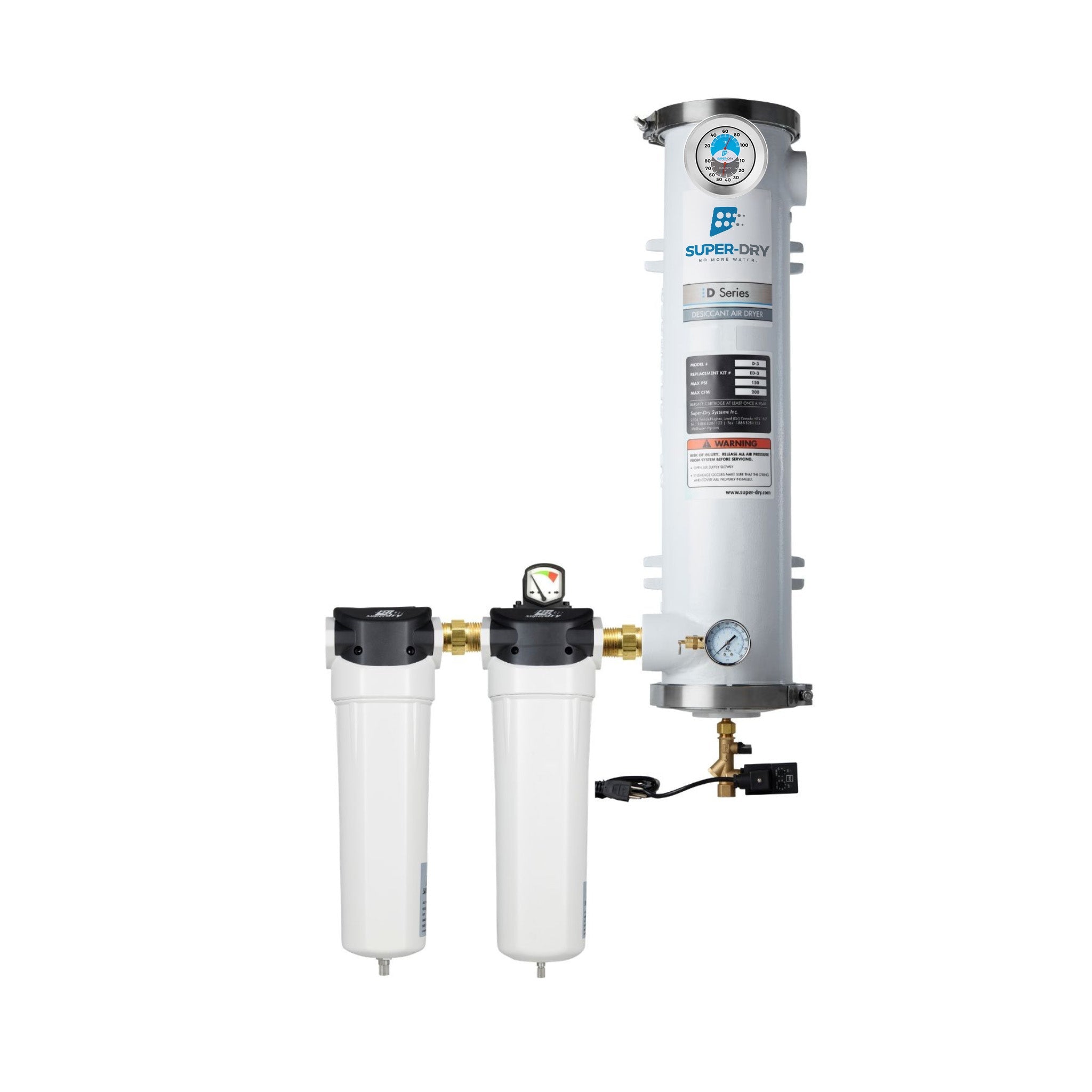

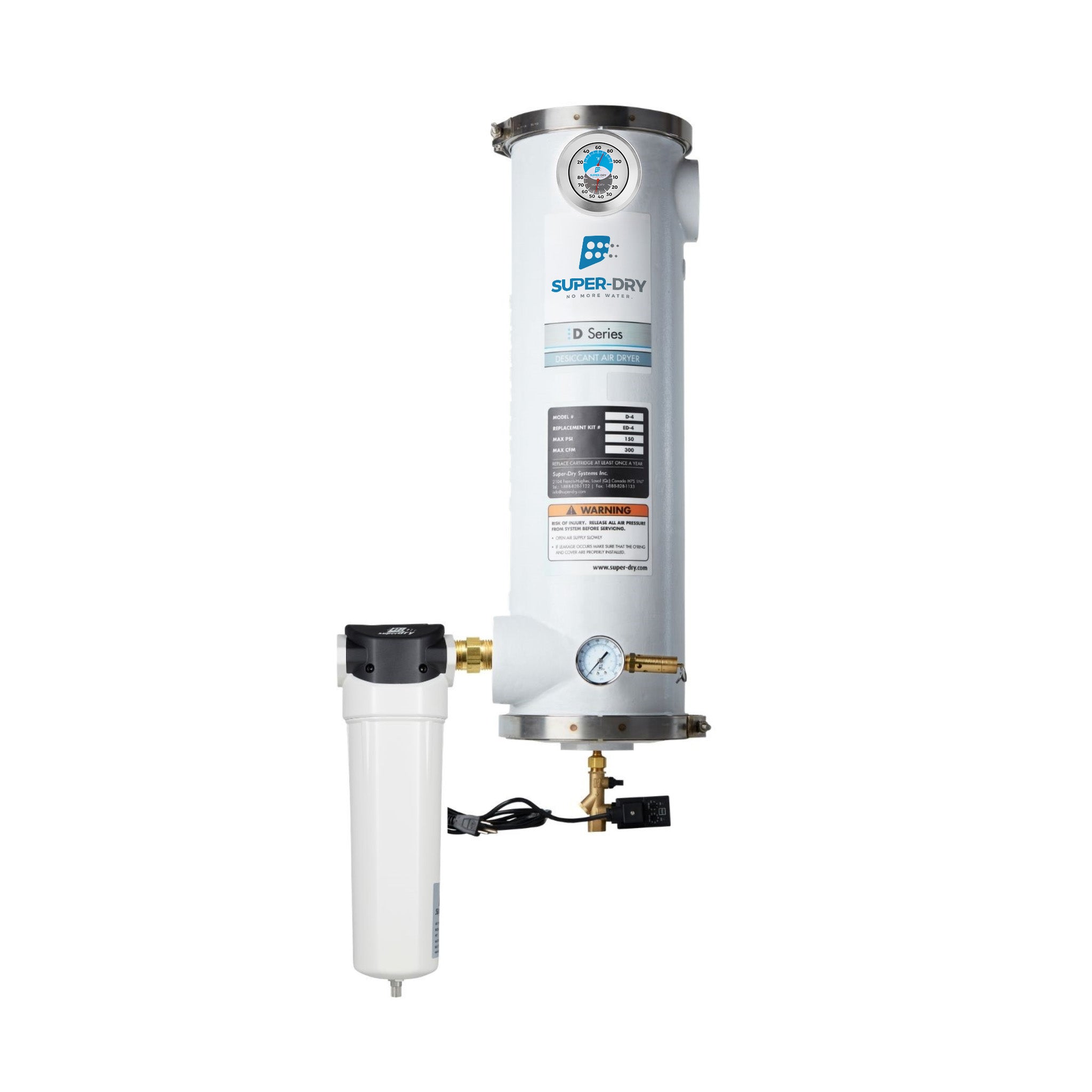

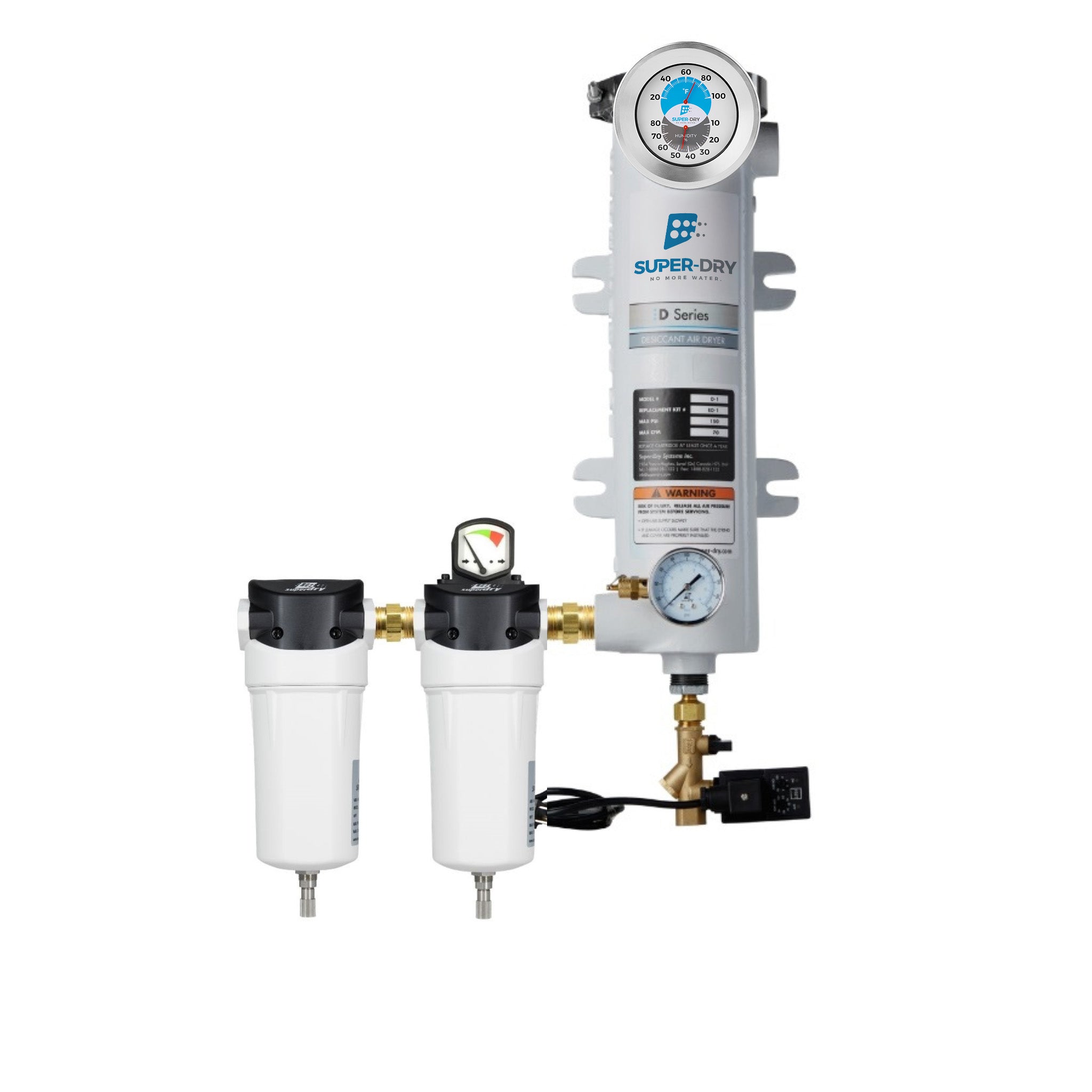

- Pre-filtration and after-filtration around a compressed air dryer
- Point of use filtration at a machine, bench or drop
What's included
- SAF Series filter housing
- Internal float drain
- Differential pressure indicator
The SAF Series covers the standard filtration points in a plant air system, from the compressor room through to point of use, and the three element grades let you tune each housing to the air quality that job needs. Warthog Air Compressor Store is an authorized US source for Super-Dry Systems Inc. We can help you match housing size, port size and element grade.
NOTE: Actual product may be different from pictured!
