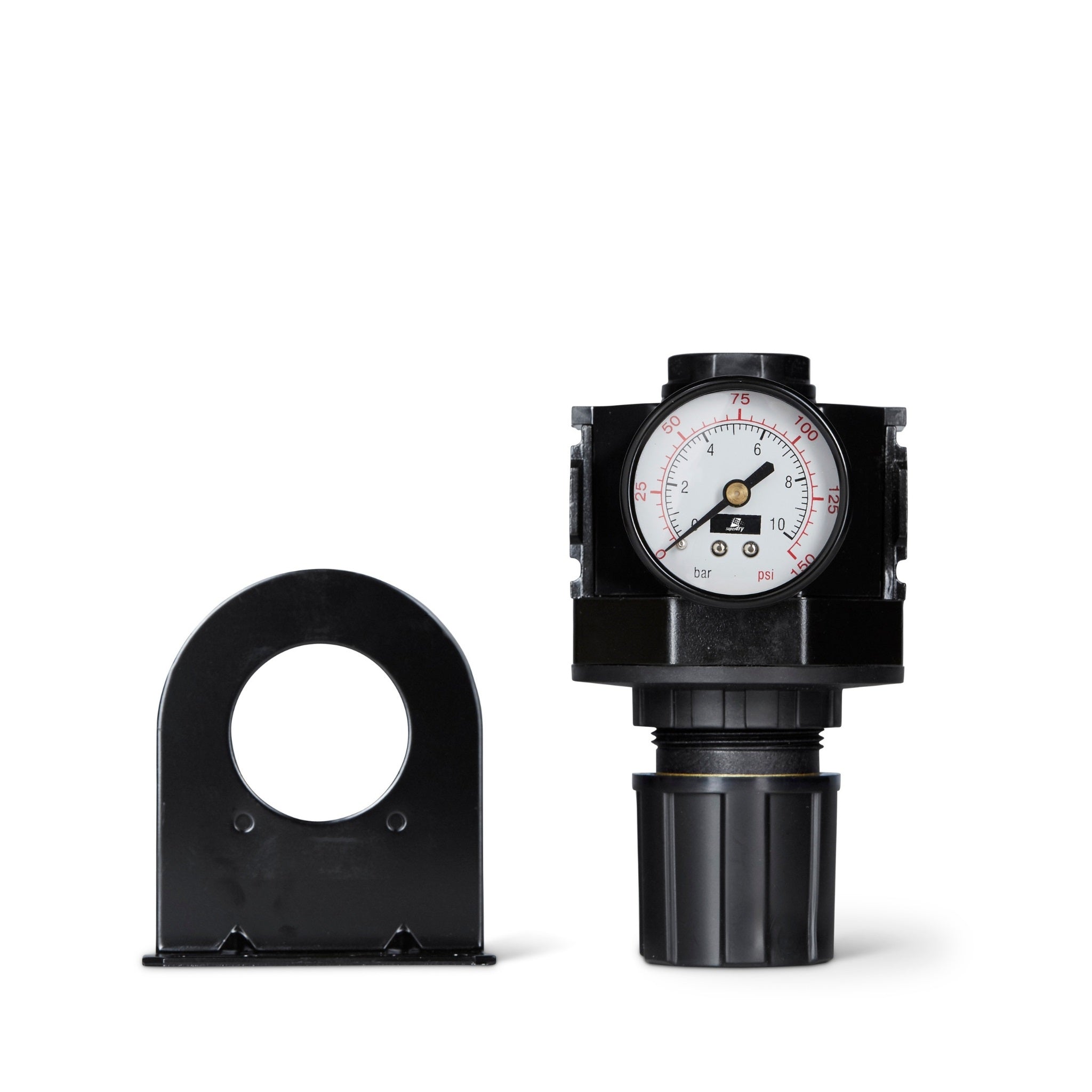

Super-Dry REG 1/2 Compressed Air Pressure Regulator, 140 CFM, 1/2" NPT, 150 PSI Max
| Specifications (As Configured) | |
|---|---|
 Vendor |
Super-Dry
|
 SKU |
300-160
|
| Dimensions | |
 Weight |
1.0 lb
|
The Super-Dry REG 1/2 is a 1/2 inch NPT compressed air pressure regulator rated for 140 CFM at a maximum pressure of 150 PSI. It sets and holds the working pressure at a drop, a booth or a tool station instead of letting equipment see whatever the compressor happens to be running. A pressure gauge and a mounting bracket are included, so it can go straight onto a wall or a panel with the air preparation train.
How it works
Air enters at line pressure and passes an internal valve held by an adjustable spring. Turning the adjustment loads the spring to the outlet pressure you want, and the regulator opens or closes the valve to hold that setting as demand rises and falls downstream. The included gauge reads the regulated outlet pressure so you can dial in a setting and see it, and the bracket lets the regulator be mounted alongside separators, filters and dryers rather than hanging on the pipe.
Key specifications
| SKU | Model | Port Size | Flow | Maximum Pressure | Included |
|---|---|---|---|---|---|
| 300-160 | REG 1/2 | 1/2" NPT | 140 CFM | 150 PSI | Pressure gauge, mounting bracket |
Typical applications
- Setting spray gun and paint booth supply pressure
- Protecting air tools and pneumatic machinery from full line pressure
- Sandblasting and plasma cutting stations that need a steady set point
- Point-of-use air stations downstream of a filter, separator or dryer
- Wall-mounted air preparation panels in shops and small plants
- Balancing pressure between branches of a shop air system
What's included
- Pressure gauge
- Mounting bracket
Holding a stable regulated pressure is what keeps finish quality consistent in paint work and keeps air tools from being overdriven, and the REG 1/2 covers up to 140 CFM through a 1/2 inch NPT port. Mount it with your Super-Dry separator, filter or desiccant dryer to finish out a point-of-use air preparation station. Warthog Air Compressor Store is an authorized US source for Super-Dry Systems Inc.
NOTE: Actual product may be different from pictured!
