Super-Dry MBK Mounting Bracket Kit for FSD Water Separators and SAF Air Filters
| Specifications (As Configured) | |
|---|---|
 Vendor |
Super-Dry
|
 SKU |
330-255
|
| Dimensions | |
 Weight |
0.5 lb
|
The Super-Dry MBK mounting bracket kits let you gang Super-Dry FSD Series water separators and SAF Series compressed air filters into a single wall-mounted assembly instead of piping each housing separately. One kit connects up to three units, and it can be set up for one or two units by cutting or replacing the supplied threaded rod. Pick MBK-A for the 45 and 85 size housings or MBK-B for the 185 and 375 size housings.
How it works
- Two brackets clamp the housing heads and two threaded rods draw the units together into one rigid block.
- The supplied o-rings seal between adjacent housing heads, so the units join directly without extra pipe.
- If you prefer a piped connection, close nipples (not included) can be used in place of the supplied o-rings.
- The 375 size housings have no o-ring groove in the head, so 1-1/2" close nipples (not included) are required to connect them.
- Trimming or swapping the threaded rod adapts the kit to a one or two unit build.
Key specifications
| SKU | Model | Fits Separators | Fits Filters | Units Connected | Weight | Notes |
|---|---|---|---|---|---|---|

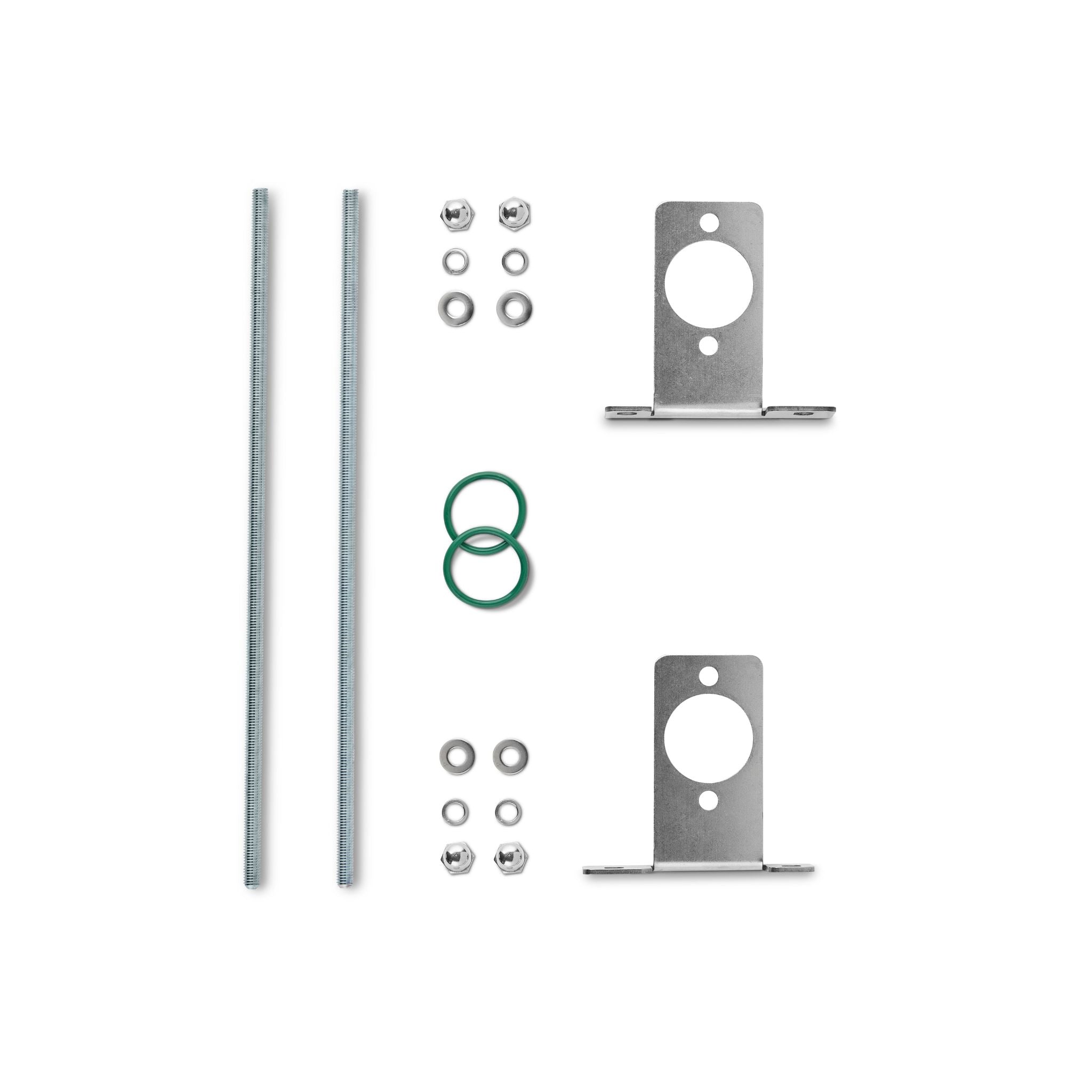

| 330-255 | MBK-A | FSD-45-W (45 SCFM), FSD-85-W (85 SCFM) | SAF-45, SAF-85 | Up to 3 | 0.5 lb | Connects on the supplied o-rings, or on close nipples (not included) |

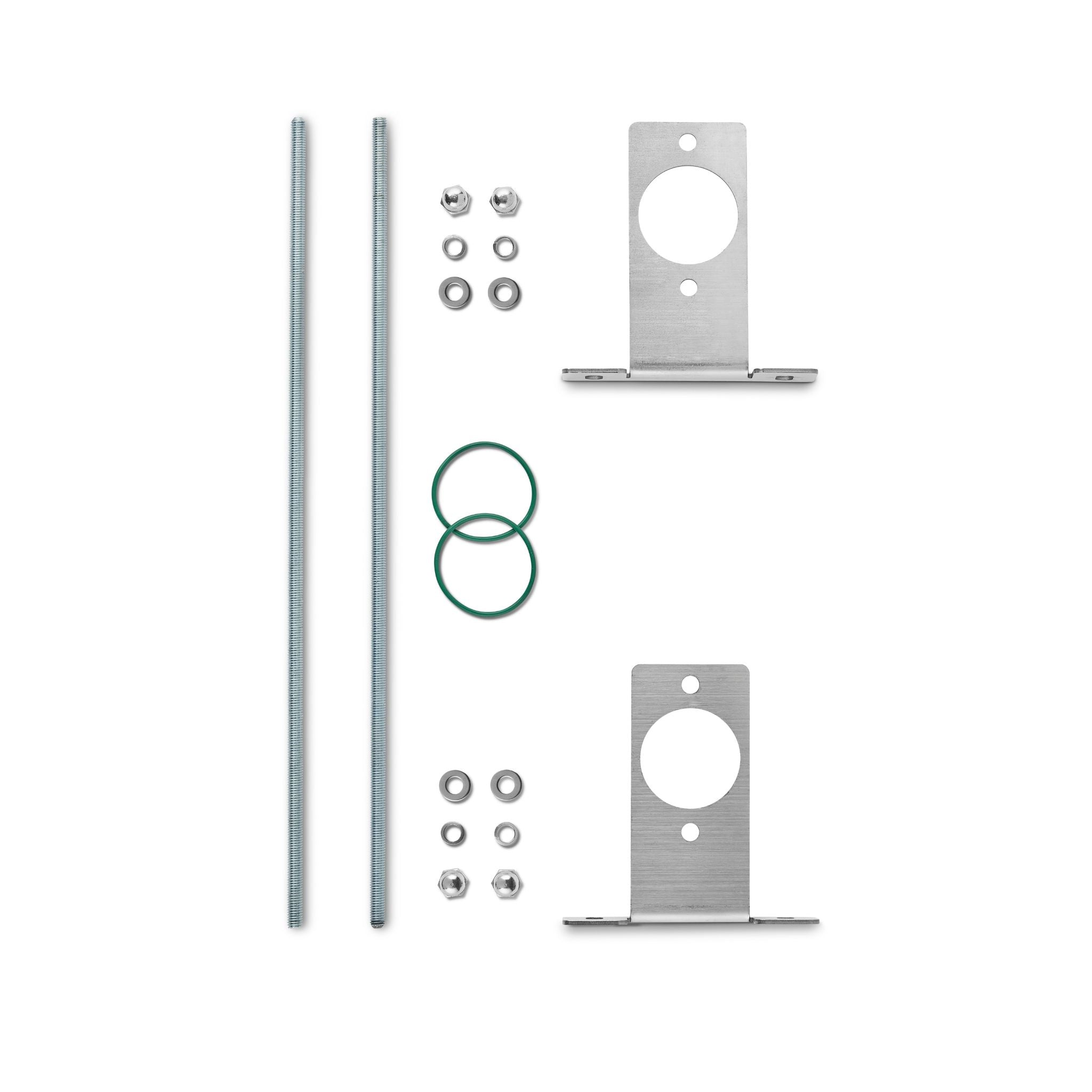

| 330-275 | MBK-B | FSD-185-W (185 SCFM), FSD-375-W (375 SCFM) | SAF-185, SAF-375 | Up to 3 | 0.5 lb | 375 models require 1-1/2" close nipples (not included) |
Typical applications
- Building a separator plus filter train on a shop wall in one compact block
- Adding a second or third filtration stage to an existing FSD or SAF installation
- Paint booth and spray finishing air preparation panels
- Sandblasting and abrasive blasting supply lines
- Point-of-use air stations feeding tools and pneumatic machinery
- Compressor room cleanup where separators and filters were previously hard piped
What's included
- 2 brackets
- 2 threaded rods
- 2 o-rings
- 4 washers
- 4 split lock washers
- 4 end caps
Ganging FSD water separators and SAF filters with an MBK kit cuts out fittings, shortens the run between stages and gives you a serviceable assembly you can unbolt one housing at a time. Between them, MBK-A and MBK-B fit the 45 through 375 sizes of Super-Dry separator and filter housings used in paint, blasting and general plant air systems. There is no MBK kit for the 515 size housings. Warthog Air Compressor Store is an authorized US source for Super-Dry Systems Inc.
NOTE: Actual product may be different from pictured!
