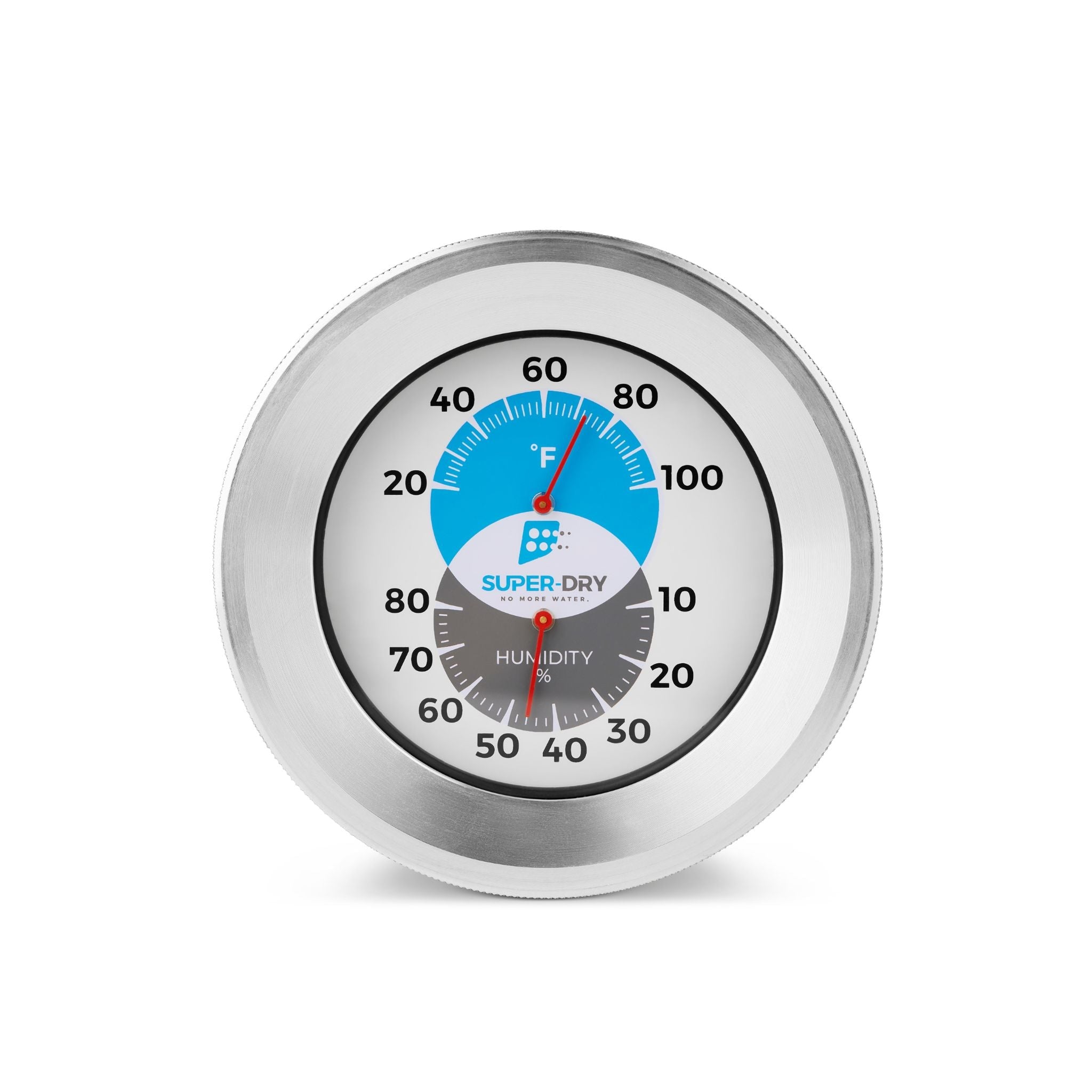

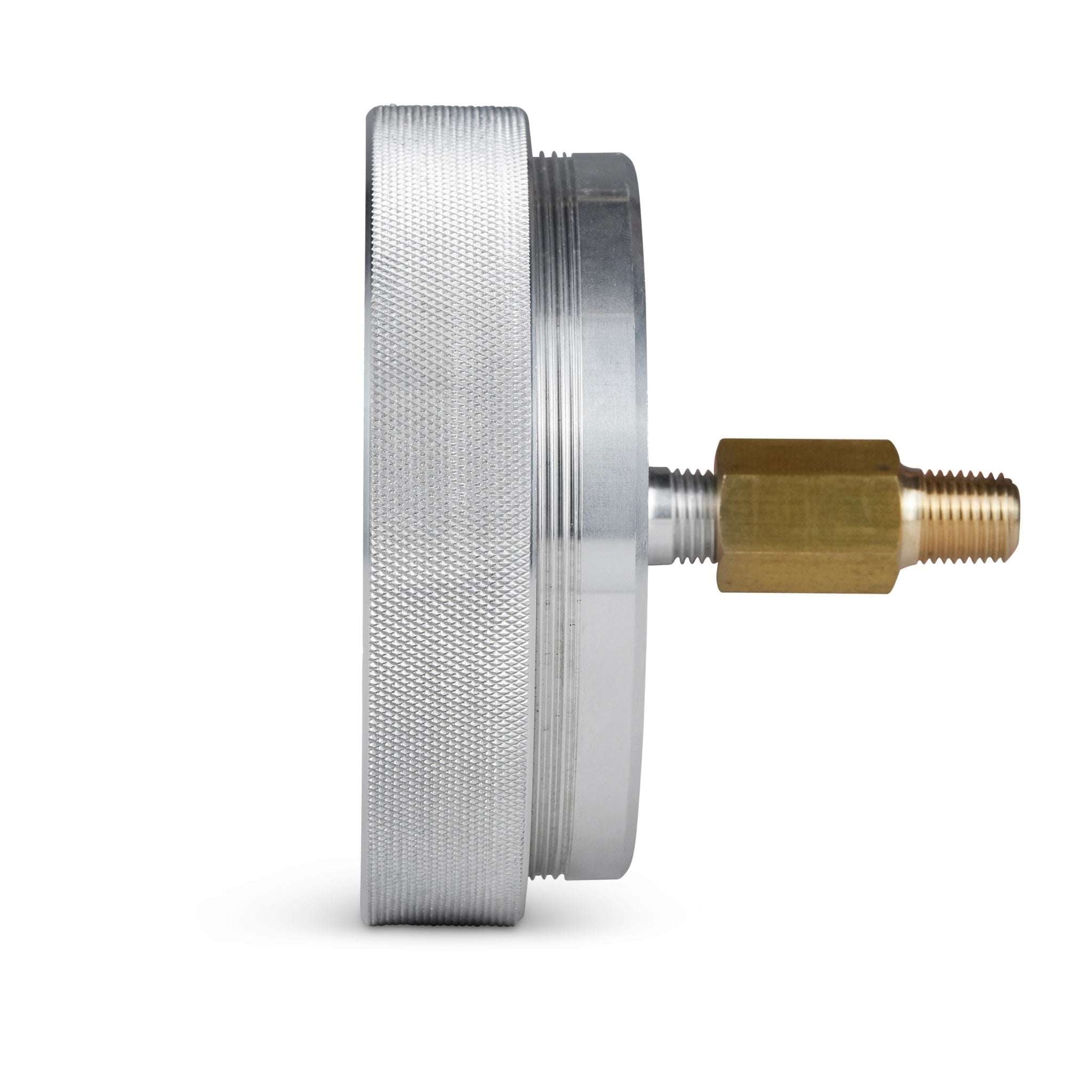

Super-Dry HGT Humidity and Temperature Gauge for D Series Dryers, 1/4" NPT, 10 to 80% RH
| Specifications (As Configured) | |
|---|---|
 Vendor |
Super-Dry
|
 SKU |
320-100
|
| Dimensions | |
 Weight |
3.0 lb
|

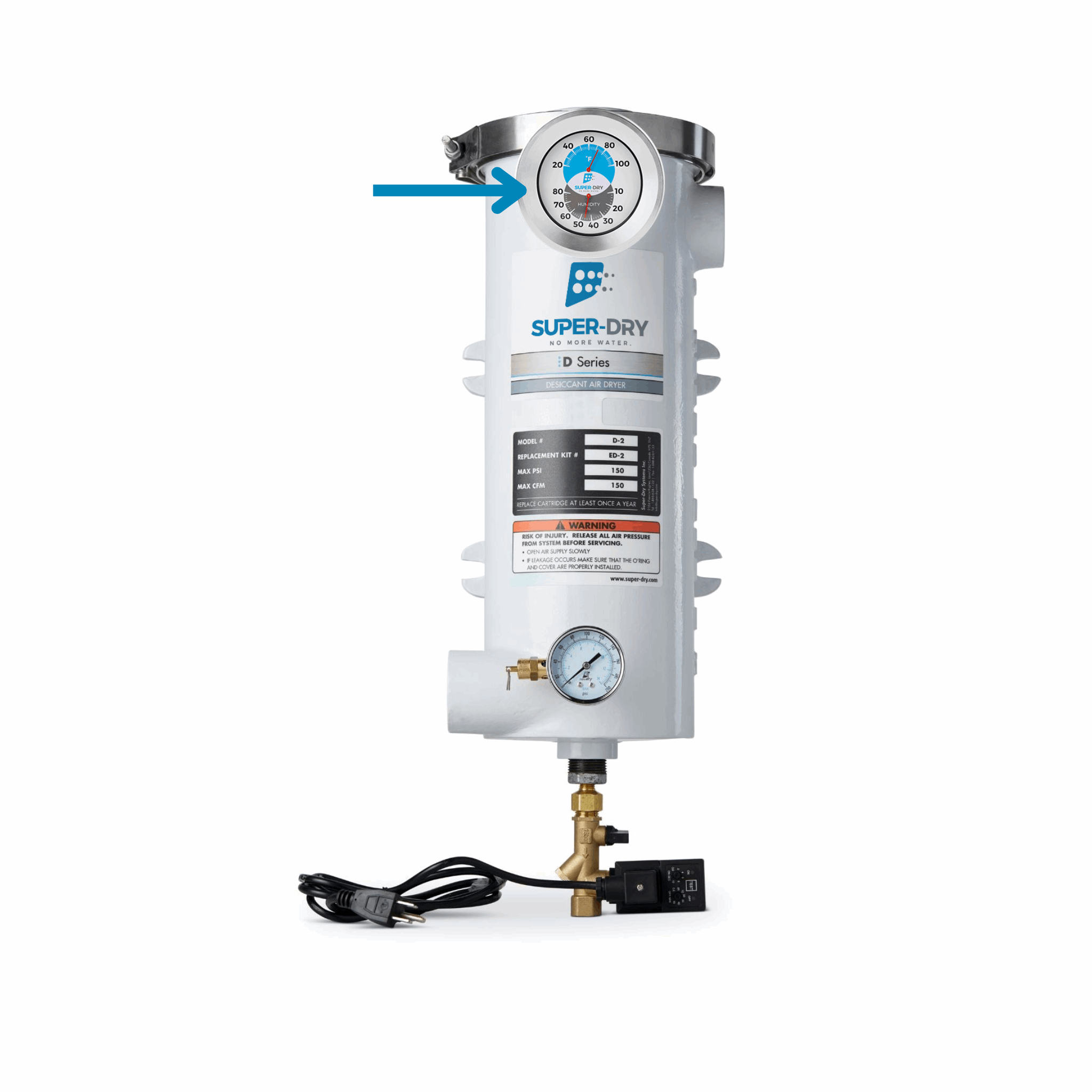

The Super-Dry HGT Series humidity and temperature gauge shows how saturated the desiccant cartridge inside a Super-Dry D Series compressed air dryer has become. It is an optional accessory that replaces the top pressure gauge on the dryer, and its job is to tell you when a cartridge change is due instead of leaving you to guess. It is a relative humidity indicator, not a dew point monitor, so treat it as a maintenance signal rather than an air quality measurement.
How it works
- The gauge reads relative humidity from 10 to 80% along with temperature from 20 to 100°F at the 1/4" NPT port.
- Record the humidity together with the temperature, for example 40% at 80°F, because relative humidity shifts with air temperature.
- A new, dry desiccant cartridge typically reads about 30 to 35% relative humidity at 70°F (roughly 21°C).
- The reading climbs as the cartridge takes on moisture. As the needle moves into the upper end of the 10 to 80% scale and approaches the top of the dial, it is time to replace the desiccant cartridge.
- Accuracy fluctuates with environment and season, and in cold temperatures the indicated saturation percentage rises.
- The gauge is not designed to withstand rapid or sudden depressurization, which can damage internal components.
Key specifications
| SKU | Model | Connection | Relative humidity range | Temperature range | Weight |
|---|---|---|---|---|---|
| 320-100 | HGT 1/4 | 1/4" NPT | 10 to 80% R.H. | 20 to 100°F | 3 lbs |
Typical applications
- Timing desiccant cartridge changes on D Series compressed air dryers
- Spray finishing and paint booth air where moisture ruins the finish
- Sandblasting and abrasive blast air supply
- Job site and field service dryers, where the gauge is rugged enough for the environment
- Plant maintenance rounds that log air dryer condition over time
The HGT Series turns desiccant maintenance into a reading you can record and trend, which is more informative than a color-changing silica gel indicator even though it does not match the accuracy of a dew point monitor. Warthog Air Compressor Store is an authorized US source for Super-Dry Systems Inc. We supply Super-Dry dryers, gauges and accessories for paint, blast and general plant air. Add the HGT to a D Series dryer to see cartridge saturation at a glance.
NOTE: Actual product may be different from pictured!
