Super-Dry F Series Replacement Filter Element Kit, 1/2" and 1" Point-of-Use Filters
| Specifications (As Configured) | |
|---|---|
 Vendor |
Super-Dry
|
 SKU |
300-150
|
| Dimensions | |
 Weight |
0.5 lb
|
These are the factory replacement element kits for Super-Dry F Series point-of-use filter housings. They are the maintenance item that keeps an installed F Series filter working, and they are the parts to order now that the F Series housings themselves are obsolete. Pick the grade that matches your housing stage (FS, FC or FD) and the port size of the unit you own, 1/2" or 1".
How it works
- EFS is the particulate filter element, used in the FS filter separator stage.
- EFC is the coalescing polypropylene filter element, used in the FC stage for oil carryover.

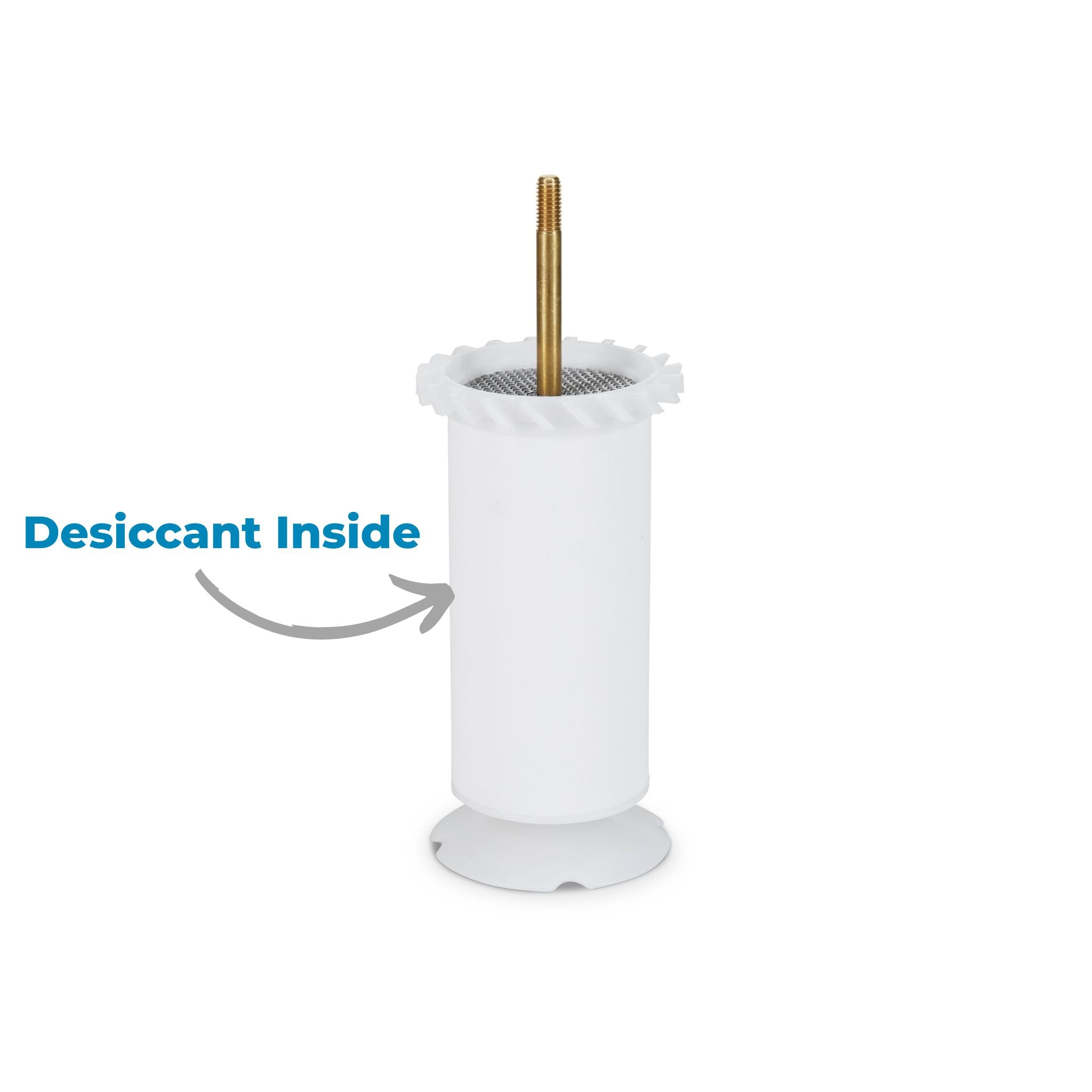

- EFD is the desiccant filter and dryer element, used in the FD stage for moisture removal.
- Together the elements clear harmful oil aerosols, oil vapors, dirt, pipe scale, water and humidity out of point-of-use air.
Key specifications
| SKU | Kit | Fits model | Port size | Element grade | Approx. weight |
|---|---|---|---|---|---|

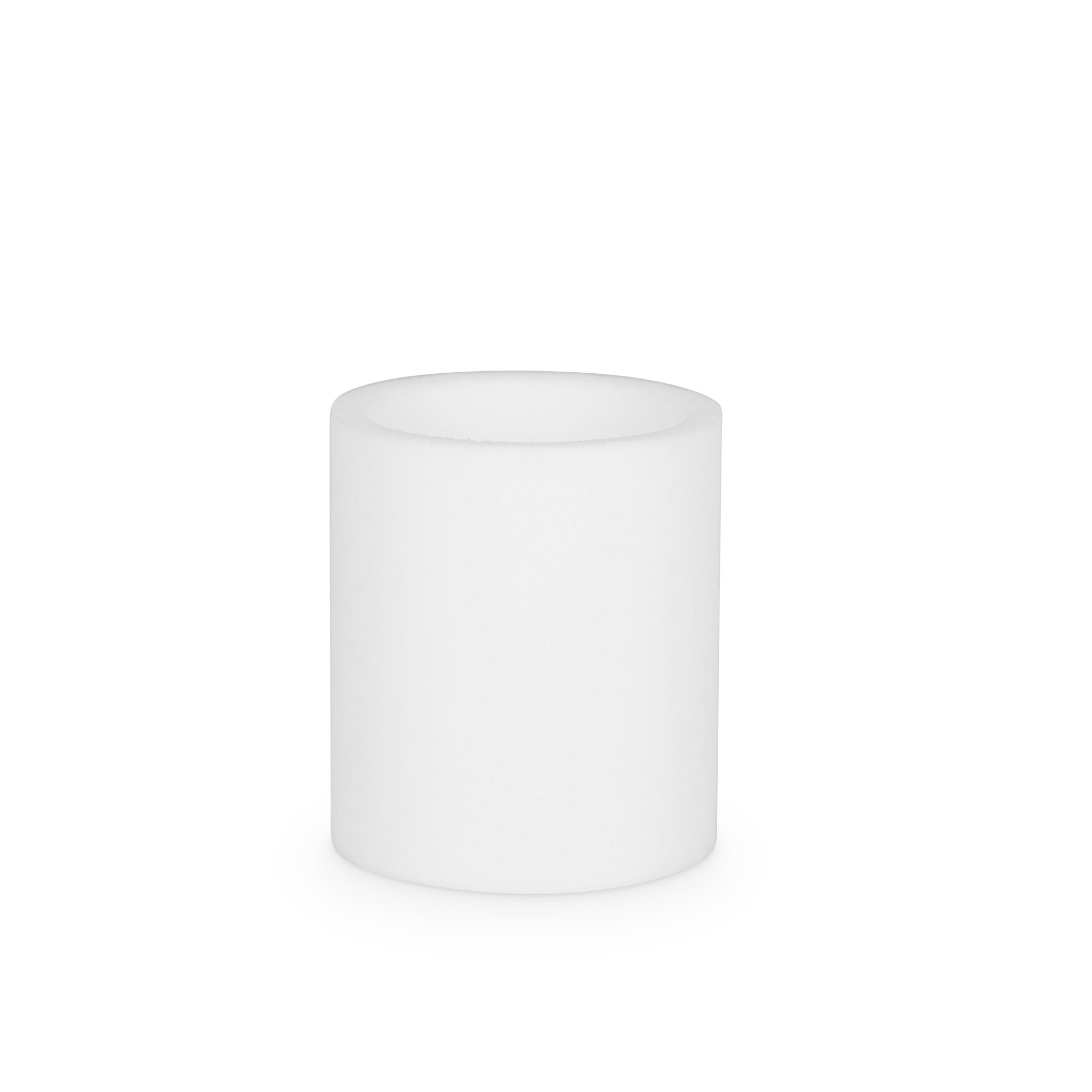

| 300-150 | EFS 1/2 | FS 1/2 filter separator | 1/2" | Particulate filter element | 0.5 lb |

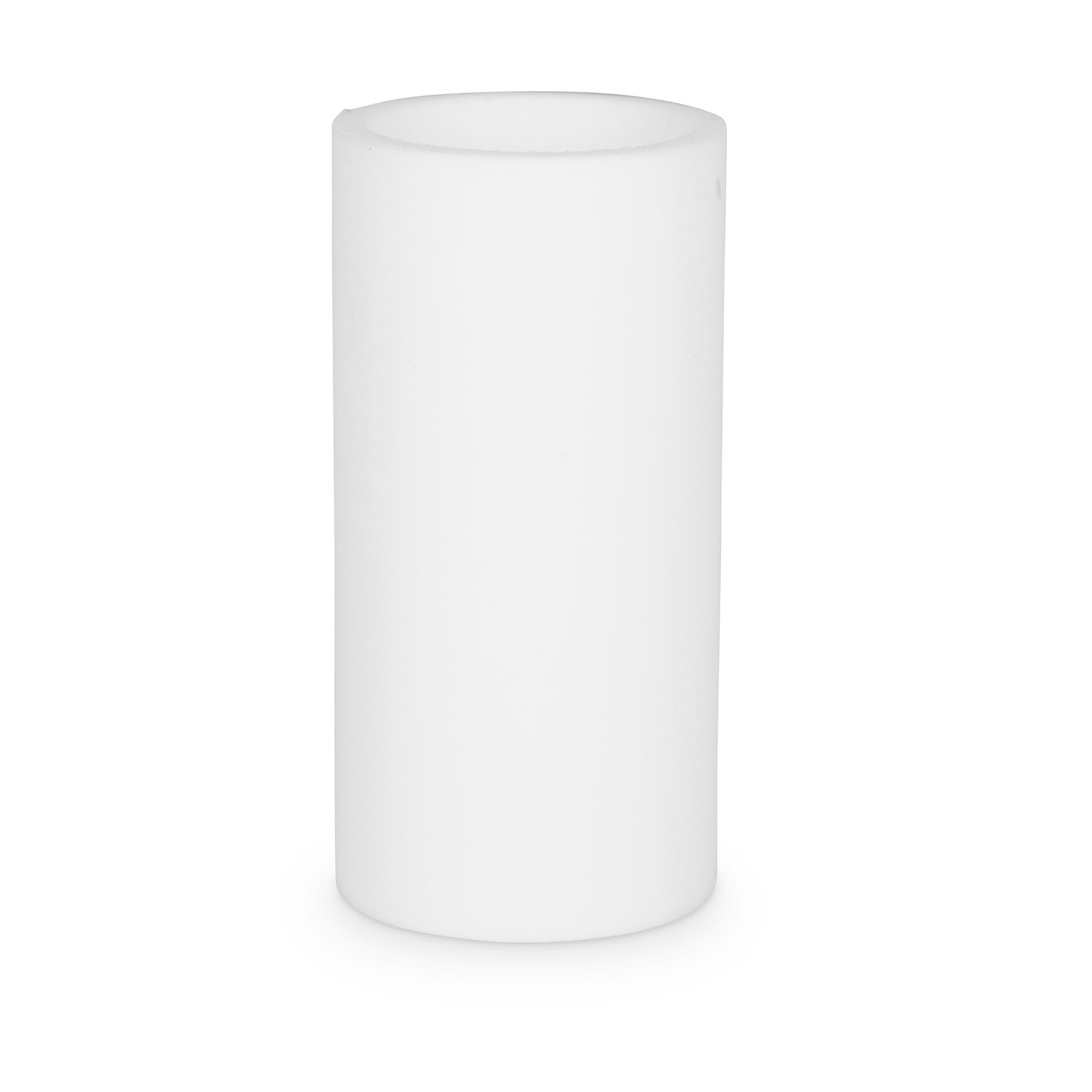

| 300-151 | EFS1 | FS1 filter separator | 1" | Particulate filter element | 0.5 lb |

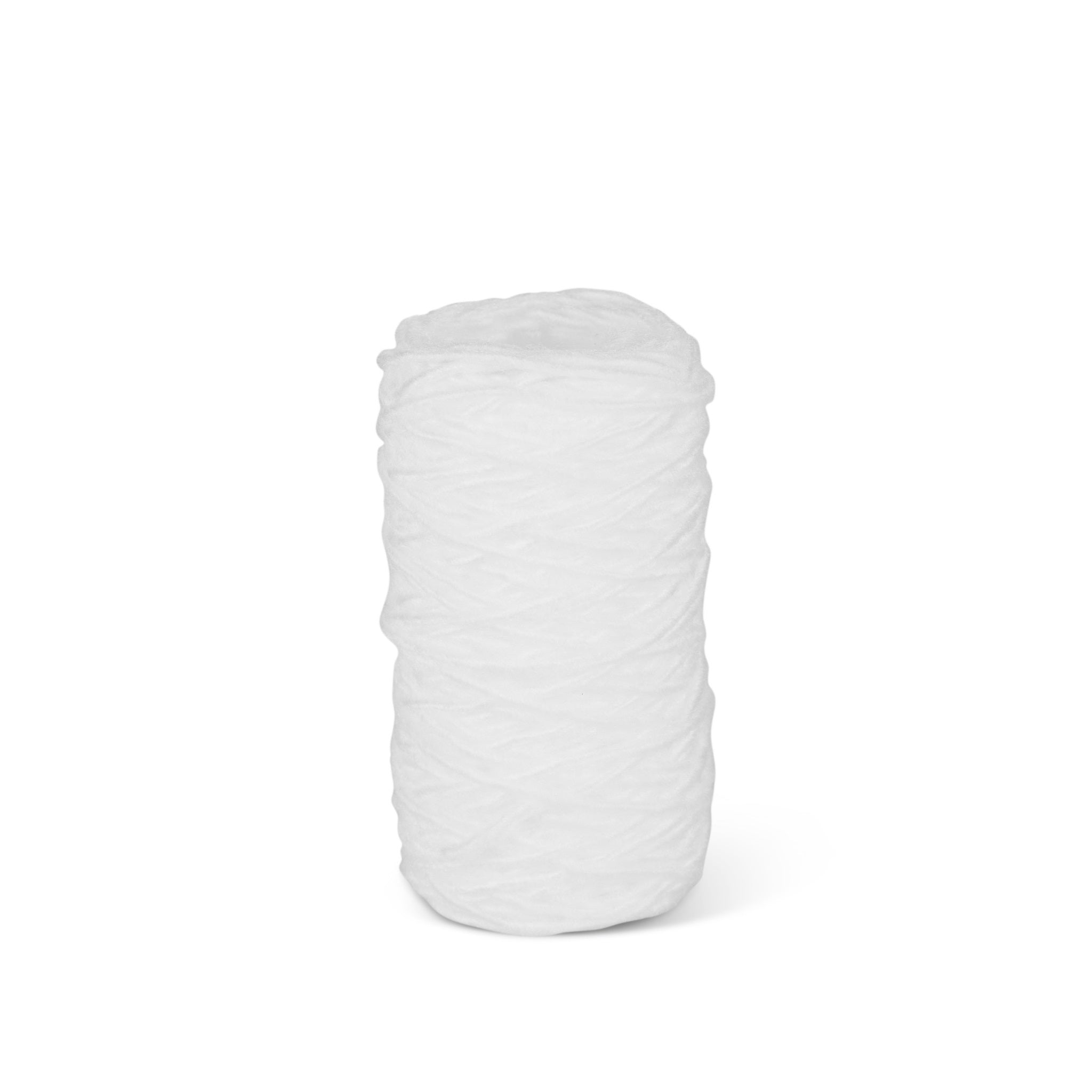

| 300-130 | EFC 1/2 | FC 1/2 coalescer | 1/2" | Coalescing polypropylene filter element | 1 lb |

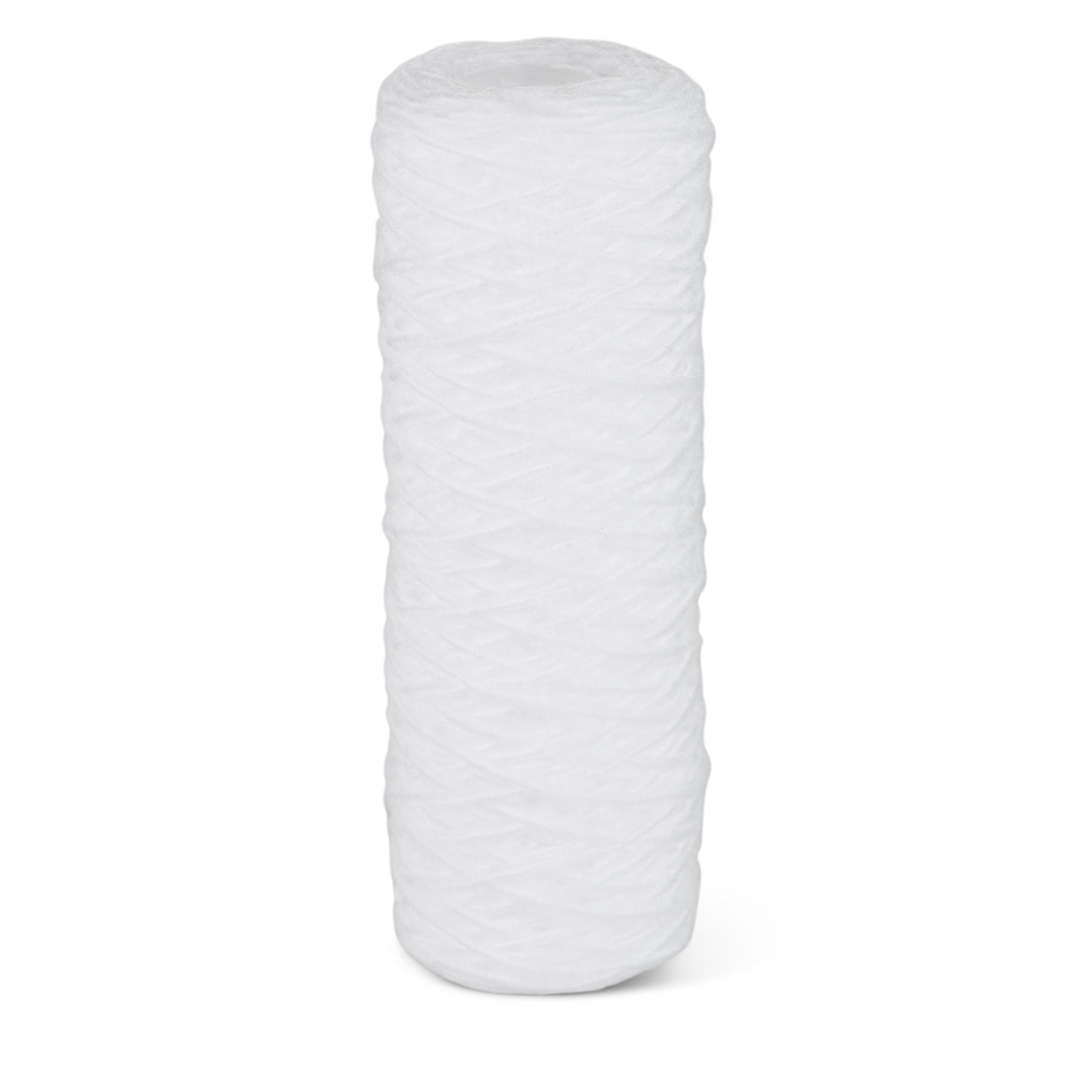

| 300-131 | EFC1 | FC1 coalescer | 1" | Coalescing polypropylene filter element | 1 lb |

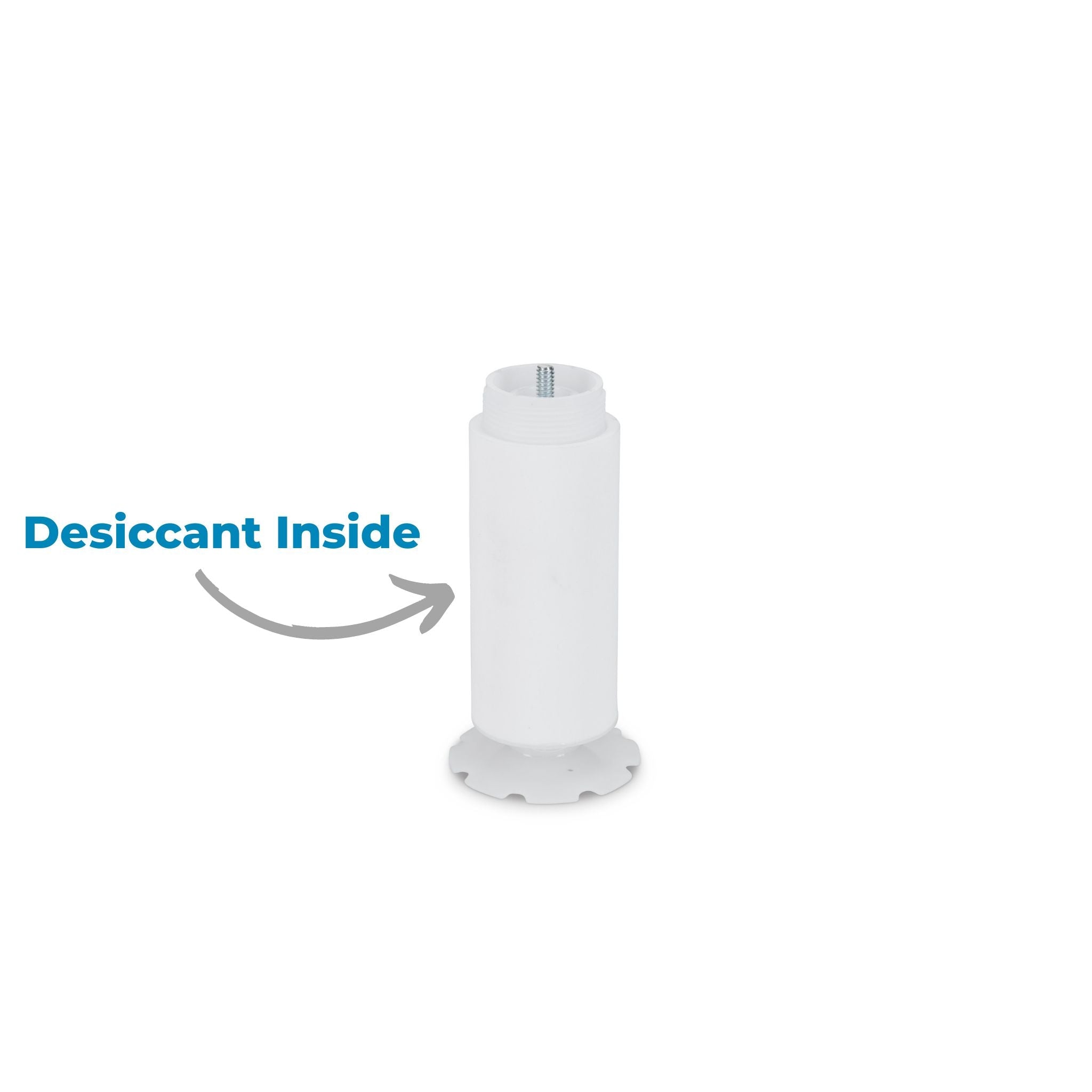

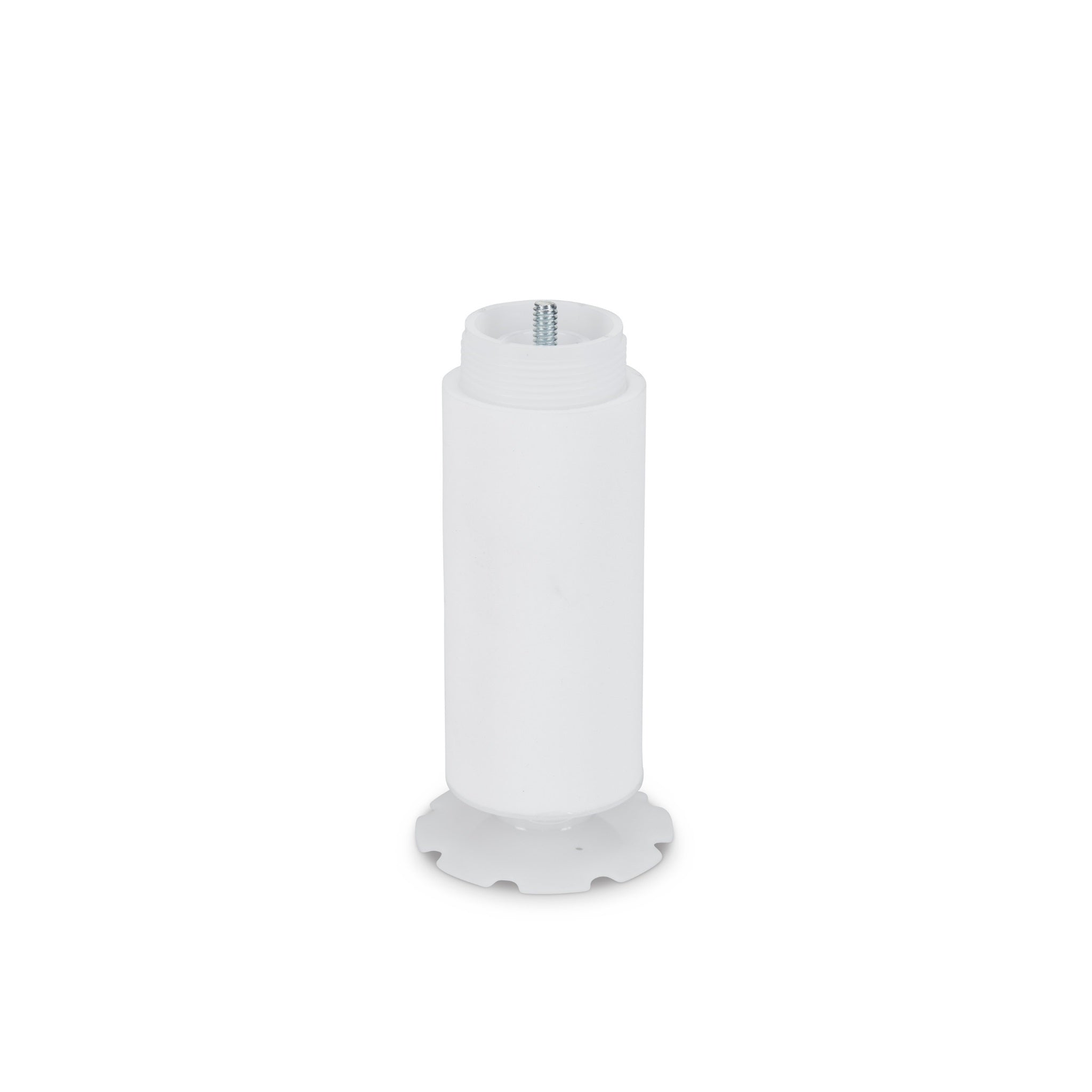

| 300-140 | EFD 1/2 | FD 1/2 desiccant filter | 1/2" | Desiccant filter and dryer element | 1 lb |

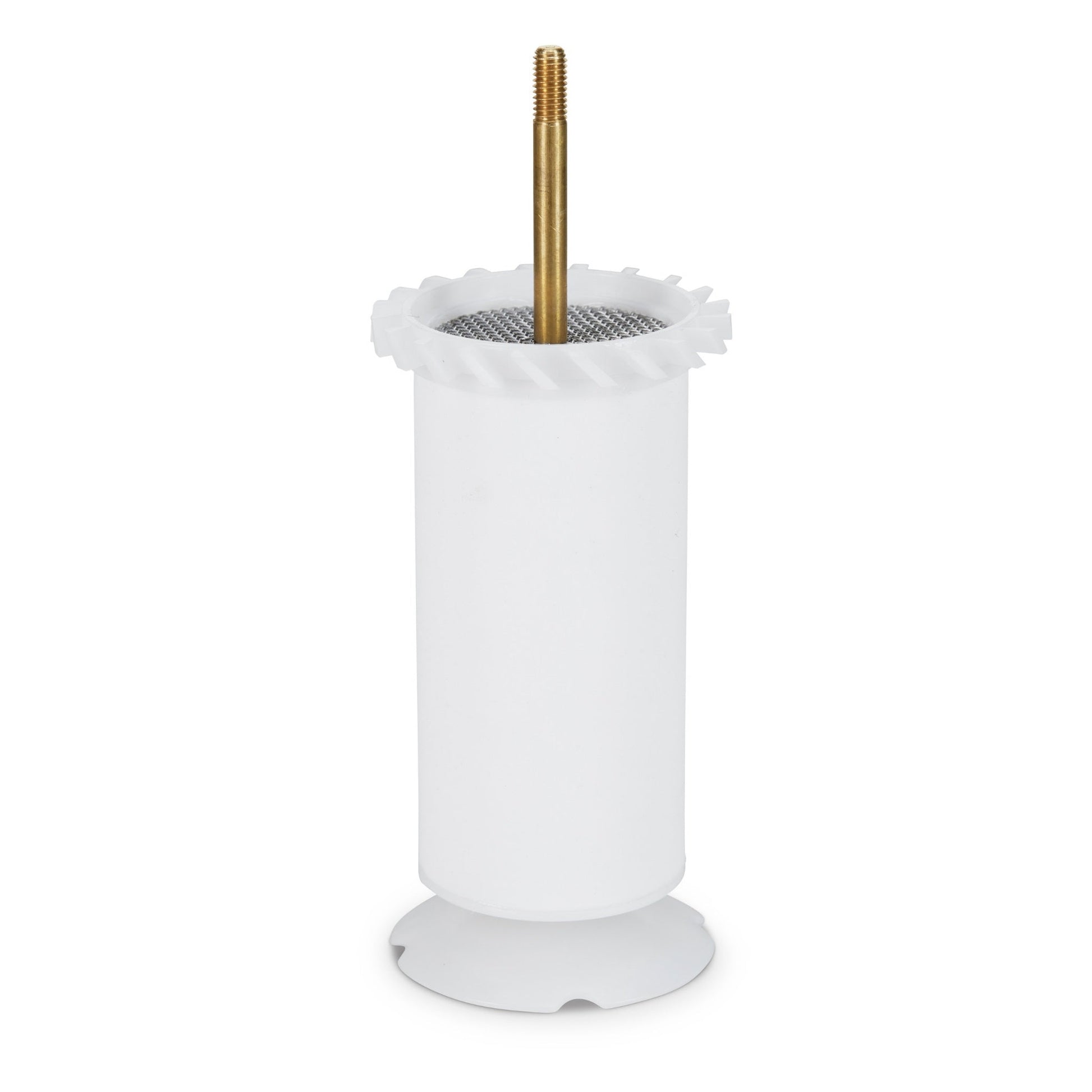

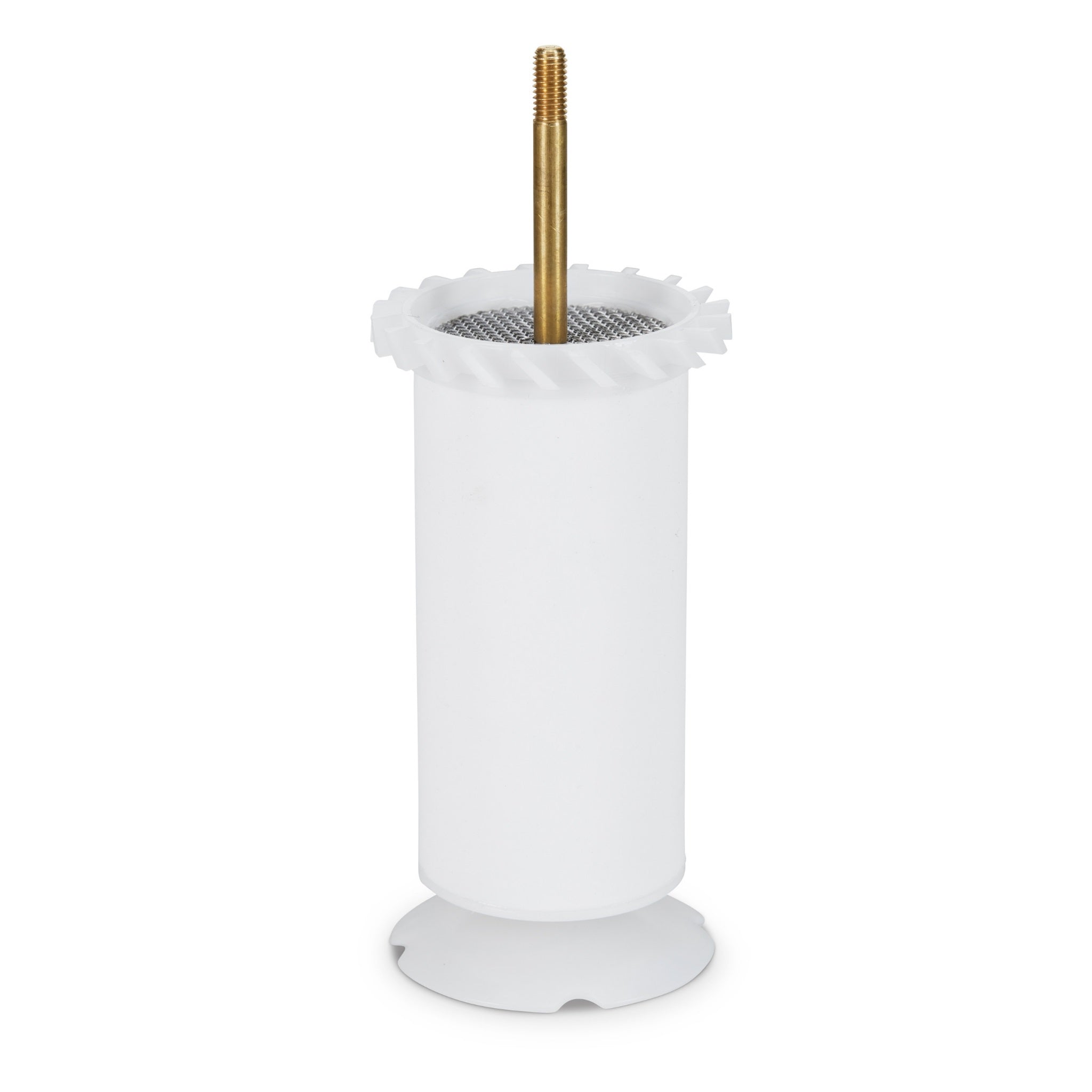

| 300-141 | EFD1 | FD1 desiccant filter | 1" | Desiccant filter and dryer element | 1 lb |
Typical applications
- Scheduled element changes on F Series point-of-use filters
- Spray finishing and paint booth air drops
- Sandblasting and abrasive blast air supply
- Air tool and pneumatic equipment protection
- Removing oil aerosols and oil vapor downstream of a lubricated compressor
- Keeping pipe scale and water out of instruments and controls
Replacing elements on schedule is the difference between a filter that protects your work and one that just adds pressure drop, and these F Series kits are the parts specified for that job. Warthog Air Compressor Store is an authorized US source for Super-Dry Systems Inc. We can confirm the grade and port size that matches your housing. Select the fits model and port size above to order the correct kit.
NOTE: Actual product may be different from pictured!
