Super-Dry ED Replacement Cartridge Kit for D Series Desiccant Air Dryers
| Specifications (As Configured) | |
|---|---|
 Vendor |
Super-Dry
|
 SKU |
280-210
|
| Dimensions | |
 Weight |
5.0 lb
|

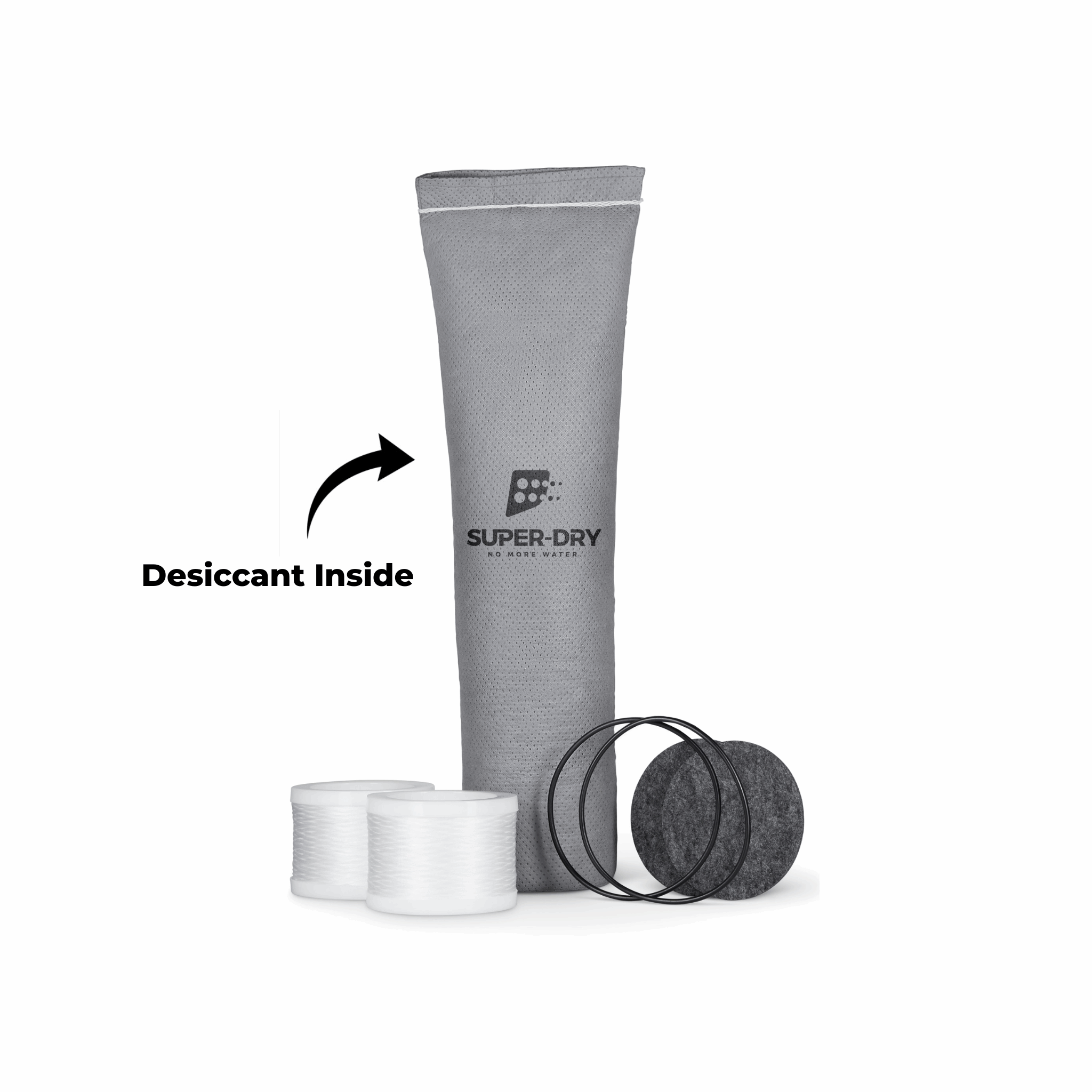

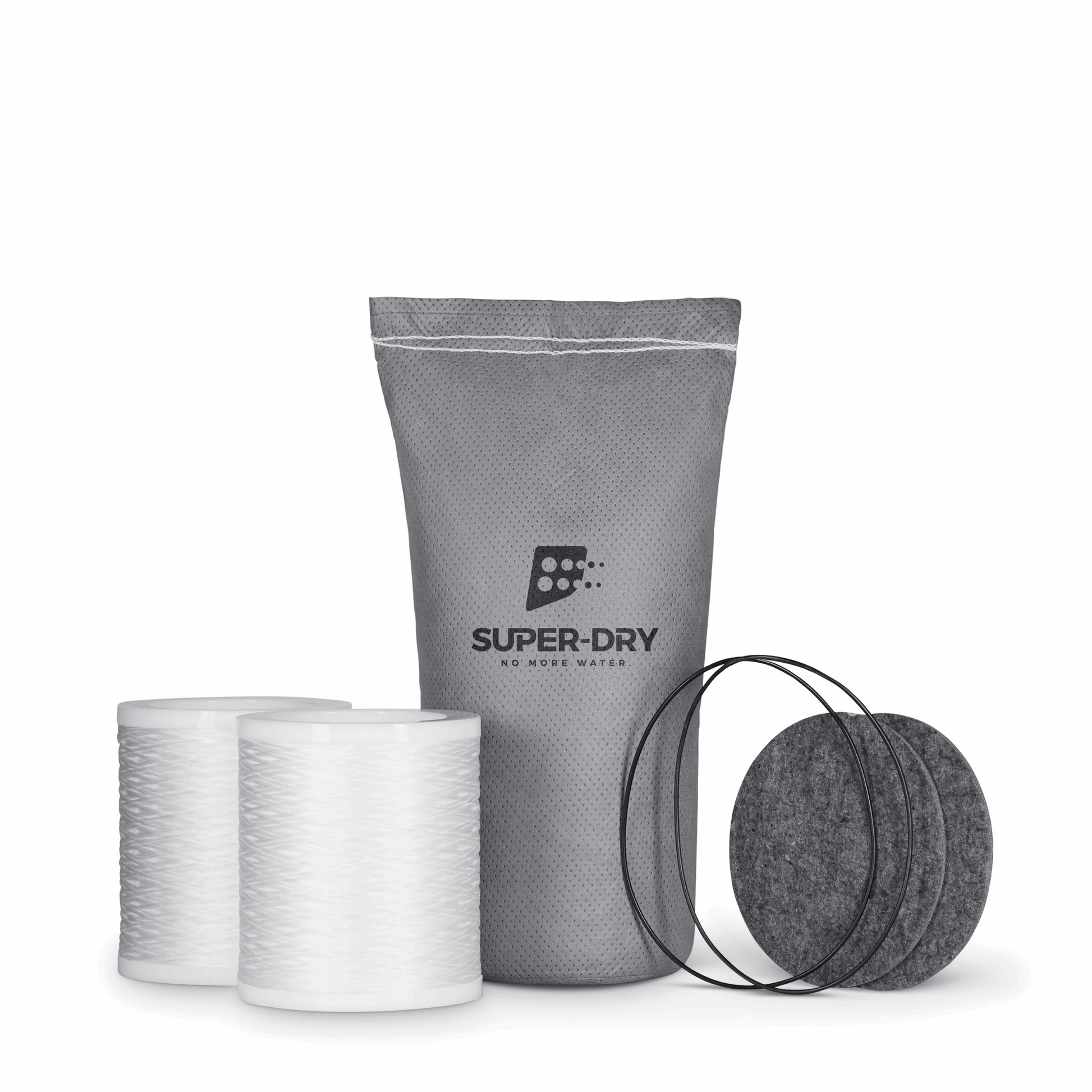

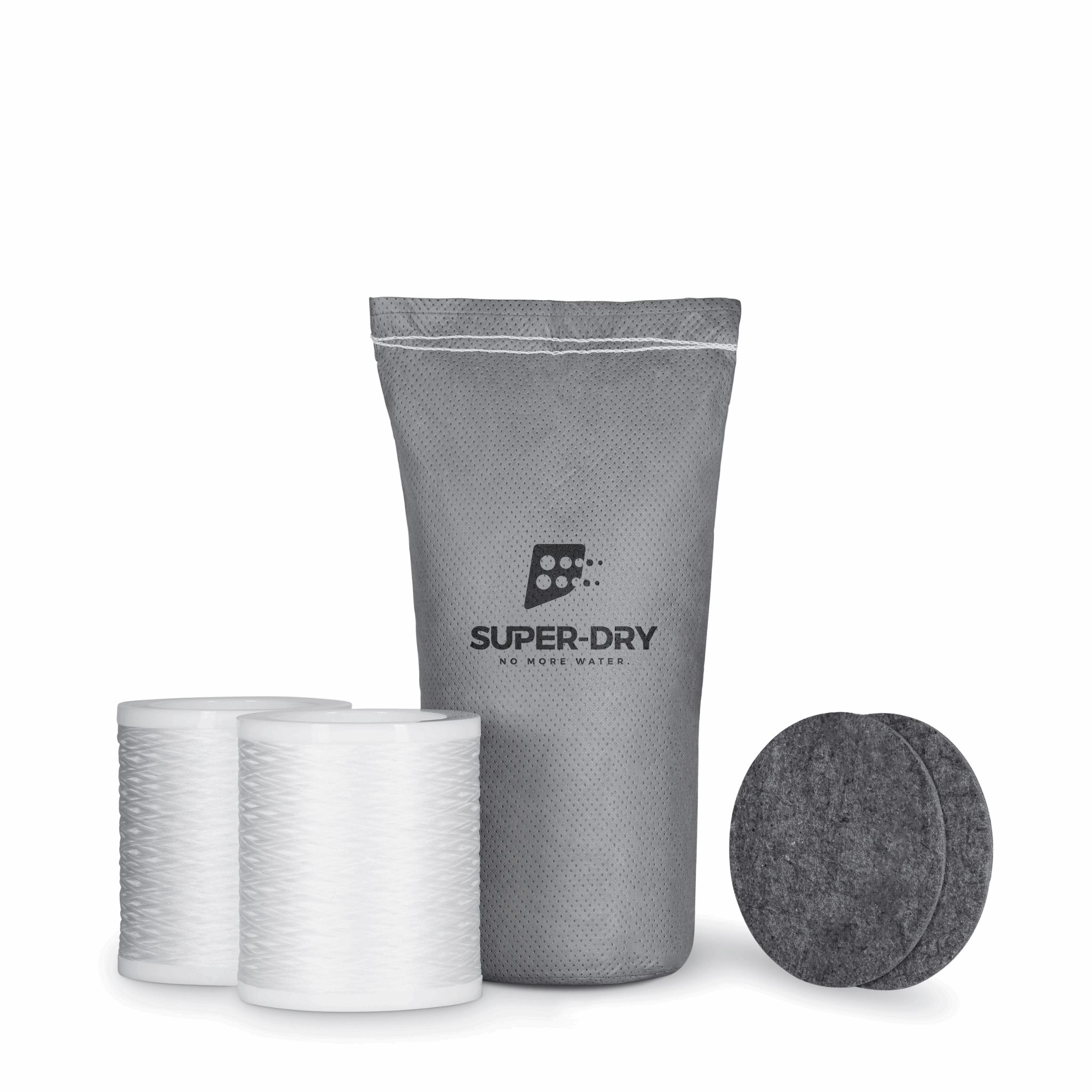

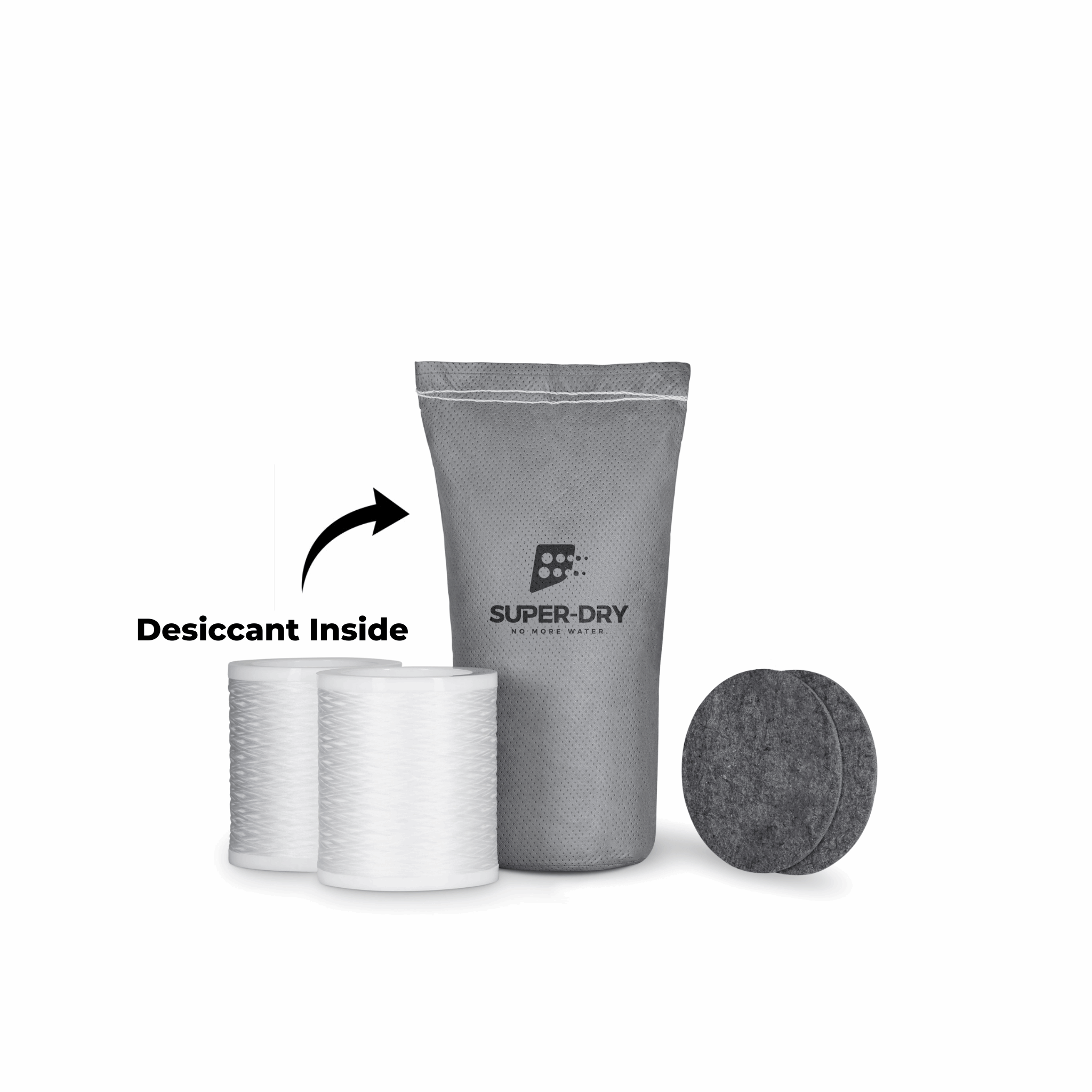

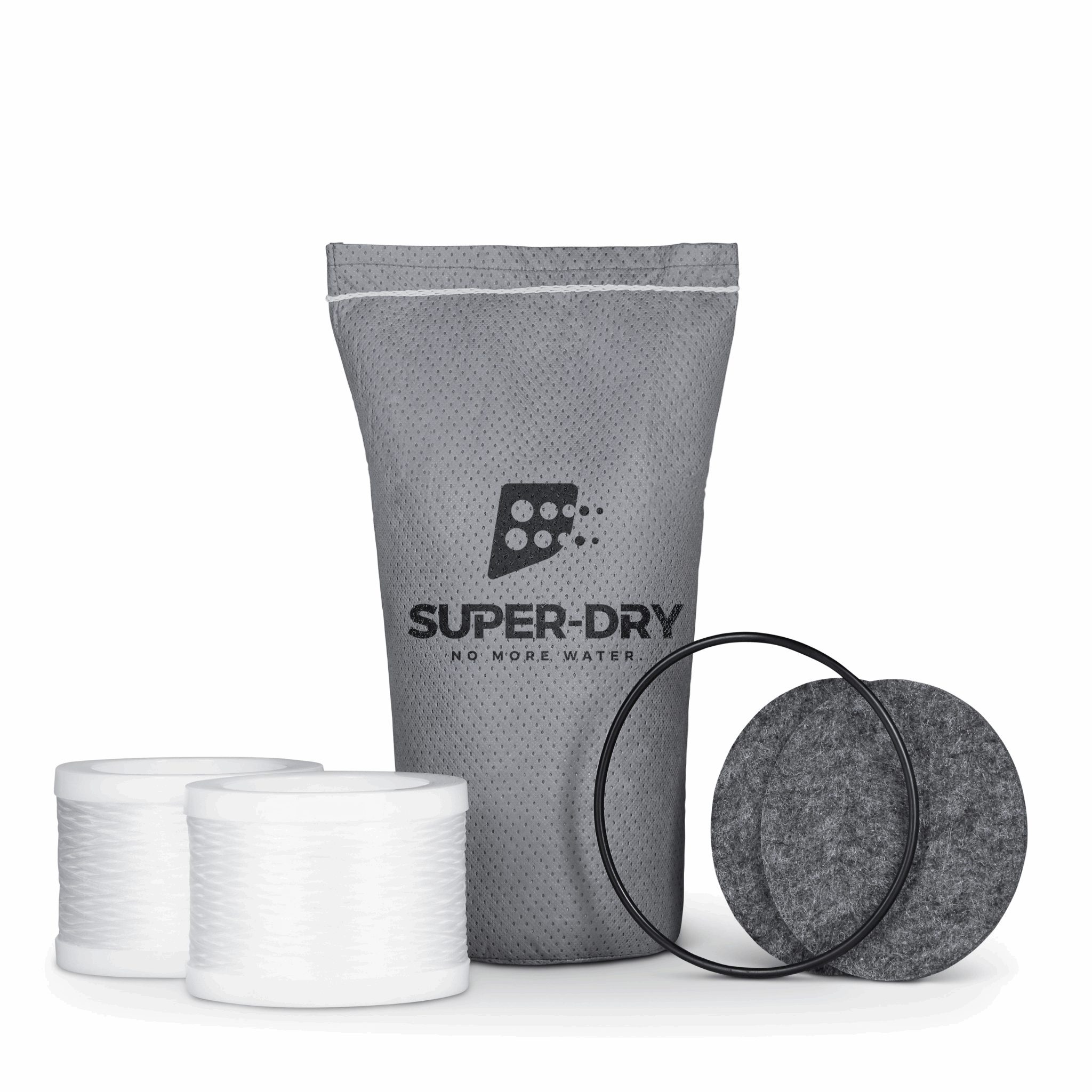

The ED kits are the genuine Super-Dry service cartridges for D Series single-tower desiccant air dryers. Each kit rebuilds the consumable path of the dryer in one part number: a high-efficiency filtration bag filled with activated alumina, two engineered polypropylene coalescing filter elements, and two oil carry-over absorbing felt pads. Order the kit that matches your dryer model (ED1 for the D1 through ED4 CRN for the D4 CRN) so the bag and elements seat correctly in the housing.
How it works
- The desiccant bag holds the activated alumina that absorbs moisture as air flows up through the tower, and it is the part that saturates over time.
- The two coalescing elements handle the incoming filtration stage, capturing solid particulate before it reaches the desiccant.
- The two felt pads absorb oil carry-over from the compressor so it does not blind the desiccant or pass downstream.
- Replace the cartridge when the moisture gauge indicates saturation. With the stainless-steel clamp on the D Series housing, the swap is quick and there is no loose desiccant to pour or handle.
Key specifications
| SKU | Kit | Fits Dryer | Desiccant Bag | Coalescer Elements | Felt Pads | O-Rings | Desiccant Bag Weight | Box Dimensions |
|---|---|---|---|---|---|---|---|---|

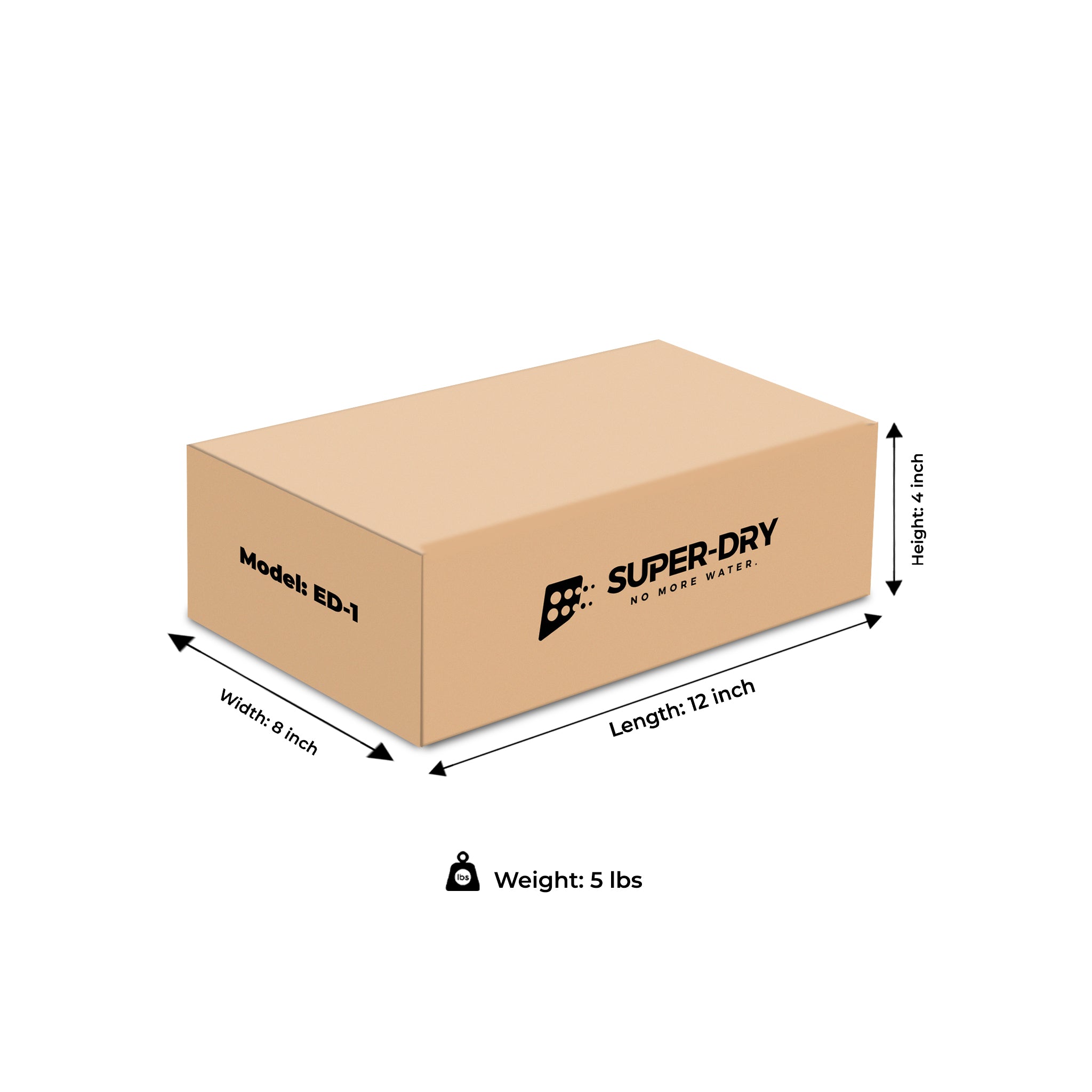

| 280-210 | ED1 | D1 | 1 | 2 | 2 | 1 | 5 lbs | 12 x 8 x 4" |

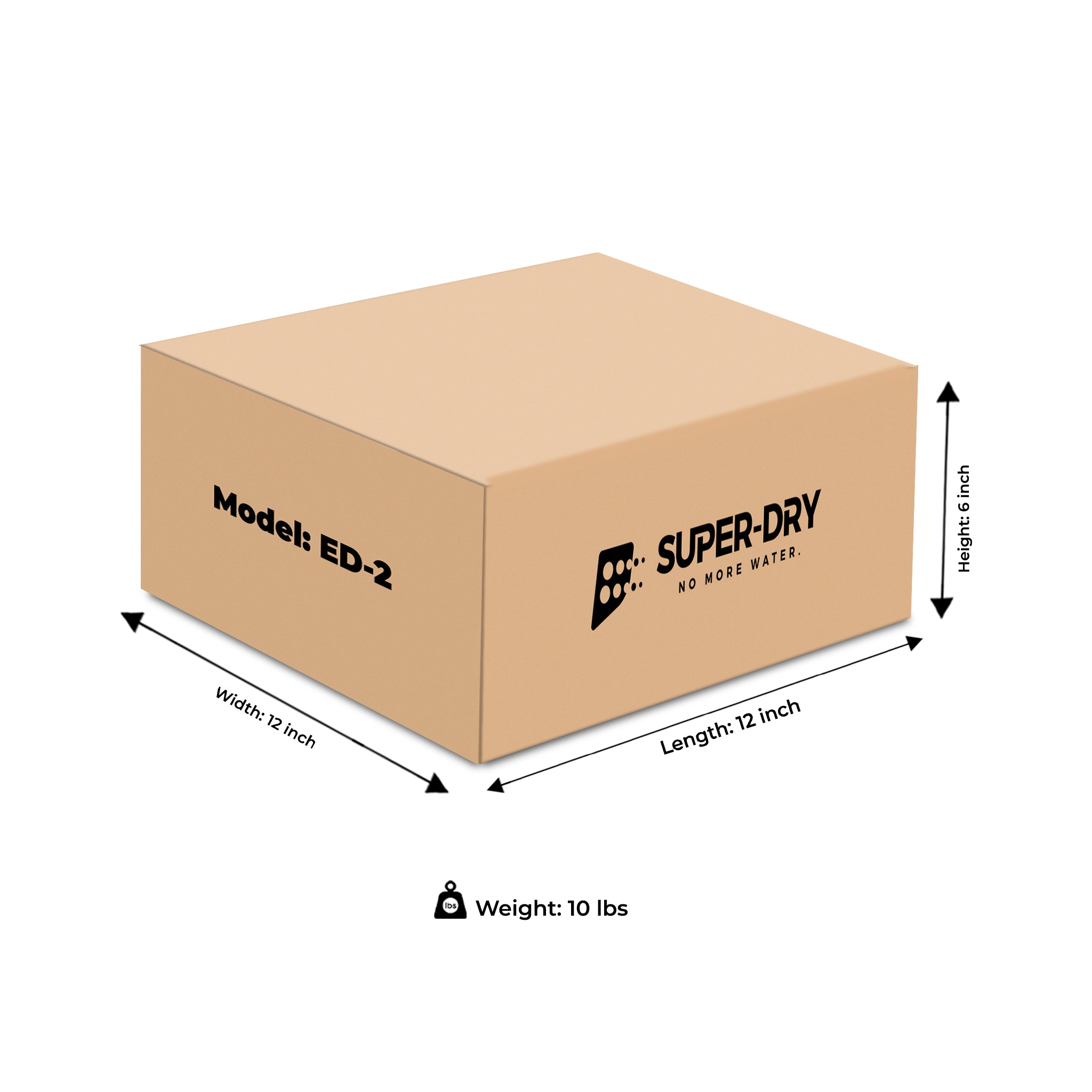

| 280-220 | ED2 | D2 | 1 | 2 | 2 | 1 | 10 lbs | 12 x 12 x 6" |
| 280-230 | ED3 | D3 | 1 | 2 | 2 | 2 | 20 lbs | 24 x 12 x 6" |

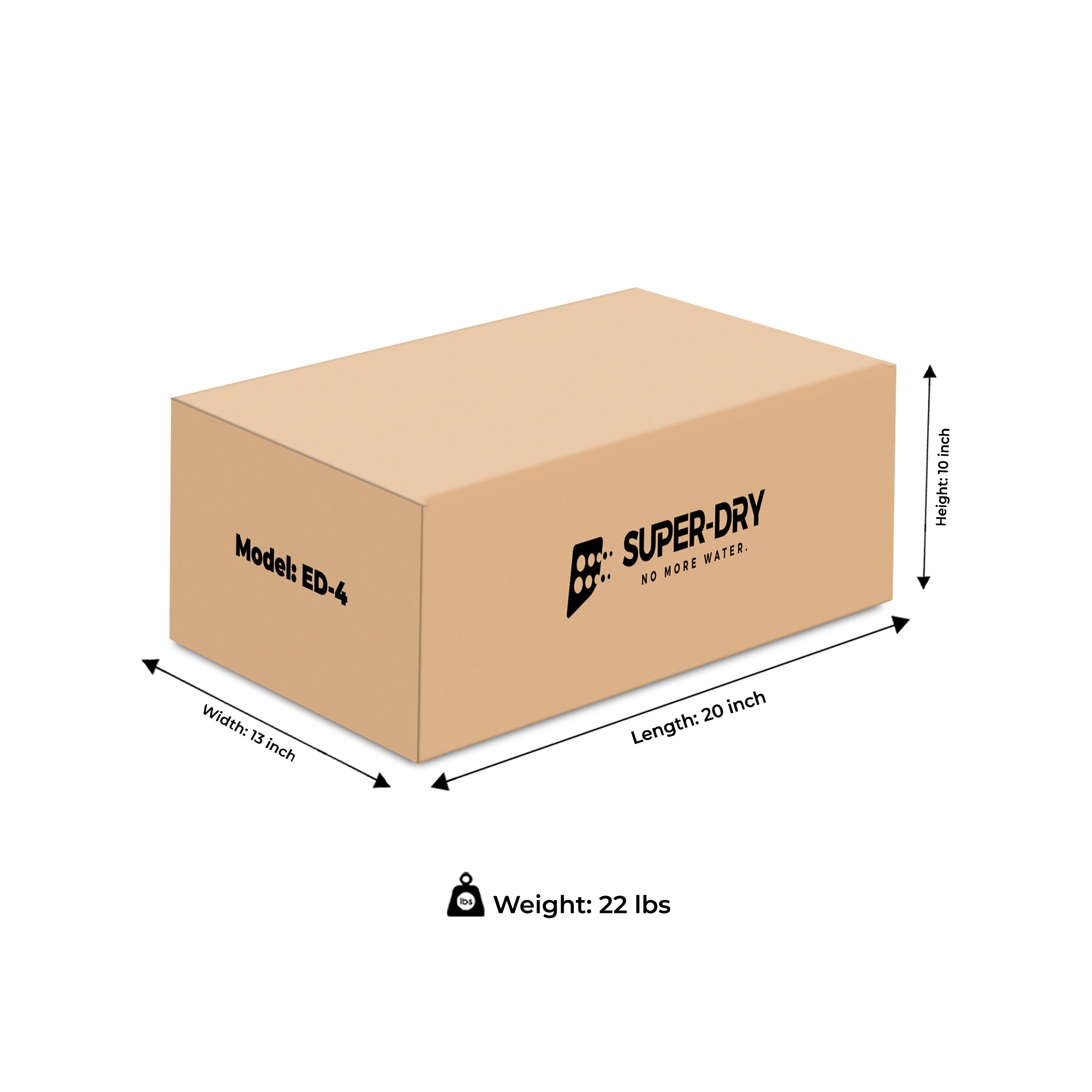

| 280-240 | ED4 | D4 | 1 | 2 | 2 | 2 | 22 lbs | 20 x 13 x 10" |
| 280-241 | ED4 CRN | D4 CRN | 1 | 2 | 2 | Not published | 24 lbs | Not published |
Typical applications
- Scheduled cartridge changes on D Series dryers in paint and refinishing shops
- Restoring dry air to sandblasting and abrasive blast lines after the desiccant saturates
- Keeping plasma cutting stations on dry air between service intervals
- Point-of-use drops feeding air tools and pneumatic equipment in manufacturing
- Stocking a spare kit so a saturated cartridge does not stop production
What's included

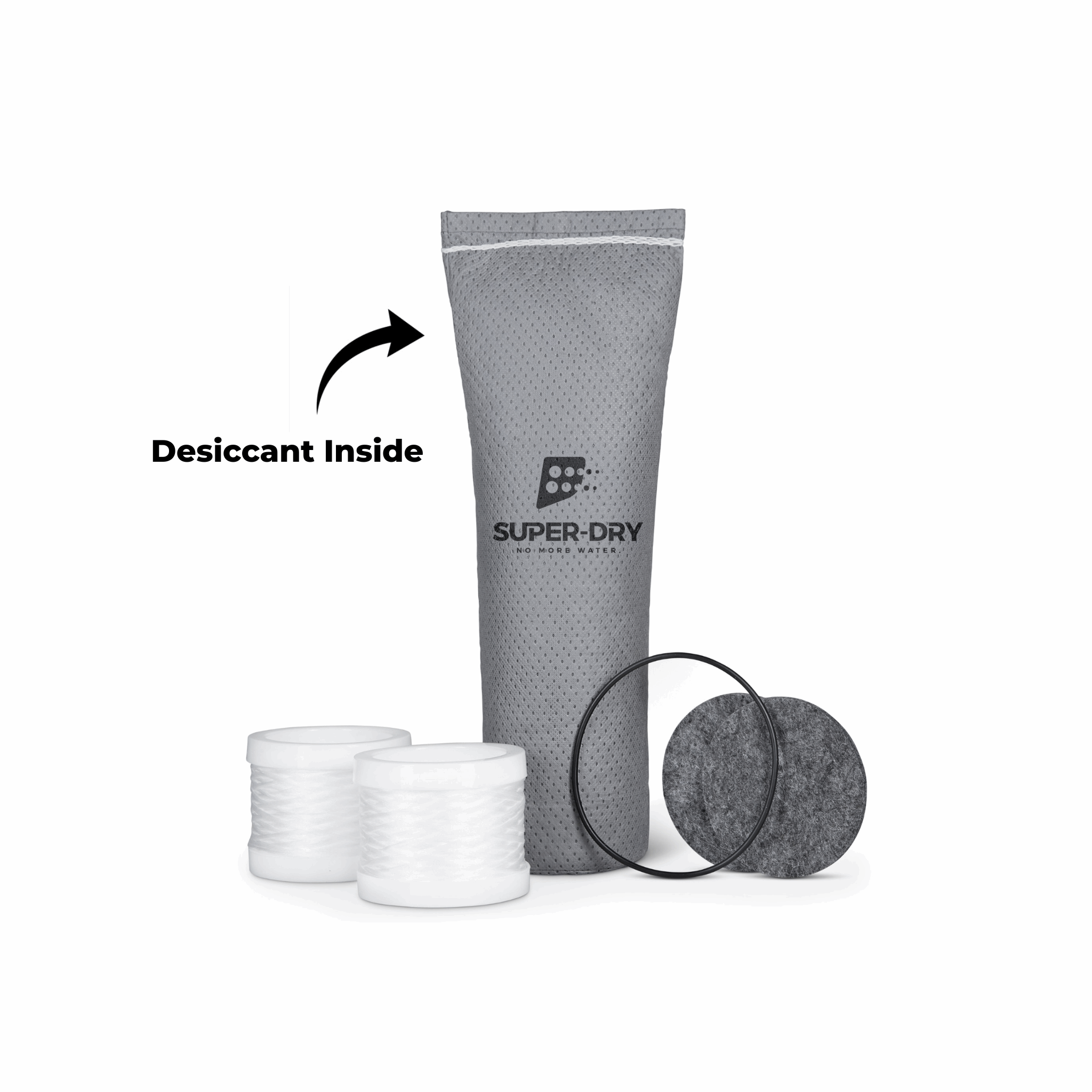

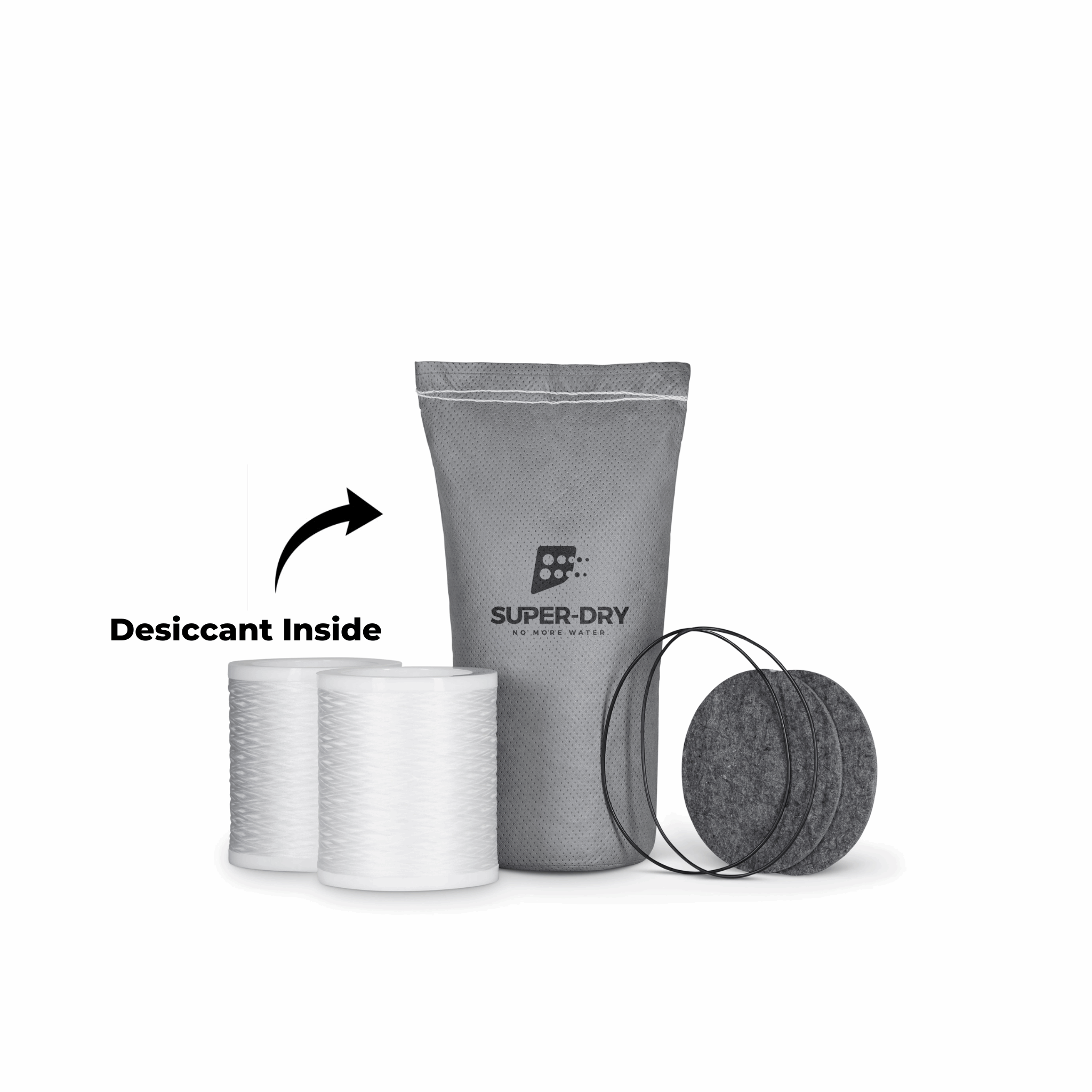

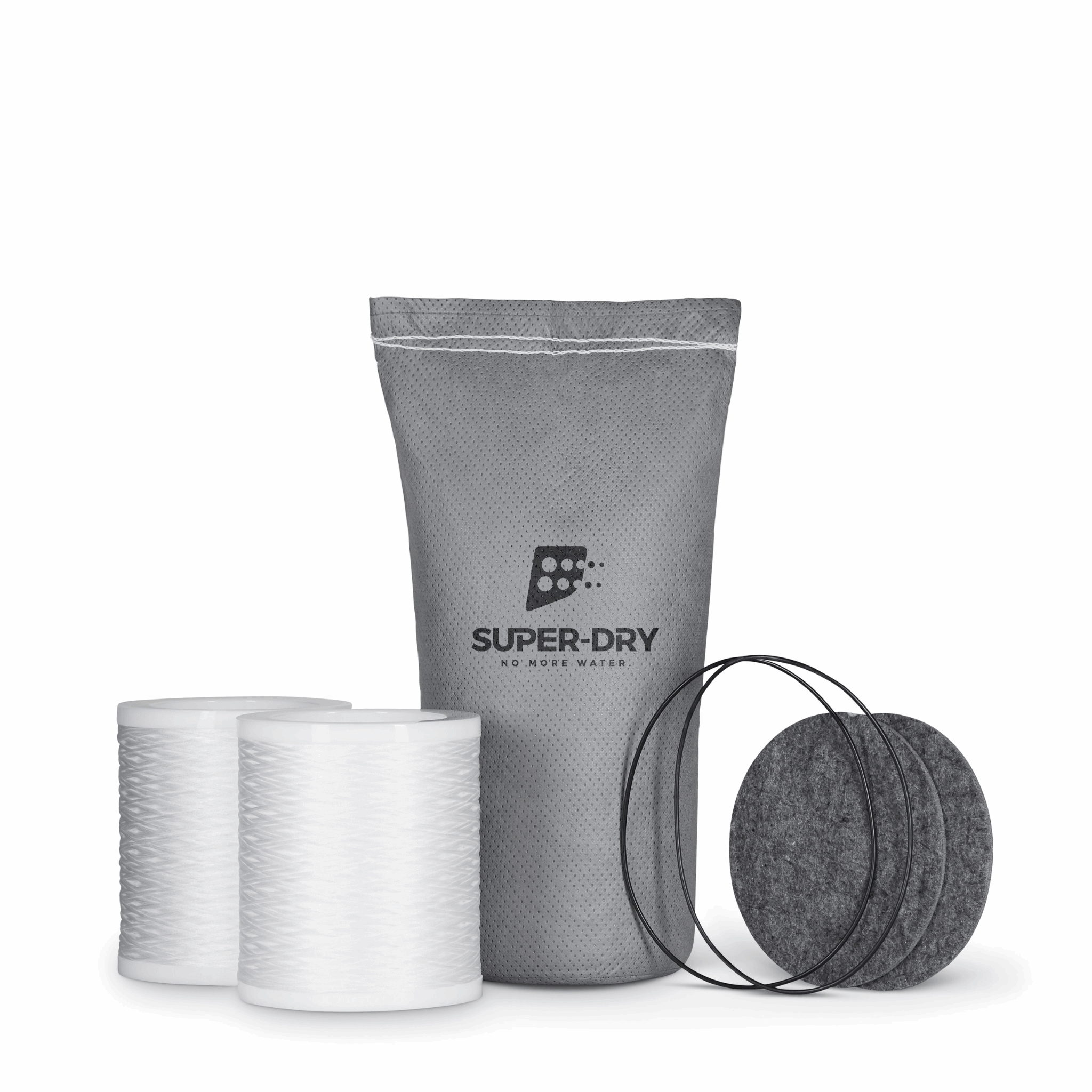

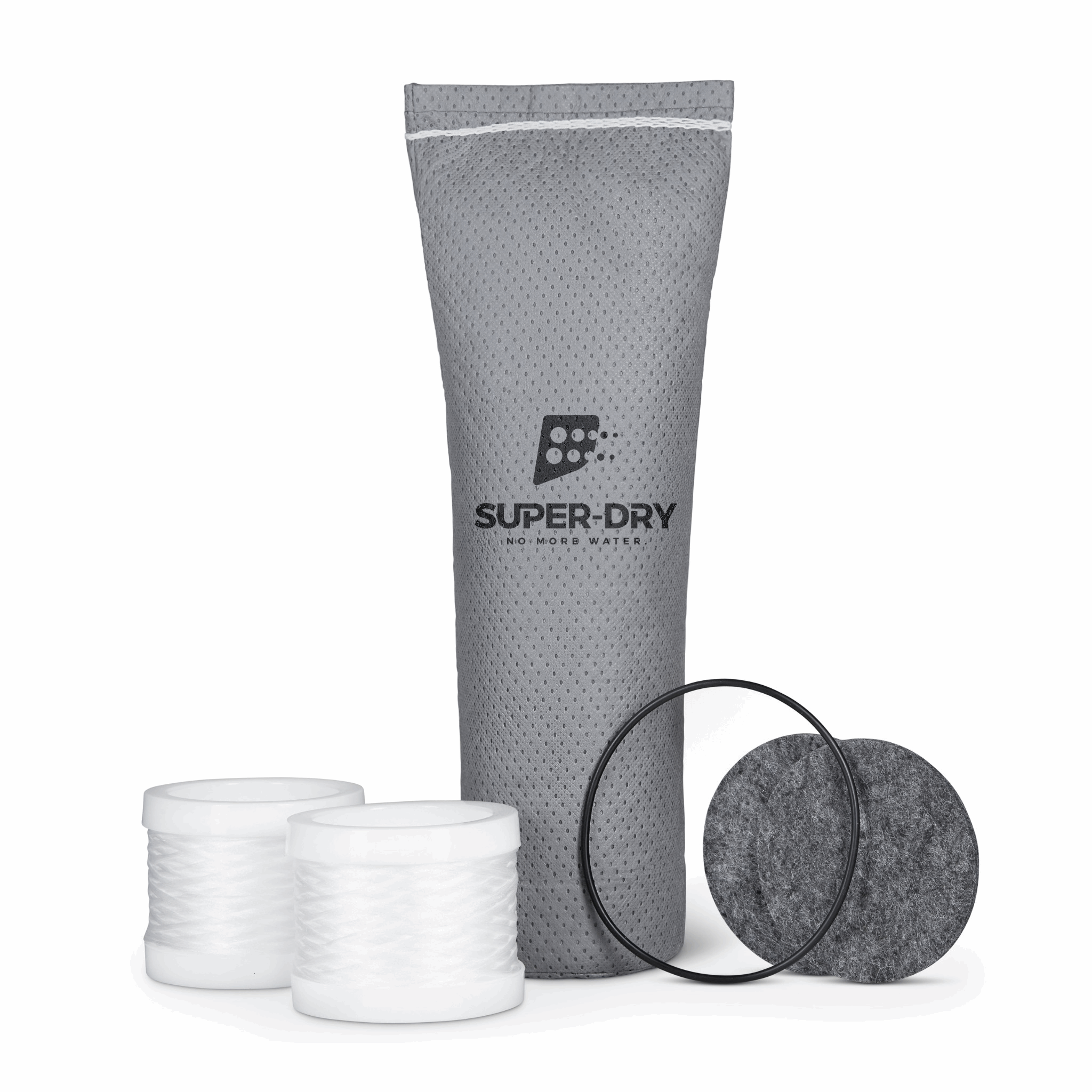

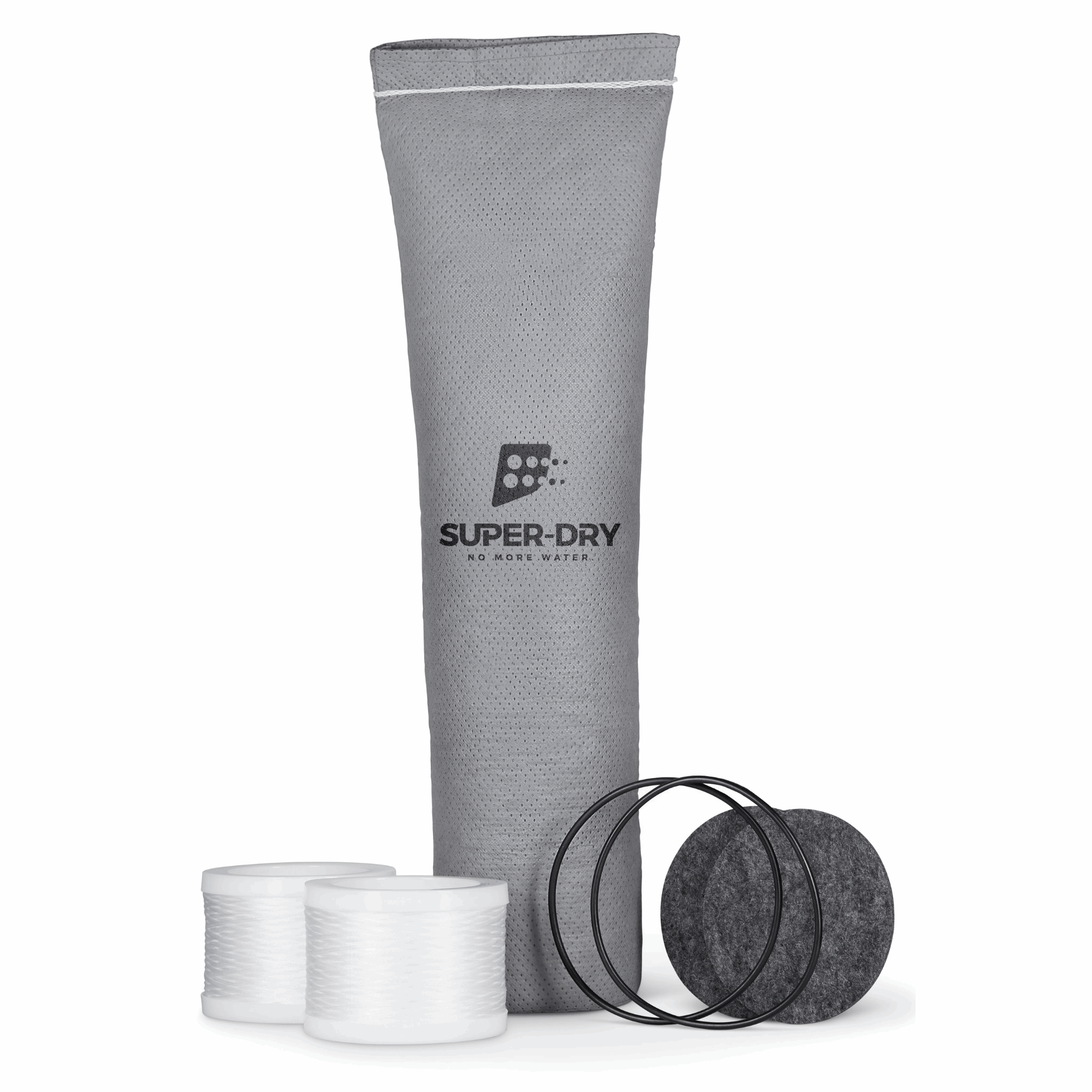

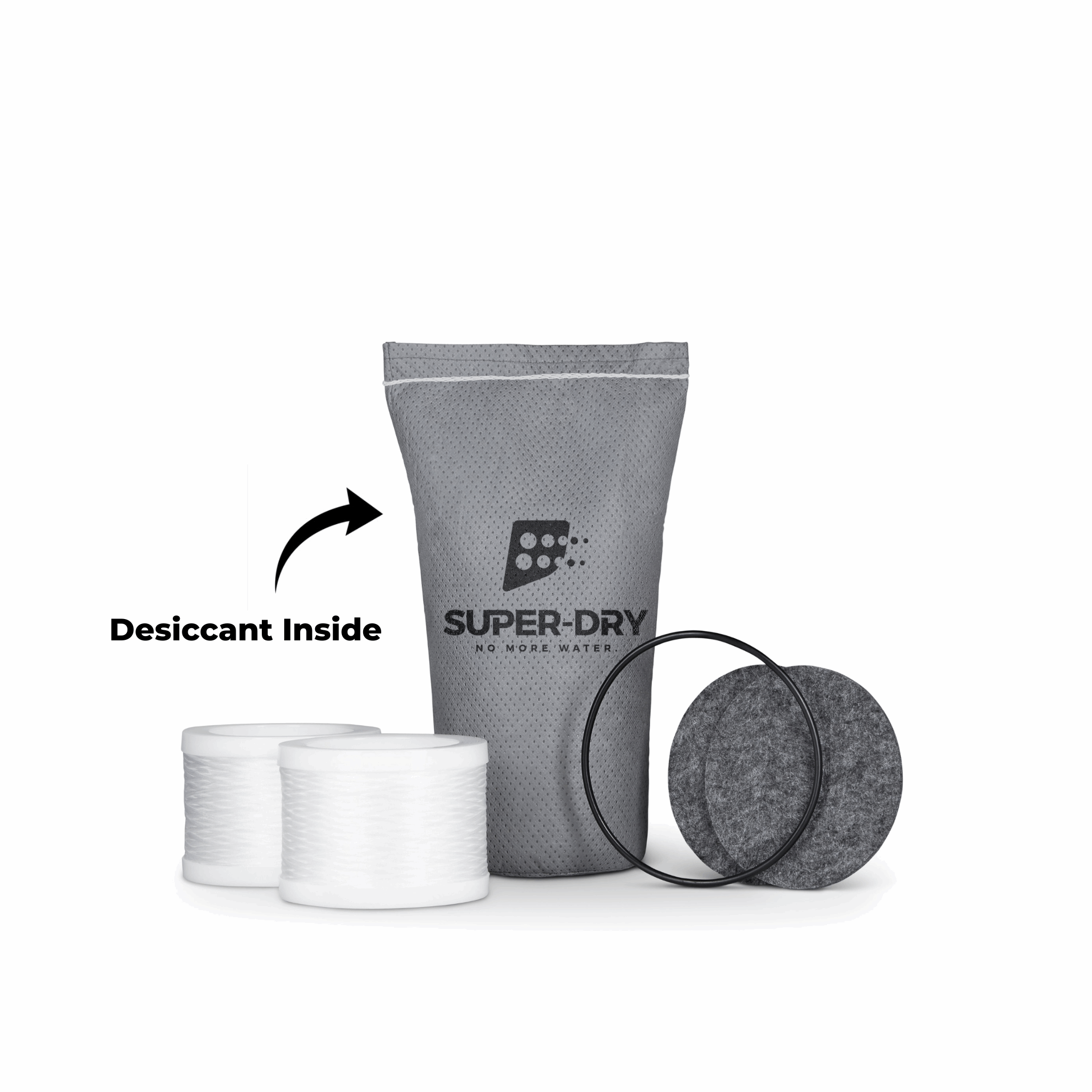

- Desiccant bag filled with activated alumina, x 1
- Polypropylene coalescer element, x 2
- Oil carry-over felt pad, x 2
- O-ring, x 1 on the ED1 and ED2, x 2 on the ED3 and ED4. Super-Dry does not publish the O-ring count for the ED4 CRN.
ED cartridge kits keep a Super-Dry D Series dryer performing as designed in paint, blast, plasma cutting and general point-of-use compressed air service, at a fraction of the cost of replacing the dryer. Match the kit to your dryer model, and use a moisture indicator on the outlet if you want a clear read on when the desiccant is spent. Warthog Air Compressor Store is an authorized US source for Super-Dry Systems Inc.
NOTE: Actual product may be different from pictured!
