Super-Dry ATD Series Inline Air Tool Dryer, 22 to 44 SCFM, 1/4" to 1/2" NPT
| Specifications (As Configured) | |
|---|---|
 Vendor |
Super-Dry
|
 SKU |
290-100
|
| Dimensions | |
 Weight |
3.0 lb
|
The Super-Dry ATD Series is an inline compressed air dryer that mounts at the point of use, directly ahead of the tool or instrument that needs dry air. It strips water and moisture out of the air stream so impact wrenches, grinders, sanders, drills, spray guns and pneumatic instruments run on clean, dry air instead of corroding from the inside out. In cold weather it also keeps nail guns from freezing up. All four models run at very low pressure drop and suit intermittent duty, which is where a compact inline dryer earns its place.
How it works
- Compressed air passes through a desiccant media that absorbs water vapor before the air reaches the connected tool or instrument.

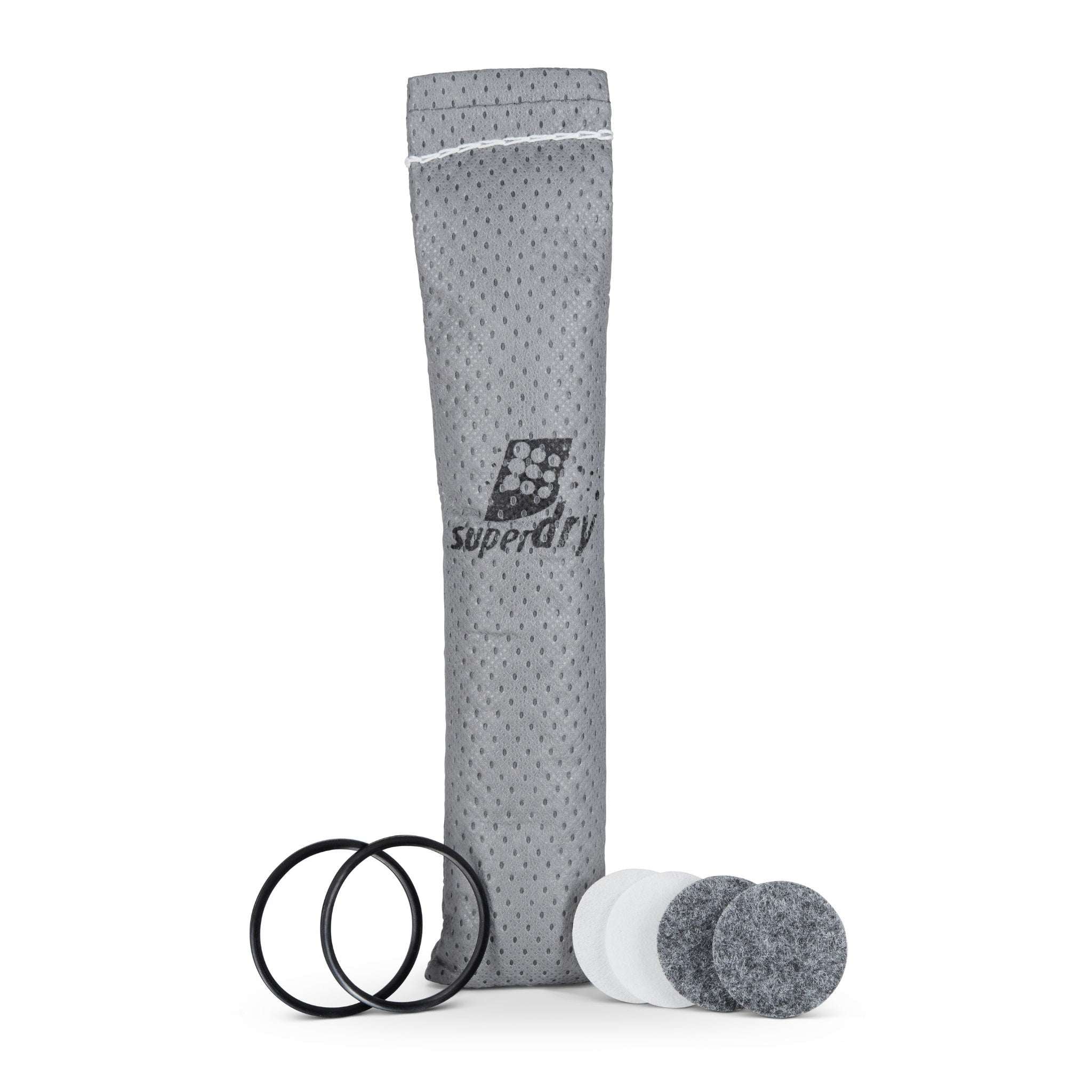

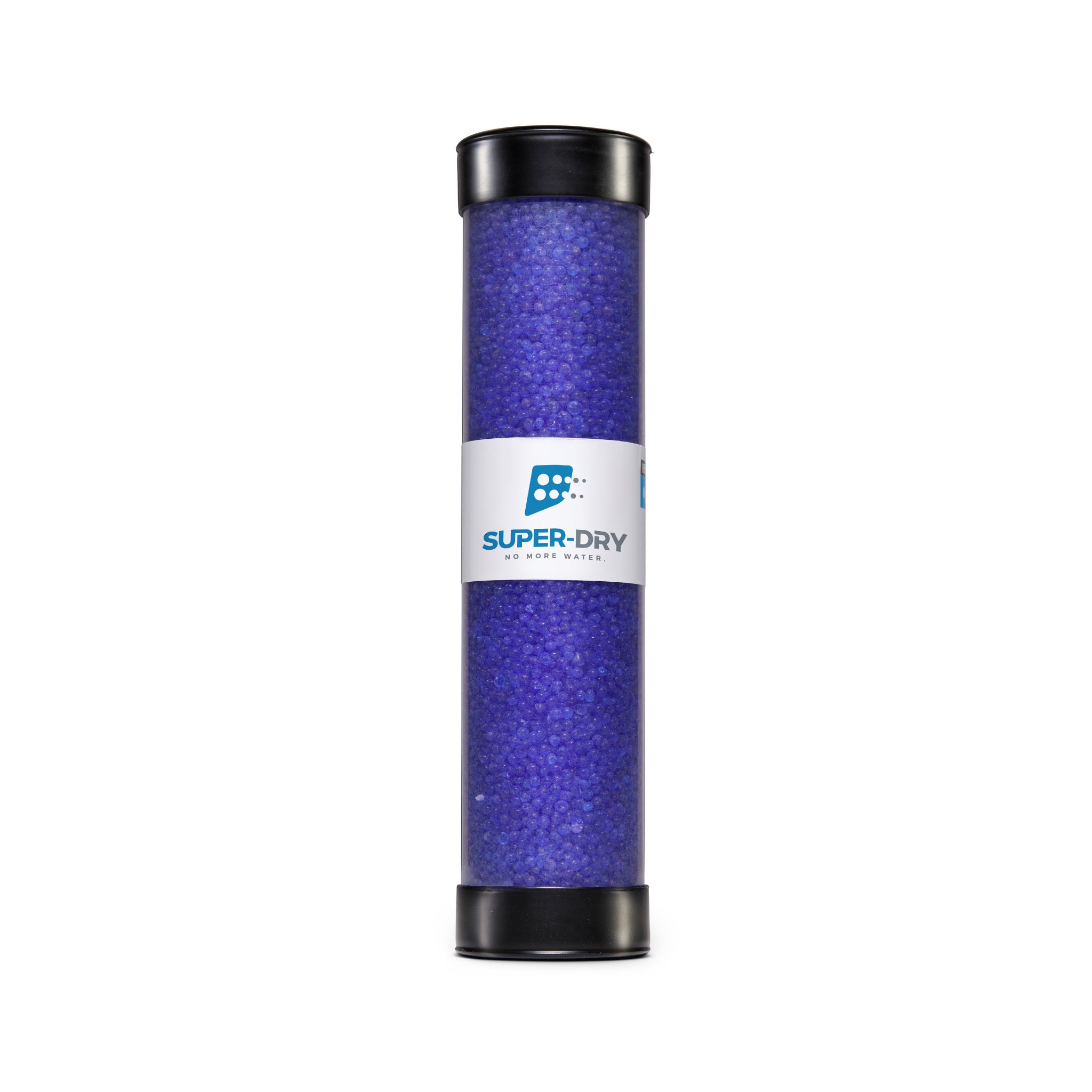

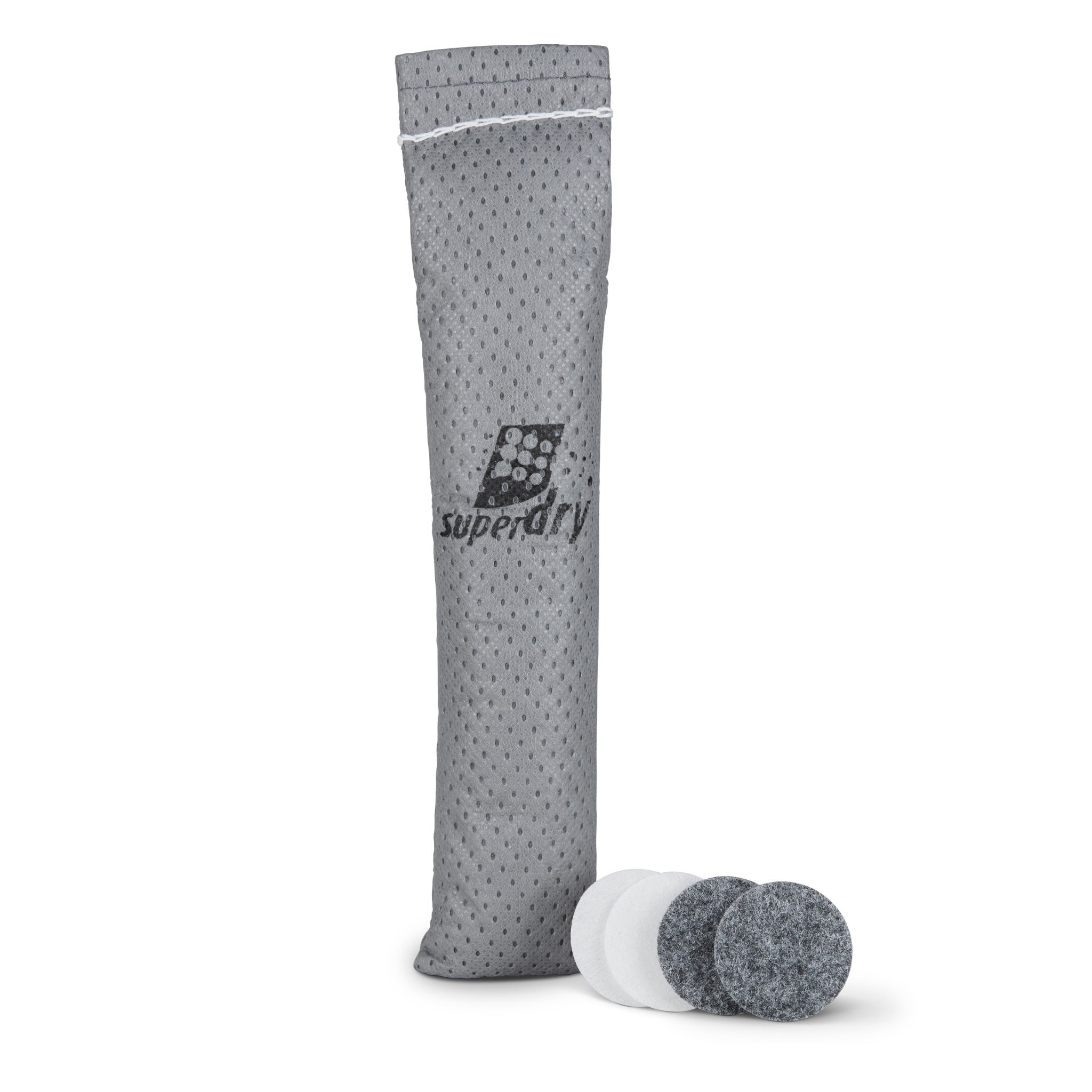

- On the ATD 1/4, ATD 1/2 and ATD 1/2-CL, the cartridge is activated alumina in a sewed bag. On the ATD 1/4 XL, it is silica gel in blue pellet form held in a plastic tube.

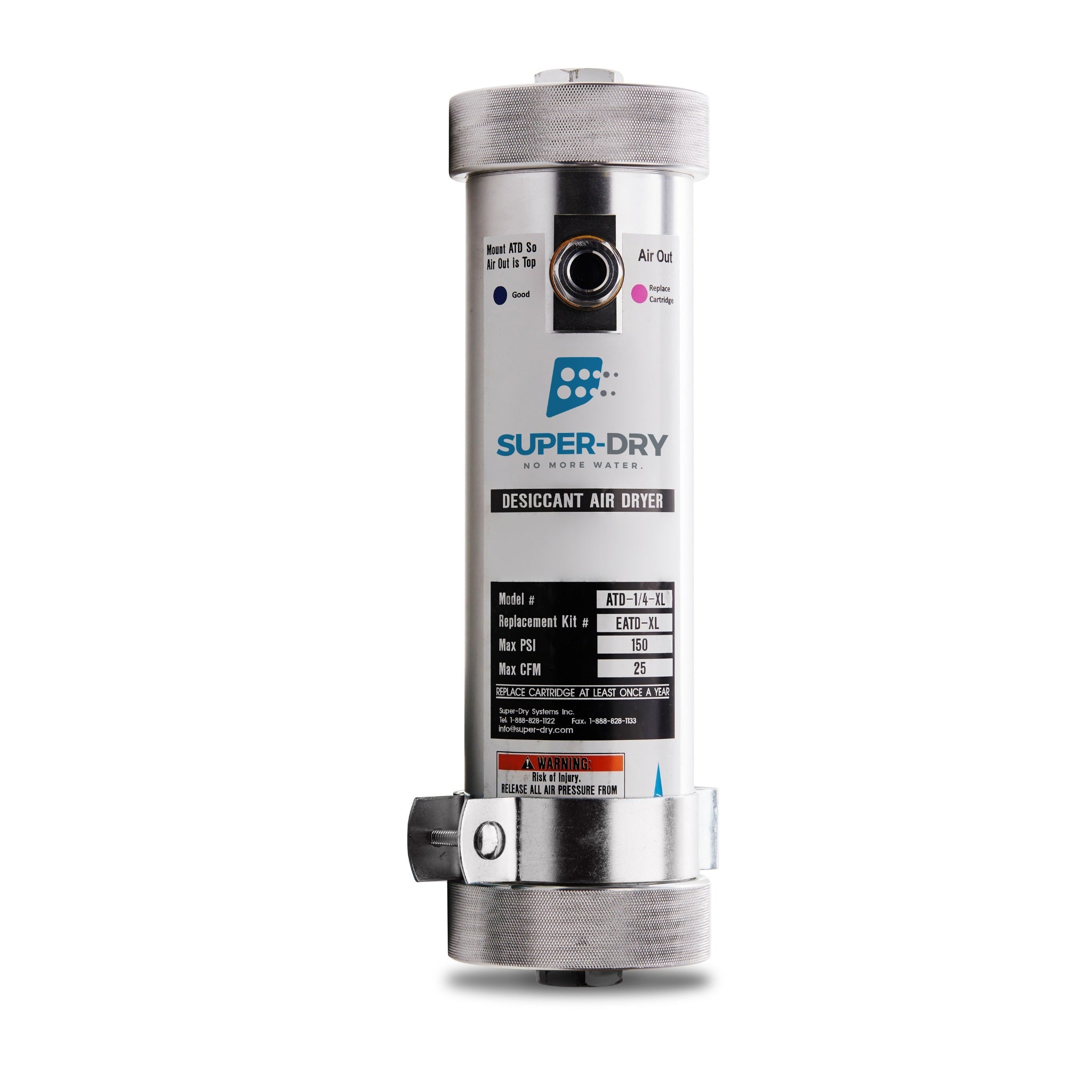

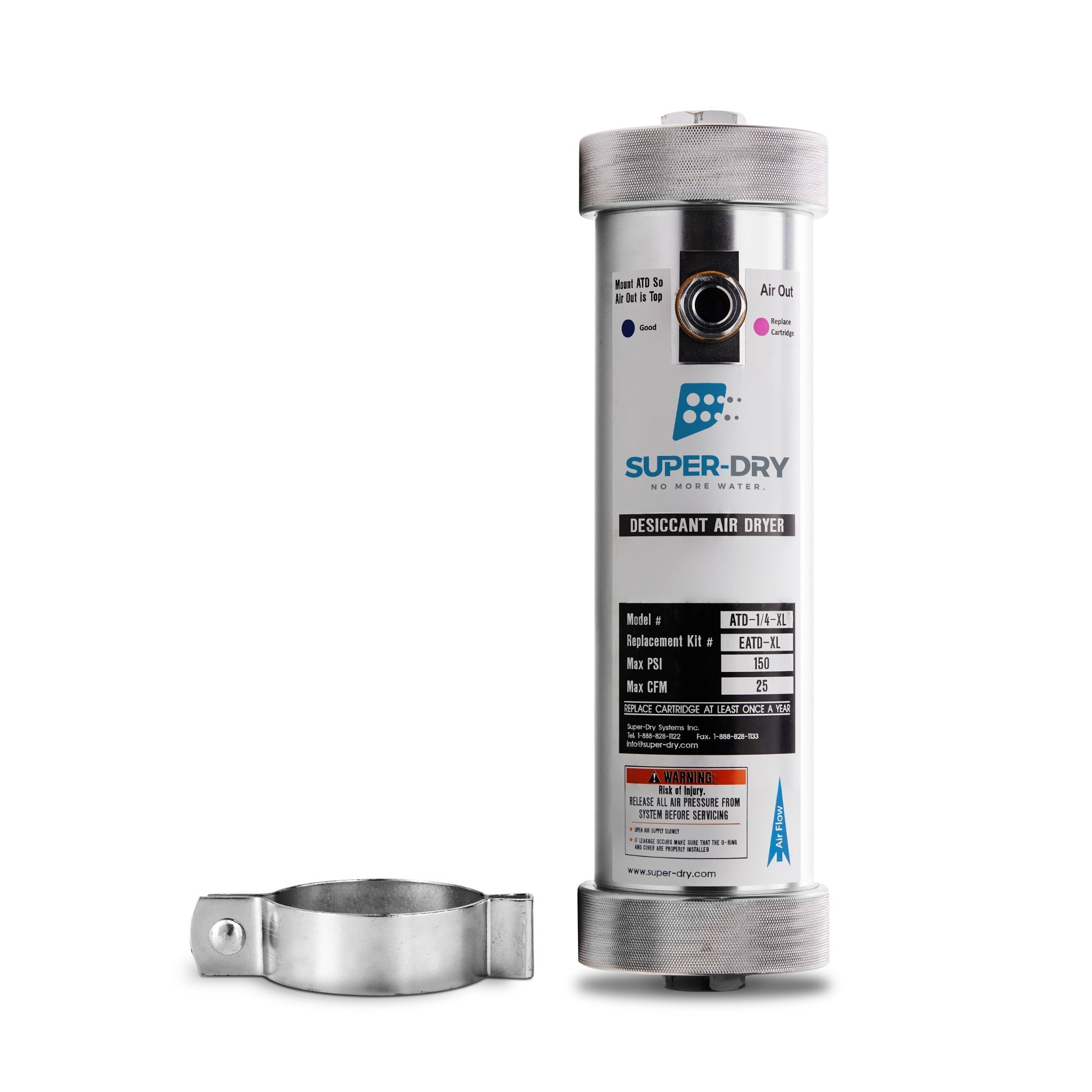

- The ATD 1/4 XL adds a built-in sight glass so you can see when the desiccant is saturated, and it ships with a fixing clip for mounting.
- Cartridge changes are quick: no tools are required and there is no loose desiccant to handle. The ATD 1/2-CL uses cam-lock caps to make the swap even faster.
- Removing moisture at the drop helps prevent rust and internal corrosion, cuts water contamination in the pneumatic system, keeps tools working at rated performance and extends service life.
Key specifications
| SKU | Model | Inlet / Outlet Ports | Airflow at 100 PSIG | Max Inlet Pressure | Max Inlet Temperature | Desiccant | Approx. Weight | Notes |
|---|---|---|---|---|---|---|---|---|

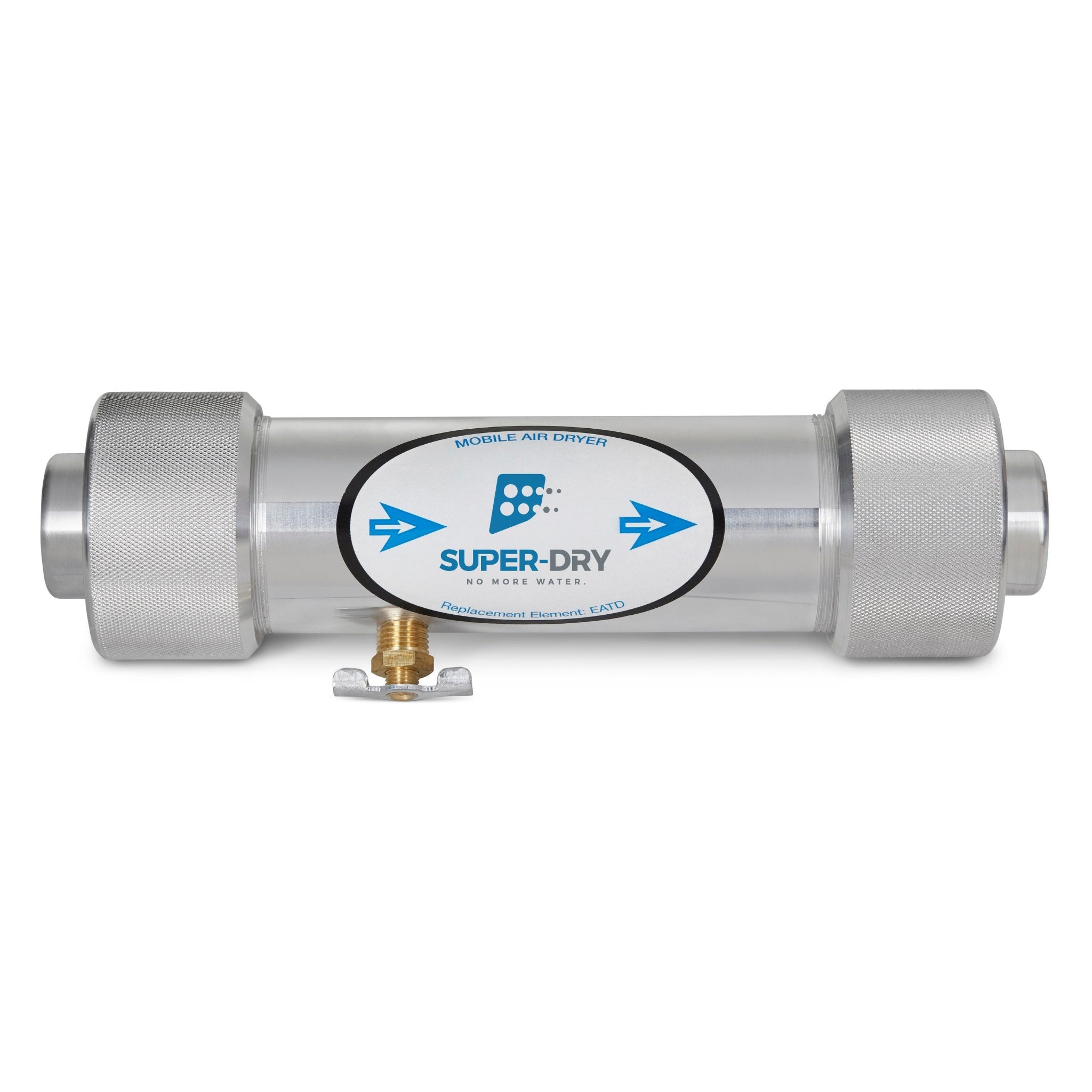

| 290-100 | ATD 1/4 | 1/4" NPT | 22 SCFM | 150 PSIG | 100°F (38°C) | Activated alumina in sewed bag | 3 lb | Drain cock included |

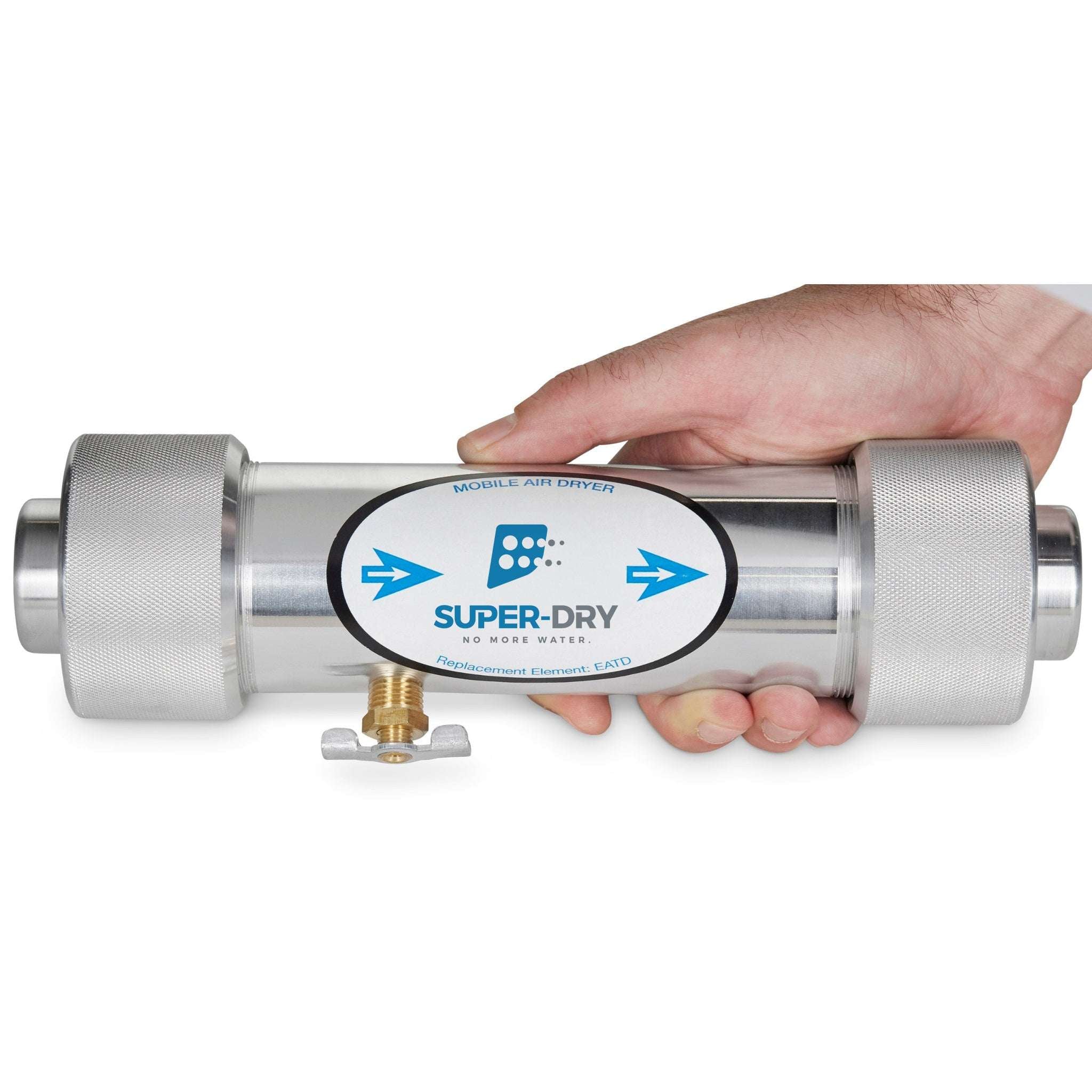

| 290-101 | ATD 1/2 | 1/2" NPT | 44 SCFM | 150 PSIG | 100°F (38°C) | Activated alumina in sewed bag | 3 lb | Drain cock included |

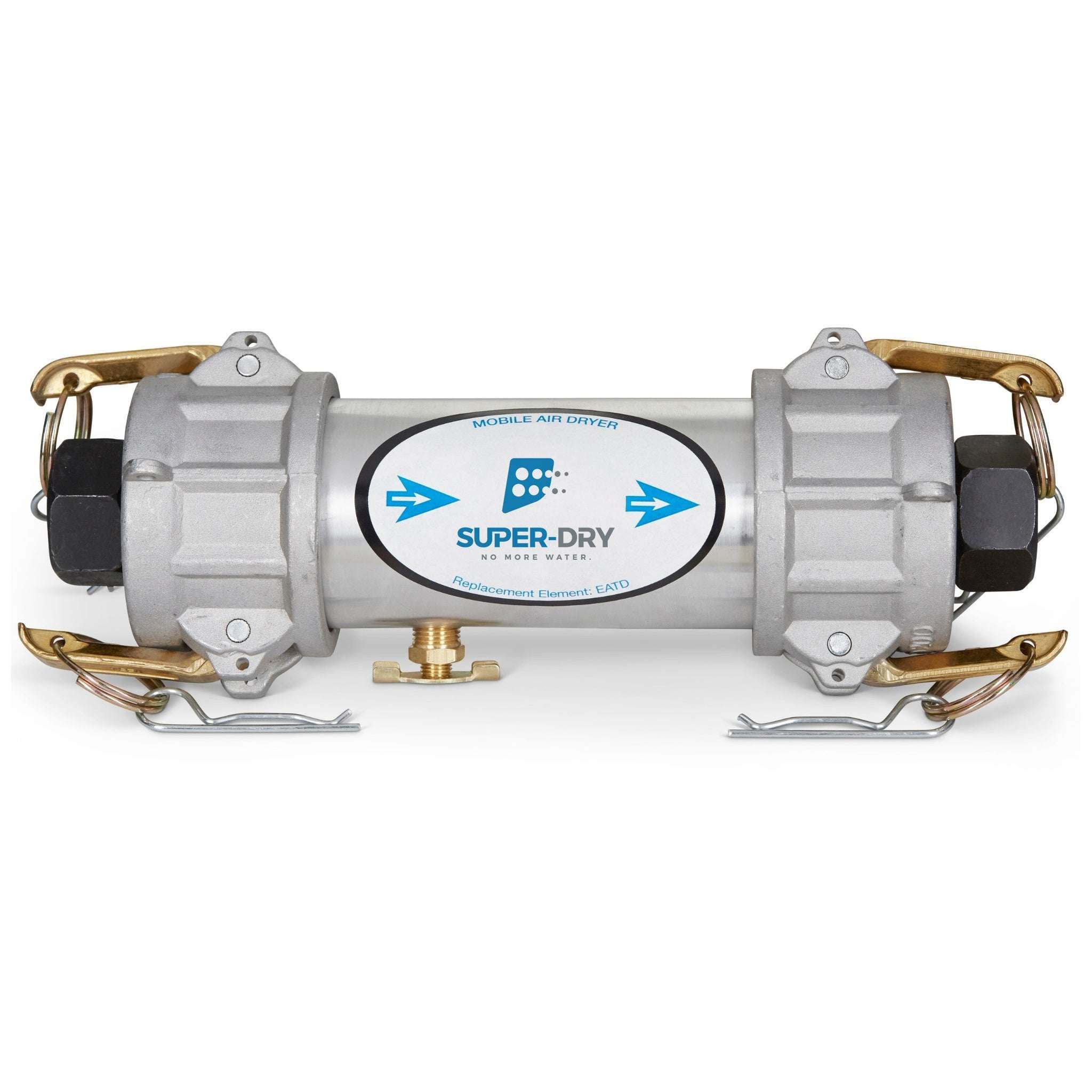

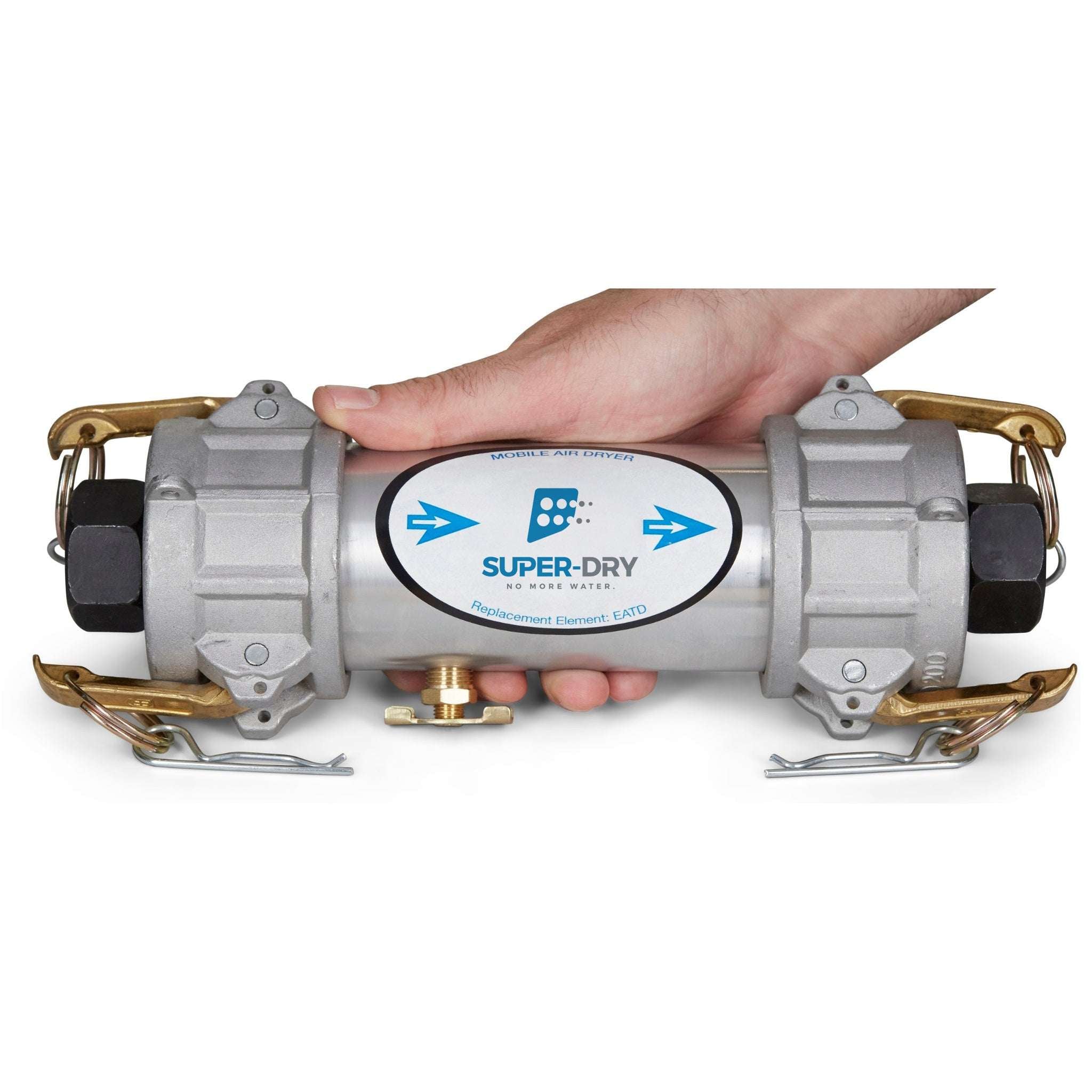

| 290-104 | ATD 1/2-CL | 1/2" NPT | 44 SCFM | 150 PSIG | 100°F (38°C) | Activated alumina in sewed bag | 5 lb | Cam-lock caps for tool-free service, drain cock included |
| 290-102 | ATD 1/4 XL | 1/4" NPT | 25 SCFM | 150 PSIG | 100°F (38°C) | Silica gel (blue pellets) in plastic tube | 6 lb | Sight glass, fixing clip included, 1.5 PSID pressure differential at 100 PSIG on this model only. Super-Dry does not publish a pressure differential figure for the other ATD models. |
Typical applications
- Individual workstation drops feeding impact wrenches, grinders, sanders and drills
- Spray guns in paint shops and touch-up work, where moisture spoils the finish
- Nail guns and framing tools used outdoors in cold weather, where wet air causes freeze-ups
- Instruments and pneumatic controls that require dry air at the connection
- Portable and jobsite air systems that have no central dryer
- Intermittent-use benches where a low pressure drop matters more than continuous capacity
What's included
- Inline dryer with desiccant cartridge installed
- Drain cock on the ATD 1/4, ATD 1/2 and ATD 1/2-CL
- Fixing clip on the ATD 1/4 XL
The ATD Series covers the last few feet of a compressed air system, giving paint shops, fabrication benches, service trucks and jobsite crews dry air right at the tool without a full dryer installation. Cartridges are serviceable with the matching EATD replacement kits, so the housing stays in place for years of use. Warthog Air Compressor Store is an authorized US source for Super-Dry Systems Inc.
