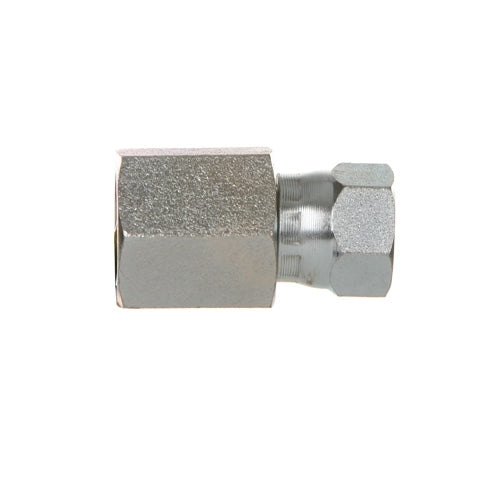

Steel 37° JIC Female Swivel x Female NPT Hydraulic Adapter
The Steel 37° JIC Female Swivel x Female NPT Adapter is a straight connector that joins a 37° JIC (SAE J514) flare line to a female NPT pipe port. The live swivel nut on the JIC side lets you tighten the connection to a sealed, leak-free joint without twisting or kinking the hose or tube — making installation and service fast in tight spaces.
Machined from carbon steel for high-pressure hydraulic and pneumatic service, this adapter is a workhorse fitting for air compressor plumbing, hydraulic power units, and fluid-transfer lines.
Key Features
- Connection: 37° JIC female swivel (SAE J514) × female NPT
- Straight (in-line) configuration
- Carbon steel construction for high-pressure service
- Live swivel nut seals without twisting the hose or tube
- Reusable, leak-tight metal-to-metal 37° flare seal
- Available in eight sizes from 1/4" through 2"
Size & Thread Reference
| Size | JIC Thread | NPT Port | Part # |
|---|---|---|---|
| 1/4" | 7/16-20 | 1/4" FNPT | SWVL-124 |
| 3/8" | 9/16-18 | 3/8" FNPT | SWVL-126 |
| 1/2" | 3/4-16 | 1/2" FNPT | SWVL-129 |
| 3/4" | 1-1/16-12 | 3/4" FNPT | SWVL-134 |
| 1" | 1-5/16-12 | 1" FNPT | SWVL-135 |
| 1-1/4" | 1-5/8-12 | 1-1/4" FNPT | SWVL-136 |
| 1-1/2" | 1-7/8-12 | 1-1/2" FNPT | SWVL-137 |
| 2" | 2-1/2-12 | 2" FNPT | SWVL-138 |
Typical Applications
Air compressor and pneumatic plumbing, hydraulic power units, agricultural and construction equipment, and any line where a 37° JIC flare hose end needs to mate to a female NPT pipe port.
Select your size from the dropdown above. Pair this steel JIC-to-NPT swivel adapter with matching JIC hose ends for a reliable, serviceable, leak-free hydraulic or pneumatic connection.
NOTE: Actual product may be different from pictured!
