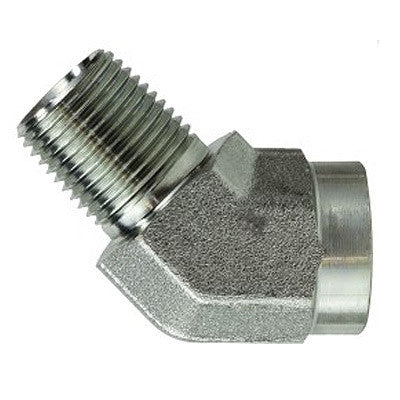

Steel 45° Forged Street Elbow — Class 3000 Carbon Steel, MNPT × FNPT
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog Air Compressor Store
|
 SKU |
SFCC-131
|
The Steel 45° Forged Street Elbow changes the direction of a threaded line by 45 degrees using a single fitting. One end is male NPT (MNPT) and the other is female NPT (FNPT), so it threads directly onto a female port while accepting a male thread on the other side — no extra nipple required. Forged from carbon steel to ASTM SA105N and rated Class 3000, it's built for high-pressure air, hydraulic, fuel, and general industrial plumbing.
Key specifications
- Style: 45° street elbow (MNPT × FNPT)
- Material: Forged carbon steel, ASTM SA105N normalized
- Pressure class: Class 3000 (3000# / approx. 3000 psi at 72°F)
- Dimensions: conform to ASME B16.11
- Thread: NPT (National Pipe Taper) on both ends
- Sizes available: 1/8" through 1"
Typical applications
Ideal for high-pressure air compressor plumbing, hydraulic power units, fuel and oil lines, steam, and heavy industrial pipe runs where a compact 45° offset is needed.
Choose your size from the dropdown. This forged carbon steel 45° street elbow delivers a rugged, leak-resistant MNPT-to-FNPT connection for high-pressure air, hydraulic, and fluid-handling systems.
NOTE: Actual product may be different from pictured!
