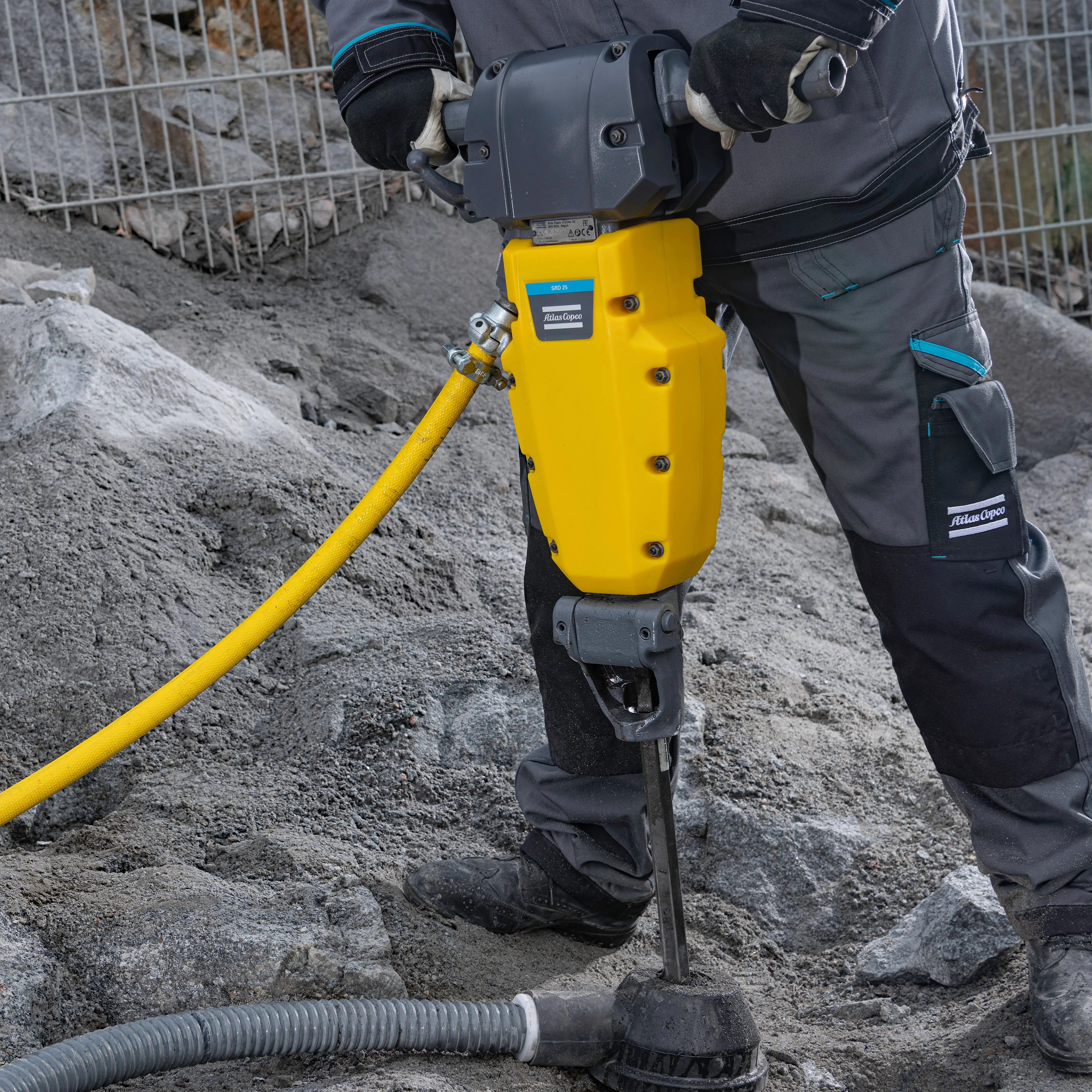

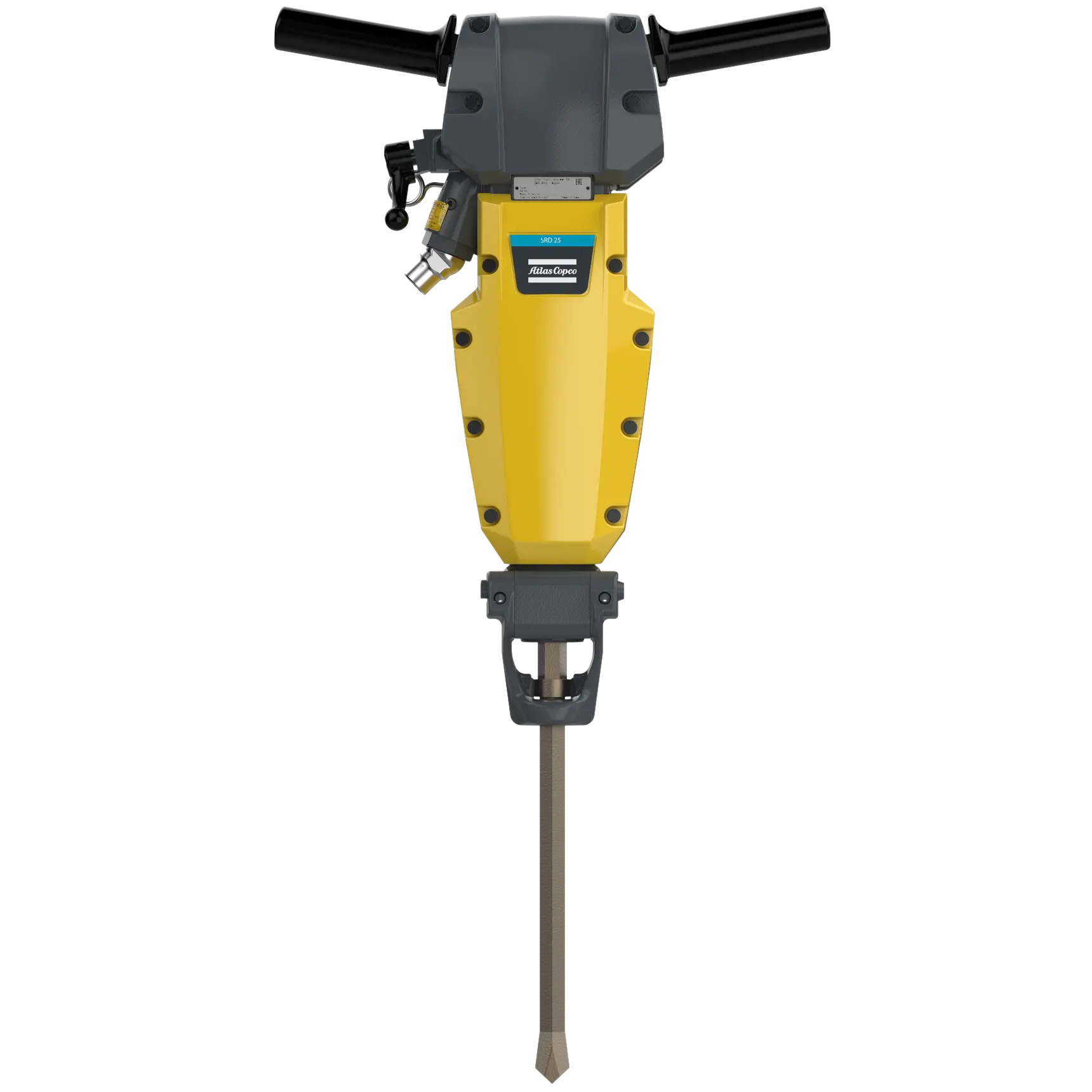

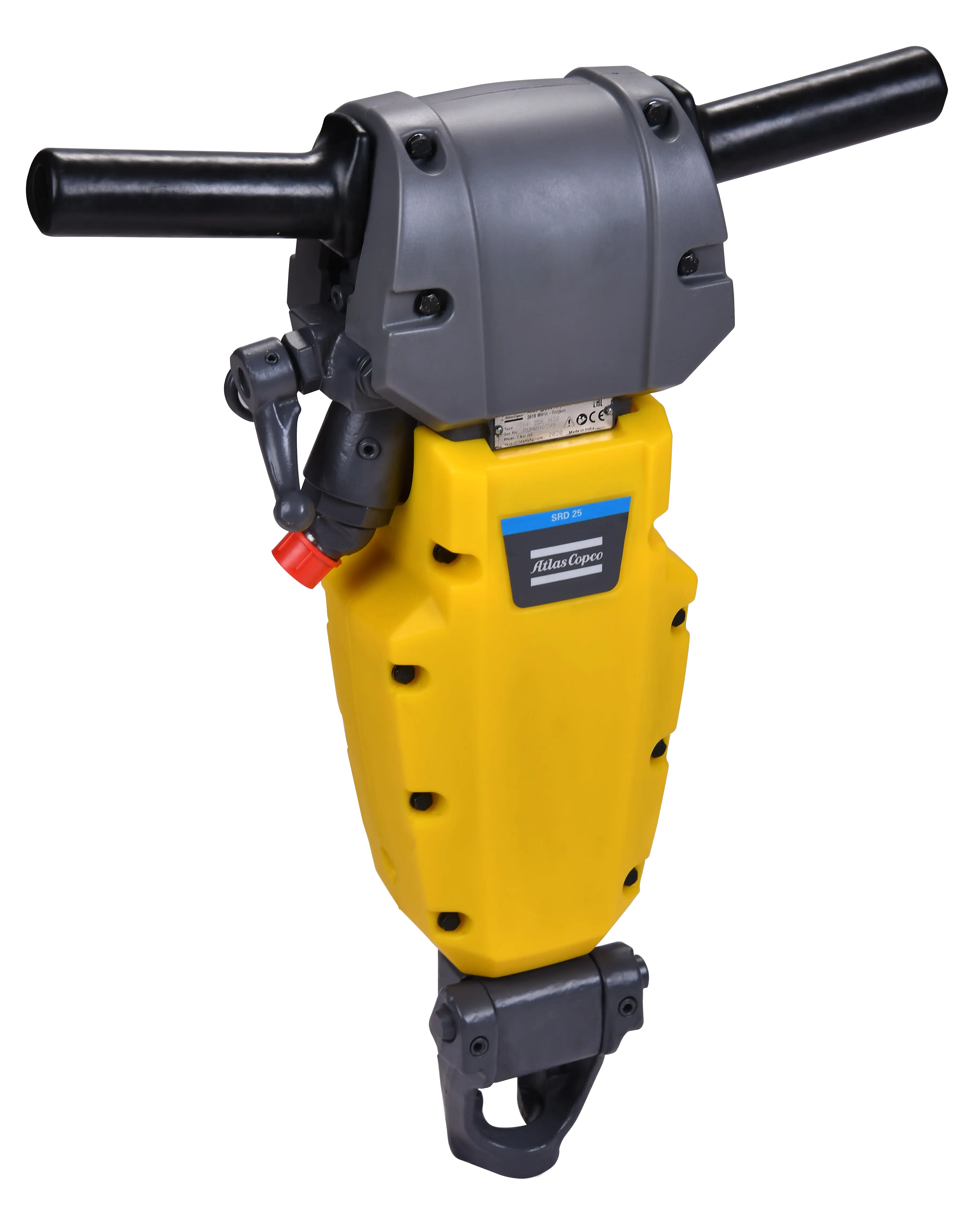

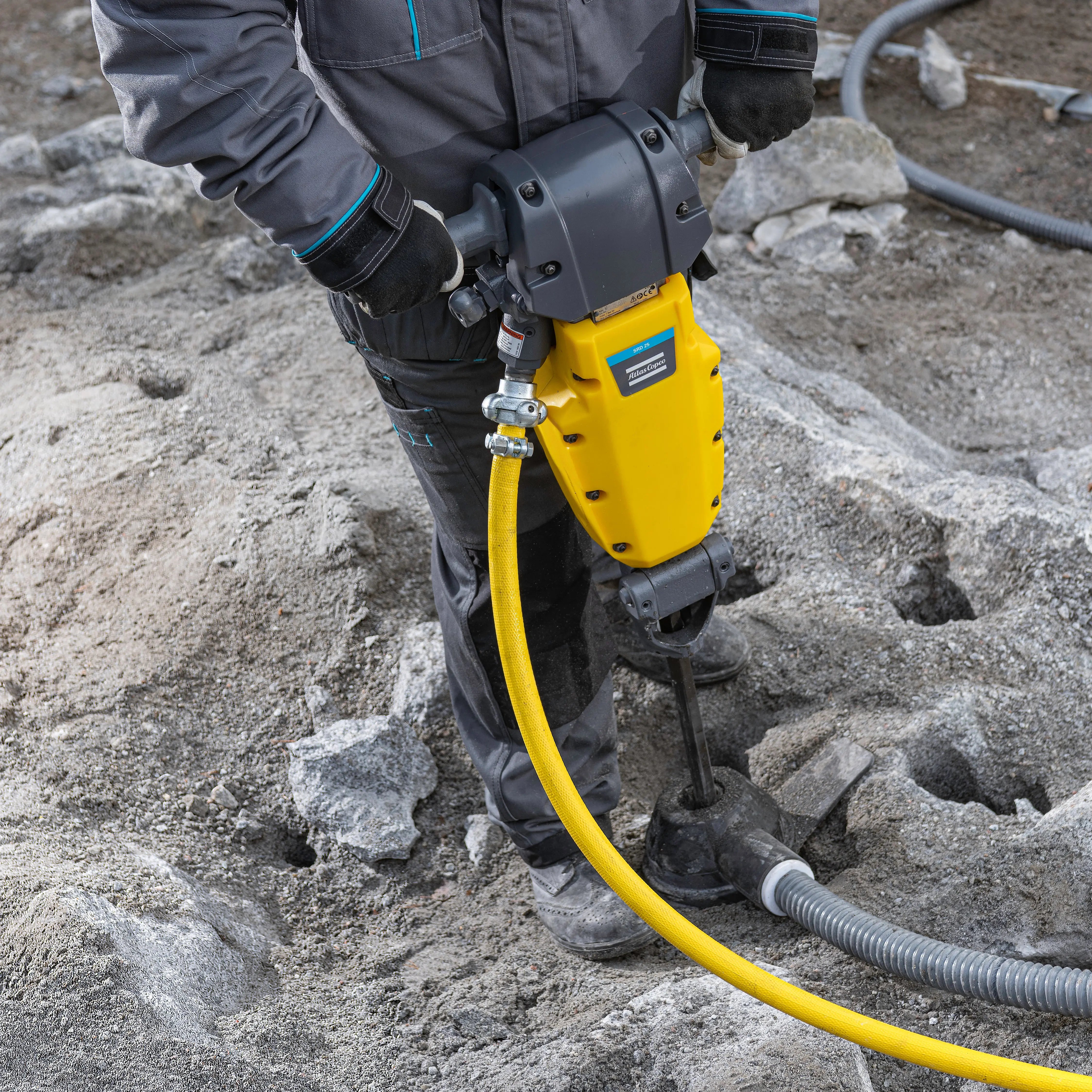

SRD 25 Pneumatic Hand Held Surface Rock Drill by Atlas Copco

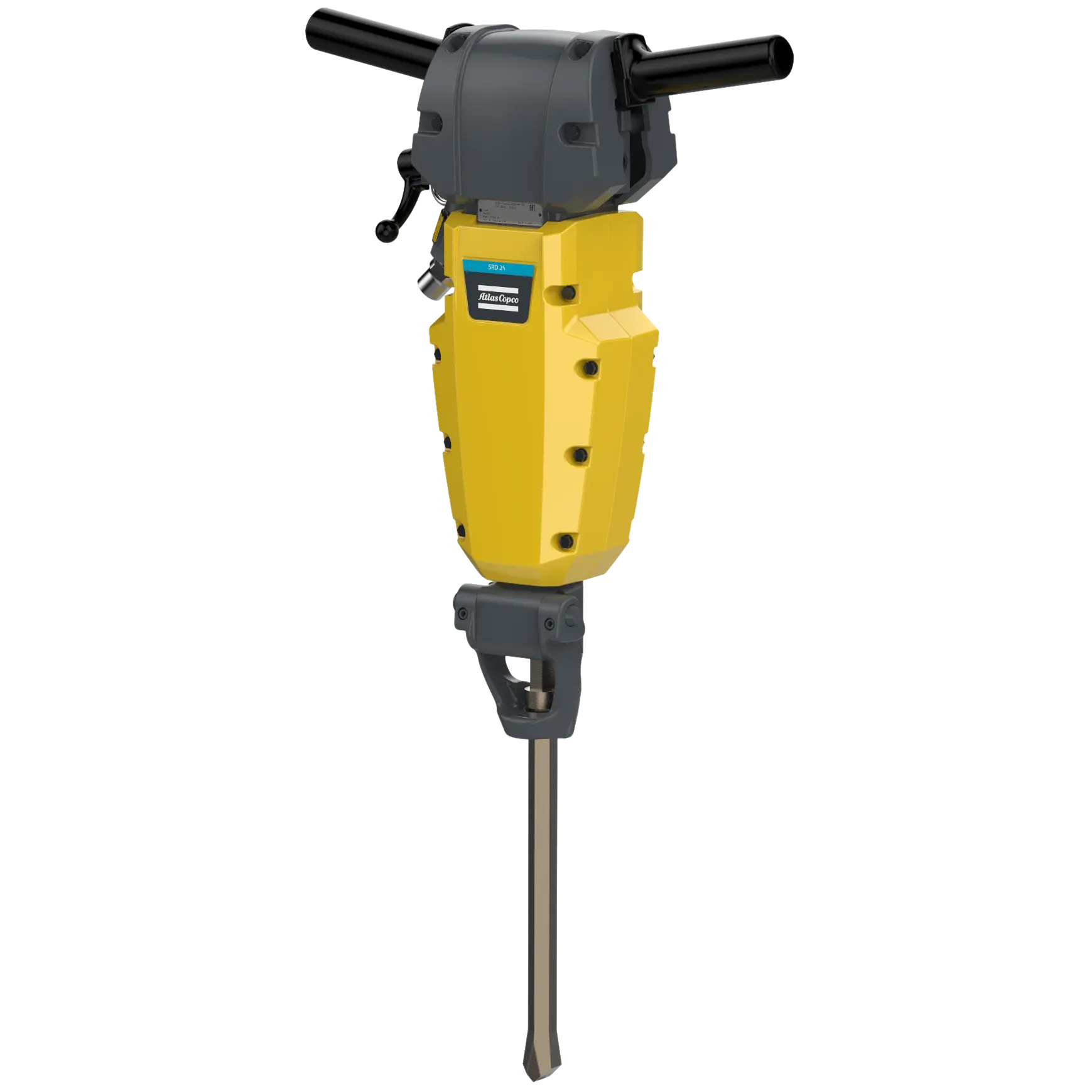

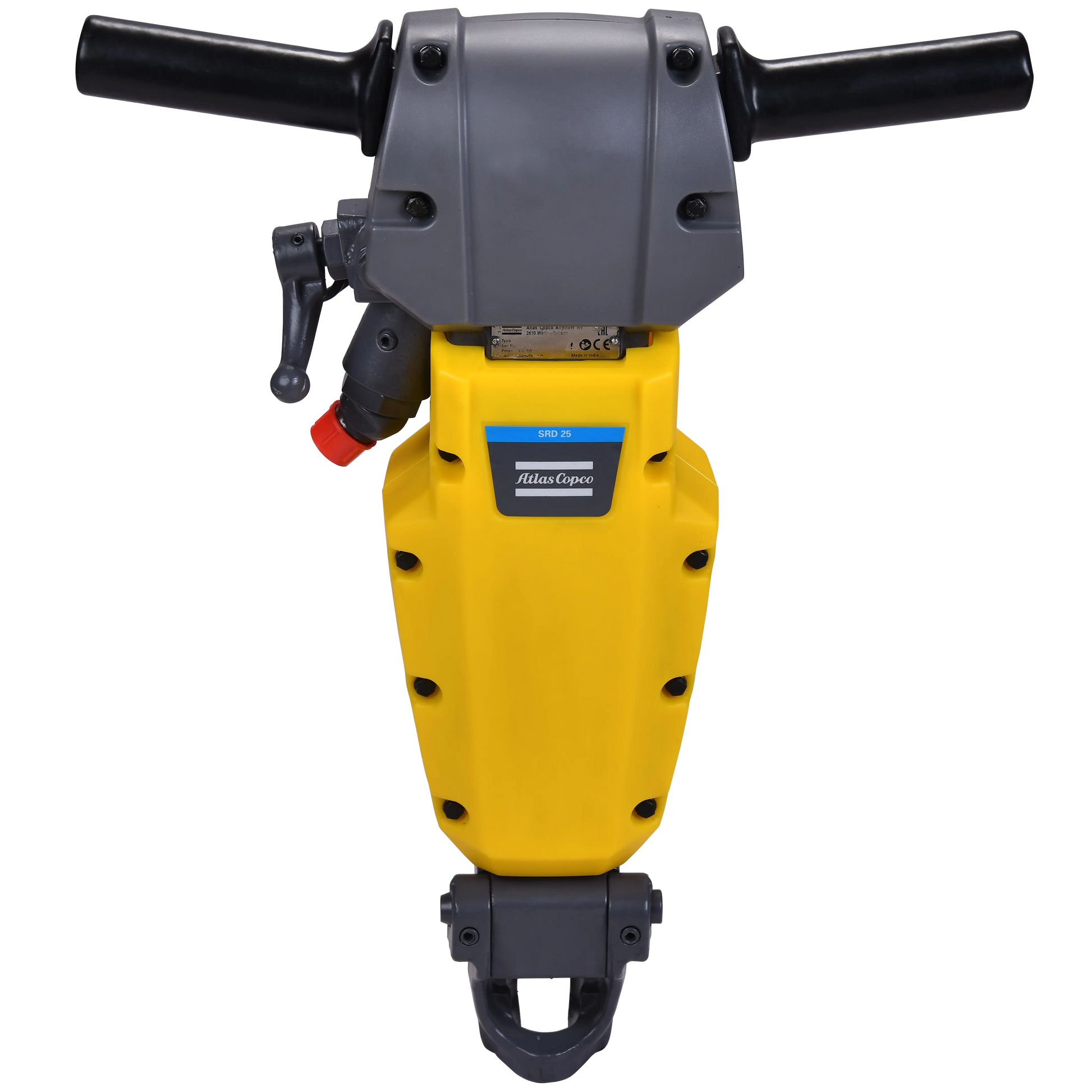

Atlas Copco SRD 25 Pneumatic Hand Held Surface Rock Drill

The Atlas Copco SRD 25 is a heavy-duty pneumatic hand held surface rock drill built for quarrying, road work, construction drilling, dimensional stone work, concrete drilling, blast hole drilling, and secondary drilling. This 60 lb class rock drill gives crews a strong balance of impact power, air efficiency, rotation, and operator control in a compact hand held package. Atlas Copco lists the SRD 25 as a surface rock drill with 106 CFM air consumption at 90 PSI, 2,040 blows per minute, a 3/4 in hose connection, and a 23.6 in overall length.

Built for Surface Rock Drilling

The SRD 25 is designed for drilling in tough field conditions where crews need dependable penetration without moving to a larger drill rig. It is suited for vertical, horizontal, and angled drilling jobs, including rock, reinforced concrete, asphalt, quarry benches, and dimensional stone applications. Atlas Copco’s SRD series is listed for drilling up to 6 meters deep, production drilling in quarry and dimension stone work, and blast hole or secondary drilling.

This tool is available with 7/8 in x 4-1/4 in and 1 in x 4-1/4 in chuck size options, matching common surface drilling setups. The current product listing shows the 7/8 in x 4-1/4 in version under SKU 8311032510, with both chuck sizes offered as selectable variants.

Key Features

• 60 lb class pneumatic surface rock drill for demanding hand held drilling work
• 106 CFM air consumption at 90 PSI for use with properly sized portable compressors
• 2,040 blows per minute for strong drilling performance in rock and concrete
• Built-in air flushing helps clear drill holes and reduce jamming
• HAPS Hand and Arm Protection System supports reduced vibration during operation
• Kick-latch retainer allows faster drill steel changes
• Noise-reduction design helps improve operator comfort on active job sites
• Balanced layout helps reduce unnecessary operator strain during surface drilling
• Available in 7/8 in x 4-1/4 in and 1 in x 4-1/4 in chuck configurations

Performance That Keeps the Hole Clear

The SRD 25 uses built-in compressed air flushing to help remove cuttings from the hole while drilling. That matters on real jobs, because poor flushing slows penetration, creates extra heat, increases bit wear, and can cause the drill steel to bind. Atlas Copco lists built-in air flushing and extra flushing for quick, efficient hole cleaning as key SRD series features.

For crews drilling in granite, stone, concrete, or asphalt, that flushing support helps keep the bit working instead of wasting time clearing holes manually. Penetration rate will always depend on rock hardness, bit condition, air supply, drill steel, and operator technique, but the SRD 25 is built for real production drilling, not light-duty hobby use.

Operator-Focused Design

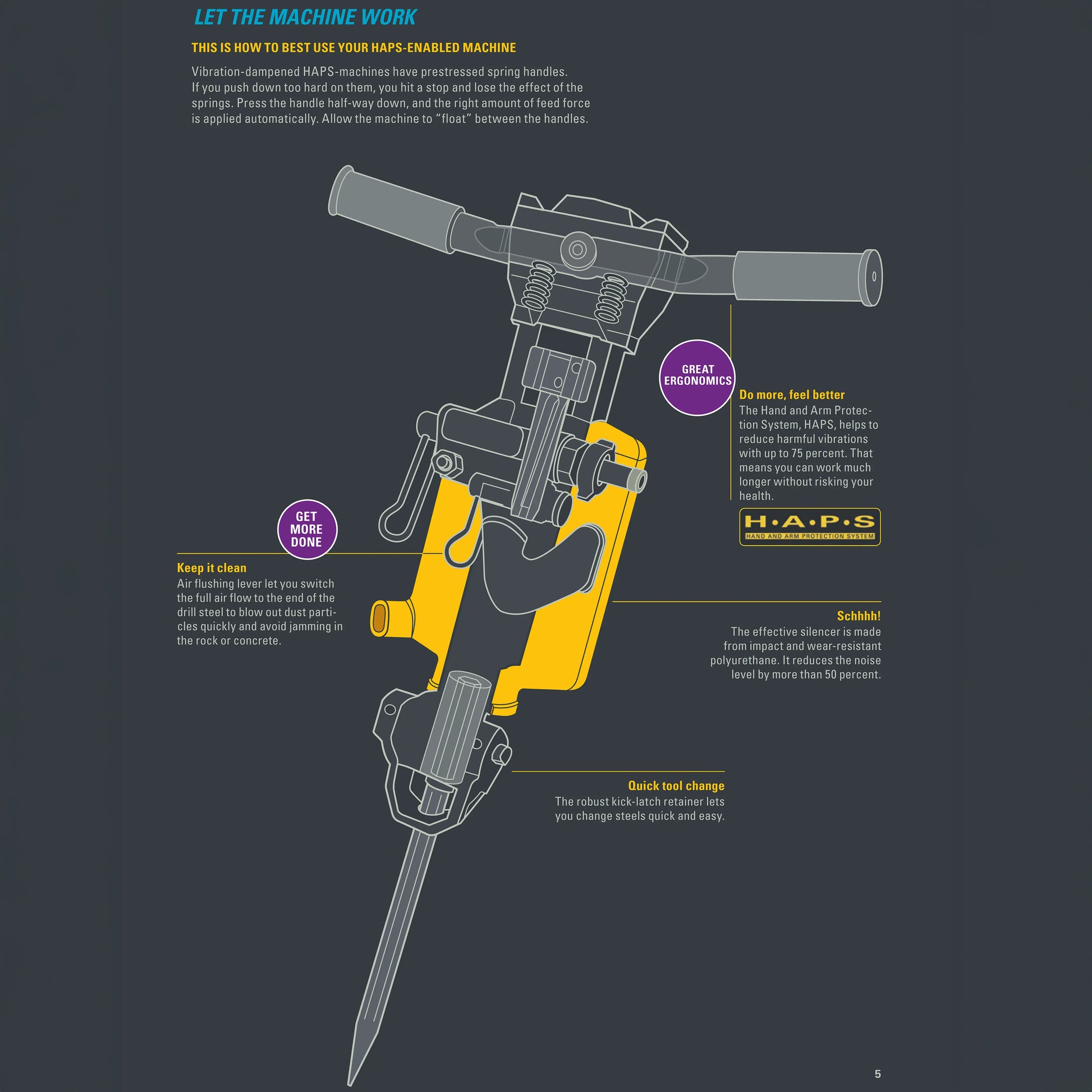

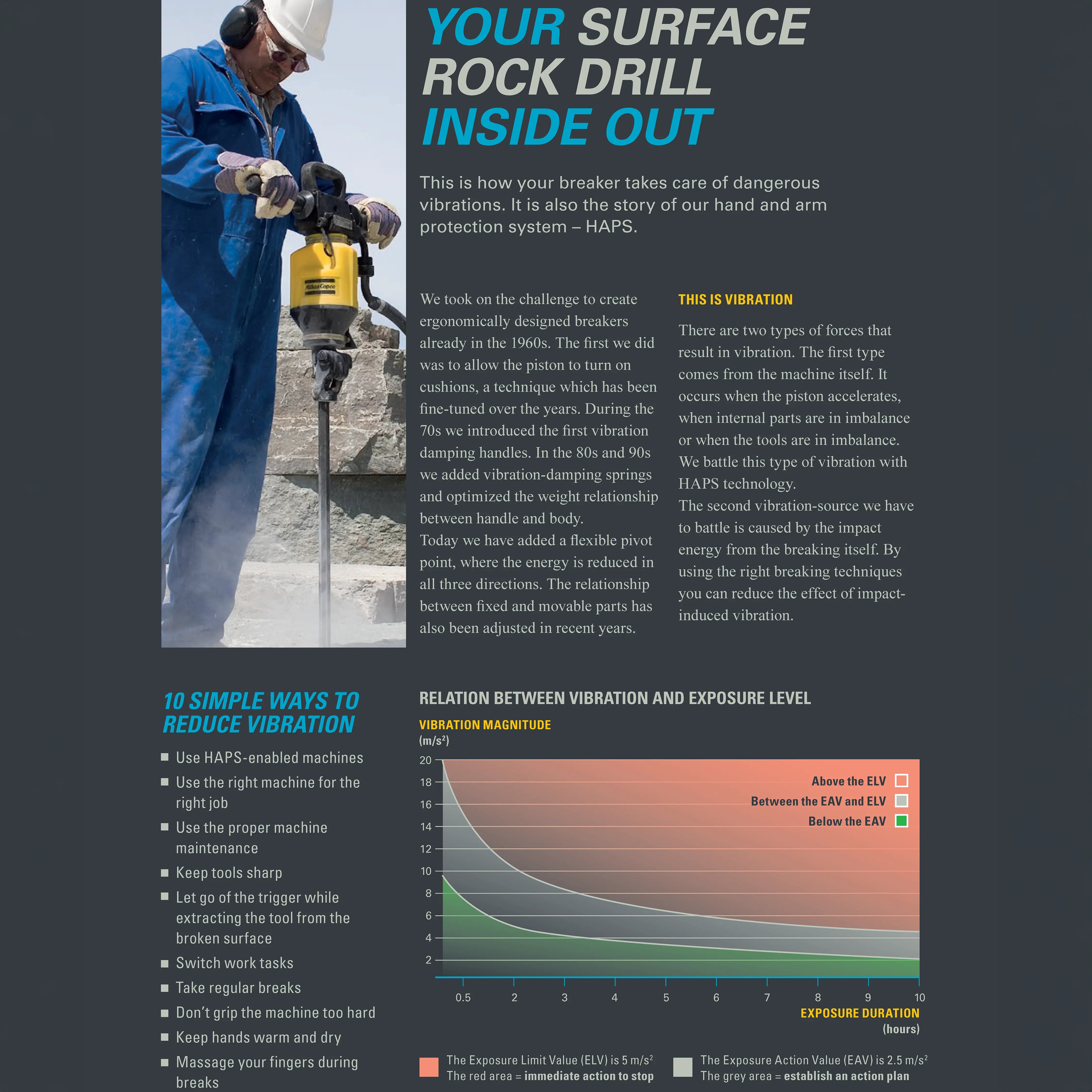

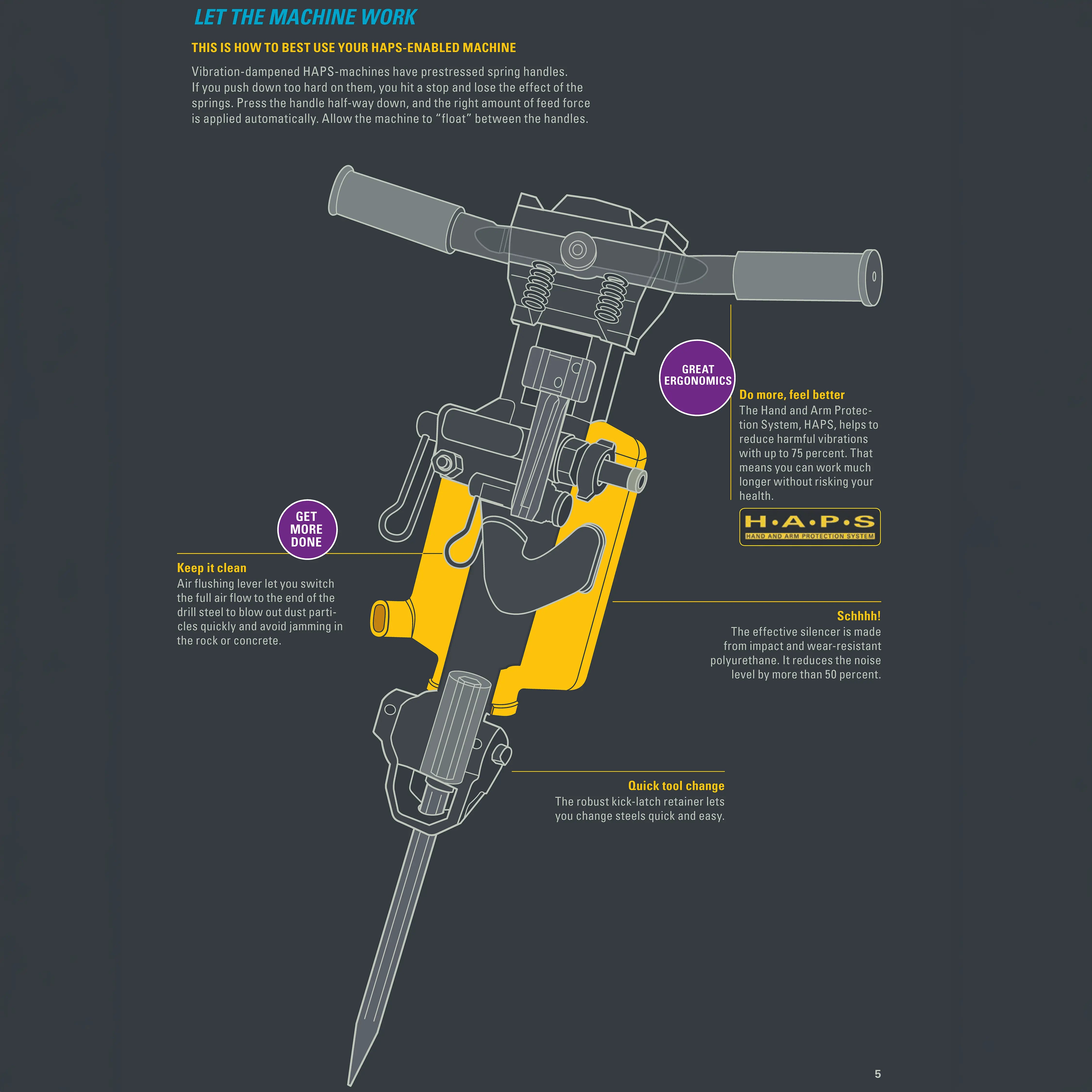

The SRD 25 is not just about impact rate. It is also built around control, comfort, and jobsite usability. Atlas Copco’s surface rock drill range uses built-in silencers, vibration reduction, HAPS technology, and a balanced body design to help crews work more comfortably. Atlas Copco states that HAPS can reduce vibration by up to 75% across this surface rock drill range.

That makes the SRD 25 a strong fit for contractors and quarry crews who need a serious hand held pneumatic rock drill but still care about handling, fatigue, and repeatable drilling over the course of the workday.

Common Applications

1. Quarry drilling

Use the SRD 25 for production drilling, dimensional stone work, and secondary drilling in quarry environments.

2. Construction drilling

A solid option for drilling in concrete, reinforced concrete, asphalt, and foundation-related applications.

3. Blast hole and secondary drilling

The SRD 25 is built for small-diameter blast hole work and follow-up drilling where a hand held surface drill is the right tool for the job.

4. Plug hole drilling

Useful for plug and feather work, stone splitting, and controlled removal applications.

5. Horizontal and vertical drilling

Atlas Copco positions its surface rock drill range for horizontal or vertical jobs, light or heavy, making the SRD 25 a versatile field drill.

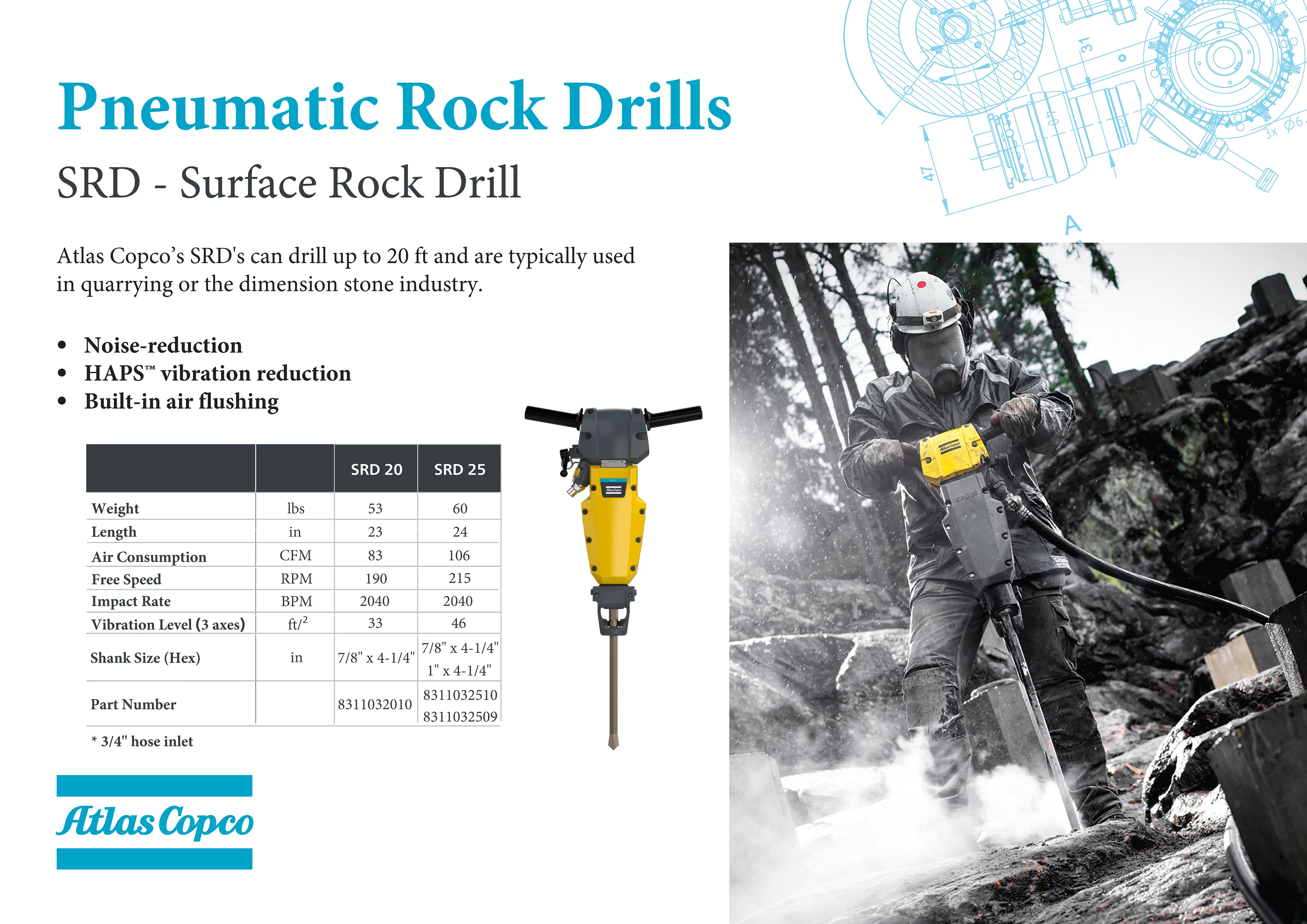

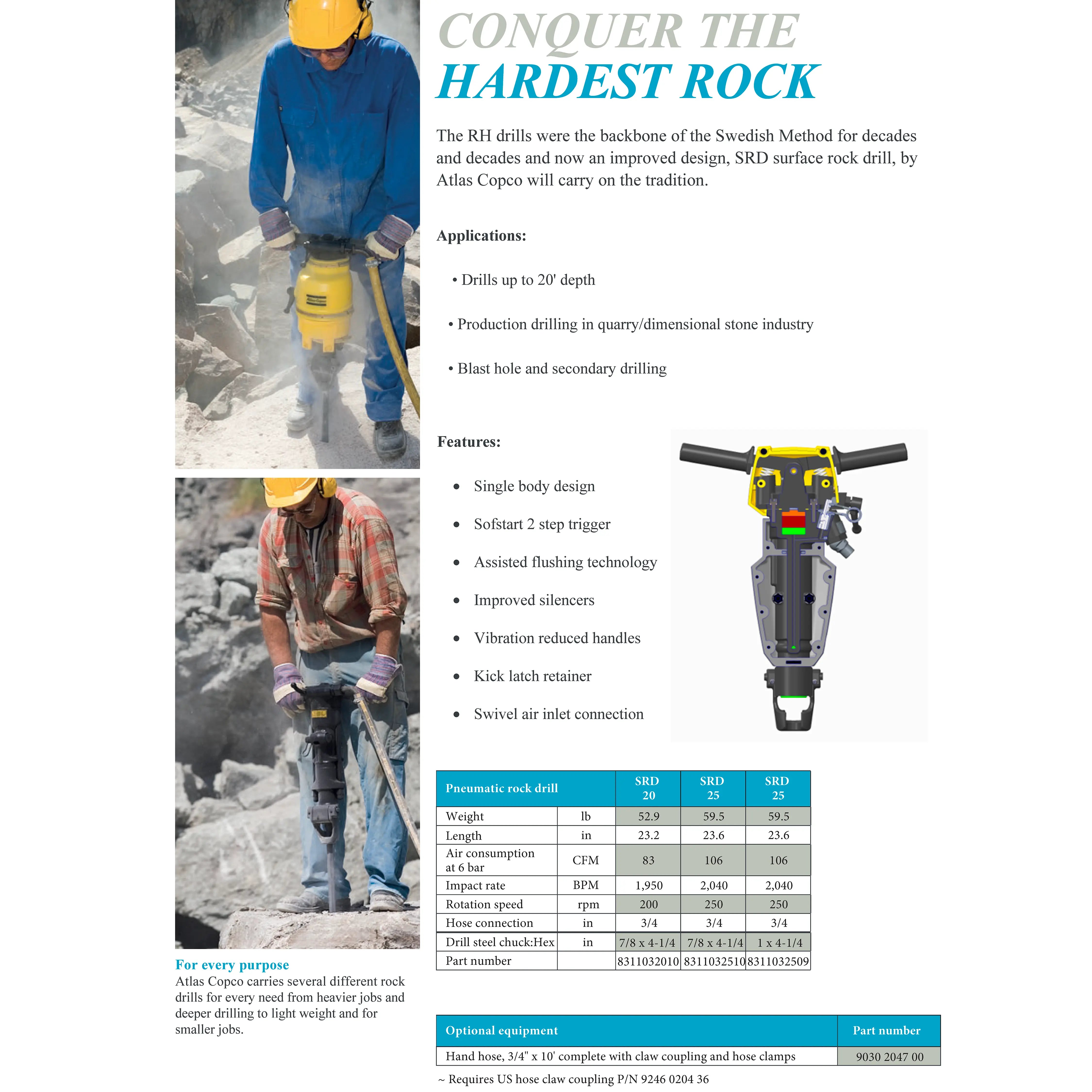

Technical Specifications

• Manufacturer: Atlas Copco
• Model: SRD 25
• Tool type: Pneumatic hand held surface rock drill
• Weight: 60 lb
• Length: 23.6 in
• Air consumption: 106 CFM at 90 PSI
• Impact rate: 2,040 blows per minute
• Rotation speed: 215 RPM
• Hose connection: 3/4 in
• Chuck size options: 7/8 in x 4-1/4 in and 1 in x 4-1/4 in
• SKU shown for 7/8 in x 4-1/4 in version: 8311032510
• Common part numbers: 8311 0325 10 and 8311 0325 09, depending on chuck configuration

Why Buy the Atlas Copco SRD 25?

The SRD 25 is built for crews that need a dependable pneumatic rock drill with proven Atlas Copco construction tool engineering. It gives you the impact rate, air flushing, vibration reduction, and rugged handling needed for daily drilling in rock, stone, asphalt, and concrete. The 60 lb body gives it the weight needed for serious penetration while keeping the tool hand held and manageable for surface drilling applications.

For contractors, quarry crews, road crews, and stone workers, the SRD 25 offers a practical mix of power and control. It is heavy enough for demanding drilling, compact enough for field use, and supported by Atlas Copco’s rock drilling platform.

Ordering Notes

Select the chuck size that matches your drill steel requirements. This listing is for the Atlas Copco SRD 25 pneumatic hand held surface rock drill only. Drill steel, bits, hose assemblies, and claw couplings may be sold separately unless specifically stated in the configured order. Atlas Copco’s facts book notes that claw couplings are not included in delivery for the SRD series.
