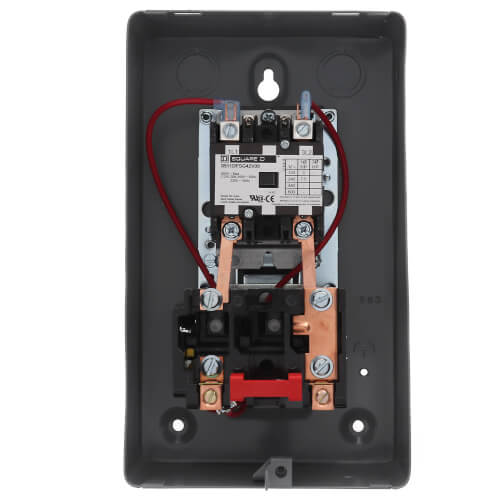

Square D 50A 3-Phase Definite Purpose Magnetic Motor Starter — NEMA 1
The Square D 8911DPSG53 is a 50-amp, 3-phase definite purpose magnetic motor starter for across-the-line (full-voltage) starting and overload protection of larger three-phase air compressor and motor loads. The Class 8911 Type DP contactor is housed in a painted-steel NEMA 1 enclosure for indoor, general-purpose installation.
Key specifications
- Brand: Square D (Schneider Electric) — Class 8911, Type DP
- Contactor rating: 50 A continuous
- Phase / poles: 3-phase, 3-pole, nonreversing
- Horsepower: 15 HP at 208–230V; 25 HP at 460V
- Coil voltage: 208–230V or 460V (select below)
- Enclosure: NEMA 1 painted sheet steel, indoor use
- Overload protection: melting-alloy relay; Type B thermal heaters sold separately
- Mechanical life: 500,000 operating cycles
Typical applications
Well suited to larger air compressors, pumps, fans, conveyors, and HVAC equipment that need full-voltage three-phase motor control with manual-reset overload protection.
The Square D 50A 3-phase definite purpose magnetic motor starter delivers dependable NEMA 1 motor control for 208–230V and 460V systems. Add the matching Type B thermal overload heaters separately to complete the overload protection.
NOTE: Actual product may be different from pictured!
