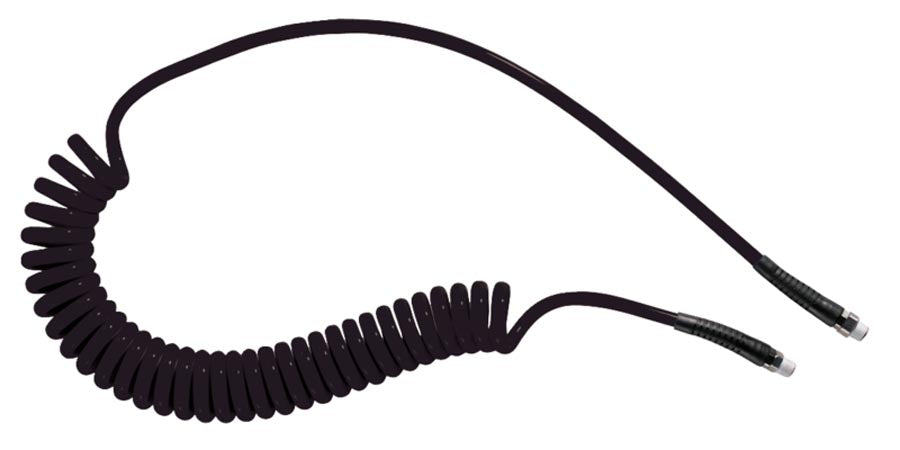

Spiral Hose W/ Fixed And Rotating Fittings by Prevost
| Specifications (As Configured) | |
|---|---|
 Vendor |
Prevost
|
 SKU |
PUS 252
|
SPIRAL HOSE W/ FIXED AND ROTATING FITTINGS
Technical specifications
- Max operating pressure :116 psi
- Temperature : 5 deg. F to 158 deg. F
- Construction :Polyurethane
- Highlight :Non scratch
- Equipped with :Teflon-coated thread

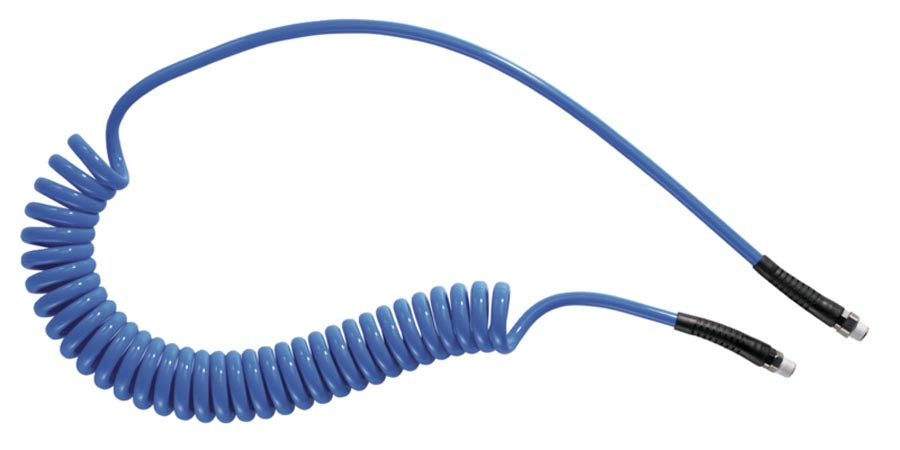

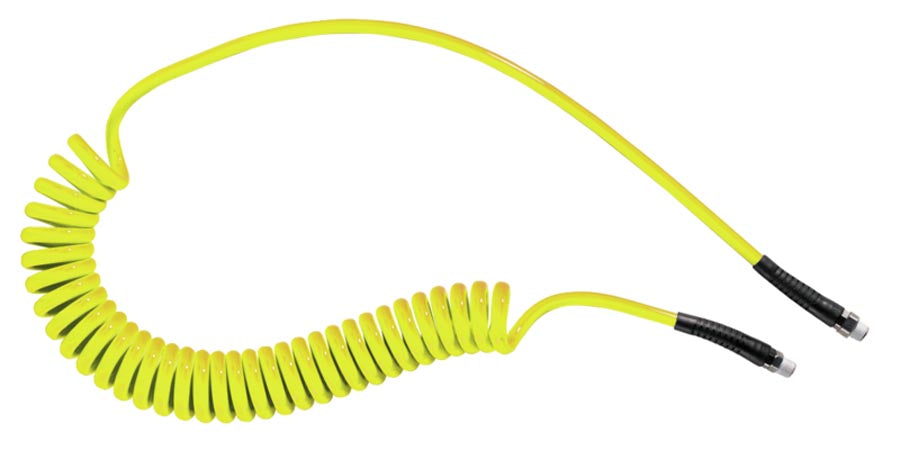

Blue, Red, Yellow, Green, Black
| SKU | Color | Connection | Hose ID | Coil Diameter | Max Length | Min Length |
|---|---|---|---|---|---|---|
| PUS 252 | Blue | 1/4" MNPT | 1/4" | 1.65" | 6.5 ft | 0.60 ft |
| PUS 254 | Blue | 1/4" MNPT | 1/4" | 1.65" | 13 ft | 1.31 ft |
| PUS 264 | Blue | 1/4" MNPT | 5/16" | 2.05" | 13 ft | 1.31 ft |
| PUS 266 | Blue | 1/4" MNPT | 5/16" | 2.05" | 20 ft | 2.07 ft |
| PUS 268 | Blue | 1/4" MNPT | 5/16" | 2.05" | 26 ft | 2.62 ft |
| PUS 2610 | Blue | 1/4" MNPT | 5/16" | 2.05" | 32 ft | 3.12 ft |
| PUS 288 | Blue | 3/8" MNPT | 3/8" | 2.56" | 26 ft | 2.36 ft |
| PUS 2815 | Blue | 3/8" MNPT | 3/8" | 2.56" | 50 ft | 4.43 ft |
| PUS 264R | Red | 1/4" MNPT | 5/16" | 2.05" | 13 ft | 1.31 ft |
| PUS 266R | Red | 1/4" MNPT | 5/16" | 2.05" | 20 ft | 2.07 ft |
| PUS 264J | Yellow | 1/4" MNPT | 5/16" | 2.05" | 13 ft | 1.31 ft |
| PUS 266J | Yellow | 1/4" MNPT | 5/16" | 2.05" | 20 ft | 2.07 ft |
| PUS 264V | Green | 1/4" MNPT | 5/16" | 2.05" | 13 ft | 1.31 ft |
| PUS 266V | Green | 1/4" MNPT | 5/16" | 2.05" | 20 ft | 2.07 ft |
| PUS 264NR | Black | 1/4" MNPT | 5/16" | 2.05" | 13 ft | 1.31 ft |
| PUS 266NR | Black | 1/4" MNPT | 5/16" | 2.05" | 20 ft | 2.07 ft |
NPT male thread ID (in) Coil (in) Max length (ft) Min. length (ft) Reference 1/4″ MNPT 1/4″ 1.65″ 6.5′ 0.60′ PUS 252 1/4″ MNPT 1/4″ 1.65″ 13′ 1.31′ PUS 254 1/4″ MNPT 5/16″ 2.05″ 13′ 1.31′ PUS 264 1/4″ MNPT 5/16″ 2.05″ 20′ 2.07′ PUS 266 1/4″ MNPT 5/16″ 2.05″ 26′ 2.62′ PUS 268 1/4″ MNPT 5/16″ 2.05″ 32′ 3.12′ PUS 2610 3/8″ MNPT 3/8″ 2.56″ 26′ 2.36′ PUS 288 3/8″ MNPT 3/8″ 2.56″ 50′ 4.43′ PUS 2815 NPT male thread ID (in) Coil (In) Max length (ft) Min. length (ft) Reference 1/4″ MNPT 5/16″ 2.05″ 13′ 1.31 PUS 264R 1/4″ MNPT 5/16″ 2.05″ 20′ 2.07′ PUS 266R NPT male thread ID (in) Coil (in) Max length (ft) Min. length (ft) Reference 1/4″ MNPT 5/16″ 2.05″ 13′ 1.31′ PUS 264J 1/4″ MNPT 5/16″ 2.05″ 20′ 2.07′ PUS 266J NPT male thread ID (in) Coil (In) Max length (ft) Min. length (ft) Reference 1/4″ MNPT 5/16″ 2.05″ 13′ 1.31′ PUS 264V 1/4″ MNPT 5/16″ 2.05″ 20′ 2.07′ PUS 266V NPT male thread ID (in) Coil (In) Max length (ft) Min. length (ft) Reference 1/4″ MNPT 5/16″ 2.05″ 13′ 1.31′ PUS 264NR 1/4″ MNPT 5/16″ 2.05″ 20′ 2.07′ PUS 266NR
NOTE: Actual product may be different from pictured!
