Solberg Side Channel Blower Silencer — SLCR Series, Inline Inlet/Discharge
| Specifications (As Configured) | |
|---|---|
 Vendor |
Warthog
|
 SKU |
SLCR100
|

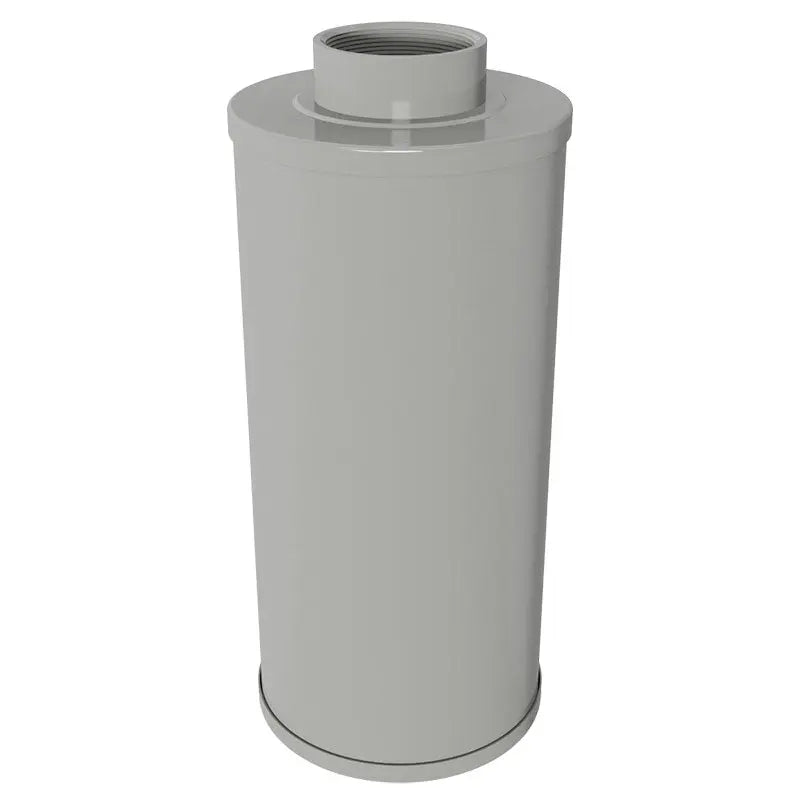

The Solberg SLCR Series silencer reduces noise on side channel, regenerative, and centrifugal blowers as well as regenerative vacuum pumps and vacuum lifters. An absorptive media pack quiets intake and discharge pulsation while maintaining minimal pressure drop, and female NPT (FNPT) connections on both ends let it install inline on the inlet or discharge side without adapters.
Key specifications
- Inline inlet/discharge silencer with absorptive media pack
- Female NPT (FNPT) connections, inlet and outlet
- Port sizes from 1" to 4" FNPT; flow ratings from 42 to 575 SCFM
- Designed for minimal pressure drop
- Corrosion-resistant gray powder-coat carbon steel (1" – 1-1/2" connections)
- Epoxy-coat finish (2" – 4" connections)
Size & flow by port
- 1" FNPT — 42 SCFM — 12" H × 2-5/8" W (SLCR100)
- 1-1/4" FNPT — 55 SCFM — 12" H × 2-1/2" W (SLCR125)
- 1-1/2" FNPT — 155 SCFM — 12" H × 2-5/8" W (SLCR150)
- 2" FNPT — 270 SCFM — 15-3/4" H × 3-5/8" W (SLCR200)
- 2-1/2" FNPT — 300 SCFM — 21" H × 4-5/8" W (SLCR250)
- 3" FNPT — 330 SCFM — 26" H × 5-1/8" W (SLCR300)
- 4" FNPT — 575 SCFM — 24-11/16" H × 10" W (SLCR400)
Typical applications
Side channel blowers, regenerative blowers, centrifugal blowers, regenerative vacuum pumps, and vacuum lifters in pneumatic conveying, packaging, wastewater aeration, and material handling systems.
Choose the Solberg SLCR Series side channel blower silencer to cut regenerative blower noise at the source with a rugged, low-pressure-drop inline design available in 1" through 4" FNPT.
NOTE: Actual product may be different from pictured!
