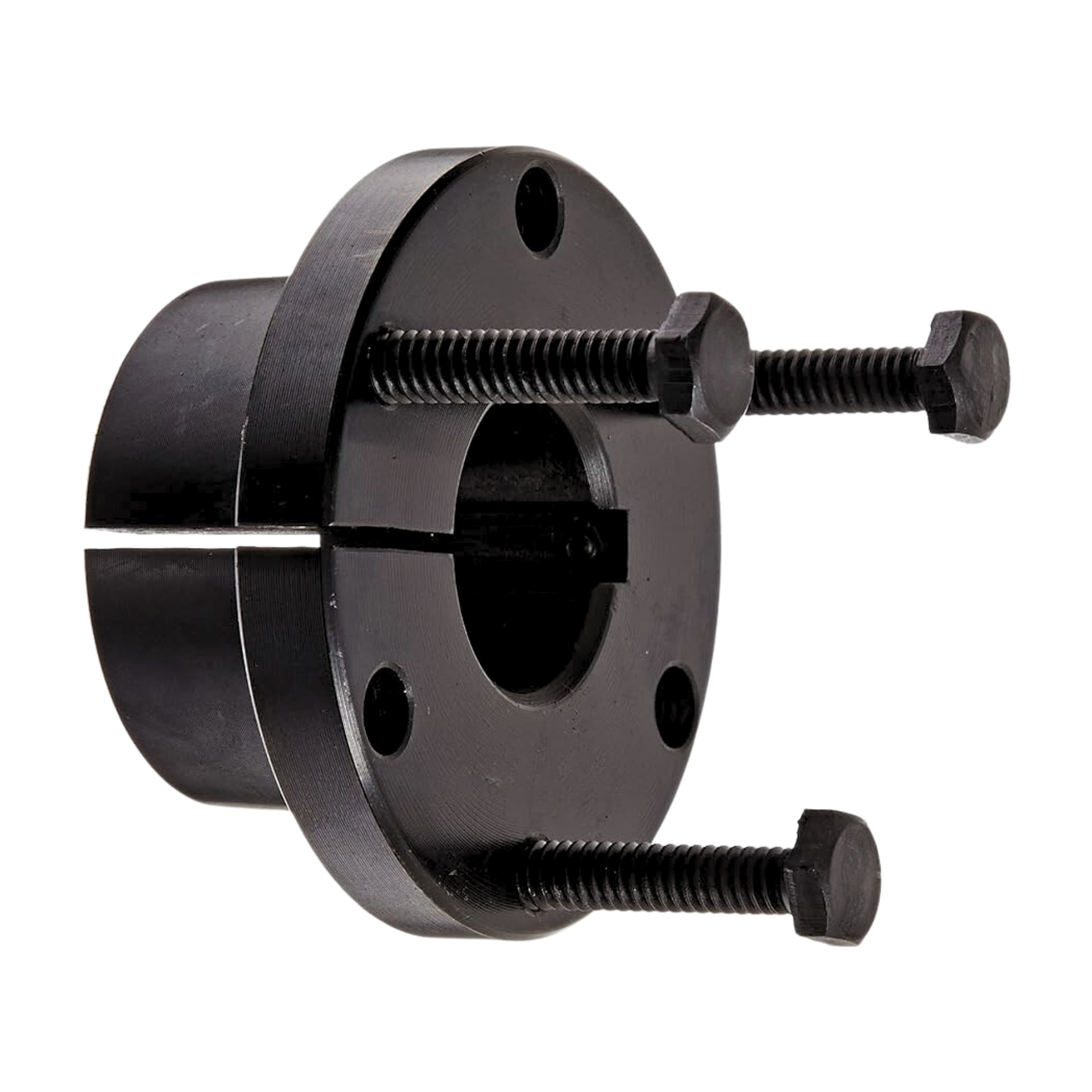

SK-Style QD Bushing for Sheaves & Pulleys — Ductile Iron, Keyed
The SK-style QD (Quick-Disconnect) bushing provides a fast, secure way to mount SK-bored sheaves, sprockets, and pulleys onto a drive shaft. Its tapered, flange-split design draws tight as the cap screws are torqued, locking the component concentrically to the shaft for true running and easy removal — no pullers required.
Key Features
- Ductile iron construction for high strength and long service life
- Tapered, flange-split design for a secure, concentric grip on the shaft
- Supplied with three Grade-5 cap screws plus a set screw over the keyway for added holding power
- Standard keyway machined to each bore size
- Interchangeable with SK-series QD-bushed sheaves, sprockets, and pulleys
- Quick installation and removal to minimize drive downtime
Standard SK-Series Dimensions
- Outside diameter: 3.875"
- Length through bore: 1.8125"
- Cap screws: three 5/16" x 2" (Grade 5)
Available Bores
5/8", 3/4", 7/8", 1", 1-1/8", 1-3/8", 1-5/8", 1-7/8", 2-1/8", and 2-3/8". Select your required bore above.
Applications
Ideal for belt and chain drives on air compressors, conveyors, blowers, pumps, agricultural equipment, and general industrial power-transmission systems.
The SK-style QD bushing is the standard, field-proven mounting solution for SK-bored components — delivering reliable torque transmission and hassle-free maintenance.
NOTE: Actual product may be different from pictured!
