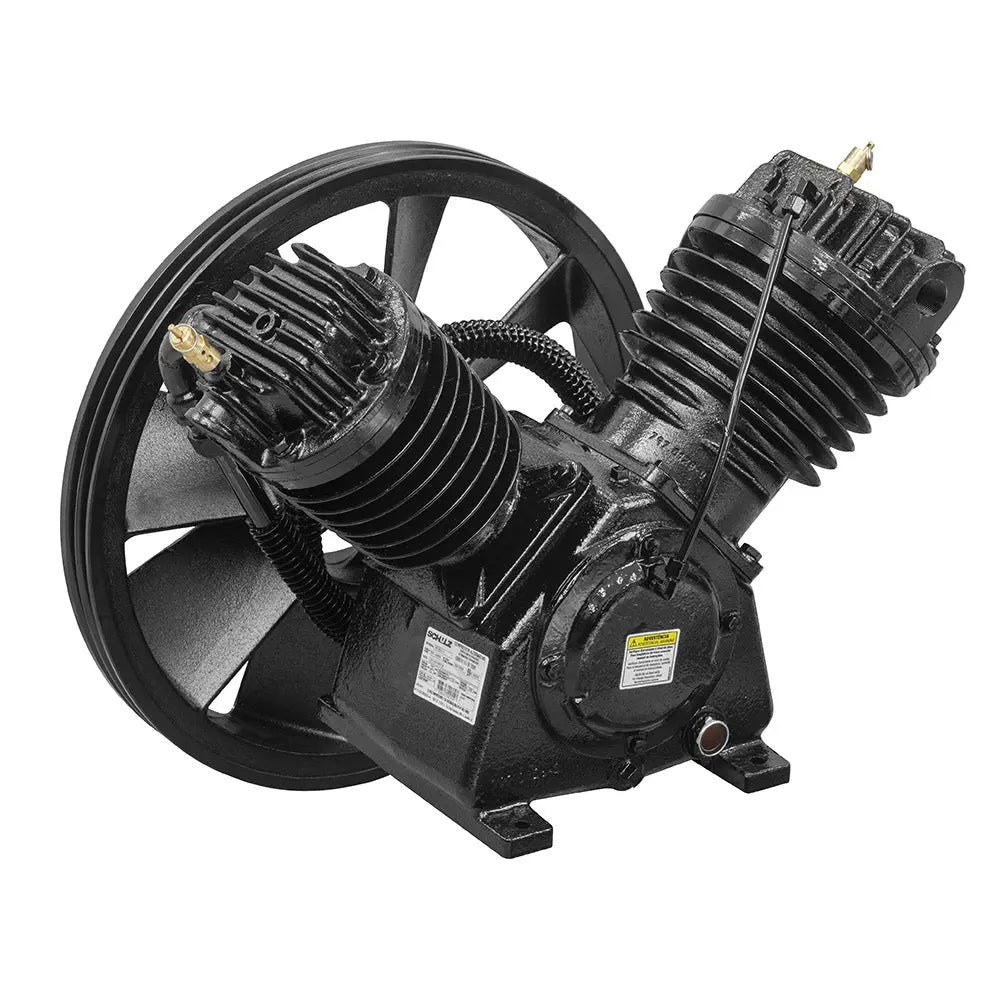

Schulz MSV 40 MAX 10 HP Two-Stage Cast Iron Air Compressor Pump — 40 CFM, 175 PSI
The Schulz MSV 40 MAX is a heavy-duty two-stage, V-type cast iron air compressor pump that delivers 40 CFM at up to 175 PSI on a 10 HP drive. Built for continuous-duty industrial and automotive air systems, it mounts directly to a tank or serves as a rugged replacement pump for competitive brands.
Key specifications
- Model: MSV 40 MAX (Schulz P/N 933.8000-0)
- Horsepower: 10 HP
- Air delivery: 40 CFM
- Maximum pressure: 175 PSI
- Design: Two-stage, 2-cylinder V-type, belt driven
- Speed: 1240 RPM
- Belt: 2-A
- Discharge: 3/4" BSP
- Oil capacity: 0.88 L / 0.92 qt (splash lubrication)
- Construction: Solid cast iron, CNC machined to ISO 9002, large Swedish stainless steel reed valves
- Weight: 166 lbs
- Dimensions: 22" L x 18" W x 20" H
Typical applications
Industrial manufacturing and production facilities, automotive service centers, and large compressed air systems requiring high, continuous airflow.
The Schulz MSV 40 MAX delivers two-stage V-type efficiency in a durable cast iron build for strong 10 HP, 40 CFM performance at 175 PSI — a dependable replacement or new-build pump for heavy-duty industrial compressed air systems.
NOTE: Actual product may be different from pictured!
