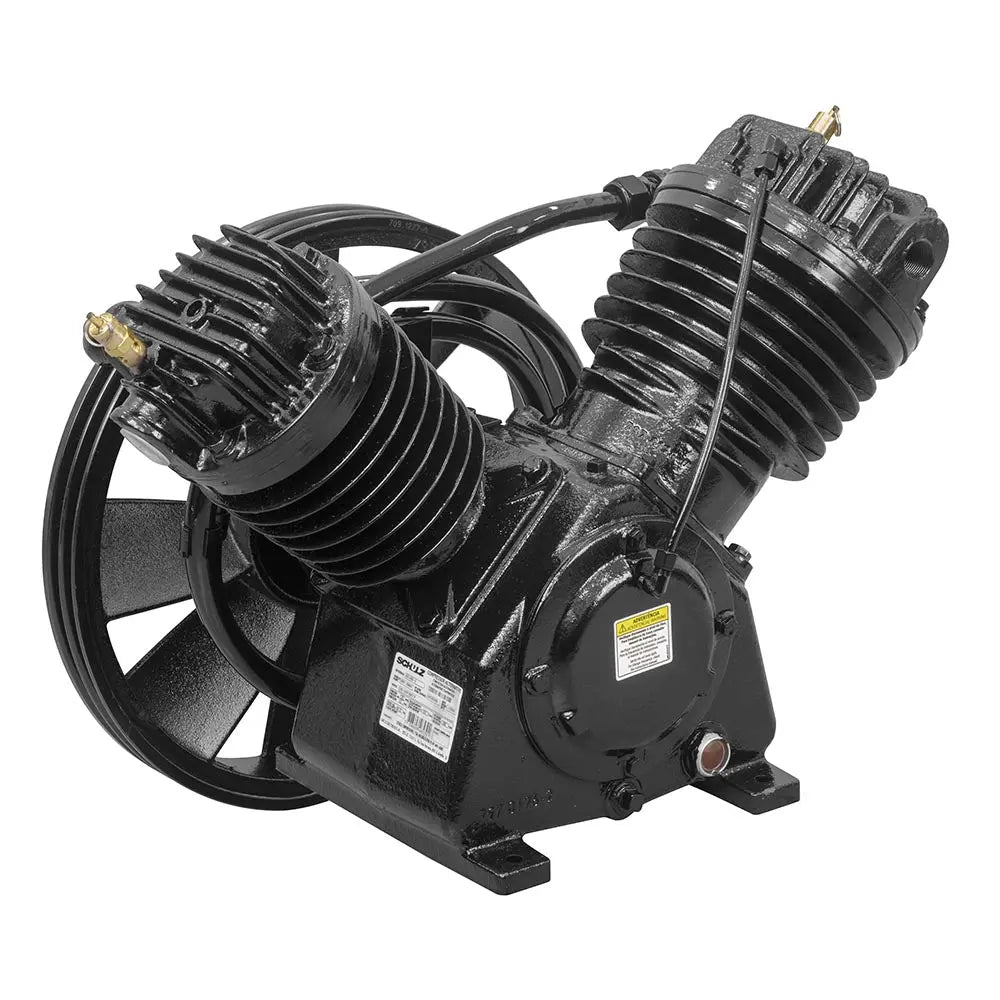

Schulz MSV 30 MAX 7.5 HP Two-Stage Cast Iron Air Compressor Pump — 30 CFM, 175 PSI
The Schulz MSV 30 MAX is a heavy-duty two-stage, V-type cast iron air compressor pump that delivers 30 CFM at up to 175 PSI on a 7.5 HP drive. Engineered for continuous industrial duty, it mounts directly to a tank or serves as a rugged replacement pump for competitive brands.
Key specifications
- Model: MSV 30 MAX (Schulz P/N 933.1405-0)
- Horsepower: 7.5 HP
- Air delivery: 30 CFM
- Maximum pressure: 175 PSI
- Design: Two-stage, 2-cylinder V-type, belt driven
- Speed: 960 RPM
- Belt: 2-A
- Discharge: 3/4" BSP
- Oil capacity: 0.88 L / 0.92 qt (splash lubrication)
- Construction: Solid cast iron, CNC machined to ISO 9002, large Swedish stainless steel reed valves
- Weight: 157 lbs
- Dimensions: 21" L x 18" W x 19" H
Typical applications
Industrial manufacturing and production lines, automotive service centers, and heavy-duty pneumatic systems requiring continuous air delivery across busy facilities.
The Schulz MSV 30 MAX combines two-stage V-type efficiency with durable cast iron construction for stable 7.5 HP, 30 CFM output at 175 PSI — a reliable replacement or new-build pump for demanding industrial compressed air systems.
NOTE: Actual product may be different from pictured!
