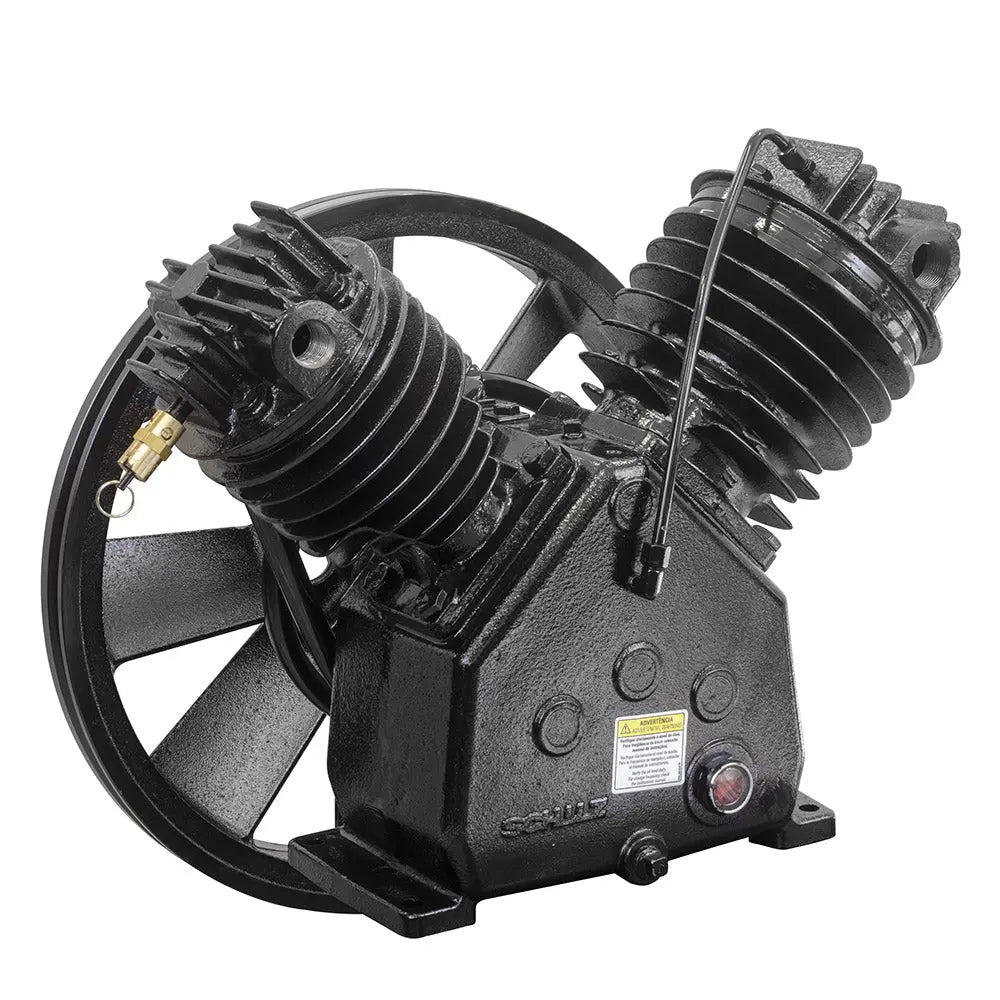

Schulz MSV 20 MAX 5 HP Two-Stage Cast Iron Air Compressor Pump — 20 CFM, 175 PSI
The Schulz MSV 20 MAX is a heavy-duty two-stage, V-type cast iron air compressor pump that delivers 20 CFM at up to 175 PSI on a 5 HP drive. Built for industrial workshops and automotive service centers, it bolts straight onto a tank or serves as a rugged replacement pump for competitive brands.
Key specifications
- Model: MSV 20 MAX (Schulz P/N 932.7527-0)
- Horsepower: 5 HP
- Air delivery: 20 CFM
- Maximum pressure: 175 PSI
- Design: Two-stage, 2-cylinder V-type, belt driven
- Speed: 1050 RPM
- Belt: 1-A (2-A optional)
- Discharge: 1/2" NPT
- Oil capacity: 1.0 qt (splash lubrication)
- Construction: Solid cast iron, CNC machined to ISO 9002, large Swedish stainless steel reed valves
- Weight: 94.8 lbs
- Dimensions: 16.5" L x 15.5" W x 16" H
Typical applications
Industrial workshops, automotive service centers, manufacturing and production lines, and maintenance facilities that need reliable, continuous compressed air.
The Schulz MSV 20 MAX pairs proven two-stage V-type efficiency with durable cast iron construction for dependable 5 HP, 20 CFM performance at 175 PSI — a dependable replacement or new-build pump for demanding shop and industrial air systems.
NOTE: Actual product may be different from pictured!
