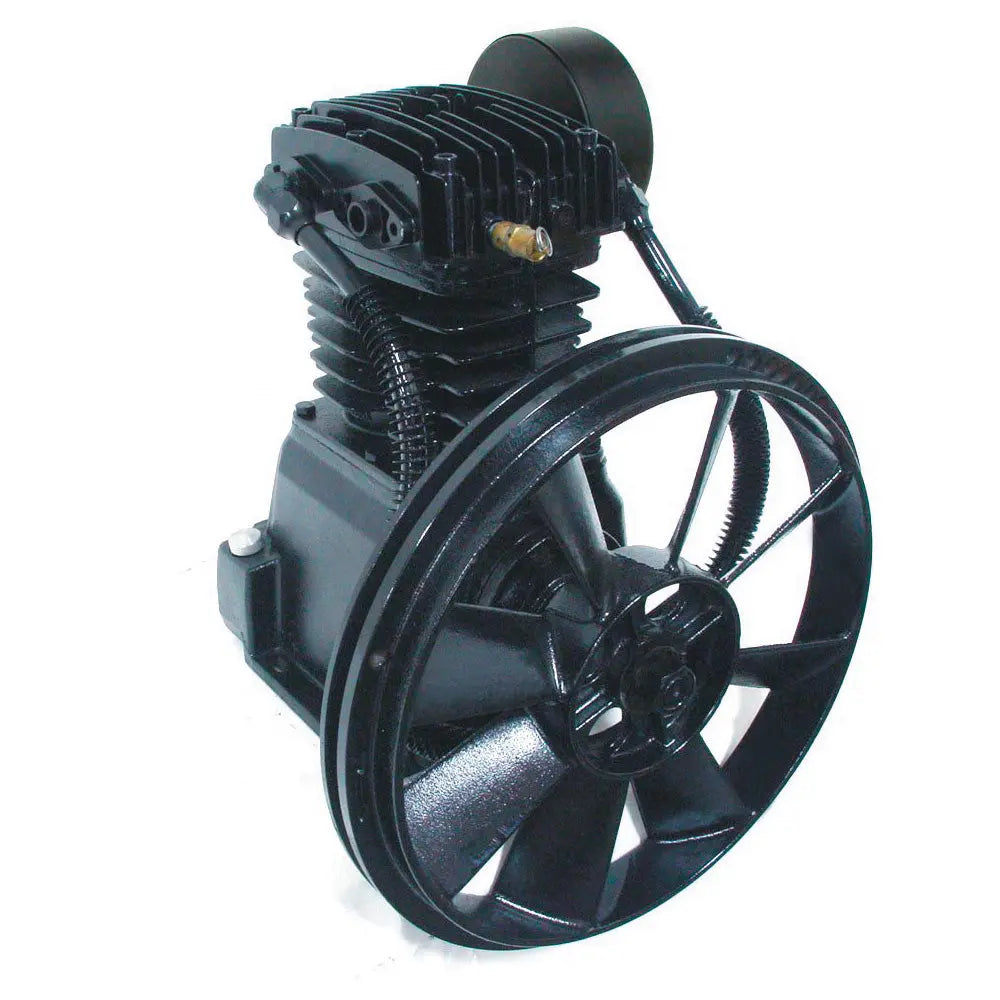

Schulz MSL20MAX 5 HP Two-Stage Cast Iron Air Compressor Pump — 20 CFM, 175 PSI
The Schulz MSL20MAX is a heavy-duty two-stage, in-line cast iron air compressor pump built for continuous-duty industrial and commercial service. Delivering 20 CFM displacement at up to 175 PSI on 5 HP, its two-stage design lowers discharge temperatures and improves efficiency for demanding shop and production environments. Slotted mounting feet make it a straightforward drop-in for tank-mounted builds or as a replacement pump for competitive brands.
Key Specifications
- Part Number: 932.7277-0
- Horsepower: 5 HP
- Air Delivery: 20 CFM displacement
- Max Pressure: 175 PSI
- Pump Type: Two-stage, belt-driven, 2-cylinder in-line
- Speed: 985 RPM
- Belt Type: 1-A
- Oil Capacity: 1.2 qt (splash lubricated)
- Discharge: 1/2" NPT
- Construction: Solid cast iron with stainless steel reed valves
- Weight: ~125 lbs
Applications
Industrial workshops, automotive service centers, production lines, and heavy-duty compressed-air systems that demand reliable continuous operation.
Backed by a 1-year pump warranty, the Schulz MSL20MAX combines rugged cast iron durability with efficient two-stage performance — a dependable choice for shops that run their air system hard, day in and day out.
NOTE: Actual product may be different from pictured!
