Save 35%
Rolled Steel NEMA Premium Efficiency 1 HP 2P 143/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Rolled Steel NEMA Premium Efficiency 1 HP 2P 143/5T 3Ph 230/460//190-220/380-415 V 60 Hz IC411 - TEFC - Foot-mounted
Regular price
$372.00
Sale price
$372.00
Regular price
$573.00
Shipping calculated at checkout.
| Specifications (As Configured) | |
|---|---|
 Vendor |
WEG
|
 SKU |
00136ET3E143T-S
|
 Horsepower |
|
 Frame SizeThis is the Bolt Pattern for the Motor. Found on the Motor Data Plate.
|
143T and 145T
|
 Voltage |
|
 Phase |
|
 Amps |
|
| Dimensions | |
 Weight |
40.0 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
NEED HELP FINDING A REPLACEMENT MOTOR? EMAIL OR TEXT US A PICTURE OF THE DATA PLATE OF THE MOTOR YOU ARE REPLACING. IF THE NAMEPLATE IS NOT AVAILABLE, PLEASE LET US KNOW THE FOLLOWING CRITERIA SO WE CAN PROPERLY SIZE THE MOTOR YOU NEED.
- HP - FRAME SIZE - RPM - PHASE - VOLTAGE - ENCLOSURE TYPE(ODP OR TEFC) - SHAFT DIAMETER - SERVICE FACTOR
PLEASE NOTE: NEVER ASSUME THE INCOMING VOLTAGE. ALWAYS CHECK INCOMING VOLTAGE BEFORE ORDERING A REPLACEMENT MOTOR.
Frame: 145T
RPM: 3510
Shaft Diameter: 7/8
Full Load Amp: 230/460
Voltage: 208-230
Service Factor: 1.15(1.00@208v)
WEG THREE PHASE GENERAL PURPOSE AND COMPRESSOR DUTY ELECTRIC MOTORS FEATURE A NEW VENTILATION SYSTEM FOR IMPROVED THERMAL PERFORMANCE. NEMA PREMIUM EFFICIENCY LEVELS WITH CLASS F INSULATION. ROBUST FEET DESIGN SUITABLE FOR TOUGHER APPLICATIONS. TERMINAL BOX ROTATABLE IN 90 DEGREE INCREMENTS FOR INSTALLATION FLEXIBILITY. COLOR CODED LEADS FOR EASY WIRING. NUMBER OF POLES 2 THROUGH 6. REGREASABLE BALL BEARINGS COME STANDARD ON 254T/256T AND LARGER. ALUMINUM END SHIELDS AND F1 MOUNT STANDARD.
- HP - FRAME SIZE - RPM - PHASE - VOLTAGE - ENCLOSURE TYPE(ODP OR TEFC) - SHAFT DIAMETER - SERVICE FACTOR
PLEASE NOTE: NEVER ASSUME THE INCOMING VOLTAGE. ALWAYS CHECK INCOMING VOLTAGE BEFORE ORDERING A REPLACEMENT MOTOR.
Frame: 145T
RPM: 3510
Shaft Diameter: 7/8
Full Load Amp: 230/460
Voltage: 208-230
Service Factor: 1.15(1.00@208v)
WEG THREE PHASE GENERAL PURPOSE AND COMPRESSOR DUTY ELECTRIC MOTORS FEATURE A NEW VENTILATION SYSTEM FOR IMPROVED THERMAL PERFORMANCE. NEMA PREMIUM EFFICIENCY LEVELS WITH CLASS F INSULATION. ROBUST FEET DESIGN SUITABLE FOR TOUGHER APPLICATIONS. TERMINAL BOX ROTATABLE IN 90 DEGREE INCREMENTS FOR INSTALLATION FLEXIBILITY. COLOR CODED LEADS FOR EASY WIRING. NUMBER OF POLES 2 THROUGH 6. REGREASABLE BALL BEARINGS COME STANDARD ON 254T/256T AND LARGER. ALUMINUM END SHIELDS AND F1 MOUNT STANDARD.

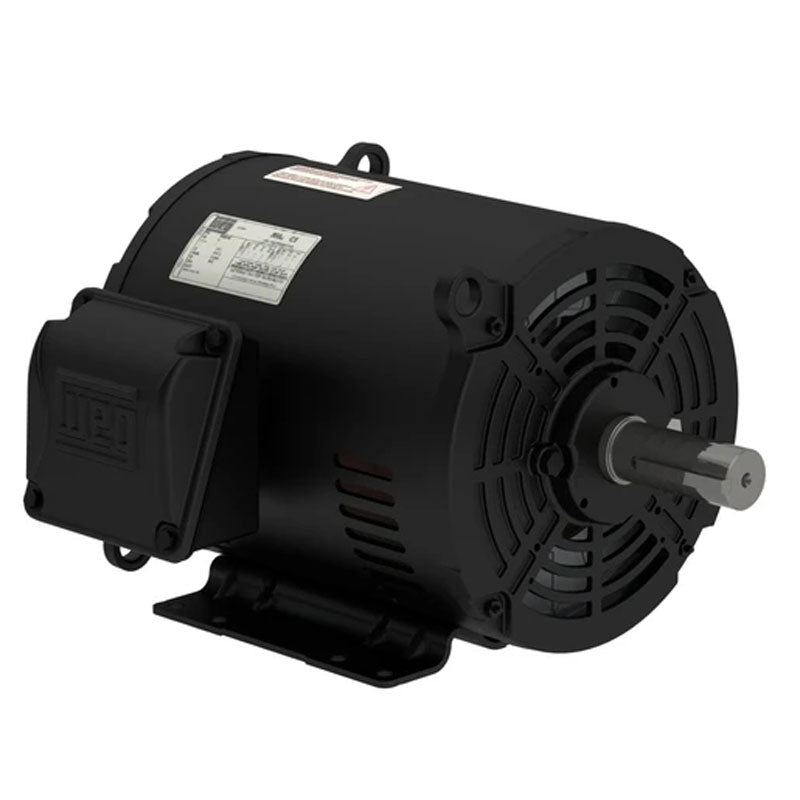

NOTE: Actual product may be different from pictured!
