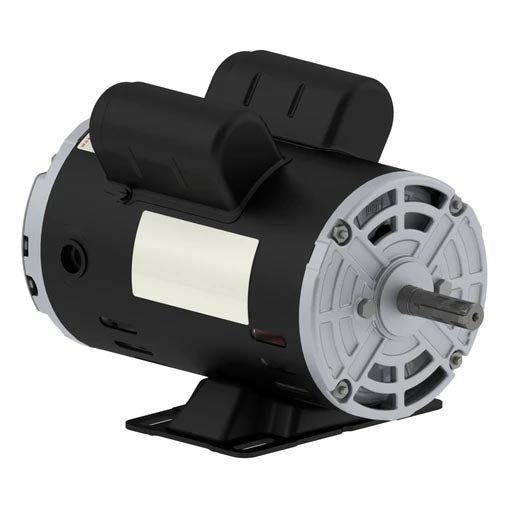

Rolled Steel 0.5 HP 4P W56 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted
Rolled Steel 0.5 HP 4P W56 1Ph 115/208-230 V 60 Hz IC01 - ODP - Foot-mounted
| Specifications (As Configured) | |
|---|---|
 Vendor |
WEG
|
 SKU |
.5018OT1BW56-S
|
 Horsepower |
|
 Frame SizeThis is the Bolt Pattern for the Motor. Found on the Motor Data Plate.
|
184T
|
 Voltage |
|
 Phase |
|
 Amps |
|
| Dimensions | |
 Weight |
45.0 lb
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|
NEED HELP FINDING A REPLACEMENT MOTOR? EMAIL OR TEXT US A PICTURE OF THE DATA PLATE OF THE MOTOR YOU ARE REPLACING. IF THE NAMEPLATE IS NOT AVAILABLE, PLEASE LET US KNOW THE FOLLOWING CRITERIA SO WE CAN PROPERLY SIZE THE MOTOR YOU NEED.
- HP - FRAME SIZE - RPM - PHASE - VOLTAGE - ENCLOSURE TYPE(ODP OR TEFC) - SHAFT DIAMETER - SERVICE FACTOR
PLEASE NOTE: NEVER ASSUME THE INCOMING VOLTAGE. ALWAYS CHECK INCOMING VOLTAGE BEFORE ORDERING A REPLACEMENT MOTOR.
Frame: 184T
RPM: 1730
Shaft Diameter: 1-1/8
Full Load Amp:4.86/3.04-2.43
Voltage: 115/208-230 V
Service Factor: 1.25(1.00@208v)
Product features
| Standard | NEMA MG-1 |
|---|---|
| Frequency | 60 Hz |
| Voltage | 115/208-230 V |
| Number of poles | 4 |
| Synchronous speed | 1800 rpm |
| Output rating | 0.5 HP |
| Mounting | Foot-mounted |
|---|---|
| Flange | Without |
| Mounting | F-1 |
| Terminal box¹ | Without Terminal Box |
| Enclosure | IC01 - ODP |
NOTE: Actual product may be different from pictured!
