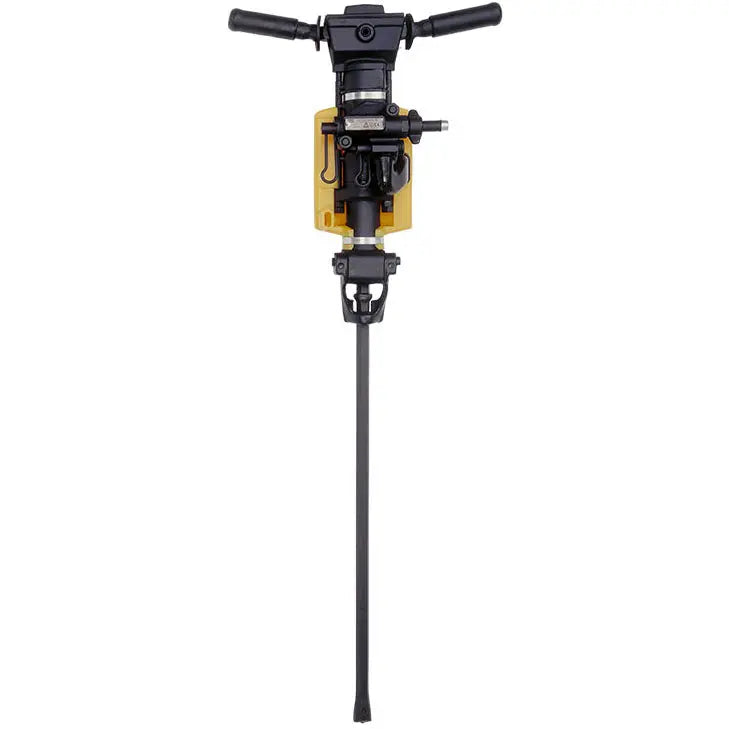

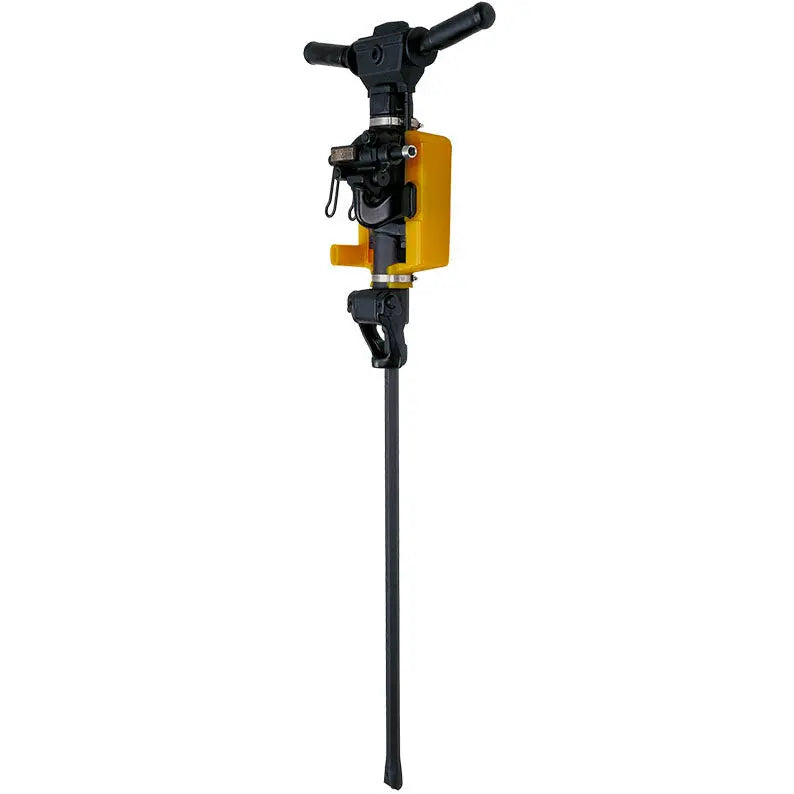

RH 572 E Pneumatic Hand Held Surface Rock Drill by Atlas Copco

RH 572 E Pneumatic Hand Held Surface Rock Drill by Atlas Copco

The Atlas Copco RH 572 E is a professional pneumatic hand held surface rock drill built for hard rock drilling, plug hole drilling, vertical drilling, and concrete drilling in construction, quarry, mining, and utility work. Designed for crews that need reliable drilling power without moving into a full rig-mounted setup, the RH 572 E delivers strong impact performance, controlled rotation, built-in air flushing, and operator-focused vibration reduction in a compact hand held package.

This model is configured with a 7/8 inch x 4-1/4 inch hex shank and is powered by compressed air, making it a dependable choice for jobsites already running portable compressors or plant air. With 78 CFM air consumption at 90 PSI, 2,040 blows per minute, and 170 rpm rotation speed, the RH 572 E gives contractors the balance of impact, rotation, and flushing needed to drill clean, consistent holes in demanding material.

Built for Surface Rock Drilling

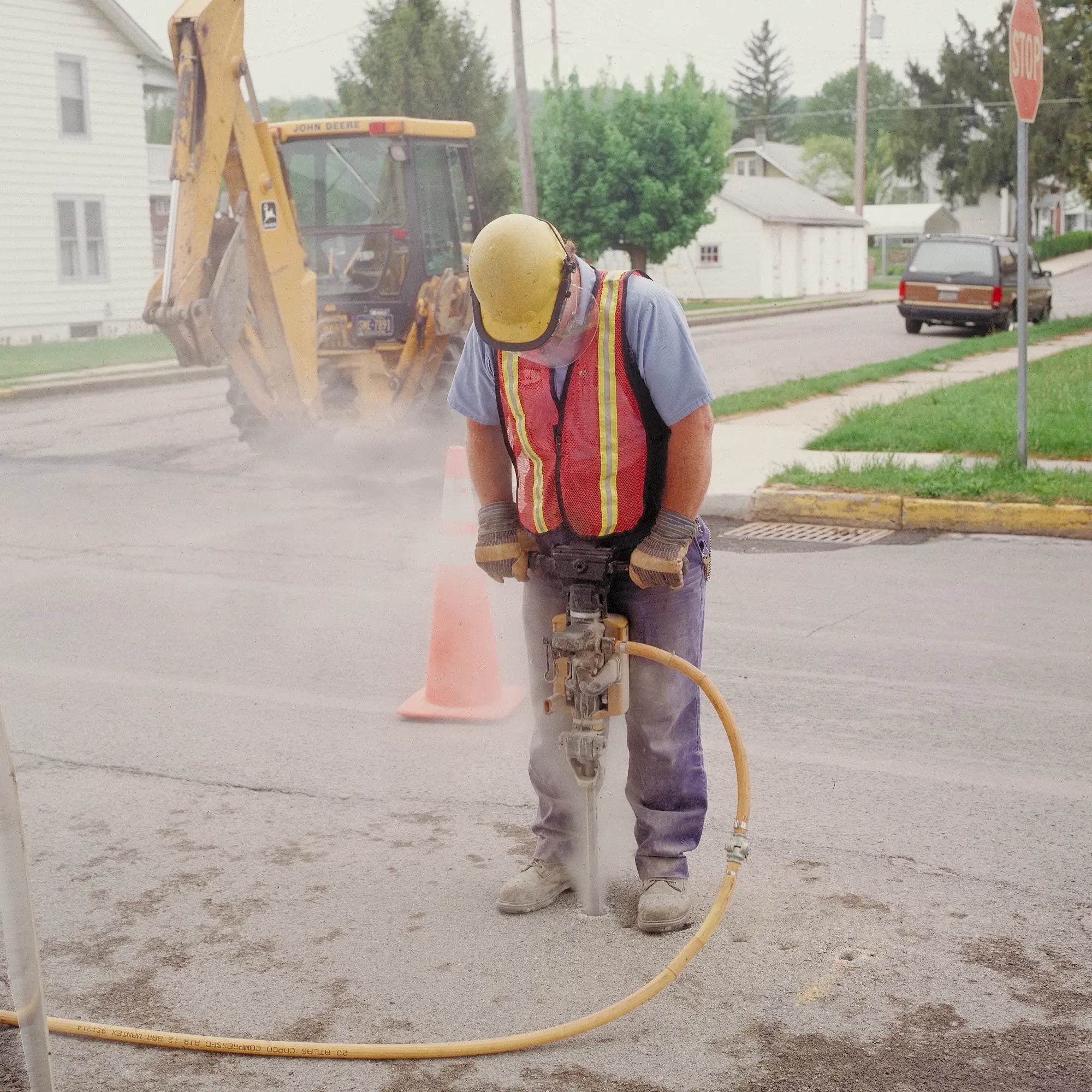

The RH 572 E is made for surface drilling work where portability, control, and production matter. Atlas Copco designed the RH rock drill line for tough drilling applications, and the RH 572 E fits smaller jobs, confined work areas, and drilling depths up to 6 meters. It is a practical tool for contractors handling rock splitting, secondary drilling, blast preparation, anchor-related drilling, utility work, and concrete drilling where a hand held pneumatic drill is the right fit.

Key benefits include:

• Hand held pneumatic rock drill for surface drilling applications
• 7/8 inch x 4-1/4 inch hex shank configuration
• Built-in air flushing to clear drill chippings from the hole
• Vibration dampened handle design for improved operator comfort
• Efficient silencer design to help manage jobsite noise
• Strong impact rate of 2,040 blows per minute
• 170 rpm rotation for steady drilling performance
• Suitable hole range of 1.1 inches to 1.34 inches
• Compact 23 inch overall length for better handling in tight work areas

Built-In Air Flushing for Cleaner Holes

One of the biggest advantages of the RH 572 E is its built-in air flushing system. As the drill operates, compressed air is directed through the drill steel to help remove chippings from the hole. This helps keep the bit working against a cleaner surface, reduces the chance of jamming, and supports faster, more consistent drilling.

For drilling crews, that means less time fighting blocked holes and more time making progress. Cleaner holes also make the drill easier to manage during deeper drilling, especially when drilling in rock, concrete, or mixed hard material.

Operator Comfort and Control

The RH 572 E uses vibration dampened handles to reduce vibration transmitted to the operator. That matters on real jobsites, where hand held drilling can be physically demanding and fatigue can slow down the work. The “E” version designation refers to vibro-reduced handles, giving the RH 572 E a more operator-friendly feel than basic non-reduced designs.

The drill is also built with controlled rotation and a throttle layout intended to help the operator collar the hole accurately before applying full drilling force. That makes it easier to start holes cleanly, keep the steel positioned, and maintain control during drilling.

Technical Specifications

• Model: Atlas Copco RH 572 E
• Part Number: 8311 0301 78
• Tool Type: Pneumatic hand held surface rock drill
• Chuck / Shank Size: 7/8 inch x 4-1/4 inch hex
• Hole Range: 1.1 inches to 1.34 inches
• Weight: 50.2 lb
• Length: 23 inches
• Air Consumption: 78 CFM
• Operating Pressure Data: Rated at 90 PSI
• Impact Rate: 2,040 blows per minute
• Rotation Speed: 170 rpm
• Penetration Rate: 10.2 inches per minute
• Hose Connection: 3/4 inch
• Piston Diameter: 2.16 inches
• Stroke Length: 2.36 inches
• Vibration Level: 9.7 m/s²
• Sound Power Level: 113 dB(A)
• Sound Pressure Level: 100 dB(A)

Common Applications

The Atlas Copco RH 572 E is commonly used for:

1. Surface rock drilling on construction and quarry sites
2. Plug hole drilling and vertical drilling
3. Concrete drilling for demolition, foundation, and site work
4. Secondary drilling and rock breaking preparation
5. Drilling in confined areas where a compact hand held drill is preferred
6. Jobs requiring built-in air flushing for hole cleaning

Why Buy the RH 572 E?

The RH 572 E is a serious pneumatic rock drill for contractors who need proven Atlas Copco drilling performance in a portable, hand held tool. It offers the impact rate, rotation, shank size, and air consumption profile expected from a professional surface rock drill, while keeping the tool compact enough for tight or smaller jobsite applications.

Choose the Atlas Copco RH 572 E when you need a rugged pneumatic hand held surface rock drill with built-in air flushing, vibration dampened handles, a 7/8 inch x 4-1/4 inch hex shank, and dependable drilling performance for rock and concrete work.
