RapidAir MaxLine Dual Port Outlet w/ Shutoff Valve — (2) 1/2" FNPT Ports
| Specifications (As Configured) | |
|---|---|
 Vendor |
RapidAir
|
 SKU |
M8200V
|

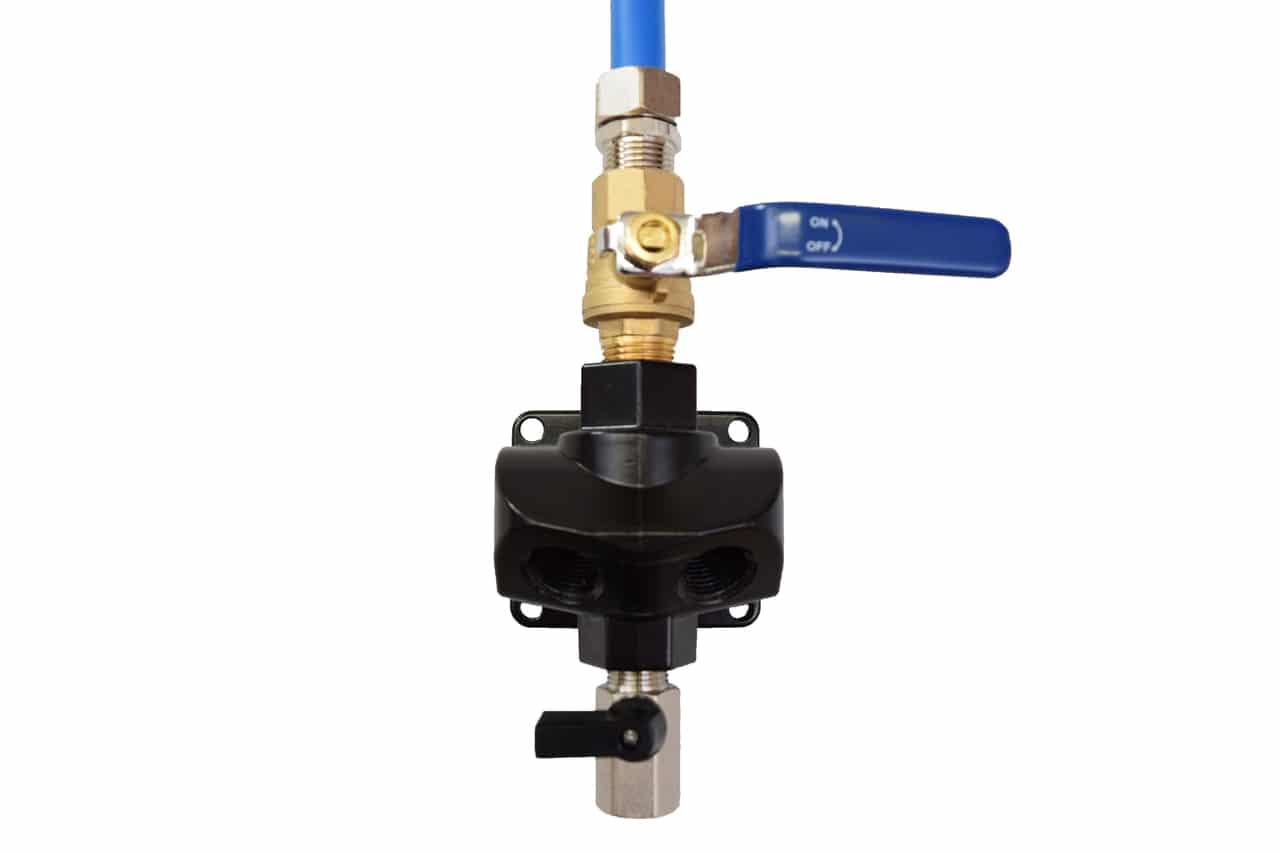

The RapidAir MaxLine Dual Port Outlet with Shutoff Valve is a wall-mounted drop point for your MaxLine semi-flexible compressed air system. Its machined-aluminum block delivers two 1/2" Female NPT outlet ports for connecting air tools, hose reels, or quick couplers, while the top-mounted ball valve lets you shut off the drop without bleeding down the rest of the line. A twist moisture drain at the bottom of the block helps purge condensation before it reaches your tools.
Key specifications
- (2) 1/2" Female NPT outlet ports (front side)
- Top-mounted shutoff ball valve
- Twist moisture drain to purge condensation
- Machined aluminum wall block — for wall-mounted tubing
- Available for 1/2", 3/4", and 1" MaxLine tubing (select tube size)
- Maximum working pressure: 175 PSI
What's included
- Aluminum wall block
- Shutoff valve
- Drain valve (50120)
- Tubing adapter sized to your selection (M8002 1/2", M8003 3/4", or M8015 1")
- (2) 1/2" brass plugs (50136)
Typical applications
Ideal for garage and shop air drops, automotive service bays, fabrication and assembly stations, and any work area where you want two air connections at a single wall point with the ability to isolate the drop for maintenance.
Part of the RapidAir MaxLine tubing system, this dual port outlet pairs with MaxLine semi-flexible aluminum-core tubing and fittings to build a clean, leak-free compressed air line. Choose your tube size — 1/2", 3/4", or 1" — to match your existing MaxLine run.
NOTE: Actual product may be different from pictured!
