RapidAir MaxLine Dual Port Outlet — 4-Port 1/2" FNPT Cast Aluminum Air Drop

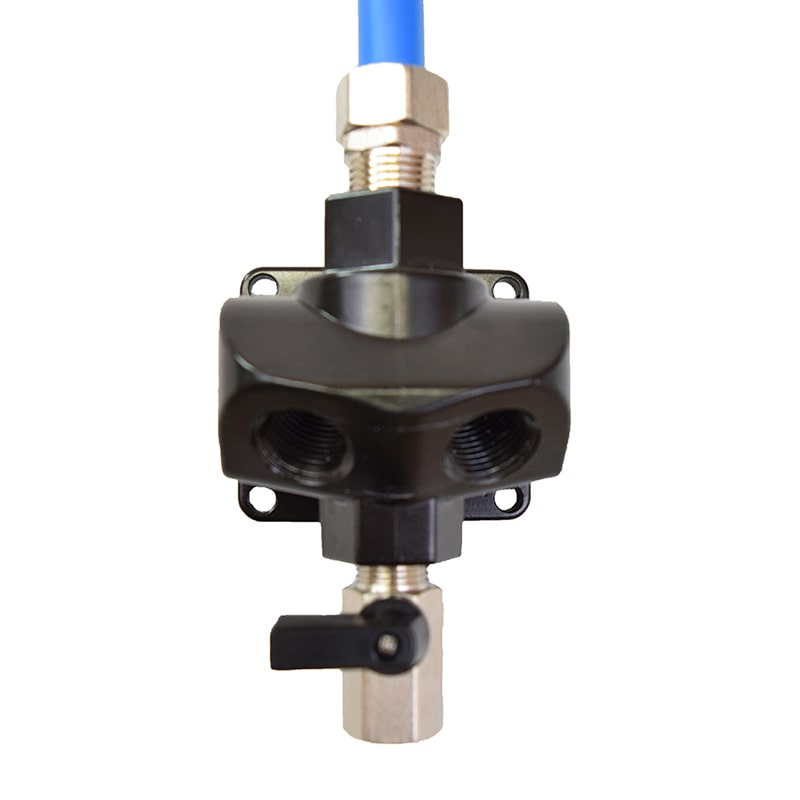

The RapidAir MaxLine Dual Port Outlet is a wall-mounted air drop for the MaxLine semi-flexible compressed air tubing system. Its cast aluminum block delivers four 1/2" female NPT outlet ports — two on the front face and one on each side — so you can run multiple tools, hoses, or accessories from a single station. A built-in twist drain at the bottom lets trapped condensate escape, keeping your air lines clean and dry.

Each outlet ships complete with the correct MaxLine tubing adapter for its inlet size, a drain valve, and two 1/2" brass port plugs, so you can cap unused ports and add couplers only where you need them. Pair with a RapidAir K6241, K7241, or K9241 quick coupler for fast, leak-free tool changes.

Key Specifications

• Outlet ports: (4) 1/2" Female NPT — two on the front, one on each side
• Tubing inlet: 1/2", 3/4", or 1" MaxLine tubing (select size)
• Body: Cast aluminum wall block with bottom moisture drain
• Mounting: For wall-mounted tubing only
• Included: Wall block, drain valve (50120), MaxLine tubing adapter (M8002 / M8003 / M8015 by inlet size), and (2) 1/2" brass plugs (50136)
• Recommended coupler: RapidAir K6241 / K7241 / K9241

Applications

Ideal for garage and shop workstations, automotive service bays, fabrication benches, and any point in a MaxLine compressed air system where you need several air connections in one location.

Compliance & Restrictions

This product is not intended for potable water applications (human consumption — drinking and cooking) and has not been designed to be compliant with the "Safe Drinking Water Act" requirements for low lead in potable water applications. This item is for use only in non-potable water applications. WARNING: Cancer and Reproductive Harm — www.p65warnings.ca.gov.
