Quincy / Chicago Pneumatic 7.5 HP Drive Motor, 230V Single-Phase, WEG W22 - 2204209230
| Specifications (As Configured) | |
|---|---|
 Vendor |
Quincy Parts
|
 SKU |
2204209230
|
| Dimensions | |
 Weight |
200.0 lb
|
Dimension |
|
Shipping Height |
|
Shipping Length |
|
Shipping Width |
|

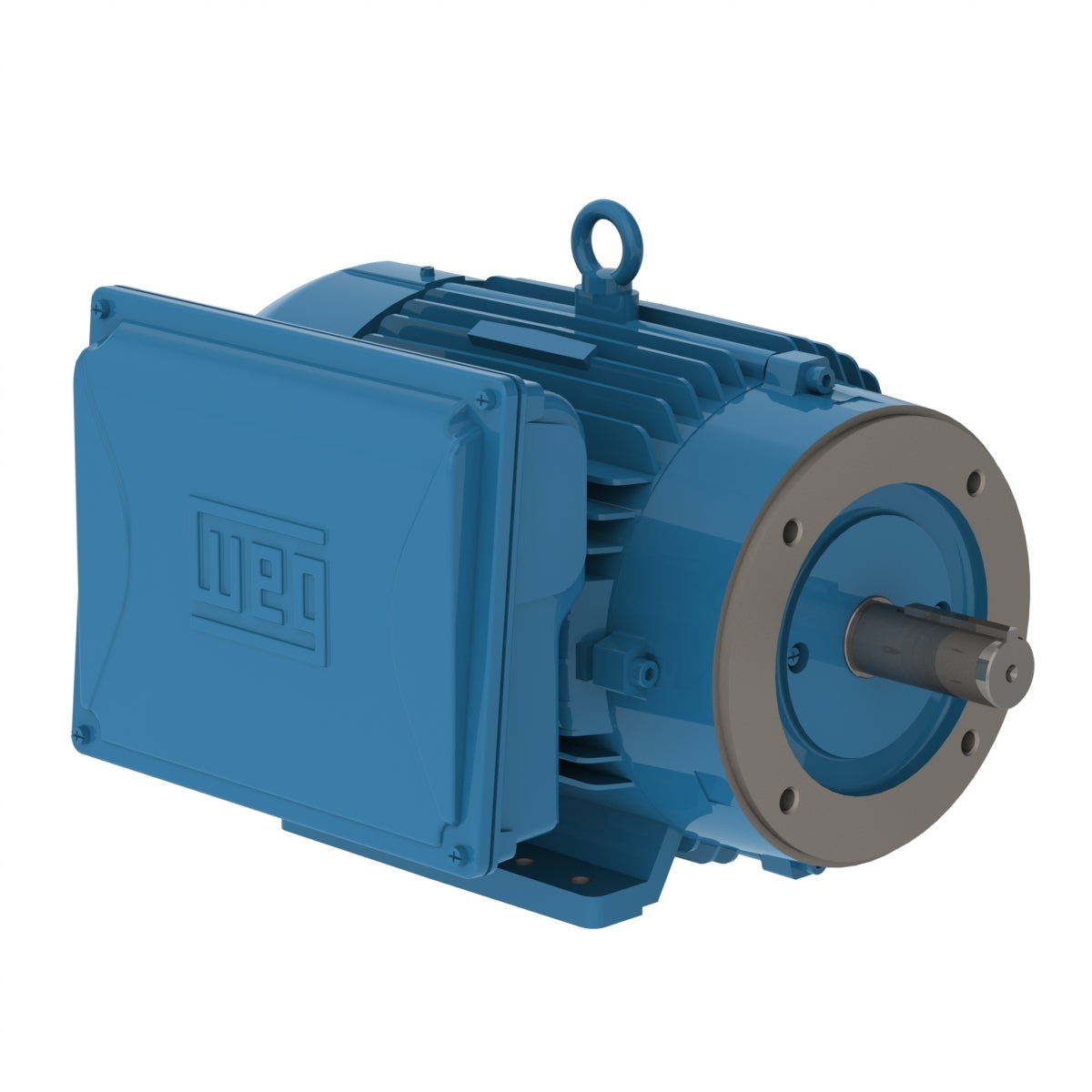

Genuine OEM replacement drive motor for 7.5 HP single-phase rotary screw compressors from the Atlas Copco Group family: the Chicago Pneumatic QRS 7.5 (230 V, 1-phase) and the Quincy QGS 7.5 single-phase. Built by WEG on the W22 motor platform, this is the factory-fitted drive motor for current-production units, supplied through the Quincy / Chicago Pneumatic genuine parts program as part number 2204209230.
Key specifications
- OEM part number: 2204209230
- Power: 7.5 HP (5.5 kW)
- Design: 2-pole induction motor
- Electrical: 230 V, single-phase, 60 Hz
- Platform: WEG W22, totally enclosed fan-cooled (TEFC)
- UL certified for North American installations
- Shipping weight: approx. 203 lb
- Country of origin: Brazil (WEG)
Fitment
Factory drive motor for current-generation Chicago Pneumatic QRS 7.5 single-phase compressors, including the QRS 7.5 HP-1 (base mount), QRS 7.5 TM-1 (60-gallon tank mount), and QRS 7.5 HPD-1 TM (tank mount with dryer), as well as the equivalent Quincy QGS 7.5 230 V single-phase models. Earlier builds of these machines used different motor part numbers, so if your compressor is more than a few years old, send us the unit serial number and we will confirm the correct motor before you order.
A failed drive motor takes the whole compressor down, and generic motors rarely match the frame, shaft, and electrical package these belt-drive rotary screws are engineered around. This genuine WEG W22 single-phase motor drops in the way the factory intended, keeping your QRS or QGS 7.5 running at its rated 26 CFM class output without rework. Ships from US OEM parts stock.
NOTE: Actual product may be different from pictured!
