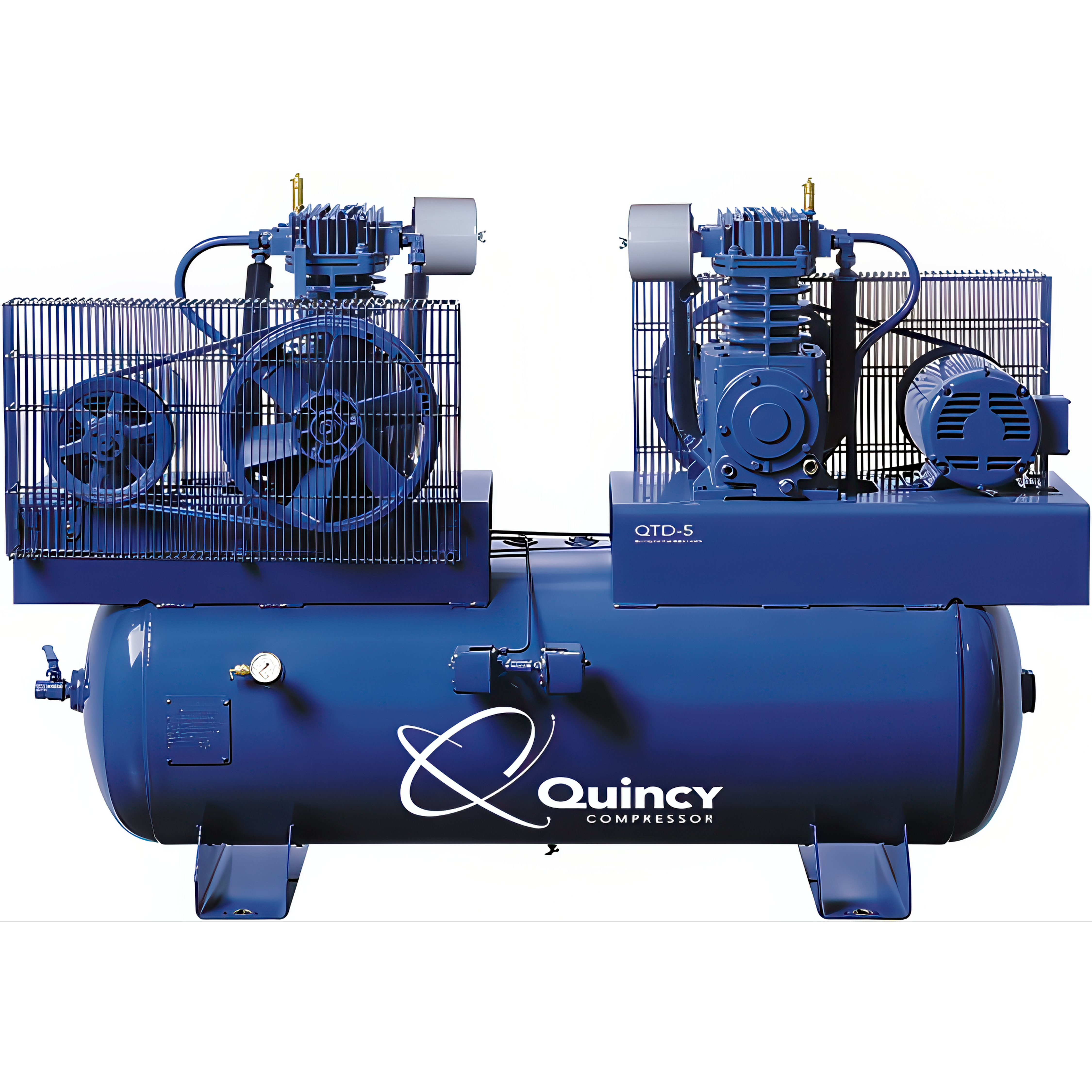

Quincy QT Series Duplex Piston Air Compressor - PRO & MAX

Powerful Performance

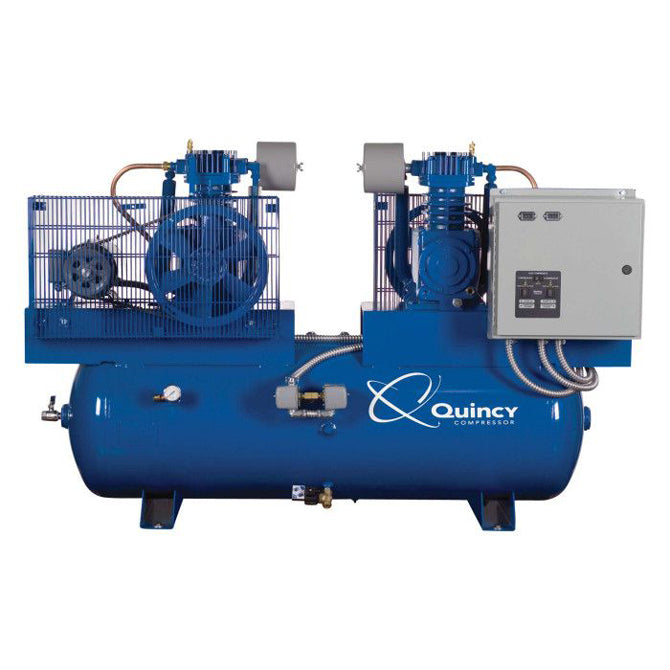

The Quincy QT duplex pairs two complete two-stage pump and motor assemblies on a single ASME receiver. Both units share the tank and the piping, and the control alternates the lead machine so wear is spread evenly. That gives you two things a single large compressor cannot: redundancy, so a failure on one pump does not stop production, and better part-load efficiency, because only one pump runs when demand is light.

Sizing

Horsepower shown is the total for both pumps. The QT-5 and QT-7.5 duplex units are built on a 120 gallon horizontal receiver; the QT-10S, QT-10 and QT-15 use a 200 gallon horizontal receiver. Note there are two different 20 HP machines: the QT-10S runs a pair of QT-1 pumps, the QT-10 a pair of the larger QT-2 pumps. The QT-10 and QT-15 are three phase only.

Key Features and Benefits

-Splash lubrication system to distribute oil.

-EISA 3-phase 60hz motors, OSHA style belt guards, pressure sensor for start/stop control with lead/lag alternation.

- ASME coded tank & pressure relief valve, manual tank drain, and pressure gauge in receiver.

-Optional NO BULL Warranty 3-Year Pump/ 2-Year Package Warranty

What Makes It A Quincy?

Compressor Head, Gaskets, and Valves

• Aluminum head for cooler operating temperatures and longer life.
• Graphite cylinder and head gaskets for positive sealing and improved performance.
• Stainless-steel, corrosion resistant reed valves with controlled lift for maximum efficiency.

Interstage Intercooler

• Finned-copper-tubed intercooler dissipates excess heat from the first stage of compression to the second-stage, helping to eliminate carbon build up in the head and increase valve life.

Flywheel

• Large, balanced cast-iron flywheel for smoother operation, angled for maximum cooling across the compressor for longer life.

Rings

• High performance, automotive-style rings allow less than 6 PPM oil carryover.

Crankshaft

• Balanced counter-weighted crankshaft for smooth, trouble-free operation.

Construction

• Cast-iron cylinder, flywheel, and crankcase for dependability.
• The extra-capacity oil reservoir assures low oil temperatures for lasting performance.

Superior Components

Quincy packs a one-two punch when comparing components to lower priced compressors. We feature IEC magnetic starters, premium motors, high quality pressure switches, metal automotive style filter/silencers, and a manual ball valve-style tank drain.

Extended Warranty Available

Buy the compressor, buy the associated extended warranty kit and double the package warranty to two years and the pump warranty to three years. The extended warranty kit includes all that you’ll need for your compressor’s regular maintenance during the next three years. Save 10-15% more than buying items individually AND triple your warranty when you purchase, register and use this kit!
