QP Series Pressure Lubricated Reciprocating Compressor By Quincy

The Quincy QP is a pressure-lubricated two-stage reciprocating compressor built for continuous duty. Where a splash-lubricated pump throws oil around the crankcase, the QP runs a pressurised oil system with a positive-displacement pump feeding the bearings directly, which is what lets it hold up to 80% duty cycle and a 30,000-hour pump life rating. If your compressor runs most of the shift rather than cycling a few times an hour, this is the pump you want.

Key Features and Benefits

• Pressure-lubricated pump rated for 100% duty cycle and 30,000 hours
• Cast-iron cylinder, crankshaft and crankcase
• Aluminium head and finned-copper intercooler for cooler running
• Stainless steel reed valves with controlled lift
• ASME coded receiver, pressure relief valve and gauge on tank-mount units
• IEC magnetic starter with motor overload protection
• Optional NO BULL extended warranty — 3-year pump / 2-year package

Sizing

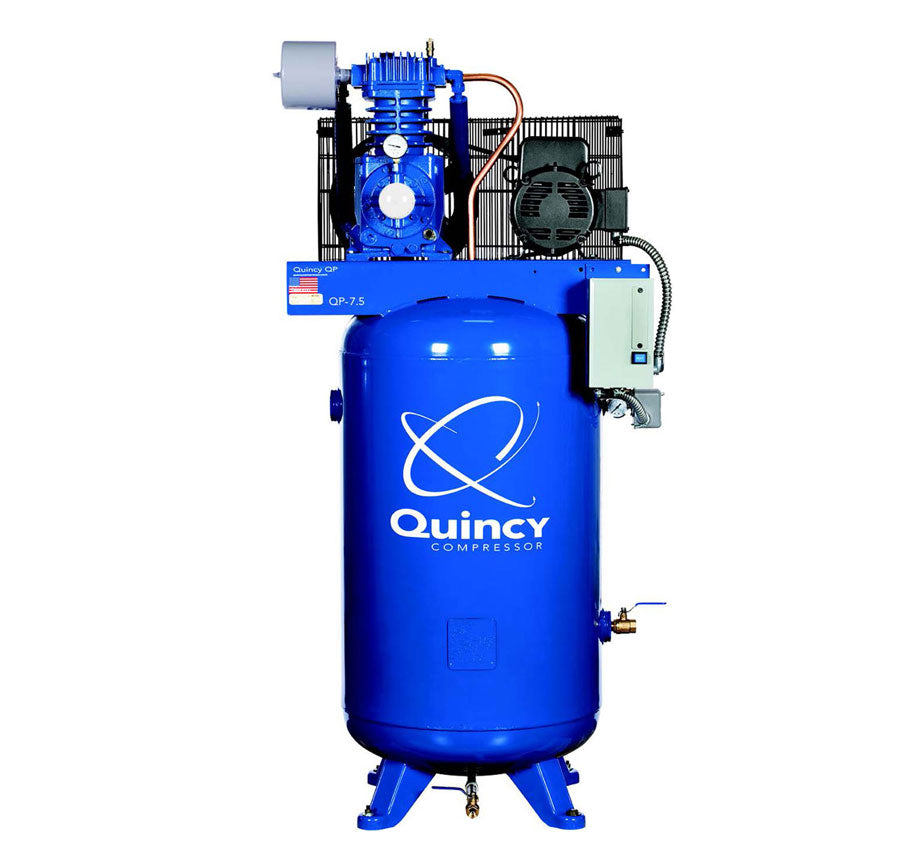

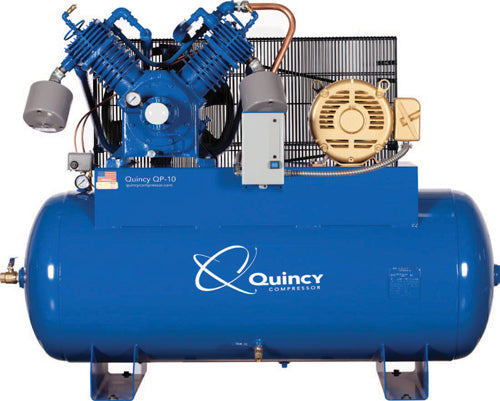

The QP-1 pump is used on the 5 and 7.5 HP units with an 80 gallon receiver, vertical or horizontal. The QP-2 pump is used on the 10 and 15 HP units with a 120 gallon receiver. The 15 HP is built horizontal only and in three phase only.

Available Variants & SKUs

All 75 part numbers for this product are listed below for reference and ordering.
