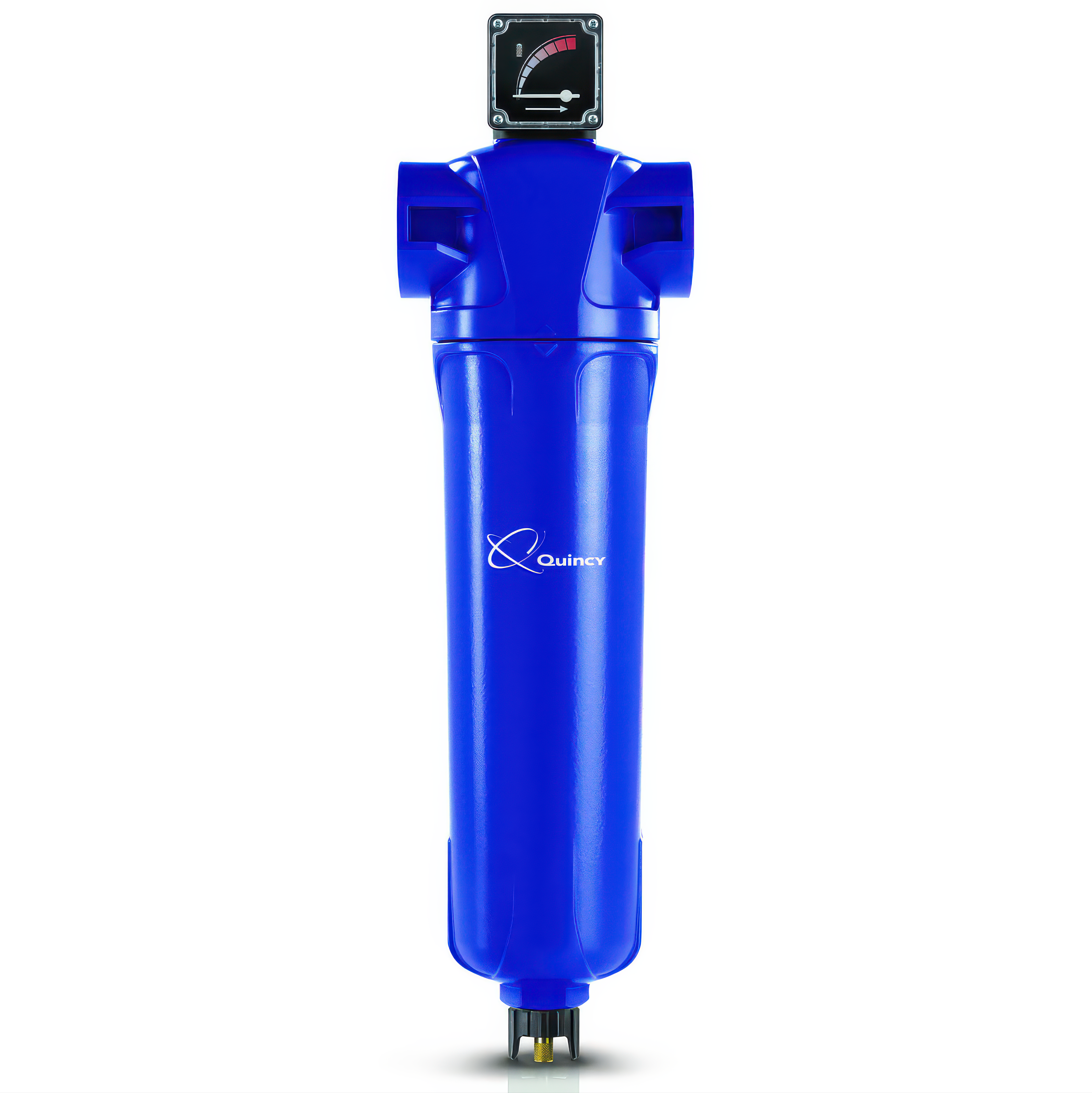

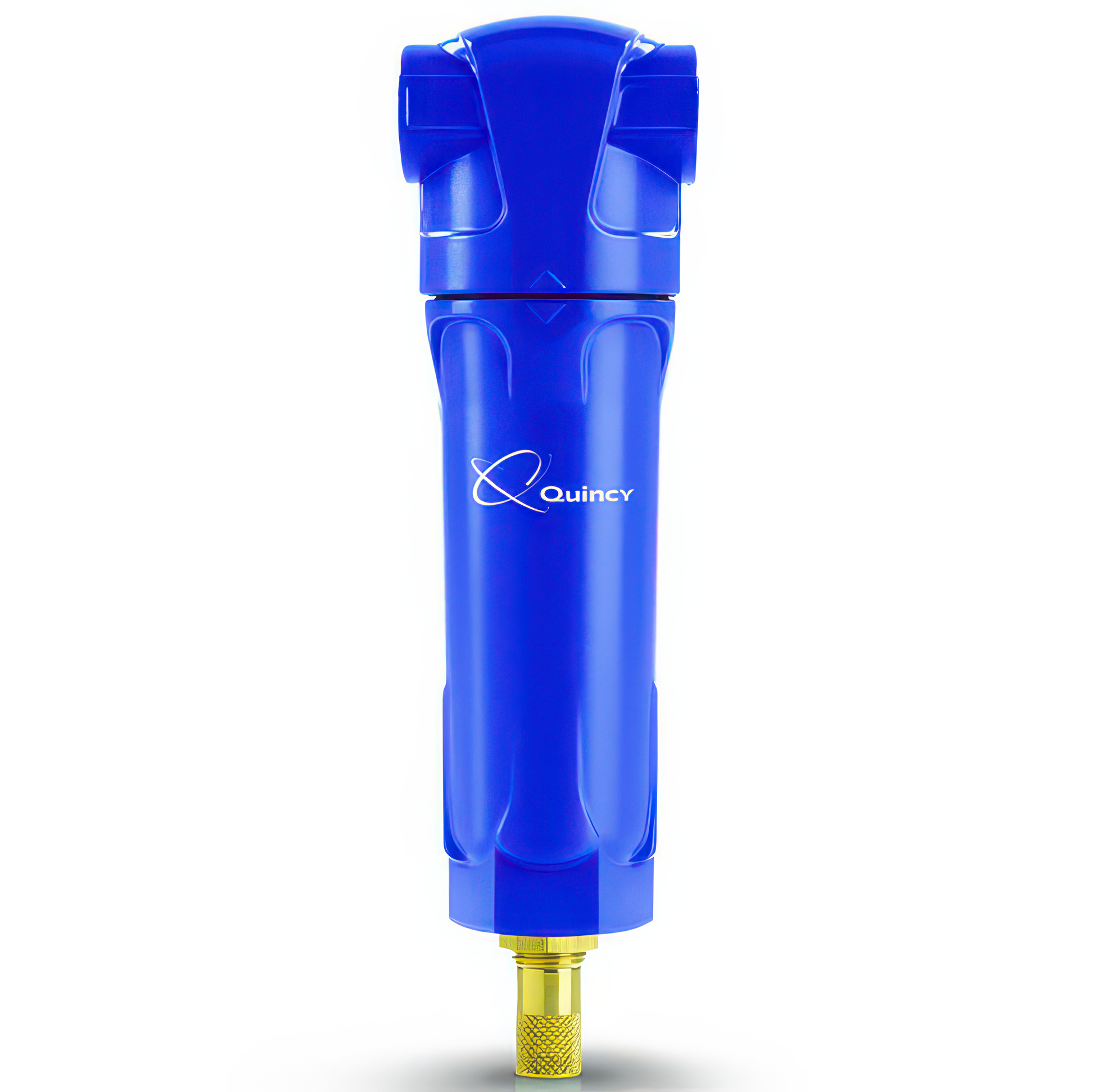

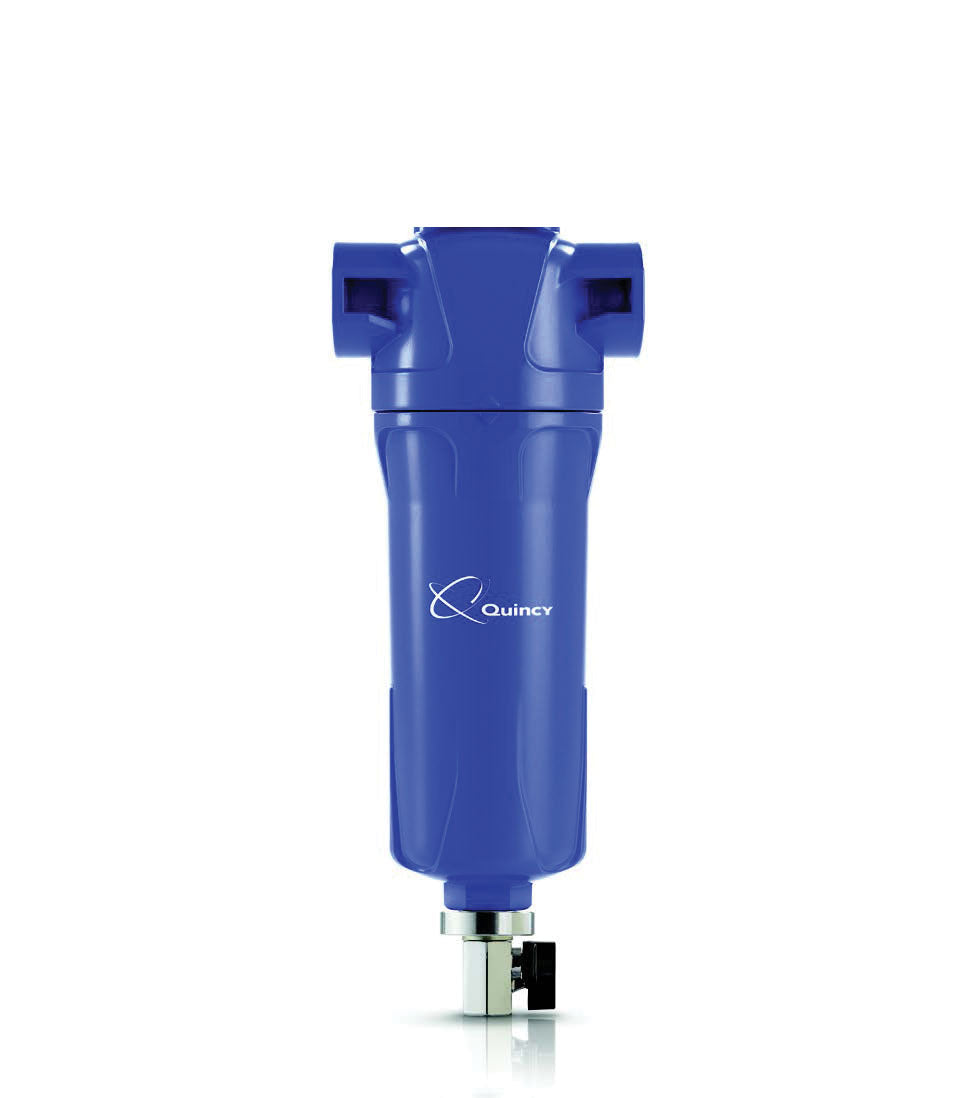

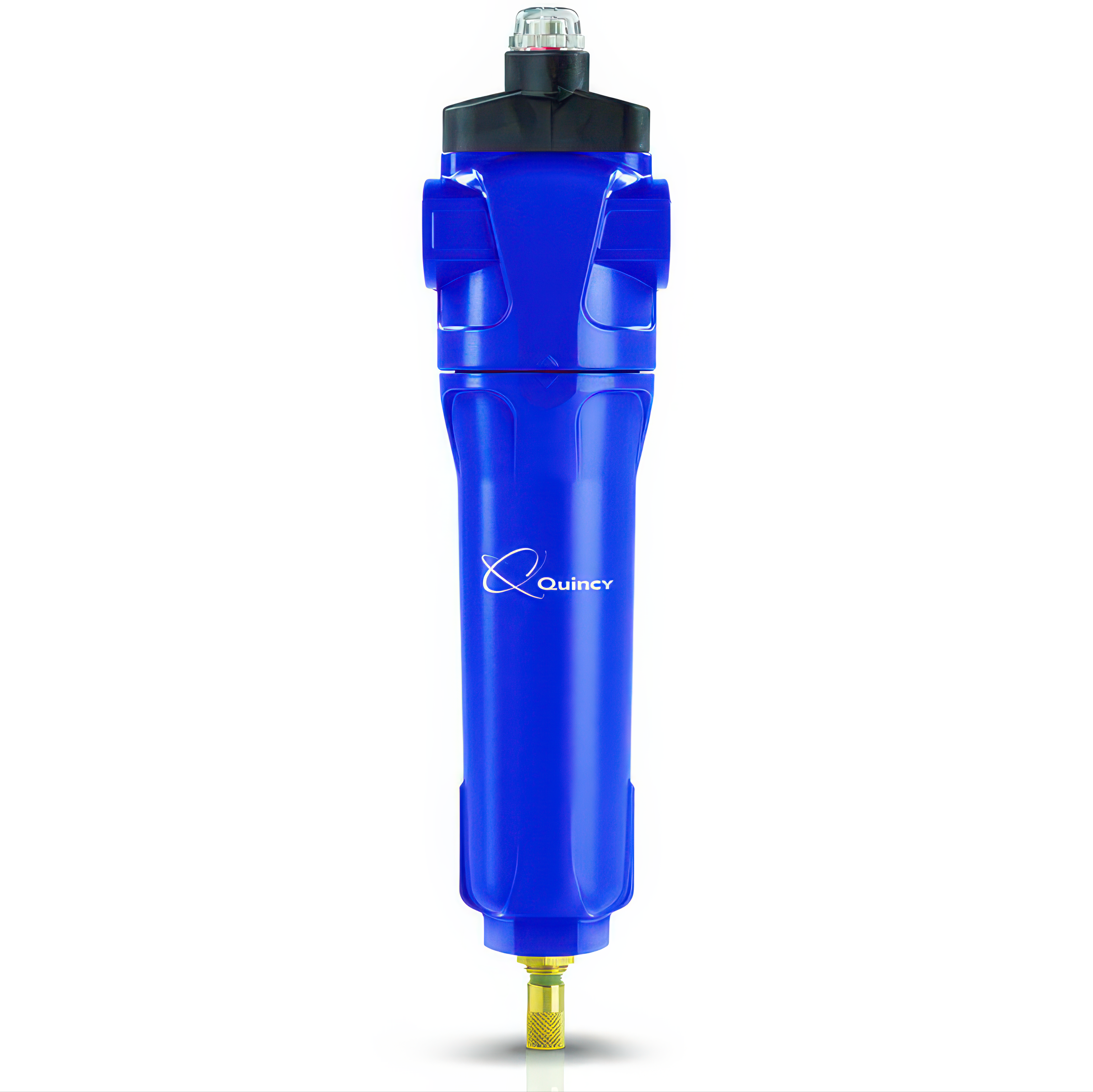

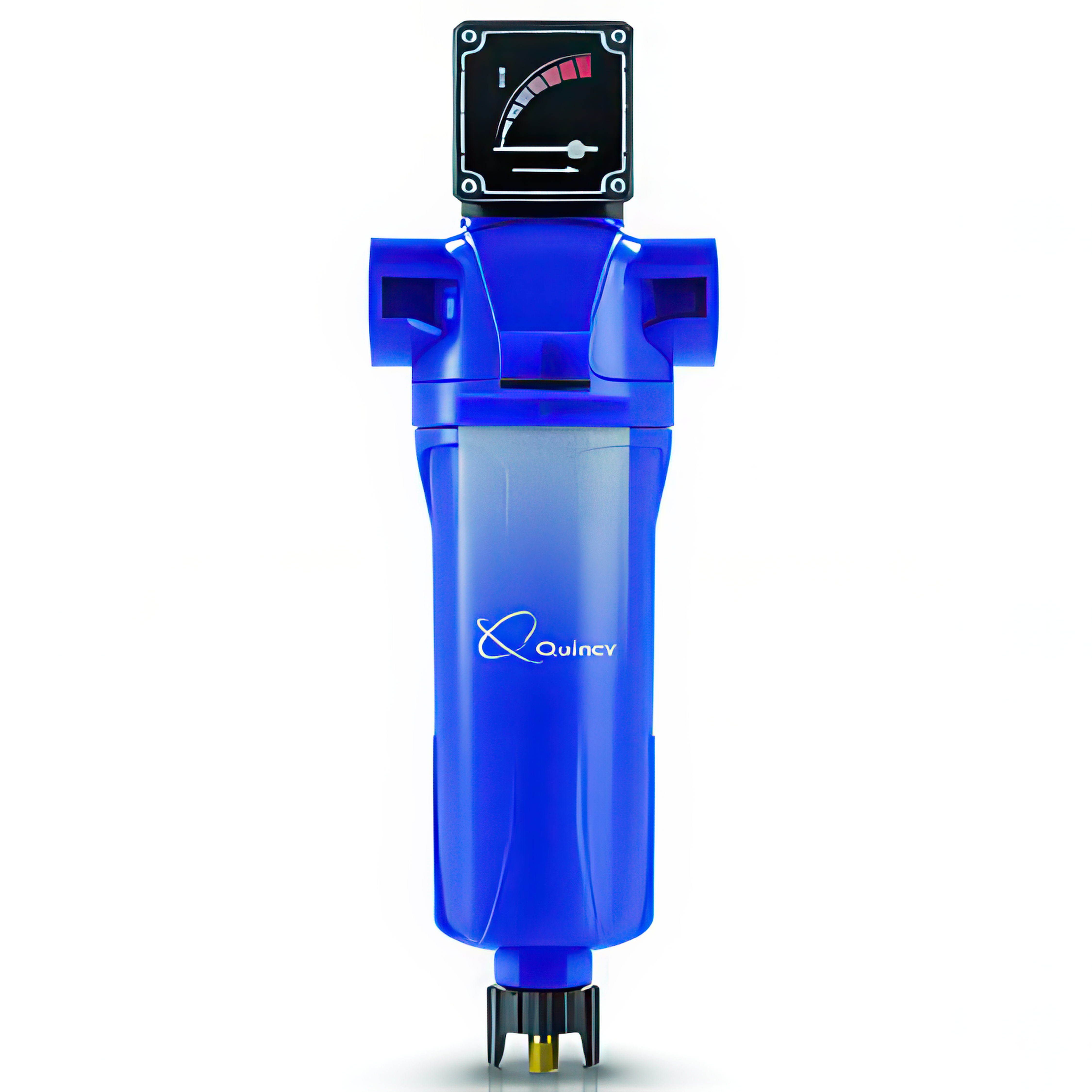

Quincy QAF .003 Micron Activated Carbon Air Filter

Quincy QAF Activated Carbon .003 Micron Air Filter

Get ultra-clean, odor-free compressed air with the Quincy QAF Activated Carbon Filter, engineered for environments where zero contaminants are essential—like high-end automotive painting, breathable air systems, and precision manufacturing. The QAF removes oil vapor and hydrocarbon odors that slip past traditional coalescing filters, ensuring your air meets the strictest standards of purity.

ISO 8573 compliant, the QAF reduces oil vapor content to 0.003 ppm (by weight), protecting your downstream equipment, production processes, and final product integrity.

Why QAF?

Atmospheric air carries dust, water vapor, and hydrocarbons. When compressed, these contaminants concentrate—mixing with compressor oil carryover to form corrosive emulsions that attack dryers, piping, valves, and tools.

The QAF breaks this cycle using a binder-free microfiber fleece embedded with finely ground, activated carbon specifically developed for compressed-air purification. This creates an enormous adsorbing surface area, delivering maximum vapor removal efficiency with a low pressure drop.

Key Features & Benefits

• Activated carbon filtration for oil vapor and hydrocarbon odor removal
• Ultra-low residual oil: down to 0.003 ppm for odor control and clean finishes
• Low pressure loss: only ~1.7 psi, preserving system efficiency
• 1000-hour element life for predictable maintenance cycles
• 10-year aluminum housing warranty for long-term durability

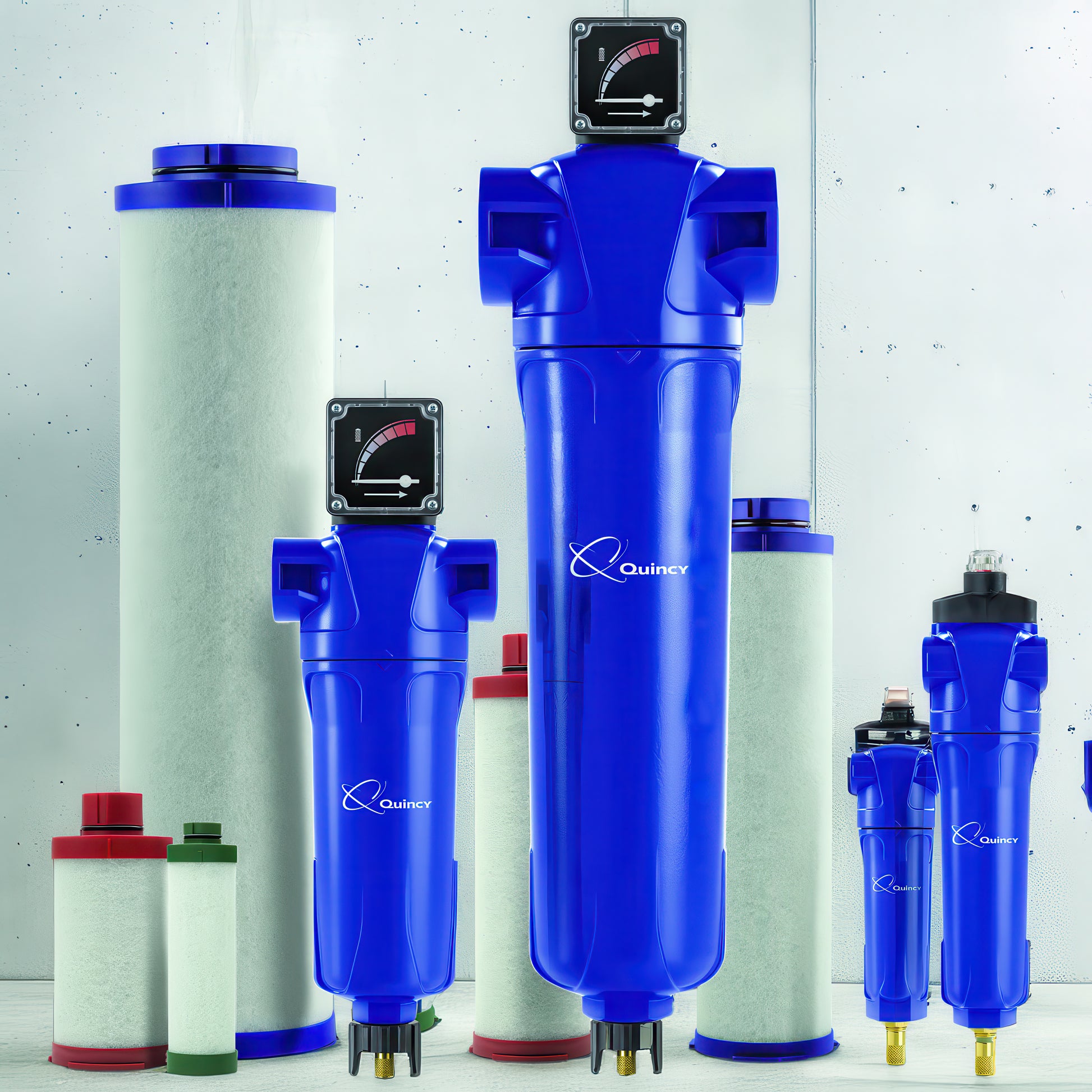

• Push-fit proprietary element for quick, error-proof service
• Dead-stop head-to-bowl connection ensures safe, positive closure every time

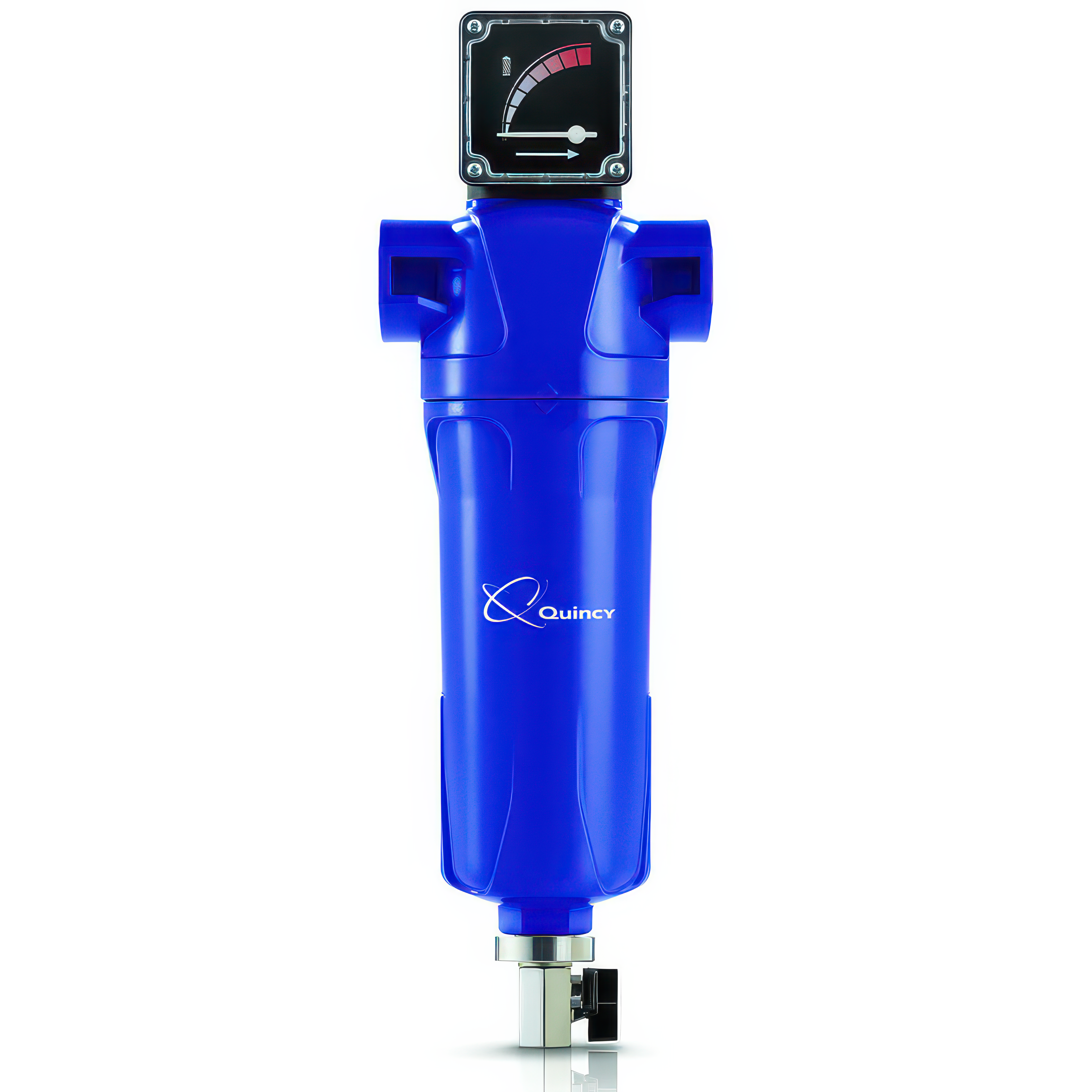

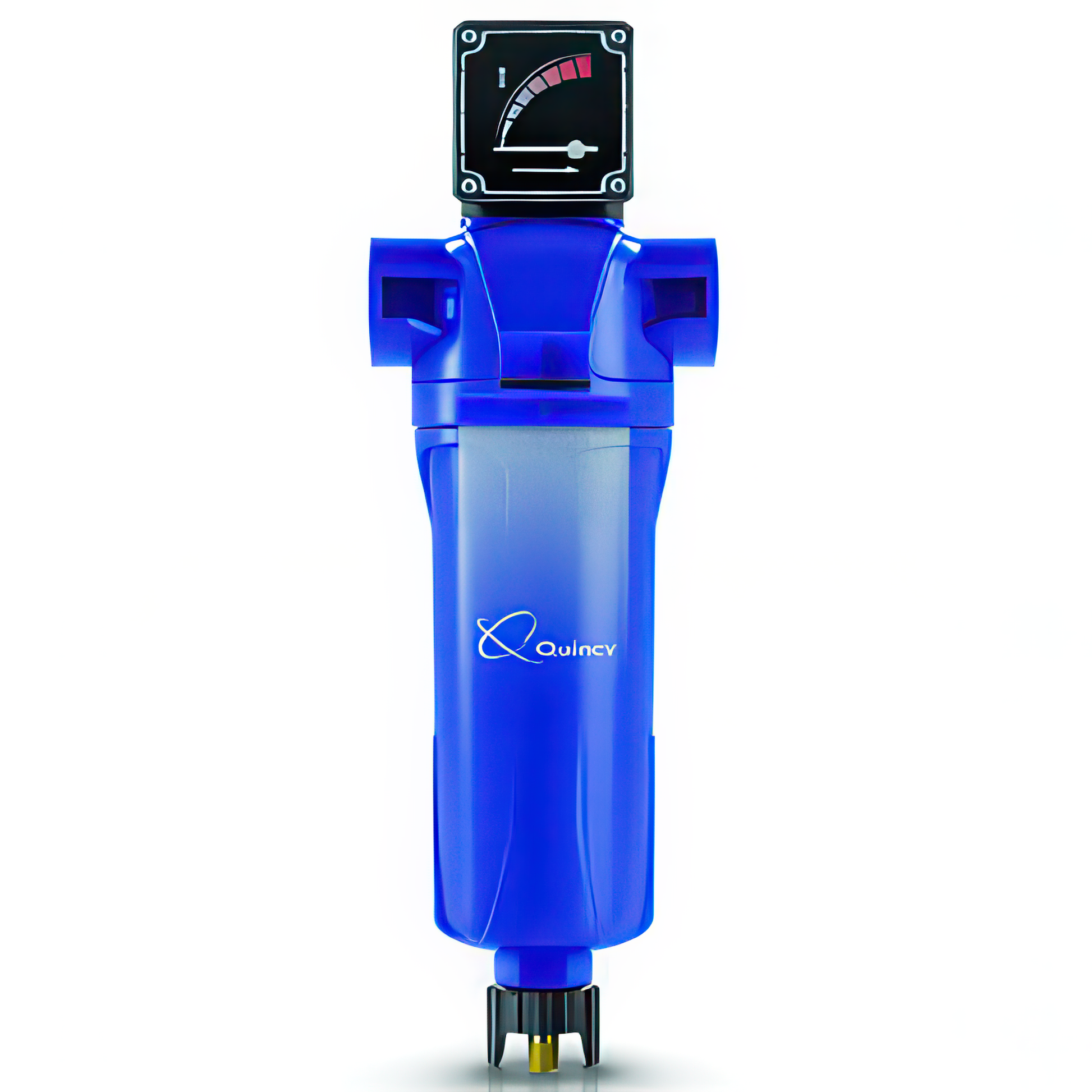

• Manual drain standard; optional differential pressure gauge available

Best Practice Setup

For maximum air purity and extended filter life, use the QAF as part of a multi-stage filtration system:

1. Particulate/Coalescing Filter – removes liquid oil, bulk water, and solids
2. QAF Activated Carbon Filter – adsorbs oil vapor and eliminates odors
3. (Optional) Polishing Filter – for the most sensitive applications

This configuration prevents premature saturation, maintains consistent air quality, and ensures steady system performance.

User Advantages

• Zero-contaminant air for high-end paint finishes, breathing air, and sensitive processes
• Reduced maintenance costs by protecting dryers, valves, and pneumatic tools
• Easy integration with any compressed-air system
• Simple service: quick cartridge changeouts and no electrical connections required

Avoid These Risks

• Contaminated or odor-tainted air supply
• Corrosion and wear in downstream equipment
• Product defects or quality issues in finishing and coating operations
• Increased maintenance costs and downtime
• Bottom Line

When your operation demands absolute air purity, the Quincy QAF Activated Carbon Filter delivers. With ISO 8573-certified performance, high-efficiency adsorption, and low pressure loss, it’s the ideal solution for achieving breathable-air-grade compressed air and flawless production results.
