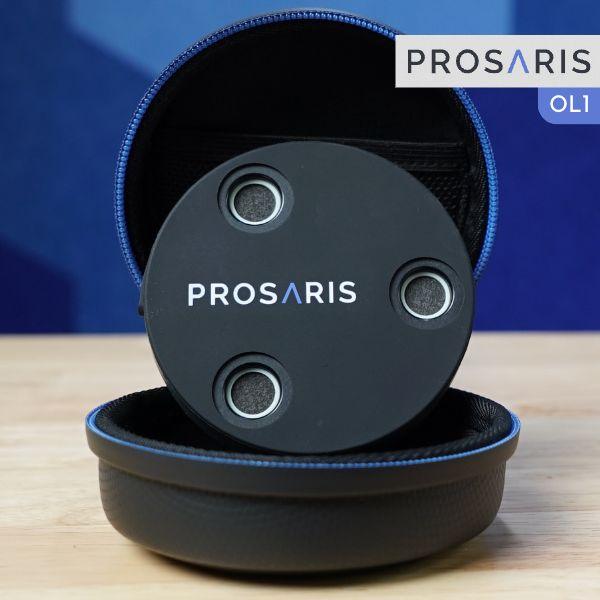

Prosaris OL1: Smart Ultrasonic Air Leak Detection

Smart Leak Detection

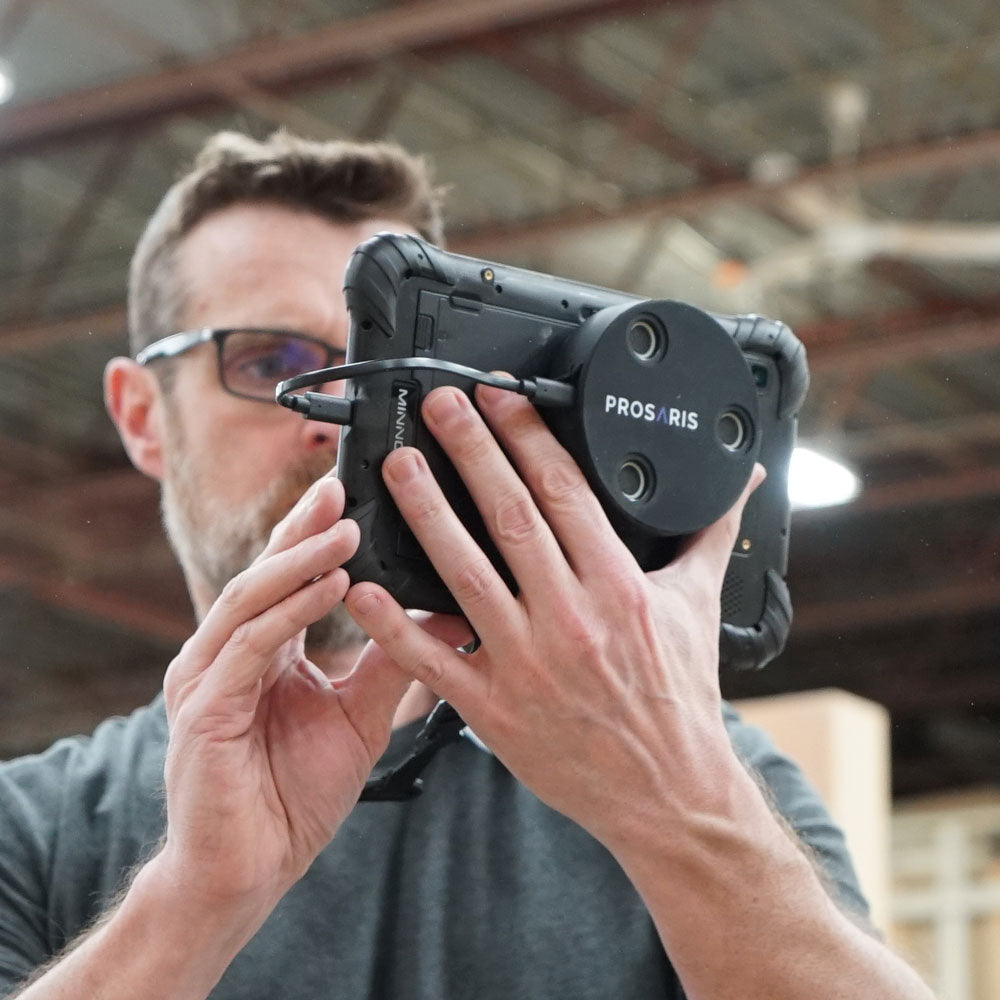

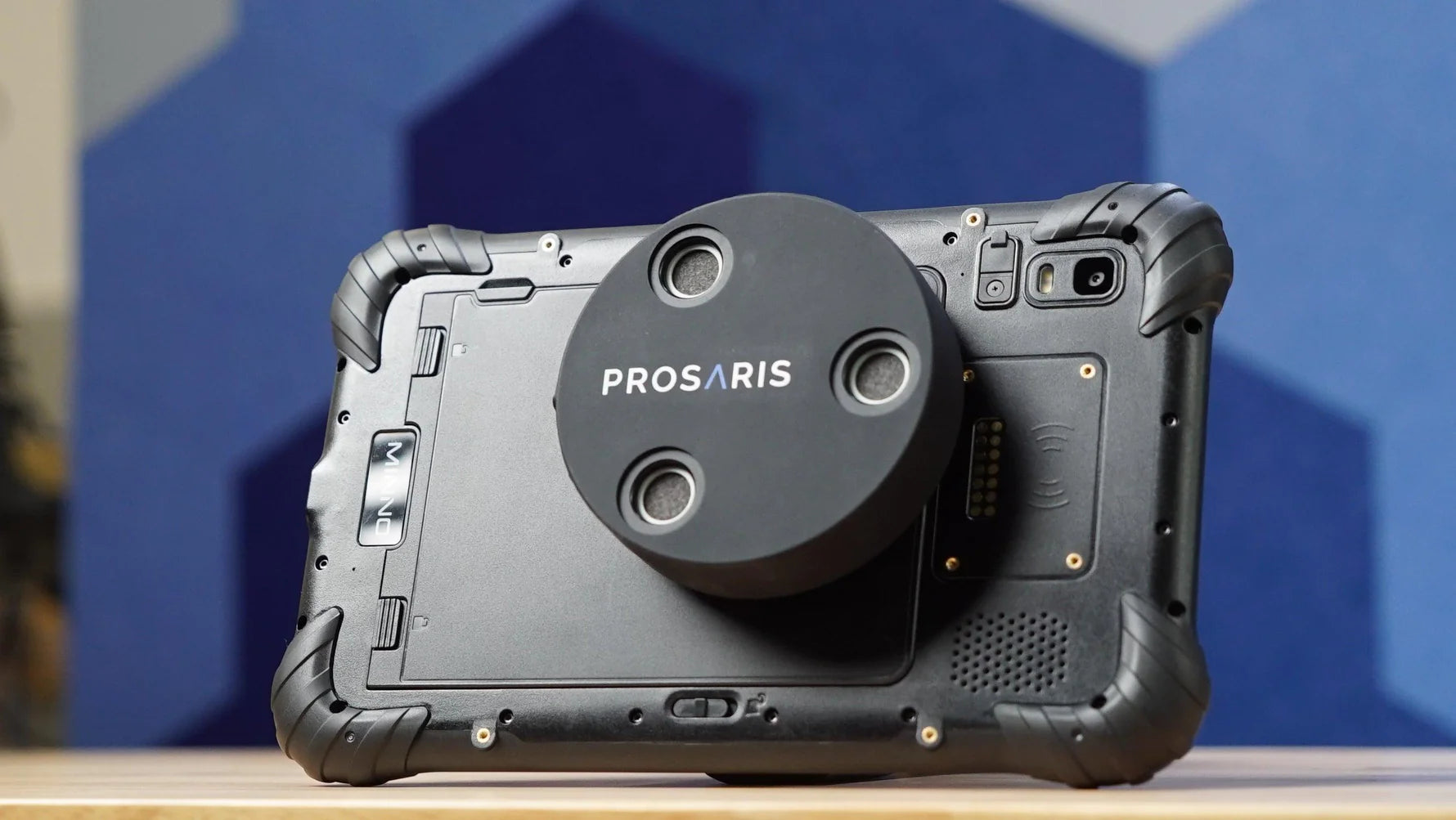

A smart ultrasonic sensor that transforms your phone or tablet into a visual ultrasonic leak detector in compressed air, gas and vacuum systems. The OL1 in conjunction with the Prosaris Leak Management App (Google Play) gives you all the features and tools you need to help you develop an in-house leak management program. Calculate Flow, energy loss, financial and environmental impacts in real-time.

Watch It In Action

https://aircompressorstore.com/wp-content/uploads/2023/08/Prosaris-Soltution_Quick-Overview-36.mp4

Features

Features

Smart Device

OL1 captures leak data and stores it along with pictures and location tags for easy tracking and record keeping.

Visual Leak Locator

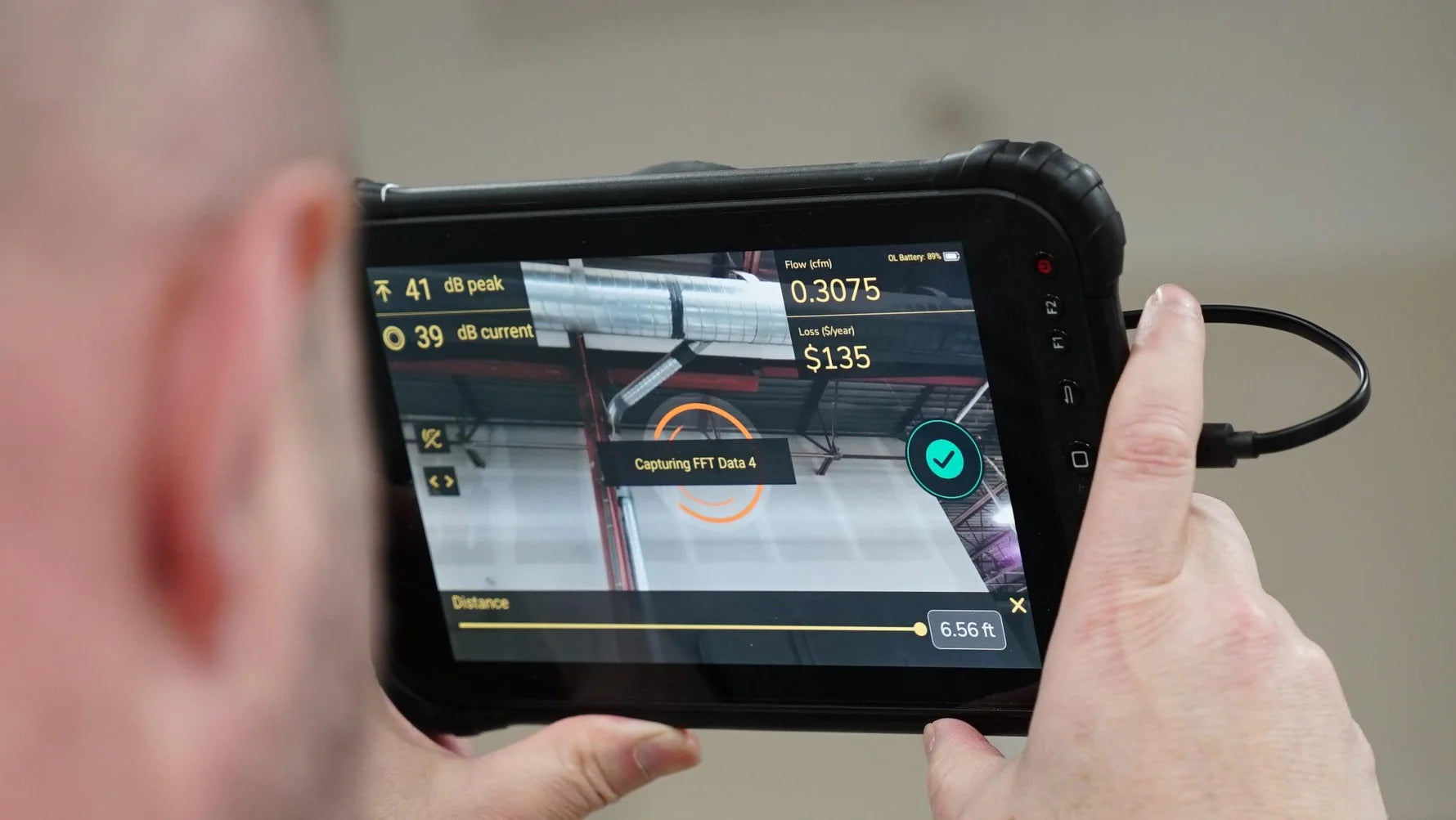

OL1 using the smartphone's camera can scan a wider industrial area, and directs you to the source of the leak.

Impact Calculator

Prosaris Leak Locator app can calculate flow, energy loss and monetary loss in real-time.

No Training Required

No special training or trained professionals are needed to find leaks in your facility with the Prosaris OL1.

Improve Efficiency

Reduce spurious shutdowns caused by low system air-pressure, and high energy bills by employing Prosaris Smart Leak Management tools into regular workflow.

Affordable Leak Management

Prosaris OL1 is a smart ultrasonic tool that offer the benefits of expensive sonic visualizers at the cost of auditory leak detectors.

Technical Specifications

Device-General

Dimensions: (H x W x L) 22mm x 95mm x 95mm
Weight: (including battery) 300g (0.7 pounds)
Operating temperature: -20°C to +50°C (-4°F to +122°F)
Storage temperature: -20°C to +50°C (-4°F to +122°F)
Charging temperature: +4°C to +45°C (+39°F to +113°F)
Pollution degree: 2
Operating environment: Wet location
Relative humidity: 10% to 95% non-condensing
Ingress protection: Designed to IP54
Warranty: 1 year
Supported languages: English

Sensors

24 digital MEMS microphones
Frequency Range: 10 kHz to 80 kHz
Operating distance: 0.3m to >50m (1ft to >164ft)
Field of view : 150° ± 5°

Acoustic Measurement

Measurement range: 0 dB to 110 dB (frequency independent)
dB gain: Auto gain adjustment
Frequency selection: User selection for lower and upper bound (FFT visible with display settings)
Sensitivity Auto sensitivity adjustment :
Performance (detection) In low noise industrial environment:

• >0.481 lpm at 310 kPag from 4.25m (>0.017cfm at 45 psig from 14')
• >0.935 lpm at 690 kPag from 9.15m (>0.017cfm at 100 psig from 30')

For higher noise environments:

• >0.481 lpm at 310 kPag from 3.20m (>0.017cfm at 45 psig from 10.5')
• >0.935 lpm at 690 kPag from 5.65m (>0.017cfm at 100 psig from 18.5')

Safety

General safety:
UL61010-1, 3rd Ed. 2019-07-19 CAN/CSA No. 61010-1-12, 3rd Ed. 2019-07-19 IEC 61010-1:2010, 3rd Ed. + AMD1: 2016

Electromagnetic Compatibility (EMC) international: IEC 61326-1: Portable Electromagnetic Environment CAN ICES-3(A)/NMB-3(A)

FCC: FCC 47 CFR Part 15, Subpart B – Verification ICES-003 Issue 6 January 2016

Battery: UL 1642 (except impact test and crush test)

Battery

Type: Rechargeable Li-Pol
Rating: Rated 3.7Vdc, 1.5Ah, maximum specified charge and discharge temperature 45°C
Life: 8+ hours
Charging time: 6 hours
Charging method: USB-C

Connectivity

Connection type: Cable-connected (USB-C)
Compatible Medium: Android
Compatible with: Prosaris Leak Management App (available on Google Play)

Software User Plans

Company User

$600 per year

Billed Annually in advance. First Year's purchase is included with the purchase of every OL1.

• Add and manage multiple users
• Manage all Company devices, incl. location and usage data
• Assign actions to team members
• View and update all team records
• View charts and dashboard data for all team member records
• Define team permissions and roles
• Customize record data entry to supports consistent records
• Present Company data in format to support incentive programs

Extend Your Company User Plan to 4 years. Includes The Advanced Care Plan.

$3,000 per year

Super-Company User

$2,000 per year

Company User Plus:

• Manage multiple Company locations
• Compare Company facility performance
• Executive level dashboard and KPIs
• Define Company permissions and roles
• Customize critical record data entry

Billed Annually in advance.

Advanced Care Plan

• Commences at the end of the original Prosaris manufacturer’s warranty period of 1 year from date of original
  purchase. The term of the plan is 4 years.
• No deductibles and no hidden fee’s. ACP includes:
  • Repairs due to manufacturers defects during the term of the Plan
  • Failures due to normal wear and tear, including both mechanical and electrical failures
  • Defects in material and workmanship
  • One-time battery replacement in the event that the original battery no longer holds a proper charge
    (based on Prosaris test protocol)
• One-time OL1 thorough cleaning and preventative maintenance detail. Includes: new battery, new silicone outer
  skin, new case, new seals, new vents, new cables, and a complete check to confirm that the OL1 board is
  functioning in an as new compliant state ( if it is not, the OL1 board will be repaired to as new condition or
  replaced).
• Unlimited Tech Support on your covered device and its connection to approved mobile devices. Includes access
  to bilingual (English and French) Tech Support via phone, chat or on-line self-serve.
• File a claim over the phone or by web form. Fast and easy claims process.
• Tech support includes the following:
  • Set up and connection support between your new device and your mobile device.
  • Refresher training, both hardware and backend Company Platform
  • Troubleshoot connectivity issues
  • OL1 tips and tricks for best performance in the field
  • Frequent updates on new product features and access to free trial periods
